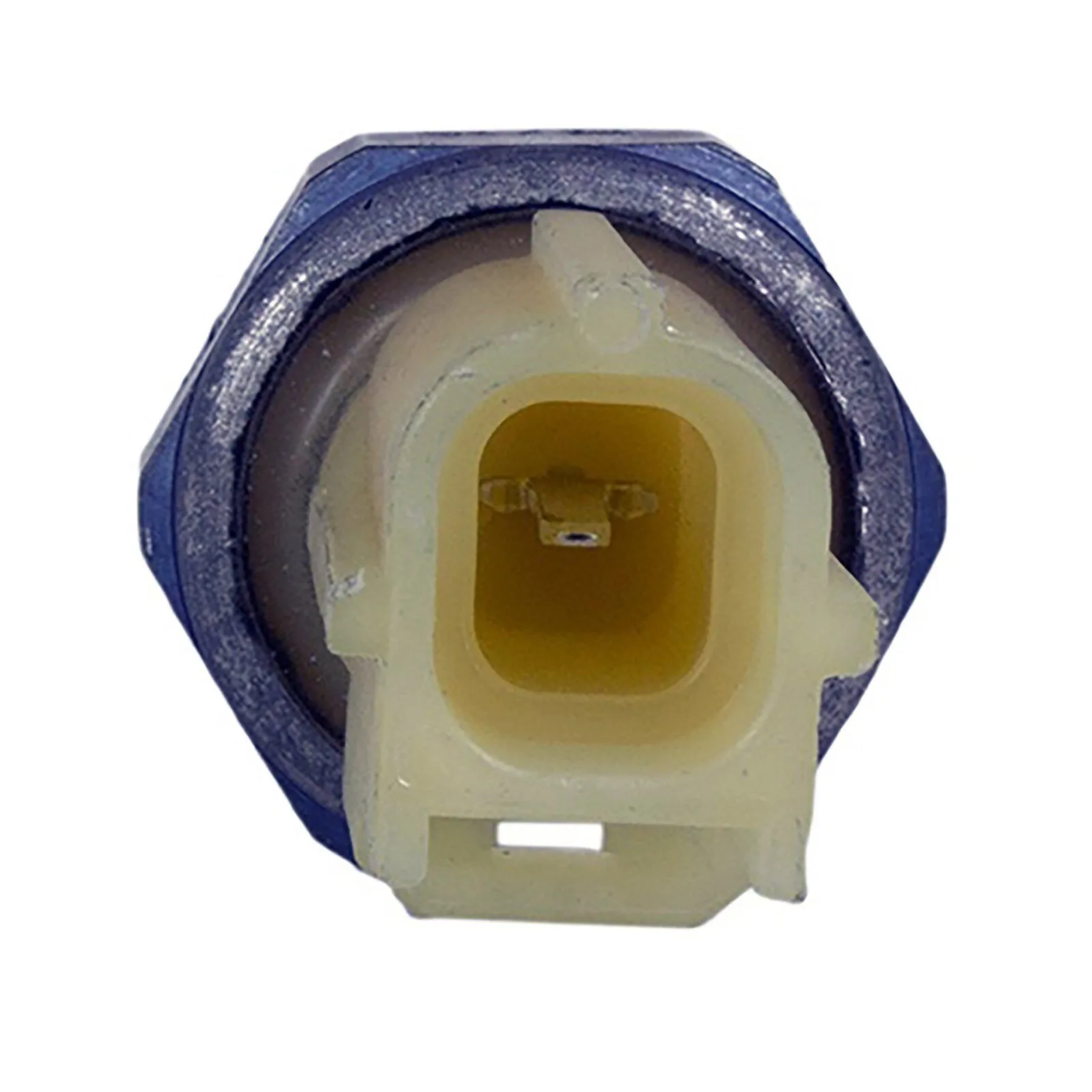

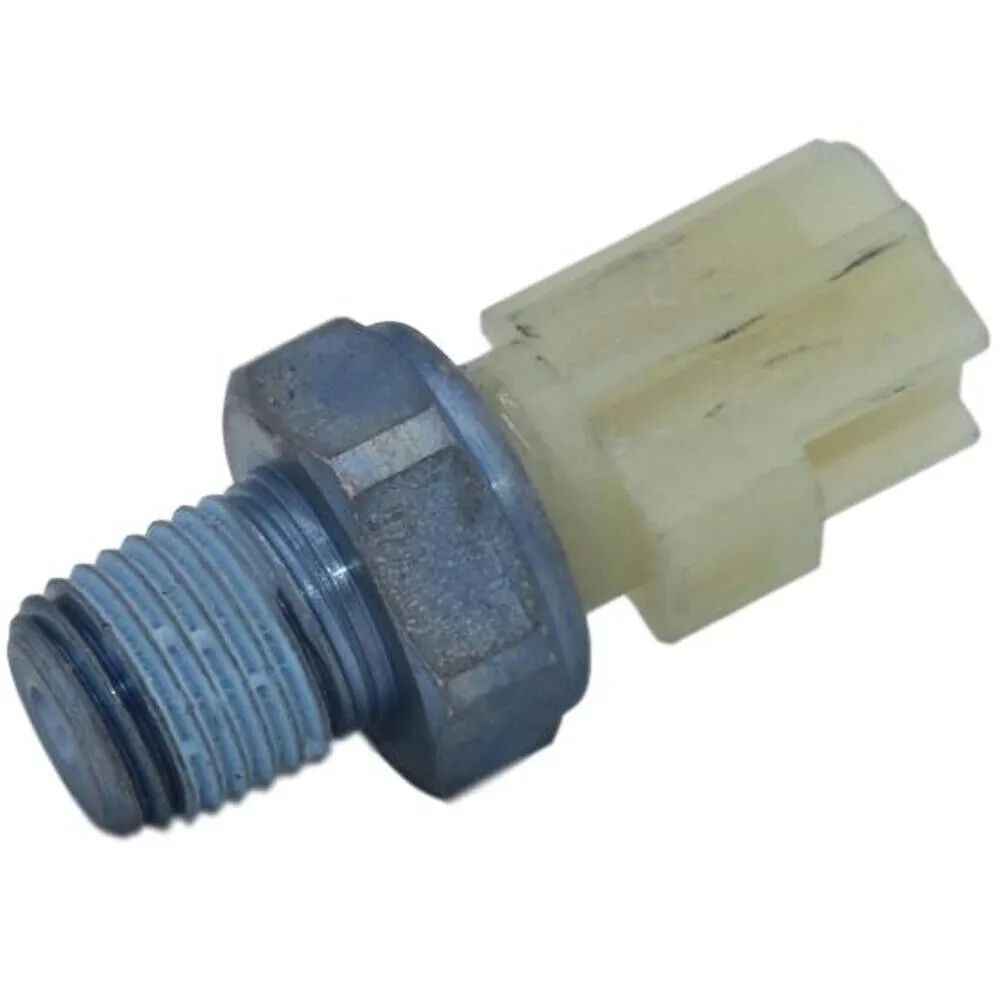

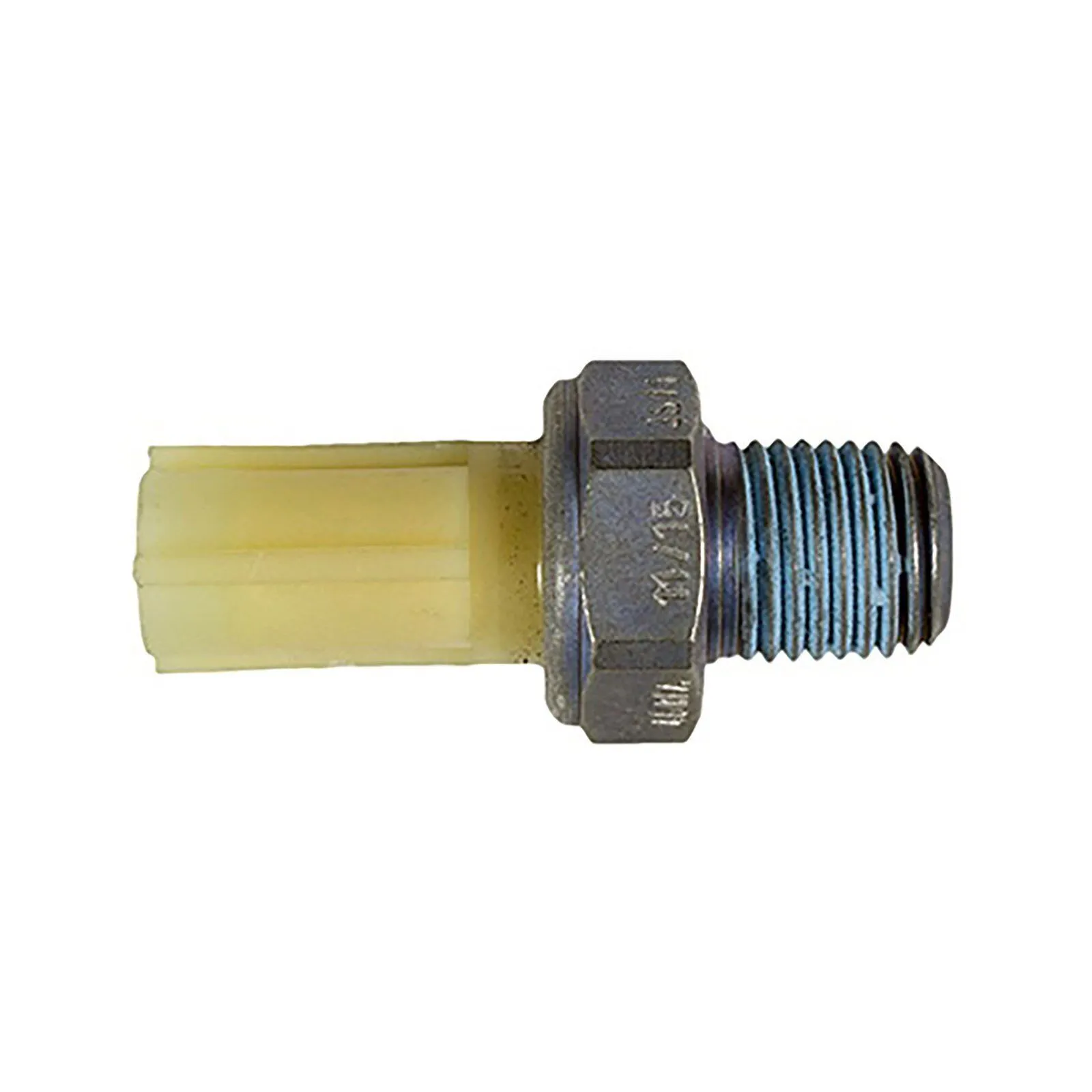

BRAND NEW OEM Quality ENGINE OIL PRESSURE SWITCH TO SUIT MAZDA BT-50 TRIBUTE MPV, LAND ROVER DEFENDER L316

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

OEM: 3S719278AB

Features?

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* ENGINE OIL PRESSURE SWITCH (1 PIN PLUG). An Oil Pressure Switch or Sensor is designed to assess the integrity of an engine's lubrication system. The switch responds to changes in engine oil pressure, and any fault is displayed via illumination of the oil pressure light in the dash.
A faulty oil pressure switch/sensor can lead to low oil levels, which can be very problematic for your engine.

COMPATIBLE VEHICLES

[01/08 - 12/10] JAGUAR X-TYPE X400 2.2L 4cyl 224DT DT224 107kW
[01/11 - 12/14] LAND ROVER DEFENDER 1 L316 110 TD4 2.2L 4cyl 224DT DT224 90kW
[01/11 - 12/16] LAND ROVER DEFENDER 1 L316 110 TD4 2.2L 4cyl 224DT DT224 90kW
[01/09 - 12/11] LAND ROVER DEFENDER 1 L316 110 TD4 2.4L 4cyl 244DT DT244 90kW
[01/07 - 12/11] LAND ROVER DEFENDER 1 L316 110 TD4 2.4L 4cyl 244DT DT244 90kW
[01/11 - 12/14] LAND ROVER DEFENDER 1 L316 130 TD4 2.2L 4cyl 224DT DT224 90kW
[01/11 - 12/16] LAND ROVER DEFENDER 1 L316 130 TD4 2.2L 4cyl 224DT DT224 90kW
[01/09 - 12/11] LAND ROVER DEFENDER 1 L316 130 TD4 2.4L 4cyl 244DT DT244 90kW
[01/07 - 12/11] LAND ROVER DEFENDER 1 L316 130 TD4 2.4L 4cyl 244DT DT244 90kW
[01/11 - 12/16] LAND ROVER DEFENDER 1 L316 90 TD4 2.2L 4cyl 224DT DT224 90kW
[01/10 - 12/11] LAND ROVER DEFENDER 1 L316 90 TD4 2.4L 4cyl 244DT DT244 90kW

[09/11 - 08/15] MAZDA BT-50 UP (11-15) B22P 2.2L 4cyl P4AT MZ-CD 110kW
[09/15 - 06/20] MAZDA BT-50 UR (15-20) B22P 2.2L 4cyl P4AT MZ-CD 110kW
[09/99 - 06/02] MAZDA MPV LW 2.5L V6 GY
[07/02 - 09/06] MAZDA MPV LW 3.0L V6 AJ
[01/01 - 12/03] MAZDA TRIBUTE EP 2.0L 4cyl YF

ABOUT YOUR VEHICLE'S ENGINE OIL PRESSURE SENSOR

What does an oil pressure switch do?
The oil pressure switch is installed in the oil circuit of the engine. It monitors the oil pressure and turns off or on a warning light or controls an oil pressure indicator.

Where are these sensors located?
An oil pressure sensor (switch) is usually installed in the cylinder block close to an oil filter or at the oil filter housing.

Will a malfunctioning oil pressure switch illuminate the warning light or affect vehicle operation?
The oil pressure switch is normally closed. When the ignition is switched on, the oil pressure warning light illuminates. When oil pressure is built up as the engine starts, the switch contact in the oil pressure switch opens and the ground contact for the warning light is interrupted. The warning light goes out.

What are the common causes of failure?
Typically these sensors fail due to a Clogged inlet bore, Contact failure on the connector, Internal short-circuits, Damaged measuring element, Loss of sealing

How to determine if these sensors are malfunctioning?
The best way to test if your sensor is bad is through the lights on the oil pressure gauge. If the low oil pressure warning light comes on when the engine's oil levels are normal and your engine is running smoothly and quietly, then you likely have a bad oil pressure sensor.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
All Pressure sensors are 100% factory tested to ensure trouble-free performance.

What is the difference between an oil pressure sensor and an oil pressure switch?

An oil pressure switch is a simple on/off device that triggers the oil pressure warning light when pressure drops below a fixed threshold. It provides no information about the actual pressure level - just whether it is above or below the activation point. An oil pressure sensor provides a continuous analogue signal to the ECU and instrument cluster, allowing the dashboard to display an actual pressure reading and giving the ECU real-time data for engine management decisions. Many vehicles use both - a switch for the warning light and a sensor for the gauge.

What are the symptoms of a faulty oil pressure sensor or switch?

The most common symptom is a false oil pressure warning light on the dashboard despite the engine having correct oil level and pressure. The light may be on constantly or may flicker particularly at idle when oil pressure is naturally at its lowest. An oil leak from around the sensor or switch body is also a common sign of failure. On vehicles with a pressure gauge rather than just a warning light, a faulty sensor may cause the gauge to read zero, maximum, or erratically.

How do I confirm if the oil pressure warning is a faulty sensor or actual low pressure?

Never assume a warning light is a faulty sensor without checking first. Turn the engine off immediately when the oil pressure light comes on and check the oil level on the dipstick. If oil level is correct, you can verify actual oil pressure by fitting a mechanical oil pressure gauge to the sending unit port and running the engine briefly. A reading within the normal range (typically 200 to 500 kPa at operating temperature and idle) confirms the warning is from a faulty sensor rather than actual low pressure.

Is it safe to continue driving with the oil pressure warning light on?

No - stop the engine as soon as it is safe to do so. An actual low oil pressure condition will cause catastrophic engine damage within minutes of continued running. Even if the fault turns out to be a faulty sensor, you cannot confirm this while driving. Always treat an oil pressure warning light as a critical fault requiring immediate attention until proven otherwise.

How difficult is it to replace an oil pressure sensor or switch?

Most oil pressure sensors and switches are threaded directly into the engine block or oil filter housing and can be replaced with basic tools - a socket or spanner of the correct size and some thread sealant. Allow the engine to cool before removal to avoid burns from hot oil. Have a rag ready to catch the small amount of oil that will spill when the old sensor is removed. The job typically takes 15 to 30 minutes on most vehicles.

Will a faulty oil pressure sensor damage the engine?

The sensor itself does not affect oil pressure or lubrication - it only monitors and reports pressure. A faulty sensor that gives a false low reading may cause unnecessary anxiety but will not damage the engine. However if the sensor gives a false normal reading when actual pressure is low, it will prevent the warning light from alerting you to a real low pressure condition that could cause serious engine damage. This is why verifying actual oil pressure is important before dismissing an oil pressure fault as a sensor issue.

Identification
SKU	OPS-047
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	1800145
Reference OEM Number	YF0918501
Product Specifics
Sensor Type	Oil Pressure Switch Sensor
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	YF0918501
Manufacturer Warranty	1 Year
Make	Mazda
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
