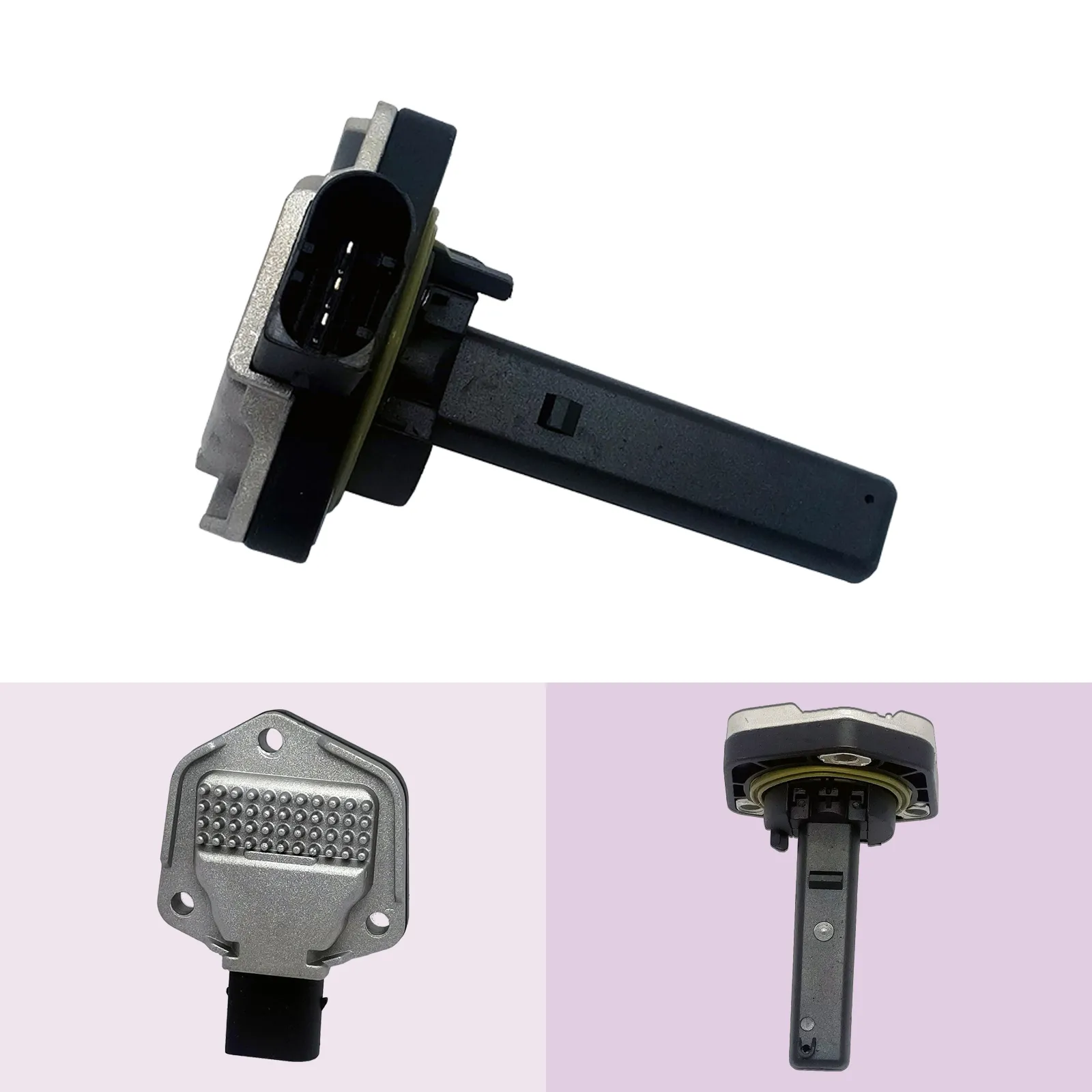

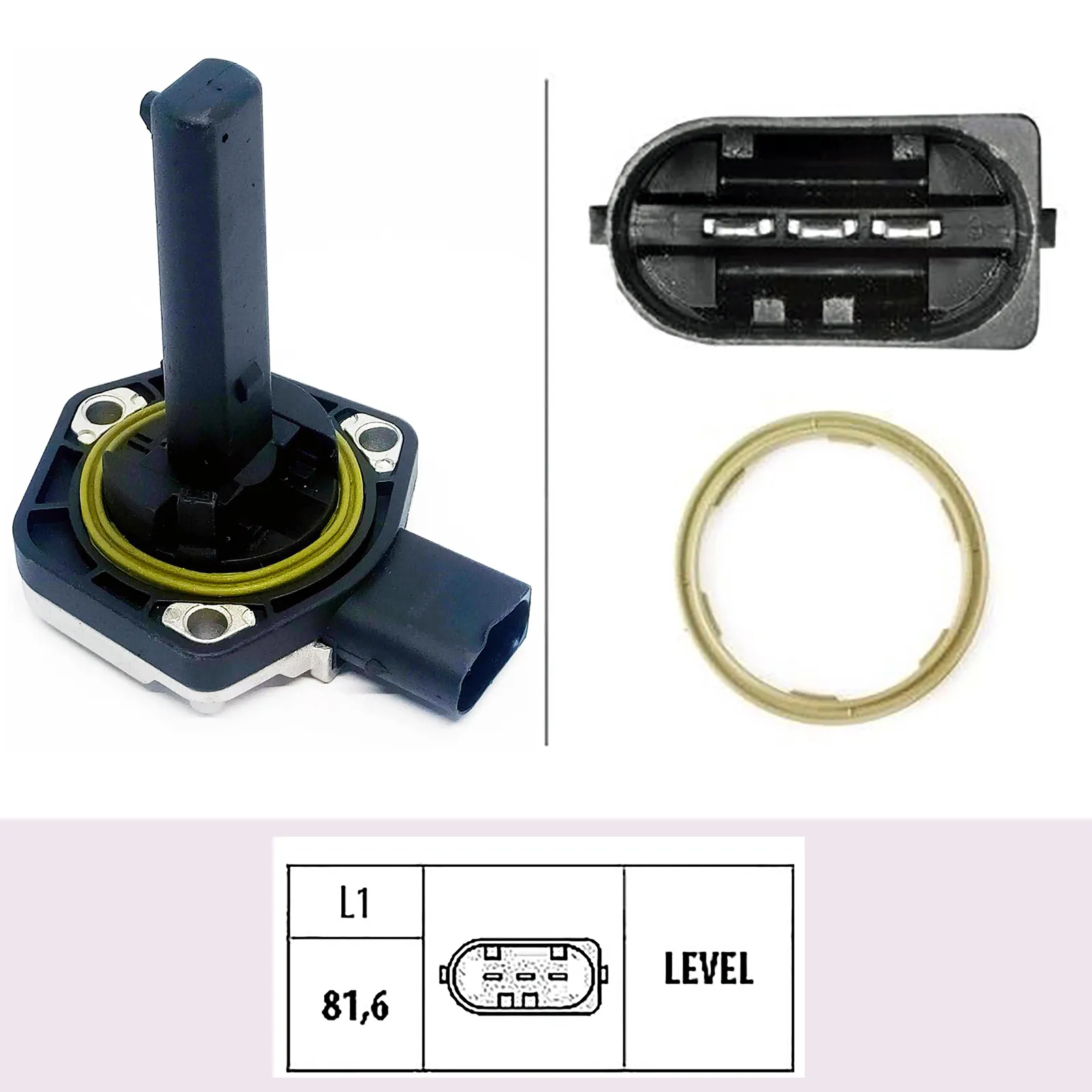

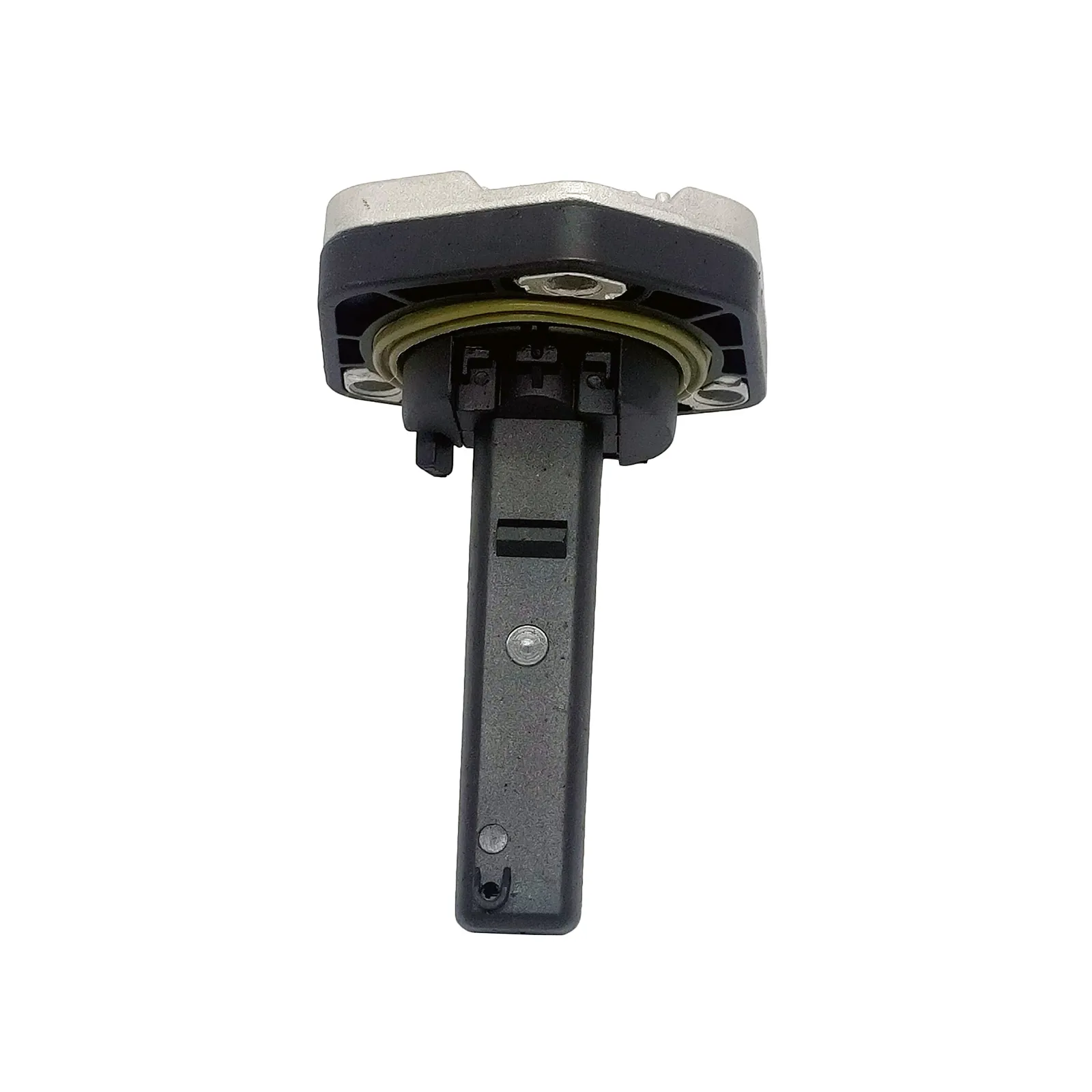

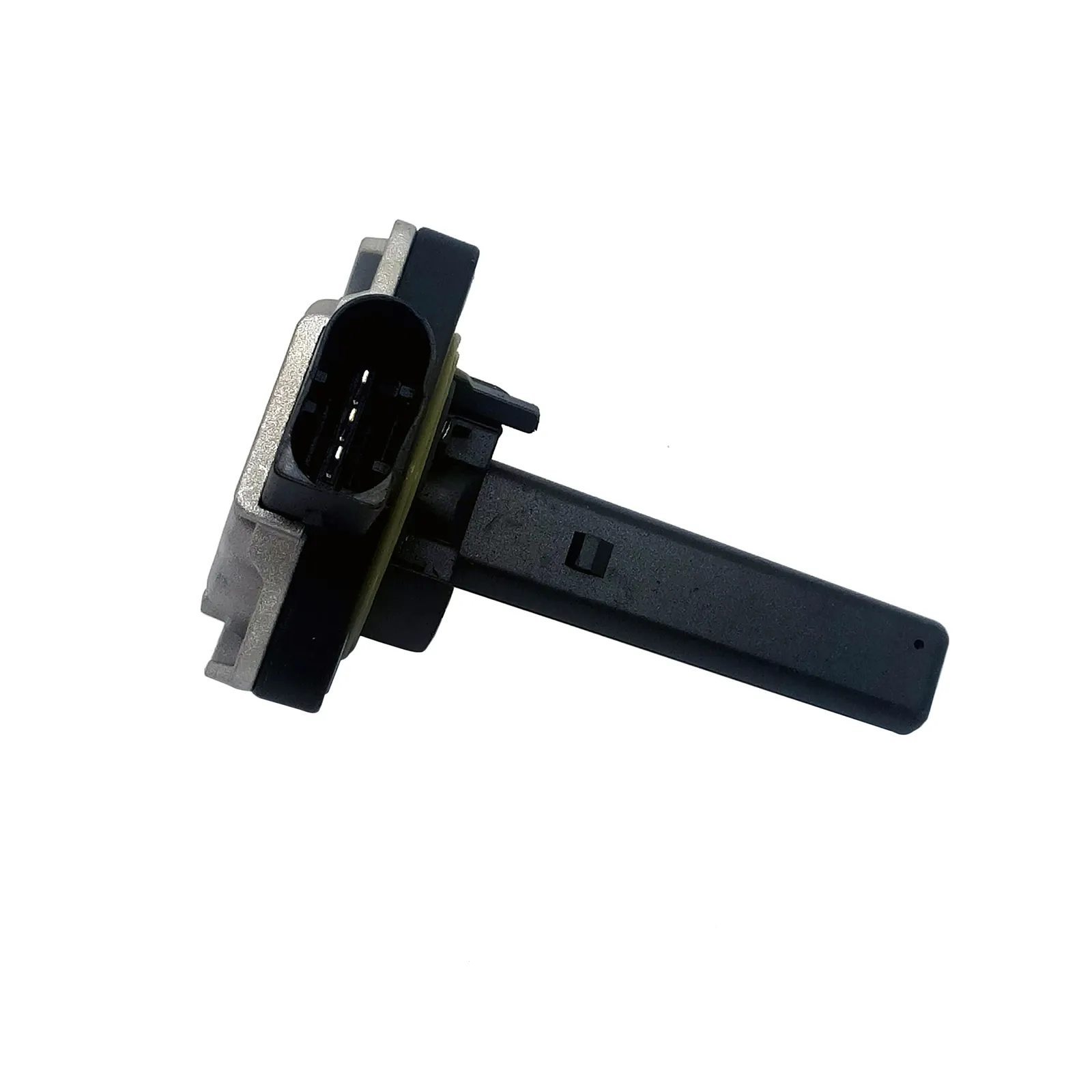

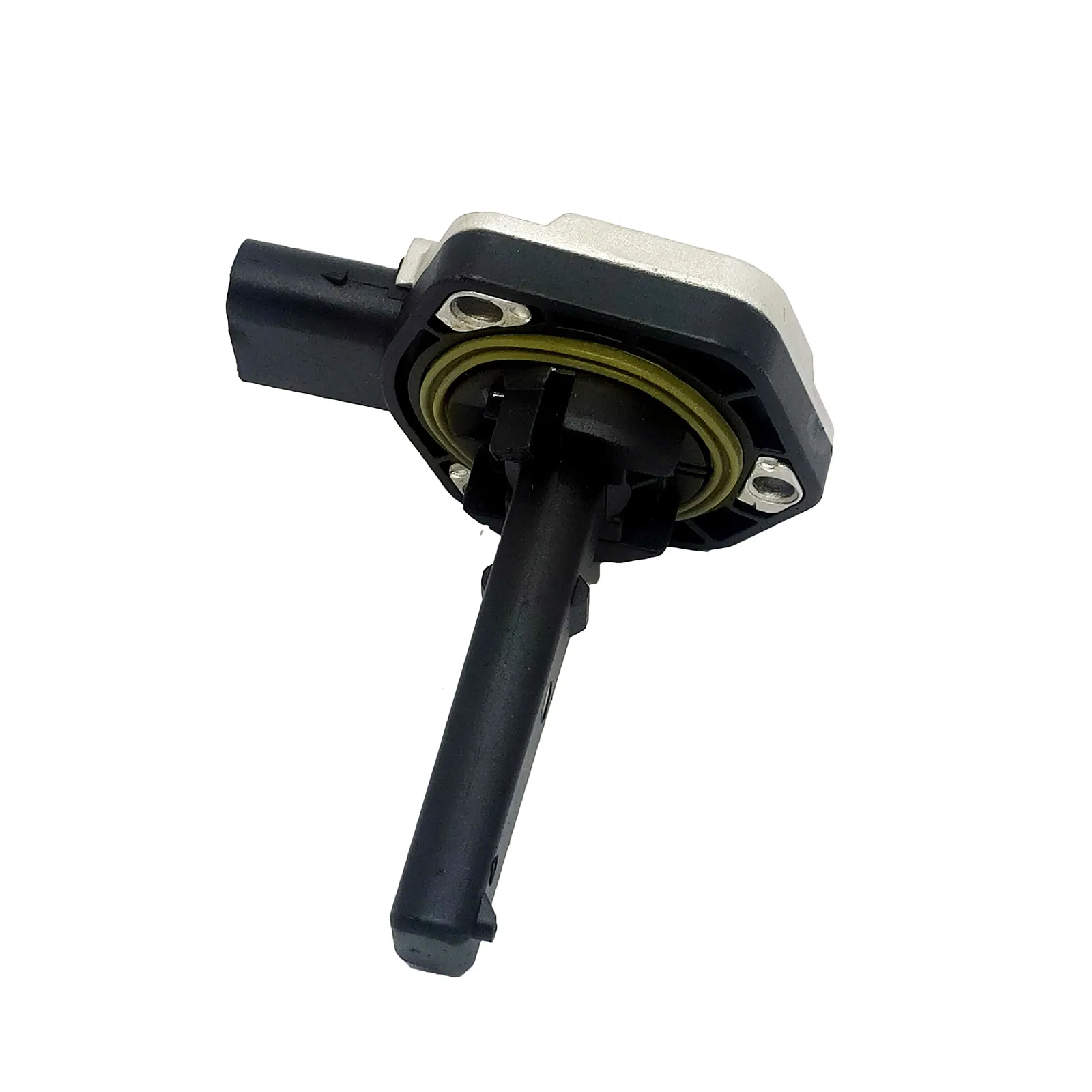

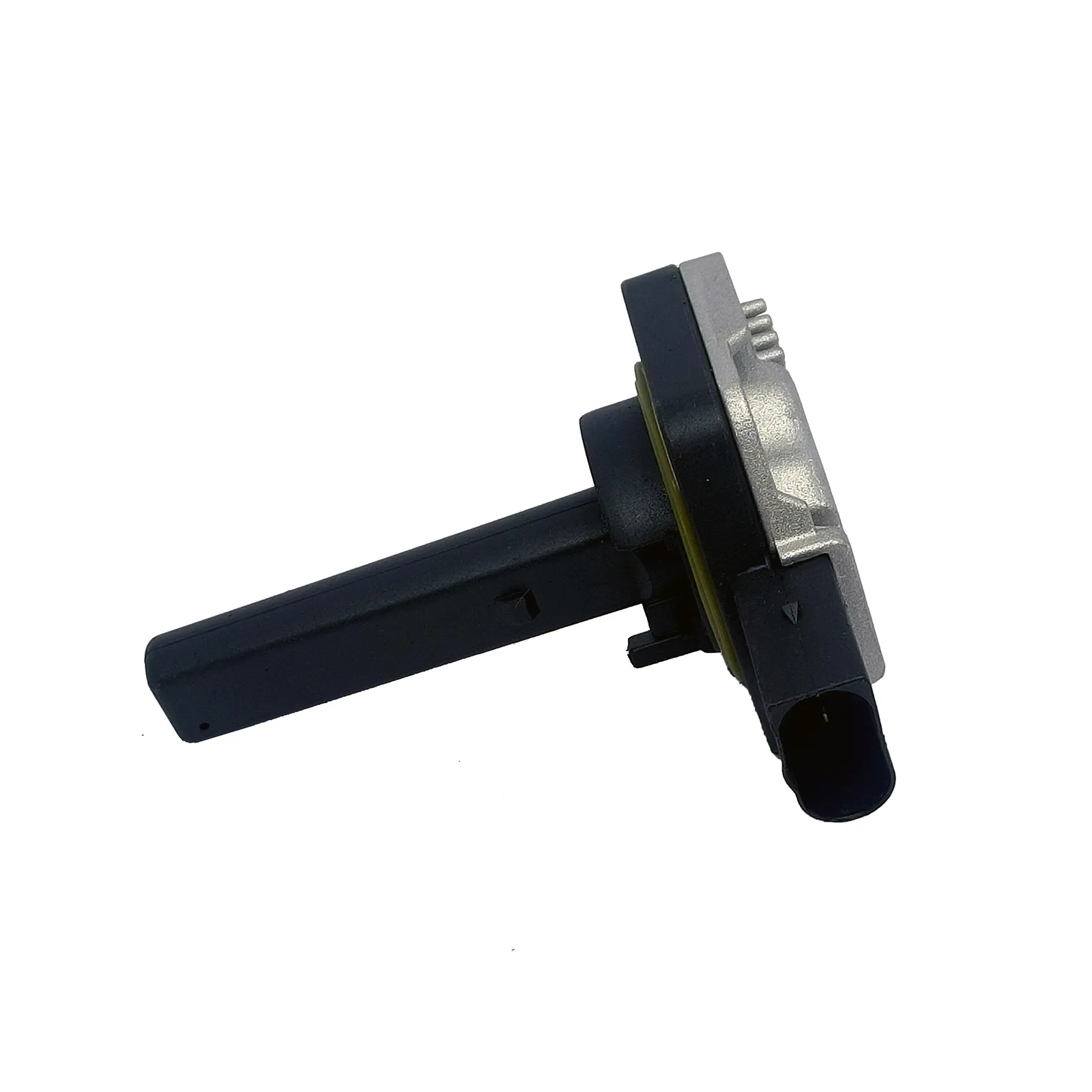

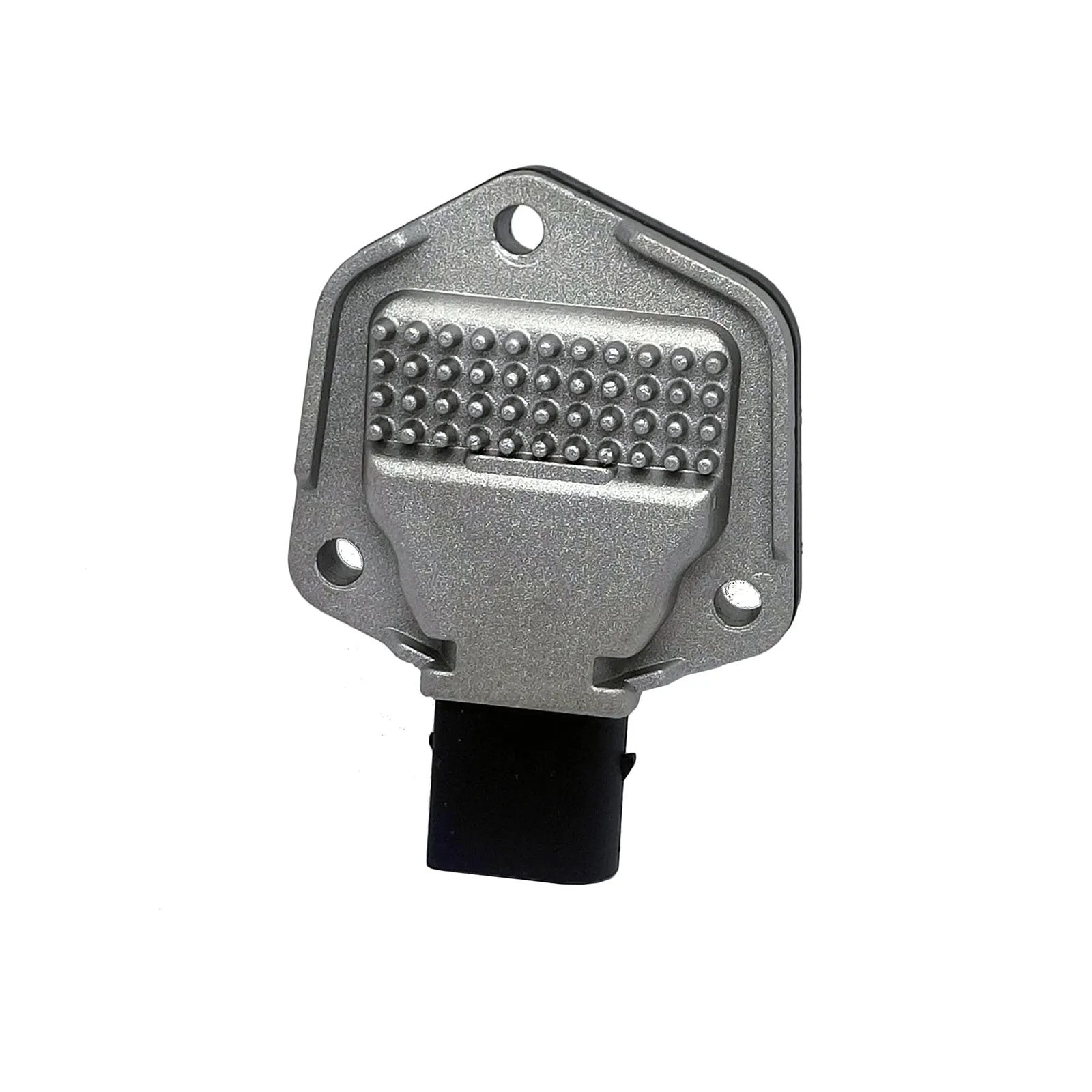

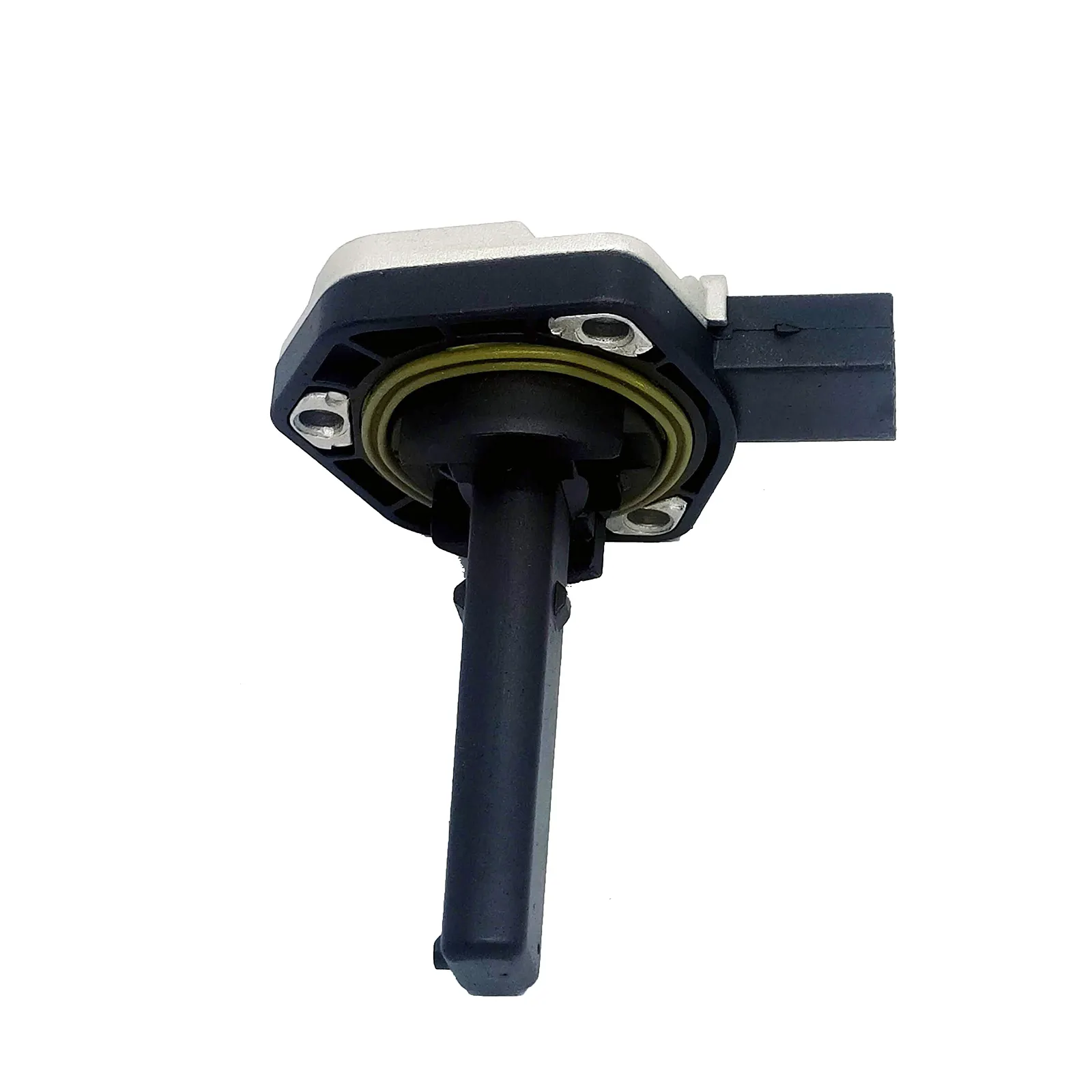

Oil Level Sensor 12617501786 for BMW E82 E87 E88 E46 E90 E91 E92 E93 E84 E89

The oil level sensor monitors the volume of engine oil in the sump and alerts the driver when the level drops below a safe threshold. It provides an early warning before oil level drops low enough to affect oil pressure and cause engine damage. Unlike the oil pressure sensor which monitors operating pressure while the engine is running, the oil level sensor typically reads level when the engine is off or at idle and the oil has settled in the sump.

Common symptoms include an oil level warning light on the dashboard despite the dipstick confirming correct oil level, no warning light appearing even when oil is actually low, and intermittent warnings that appear when the engine is cold and disappear once the engine warms up. A Check Engine light with oil level circuit fault codes may also be present. Always verify actual oil level with the dipstick before assuming the sensor has failed.

Most modern oil level sensors use a thermistor-based measurement system. A heating element warms the sensor tip and the rate at which heat dissipates indicates whether the tip is submerged in oil or exposed to air - oil conducts heat away faster than air. Some older vehicles use a float-based sensor similar to a fuel level sender. The ECU interprets the sensor signal and triggers the warning light when oil level is below the minimum mark.

A single occurrence of an oil level warning with a correct dipstick reading suggests a faulty sensor. However do not ignore repeated warnings - recheck the dipstick carefully, ensuring the vehicle is on level ground and the engine has been off for at least five minutes to allow oil to drain back into the sump. If the dipstick consistently shows correct level and the warning persists, replace the sensor. If the dipstick shows low oil, top up immediately.

No - they are two completely different sensors monitoring different things. The oil level sensor measures the volume of oil in the sump and is a maintenance warning device. The oil pressure sensor measures the pressure of oil circulating through the engine and is a real-time engine protection device. A low oil level will eventually cause low oil pressure, but the level sensor provides an earlier warning. Most vehicles have both sensors fitted separately.

On most vehicles yes - the oil level sensor is mounted in the oil sump below the oil level, so the engine oil must be drained before the sensor can be removed without spillage. Use this as an opportunity to perform an oil and filter change at the same time, as draining the oil is the main labour component of a service. Refill with the correct grade and quantity of oil specified for your engine after fitting the new sensor.
