Crankshaft Position Sensor for BMW 3 Series E46 M3 99-05 with SMG

Part #: CSCA142 OEM #: 13627548994 SKU: CSCA142_1

Direct fit replacement for BMW M3 E46 SMG models

$86.97
RRP $157.99
SAVE $71.02 (45%)
In Stock

BRAND NEW OEM Quality CRANKSHAFT POSITION SENSOR TO SUIT BMW'S VARIOUS VEHICLES





TO SUIT:

OEM# 13627548994, 12147503140, 12140148889



Package Includes:

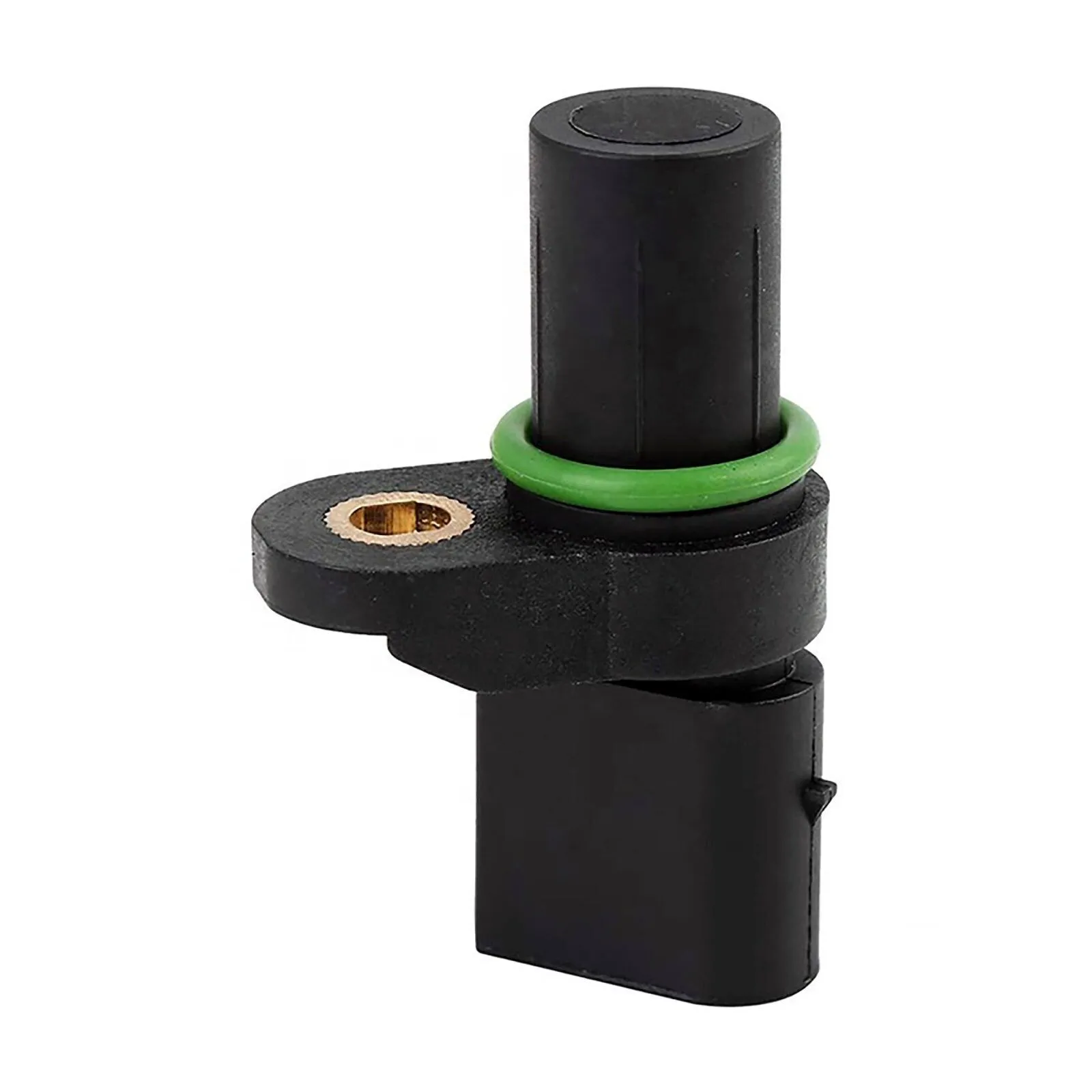

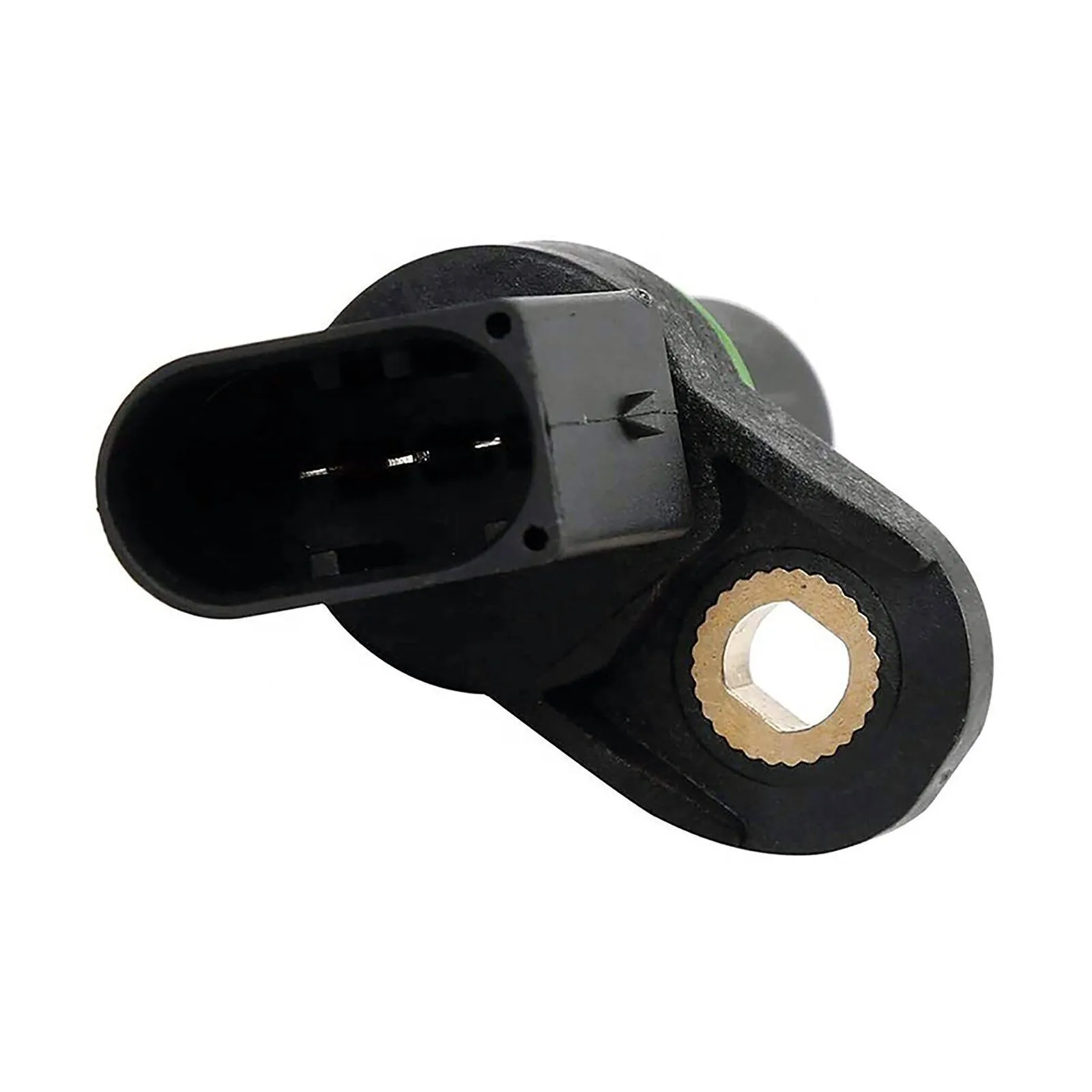

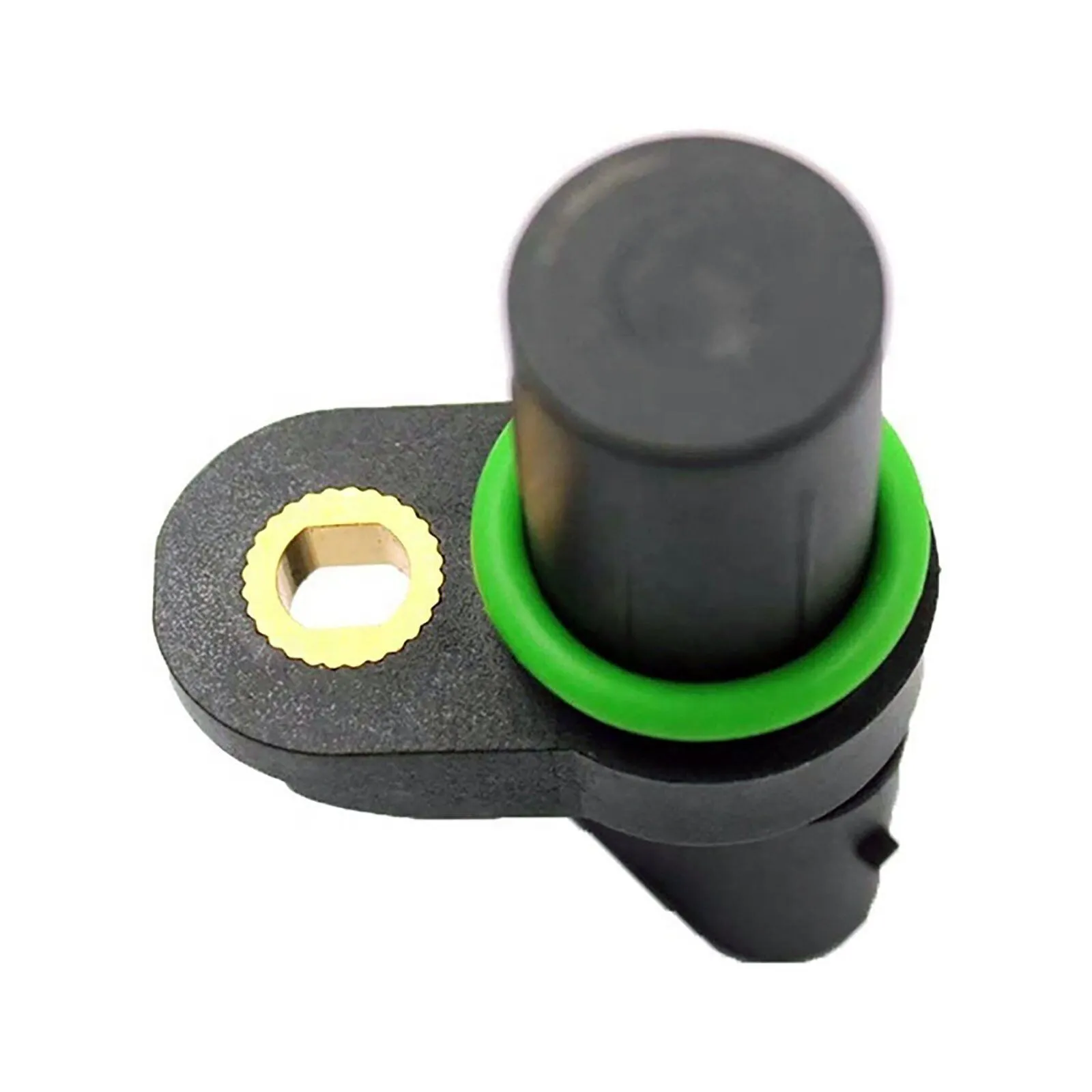

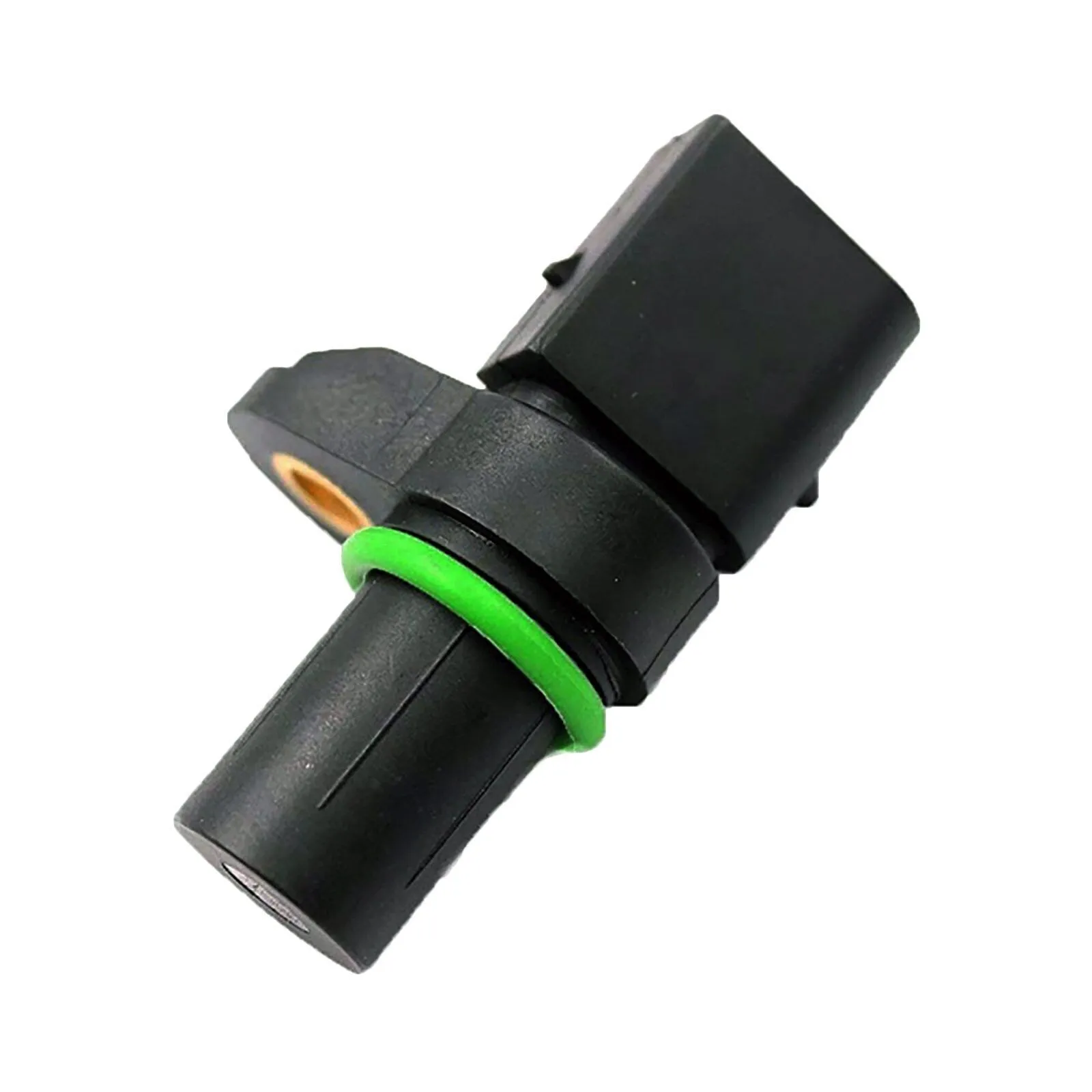

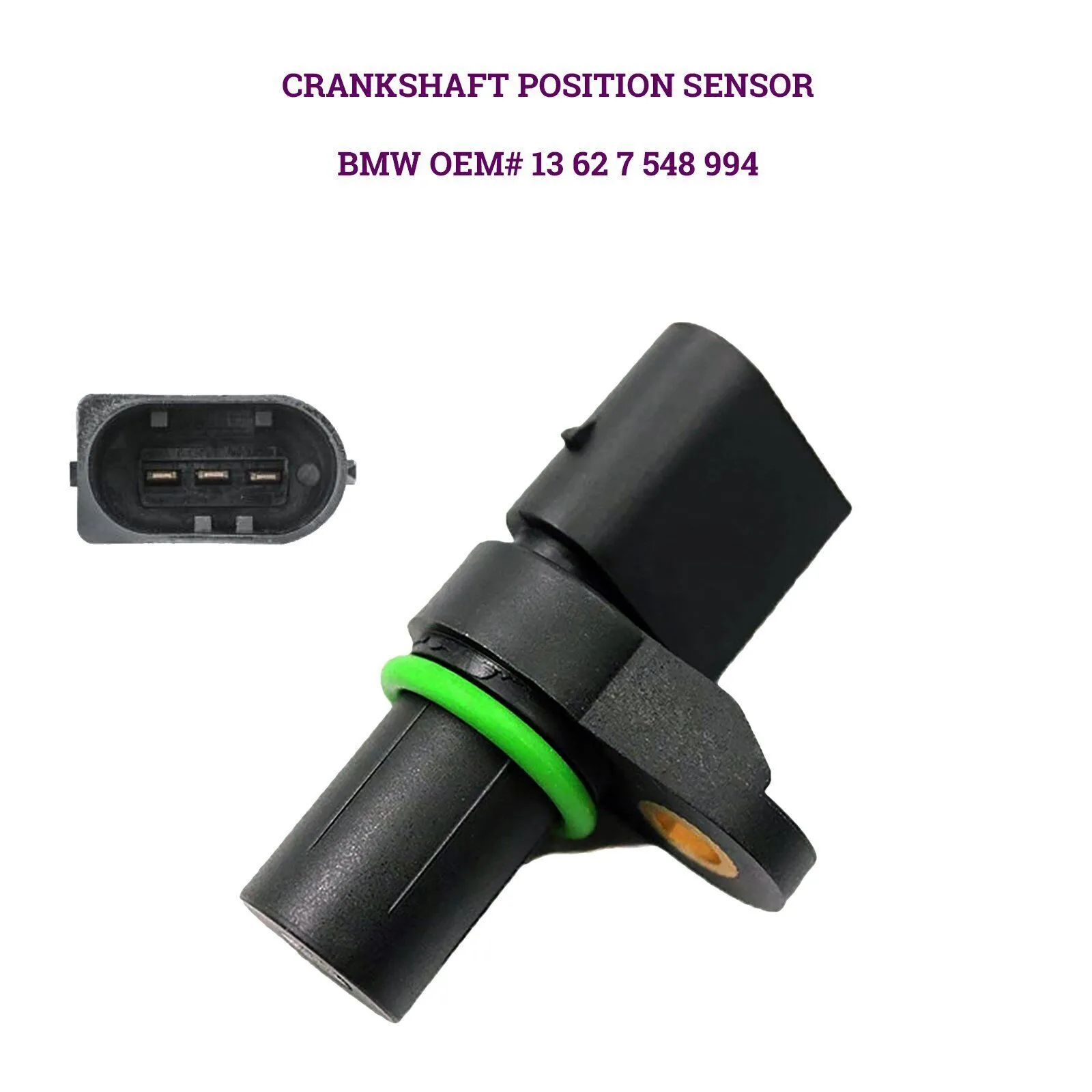

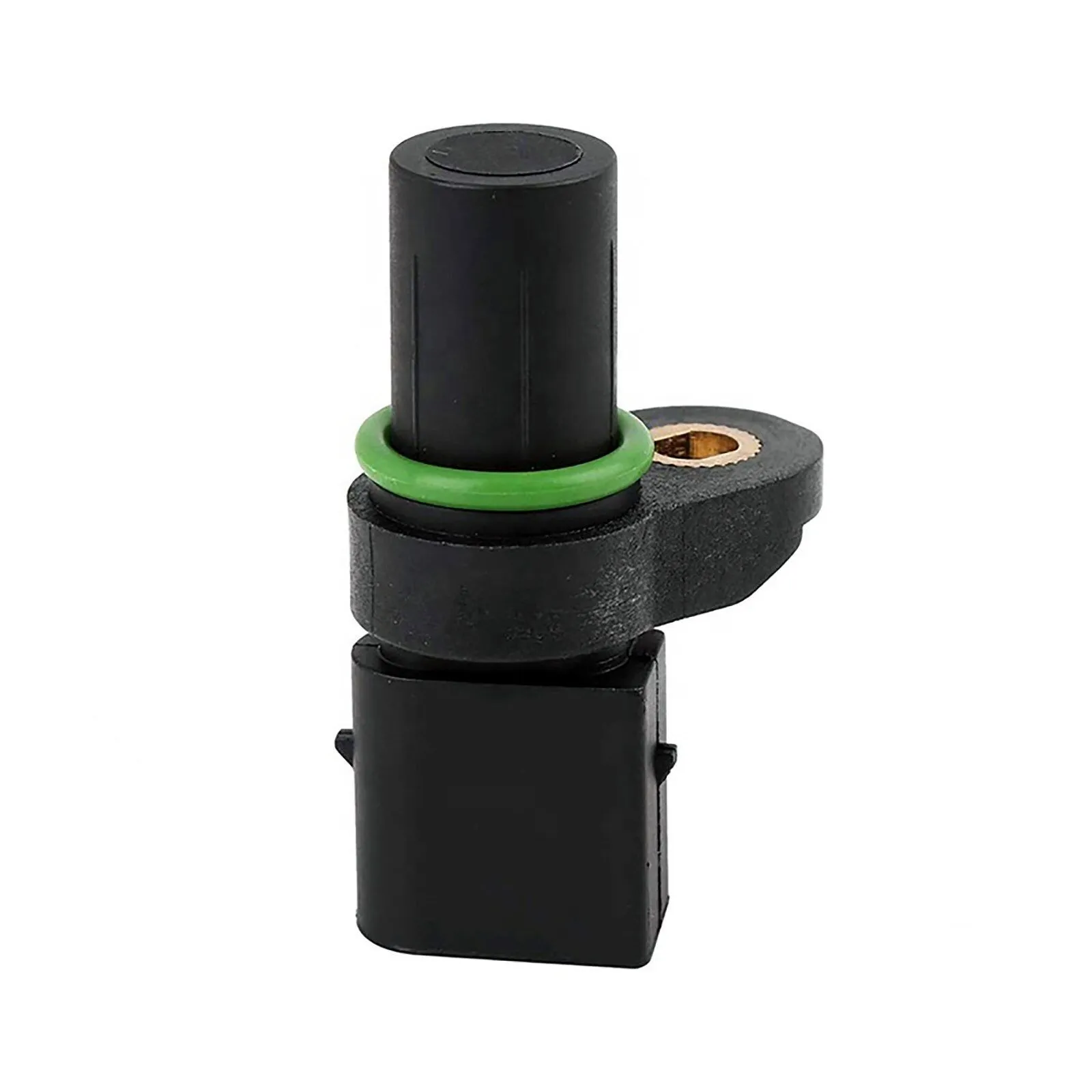

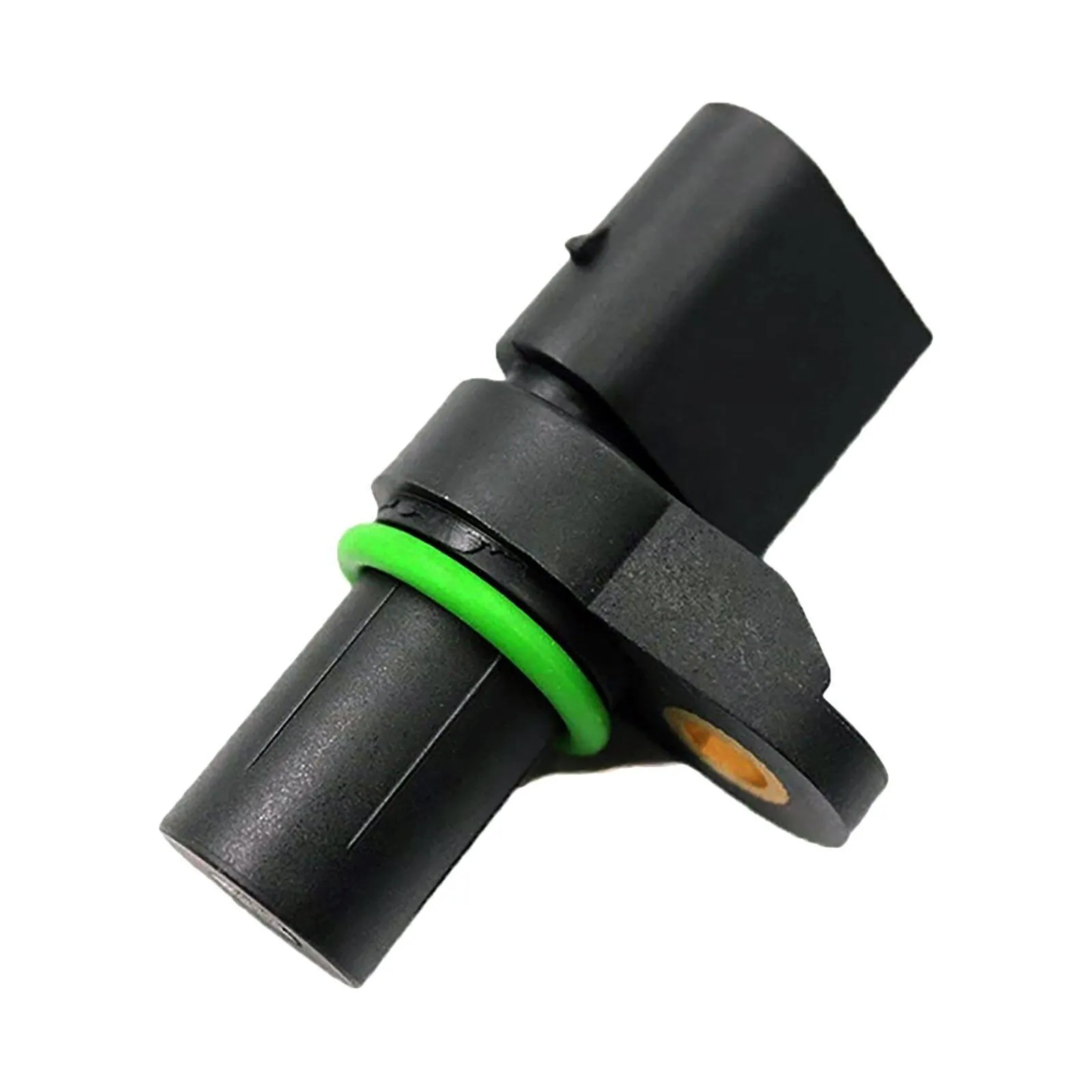

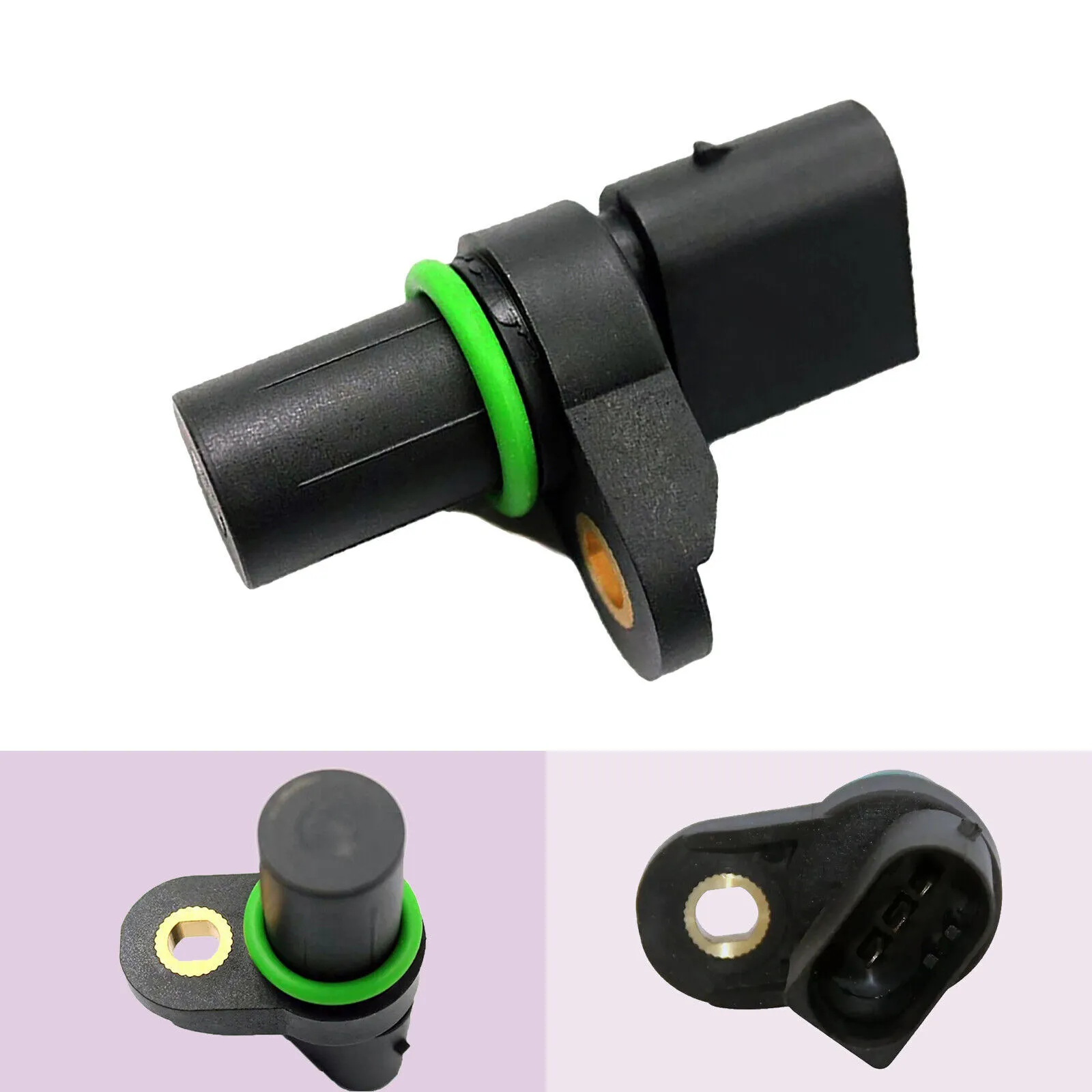

1* 'OEM Quality' CRANKSHAFT POSITION SENSOR (3-PIN PLUG). D-shaped Connector.



The crankshaft position sensor is an engine management component found on virtually all modern vehicles with internal combustion engines. It monitors the position and rotational speed of the crankshaft and sends the information to the engine control unit so it can make appropriate adjustments based on operating conditions. The crankshaft speed and position are some of the most important parameters used in engine management calculations, and many engines cannot run if the crankshaft position sensor is not providing an accurate signal.

Important! This sensor is a uniform 17mm OD along the entire sensor surface. However, some SMG transmissions("sequential manual gearbox", aka SMG-II / SMG2)  use a sensor with a narrower sensor body. See BMW part #12142296184.
BMW does not make a distinction about which sensor is installed and you must check before ordering.
Unfortunately, this means removing the sensor, which will drain some fluid.



  • [01/05 - 12/06] BMW 116i E87 1.6L 4cyl N45 B16 A 85kW
  • [01/06 - 12/08] BMW 116i E87 1.6L 4cyl N45 B16 A 85kW
  • [01/04 - 12/06] BMW 118i E87 2.0L 4cyl N46 B20 B U1 95kW
  • [01/04 - 12/07] BMW 118i E87 2.0L 4cyl N46 B20 B U1 95kW
  • [01/06 - 12/07] BMW 118i E87 2.0L 4cyl N46 B20 B U1 95kW
  • [01/07 - 12/11] BMW 118i E87 2.0L 4cyl N46 B20 B U2 100kW
  • [01/07 - 12/11] BMW 118i E87 2.0L 4cyl N46 B20 B U2 100kW
  • [01/11 - 12/13] BMW 120i E82 2.0L 4cyl N46 B20 B 115kW
  • [01/11 - 12/13] BMW 120i E82 2.0L 4cyl N46 B20 B 115kW
  • [01/04 - 12/07] BMW 120i E87 2.0L 4cyl N46 B20 B 110kW
  • [01/04 - 12/07] BMW 120i E87 2.0L 4cyl N46 B20 B 110kW
  • [01/07 - 12/11] BMW 120i E87 2.0L 4cyl N46 B20 B 115kW
  • [01/07 - 12/11] BMW 120i E87 2.0L 4cyl N46 B20 B 115kW
  • [01/08 - 12/13] BMW 120i E88 2.0L 4cyl N46 B20 B 115kW
  • [01/08 - 12/13] BMW 120i E88 2.0L 4cyl N46 B20 B 115kW
  •
  • [01/01 - 12/05] BMW 316ti E46 1.8L 4cyl N42 B18 A 85kW
  • [01/01 - 12/05] BMW 316ti E46 1.8L 4cyl N42 B18 A 85kW
  • [01/98 - 12/01] BMW 318i E46 1.9L 4cyl M43 B19 TU 87kW
  • [01/98 - 12/01] BMW 318i E46 1.9L 4cyl M43 B19 TU 87kW
  • [01/01 - 12/05] BMW 318i E46 2.0L 4cyl N42 B20 A 105kW
  • [01/01 - 12/05] BMW 318i E46 2.0L 4cyl N42 B20 A 105kW
  • [04/04 - 12/05] BMW 318ti E46 2.0L 4cyl N42 B20 A 105kW
  • [04/04 - 12/05] BMW 318ti E46 2.0L 4cyl N42 B20 A 105kW
  • [01/05 - 12/07] BMW 320i E90 2.0L 4cyl N46 B20 B 110kW
  • [01/05 - 12/07] BMW 320i E90 2.0L 4cyl N46 B20 B 110kW
  • [01/07 - 12/11] BMW 320i E90 2.0L 4cyl N46 B20 B 115kW
  • [01/07 - 12/11] BMW 320i E90 2.0L 4cyl N46 B20 B 115kW
  • [01/07 - 12/12] BMW 320i E91 2.0L 4cyl N46 B20 B 115kW
  • [01/07 - 12/12] BMW 320i E91 2.0L 4cyl N46 B20 B 115kW
  •
  • [01/05 - 12/08] BMW 540i E60 4.0L V8 N62 B40 A 225kW
  • [01/03 - 12/05] BMW 545i E60 4.4L V8 N62 B44 A 245kW
  • [01/05 - 12/10] BMW 550i E60 4.8L V8 N62 B48 B 270kW
  •
  • [01/04 - 12/05] BMW 645Ci E63 4.4L V8 N62 B44 A 245kW
  • [01/04 - 12/05] BMW 645Ci E63 4.4L V8 N62 B44 A 245kW
  • [01/04 - 12/05] BMW 645Ci E64 4.4L V8 N62 B44 A 245kW
  • [01/04 - 12/05] BMW 645Ci E64 4.4L V8 N62 B44 A 245kW
  • [01/05 - 06/06] BMW 650i E63 4.8L V8 N62 B48 B 270kW
  • [01/05 - 06/06] BMW 650i E63 4.8L V8 N62 B48 B 270kW
  • [01/05 - 06/06] BMW 650i E64 4.8L V8 N62 B48 B 270kW
  • [01/05 - 06/06] BMW 650i E64 4.8L V8 N62 B48 B 270kW
  •
  • [01/02 - 12/05] BMW 735i E65 3.6L V8 N62 B36 A 200kW
  • [01/02 - 12/05] BMW 735Li E66 3.6L V8 N62 B36 A 200kW
  • [01/05 - 12/08] BMW 740i E65 4.0L V8 N62 B40 A 225kW
  • [01/96 - 12/01] BMW 740iL E38 4.4L V8 M62 B44, M62TU B44 210kW
  • [01/05 - 06/06] BMW 740Li E66 4.0L V8 N62 B40 A 225kW
  • [01/02 - 12/05] BMW 745i E65 4.4L V8 N62 B44 A 245kW
  • [01/02 - 12/05] BMW 745Li E66 4.4L V8 N62 B44 A 245kW
  • [01/05 - 12/08] BMW 750i E65 4.8L V8 N62 B48 B 270kW
  • [01/05 - 06/06] BMW 750Li E66 4.8L V8 N62 B48 B 270kW
  • [01/03 - 06/06] BMW 760Li E66 6.0L V12 N73 B60 A 327kW
  •
  • [01/03 - 12/06] BMW M M3 E46 3.2L 6cyl S54 B32 252kW
  • [01/01 - 12/06] BMW M M3 E46 3.2L 6cyl S54 B32 252kW
  • [01/03 - 12/06] BMW M M3 E46 3.2L 6cyl S54 B32 252kW
  • [01/01 - 12/06] BMW M M3 E46 3.2L 6cyl S54 B32 252kW
  • [01/03 - 12/04] BMW M M3 E46 CSL 3.2L 6cyl S54 B32 HP 265kW
  •
  • [01/10 - 12/12] BMW X1 E84 SDRIVE 18i 2.0L 4cyl N46 B20 B 110kW
  • [01/10 - 12/12] BMW X1 E84 SDRIVE 18i 2.0L 4cyl N46 B20 B 110kW
  •
  • [01/00 - 12/03] BMW X5 E53 4.4i 4.4L V8 M62 B44, M62TU B44 210kW
  • [01/03 - 12/06] BMW X5 E53 4.4i 4.4L V8 N62 B44 A 235kW
  • [01/02 - 12/03] BMW X5 E53 4.6iS 4.6L V8 M62 B46 255kW
  • [01/04 - 12/06] BMW X5 E53 4.8iS 4.8L V8 N62 B48 A 265kW
How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKUCSCA142_1
BrandAftermarket OEM Replacement
Part Numbers
Part NumberCSCA142
Reference OEM Number13627548994
Other OEM Numbers13627548994, 12147503140
Related Part NumbersCAS-206, SC359, TCAS302
Trade Part NumbersCHN3-V293, SS11074, V20-72-9002
Product Specifics
Product TypeSENSOR
Sensor TypeCRANKSHAFT POSITION SENSOR
TypeSensor
FeaturesDirect Fit
Manufacturer Warranty1 Year
MakeBMW
Number of pins3 -pin connector
Connector ShapeD-shaped
Supplementary Article Infowithout cable
Fitting Depth28 mm
Housing ColourBlack
Other Details
NoteAlways verify fitment using your vehicle's OEM part number.
Unit Of Measureea
