*Oem Quality* Coolant Temperature Sensor for Suzuki 13650-73H00 1365073H00

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR TO SUIT Suzuki replaces OEM 13650-73H00 1365073H00

TO SUIT:

OEM#

71742065, 3L8A-12A648-BB, 1802332, 22630-4A00A, 22630-AA140, 13650-73H00-000, 13650-73H00, 13650-M55K0-0, SU003-00420

NTY: ECT-SU-000
VEMO: V24-72-0115
WALKER PRODUCTS: 211-1072
WALKER PRODUCTS: 211-1077

PACKAGE INCLUDES:

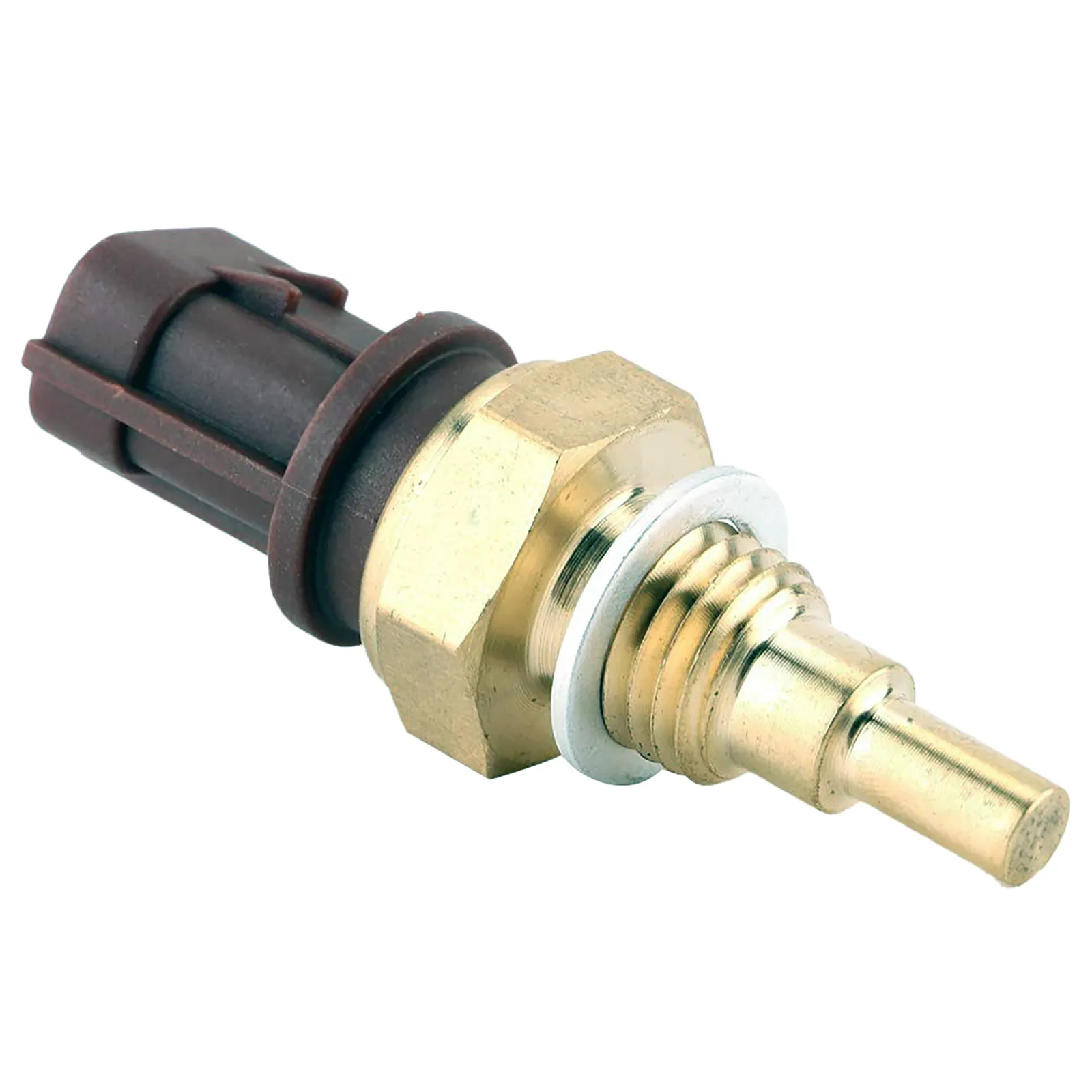

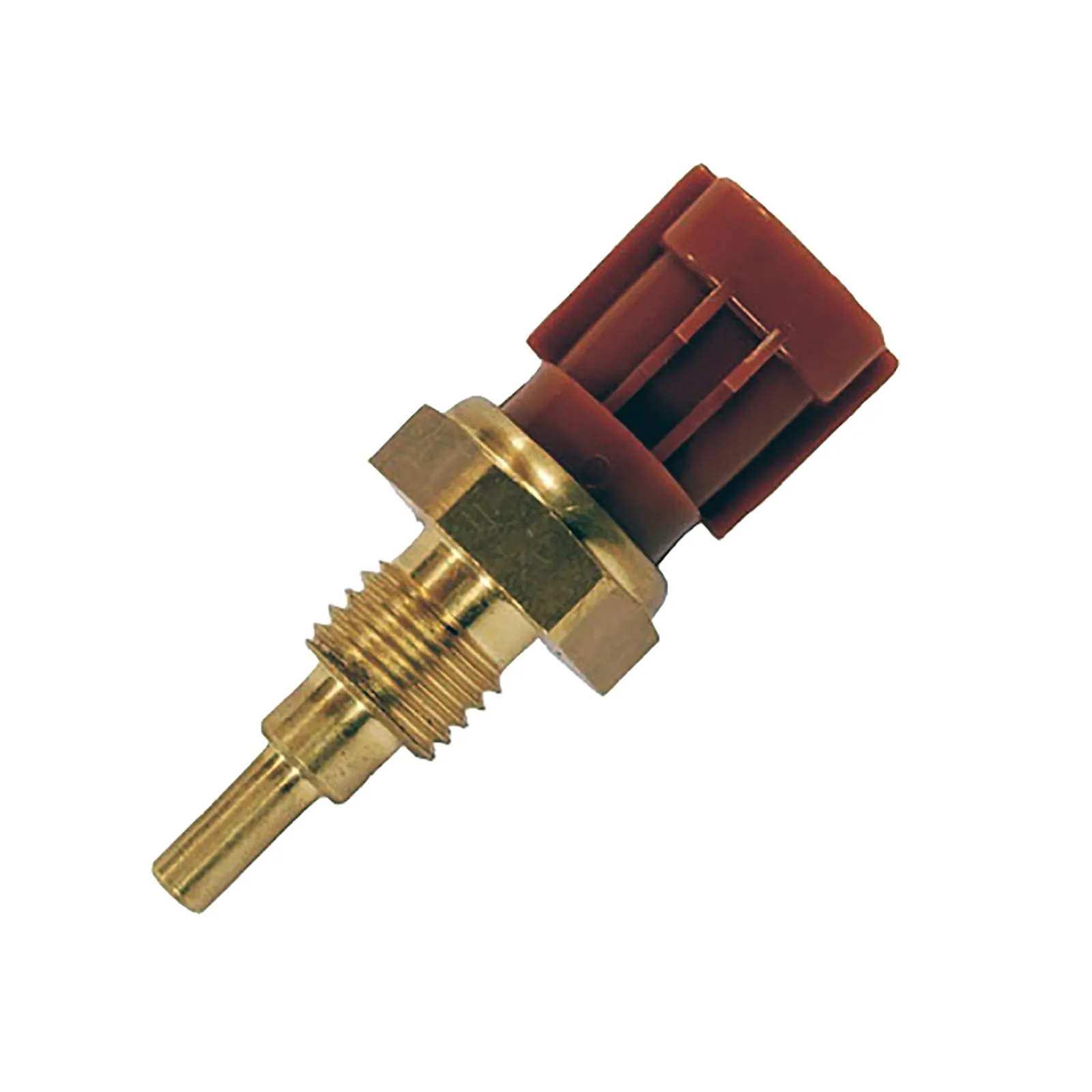

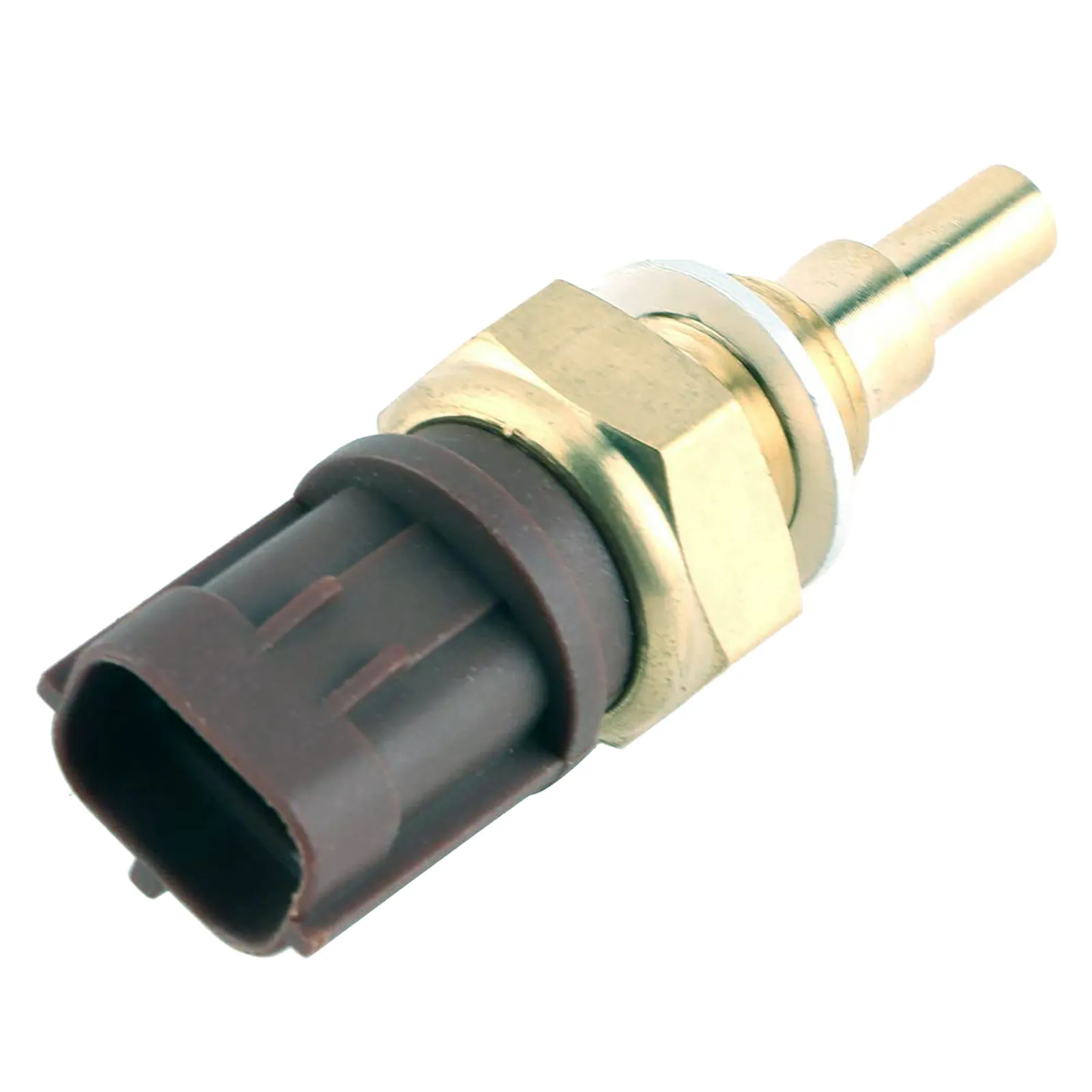

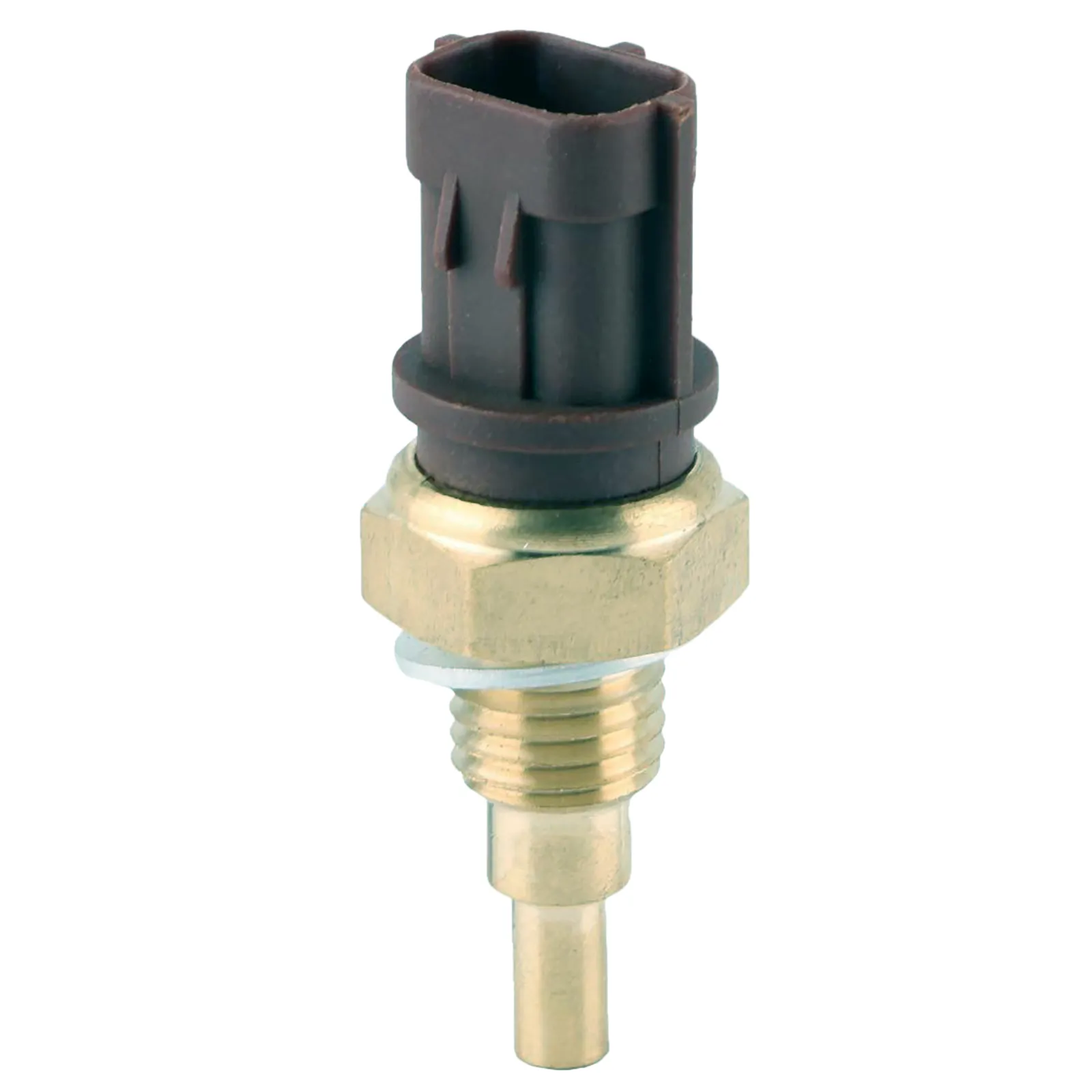

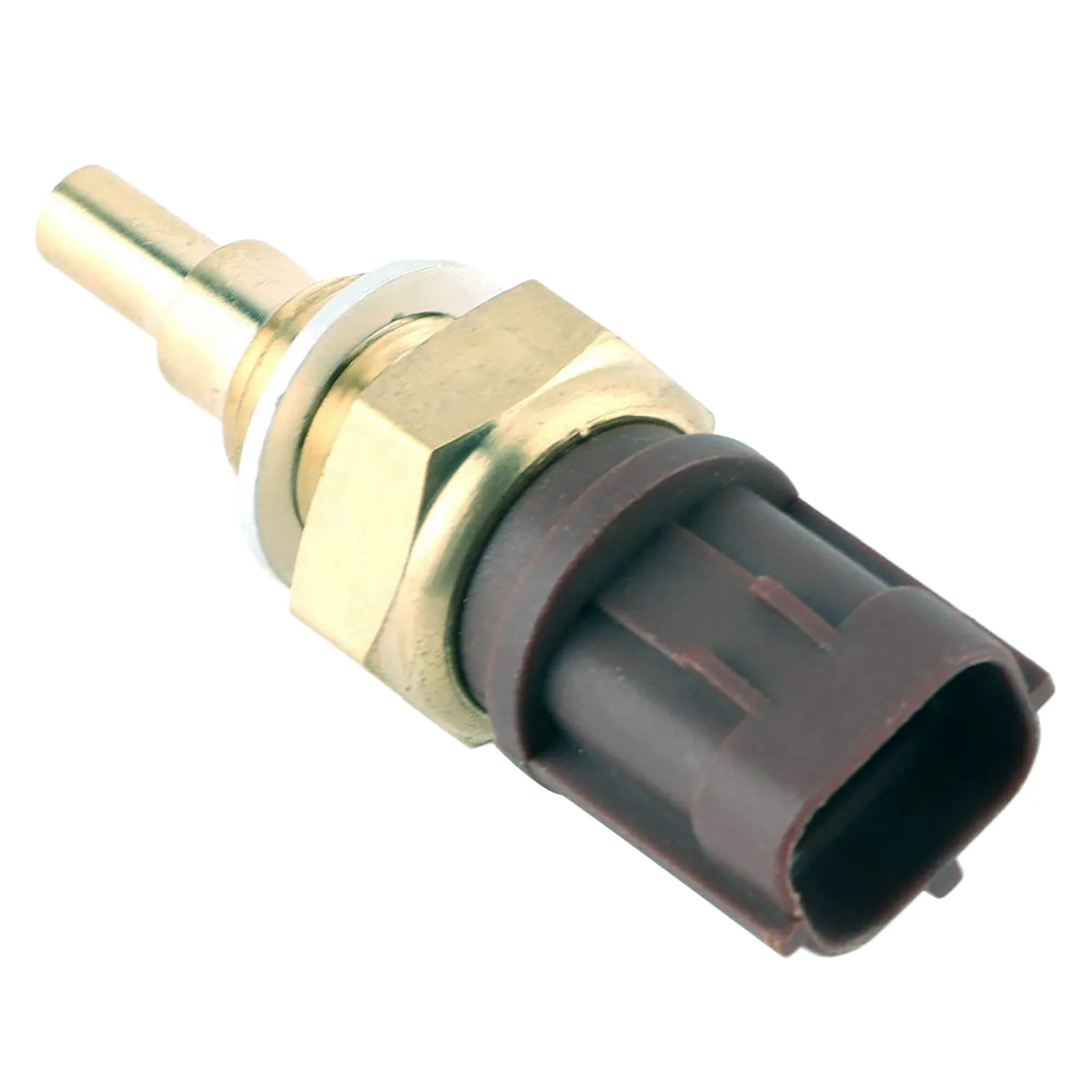

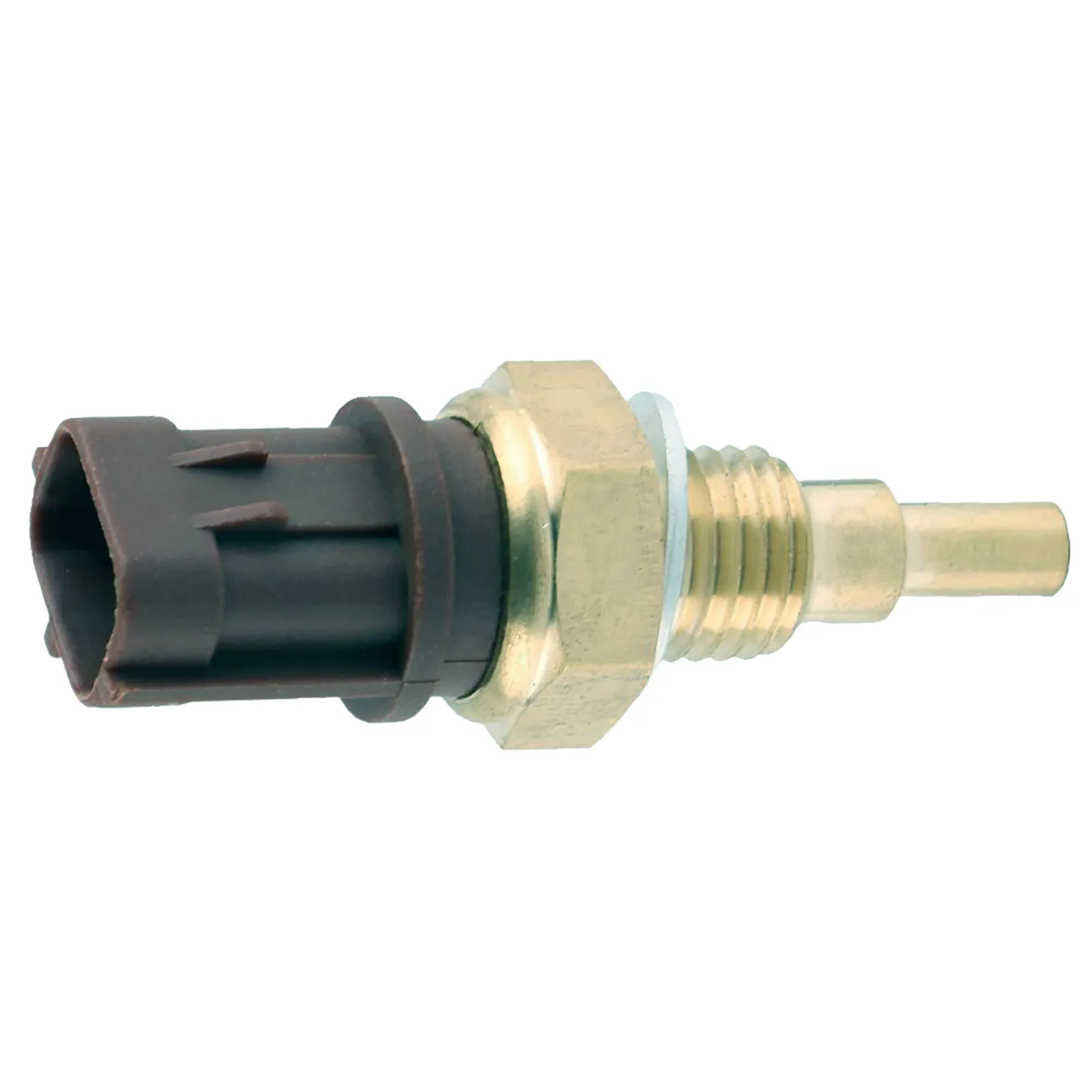

1 X *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR (2-PIN PLUG).

The Engine Coolant Temperature Sensor, often called ECT sensor or CTS (Coolant Temperature Sensor), is a crucial component in a vehicle's engine management system. It measures the temperature of the engine coolant and sends this information to the engine control unit (ECU) or the powertrain control module (PCM). This data helps the ECU adjust fuel injection, ignition timing, and other engine parameters to ensure optimal performance, fuel efficiency, and emission control.

If the coolant temperature sensor malfunctions or fails, it can lead to issues such as incorrect fuel mixture, poor engine performance, increased emissions, or problems with starting the engine. A failing sensor might cause the engine to run too rich or too lean, impacting fuel efficiency and potentially causing damage to the engine over time.

[01/09 - 12/14] SUZUKI ALTO AMF310/ GFC31S VII 1.0L 3cyl K10B Euro 4 50kW
[03/14 - 02/18] SUZUKI CELERIO AVK310 1.0L 3cyl K10B Euro 4 50kW
[07/01 - 07/03] SUZUKI GRAND VITARA JA627 2.7L V6 H27A 130kW
[04/03 - 07/08] SUZUKI GRAND VITARA JA627/ TX92 2.7L V6 H27A 135kW
[12/05 - 12/09] SUZUKI GRAND VITARA JB627/ TD94V 2.7L V6 H27A 136kW
[09/05 - 02/15] SUZUKI GRAND VITARA JB420/ TD54 2.0L 4cyl J20A 103kW
[03/98 - 04/05] SUZUKI GRAND VITARA SQ420/ TA52/ TL52 2.0L 4cyl J20A 94kW
[09/08 - 08/18] SUZUKI GRAND VITARA JB424 2.4L 4cyl J24B Euro 4 122kW
[09/08 - 08/18] SUZUKI GRAND VITARA JB424/ JT424/ TDA4 2.4L 4cyl J24B Euro 4 122kW
[09/05 - 02/15] SUZUKI GRAND VITARA JB416/ TA74 1.6L 4cyl M16A 73kW
[08/03 - 12/05] SUZUKI IGNIS HV81/ RG415 I 1.5L 4cyl M15A 83kW
[10/10 - 12/16] SUZUKI KIZASHI A6B424 2.4L 4cyl J24B Euro 4 131kW
[07/01 - 12/07] SUZUKI LIANA RH416 1.6L 4cyl M16A 76kW
[03/02 - 02/04] SUZUKI LIANA RH416 1.6L 4cyl M16A 76kW
[12/13 - 07/16] SUZUKI S-CROSS AKK416/ YA22S 1.6L 4cyl M16A 86kW
[12/13 - 07/16] SUZUKI S-CROSS AKK416/ YB22S 1.6L 4cyl M16A 86kW
[04/17 ON] SUZUKI SWIFT A2L412/ ZC83S 1.2L 4cyl K12C 66kW
[01/04 - 12/11] SUZUKI SWIFT RS415/ ZC21S 1.5L 4cyl M15A 75kW
[01/12 - 03/17] SUZUKI SWIFT RS416/ ZA32S/ ZC32S 1.6L 4cyl M16A 100kW
[05/06 - 02/11] SUZUKI SWIFT ZC31S 1.6L 4cyl M16A 92kW
[01/10 - 12/14] SUZUKI SX4 RW415/ RW416/ RW420 16V 2.0L 4cyl J20B 112kW
[10/07 - 01/10] SUZUKI SX4 RW415/ RW416/ RW420 2.0L 4cyl J20A 107kW
[01/10 - 12/14] SUZUKI SX4 RW415/ RW416/ RW420 2.0L 4cyl J20B 112kW
[06/06 - 12/14] SUZUKI SX4 RW415/ RW416/ RW420/ YA... 2.0L 4cyl J20A 107kW
[06/06 - 12/14] SUZUKI SX4 RW415/ RW416/ RW420/ YB... 2.0L 4cyl J20A 107kW

Identification
SKU	CCS90-Suzuki
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS90
Reference OEM Number	22630-AA140
Other OEM Numbers	22630-AA140, 13650-73H00, SU003-00420, 1802332
Related Part Numbers	CTS-092, TCS141, CTS1107
Trade Part Numbers	NTY: ECT-SU-000, VEMO: V24-72-0115, WALKER: 211-1072
Product Specifics
Product Type	sensor
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR

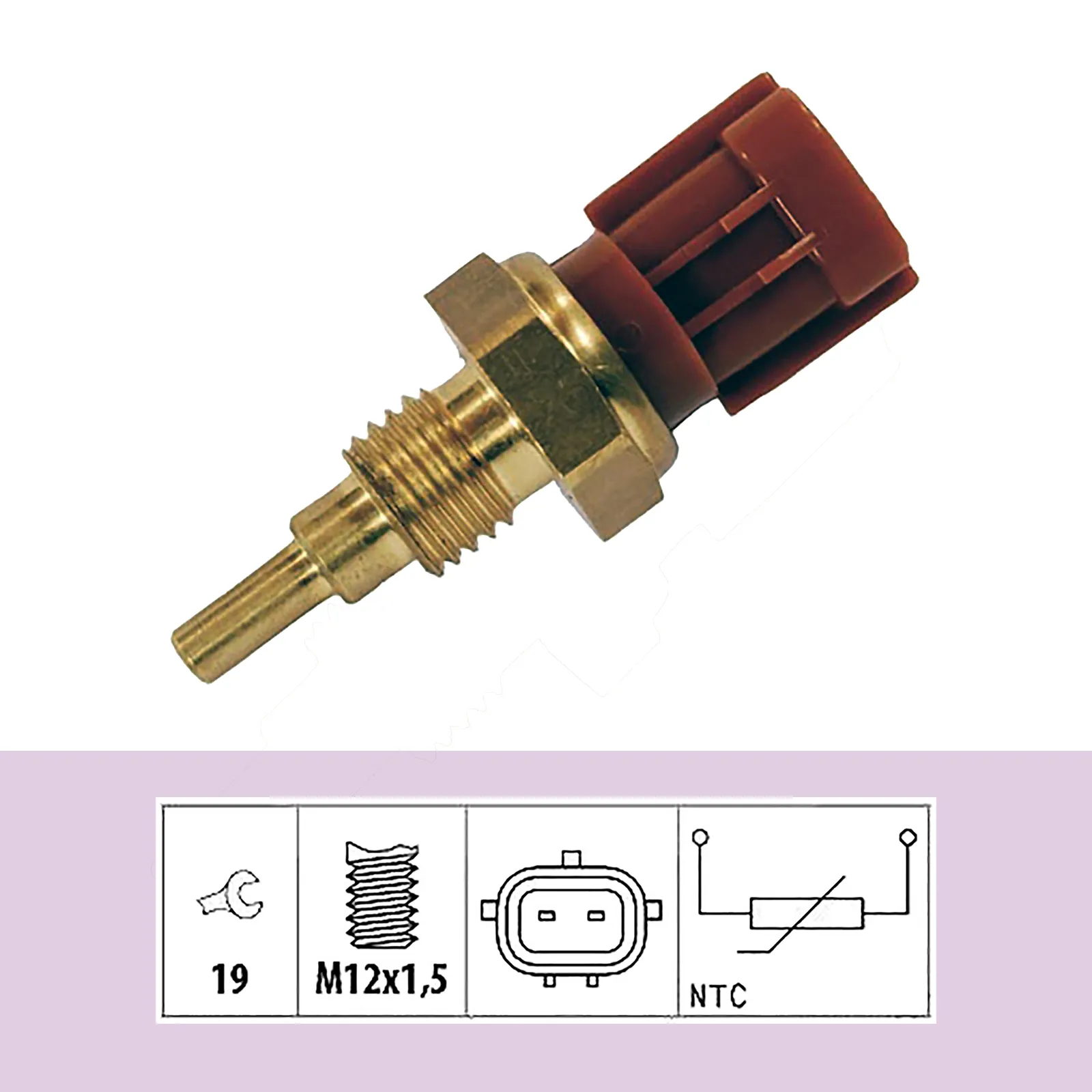

Thread Size	M12x1.5 mm
Spanner Size	19 mm

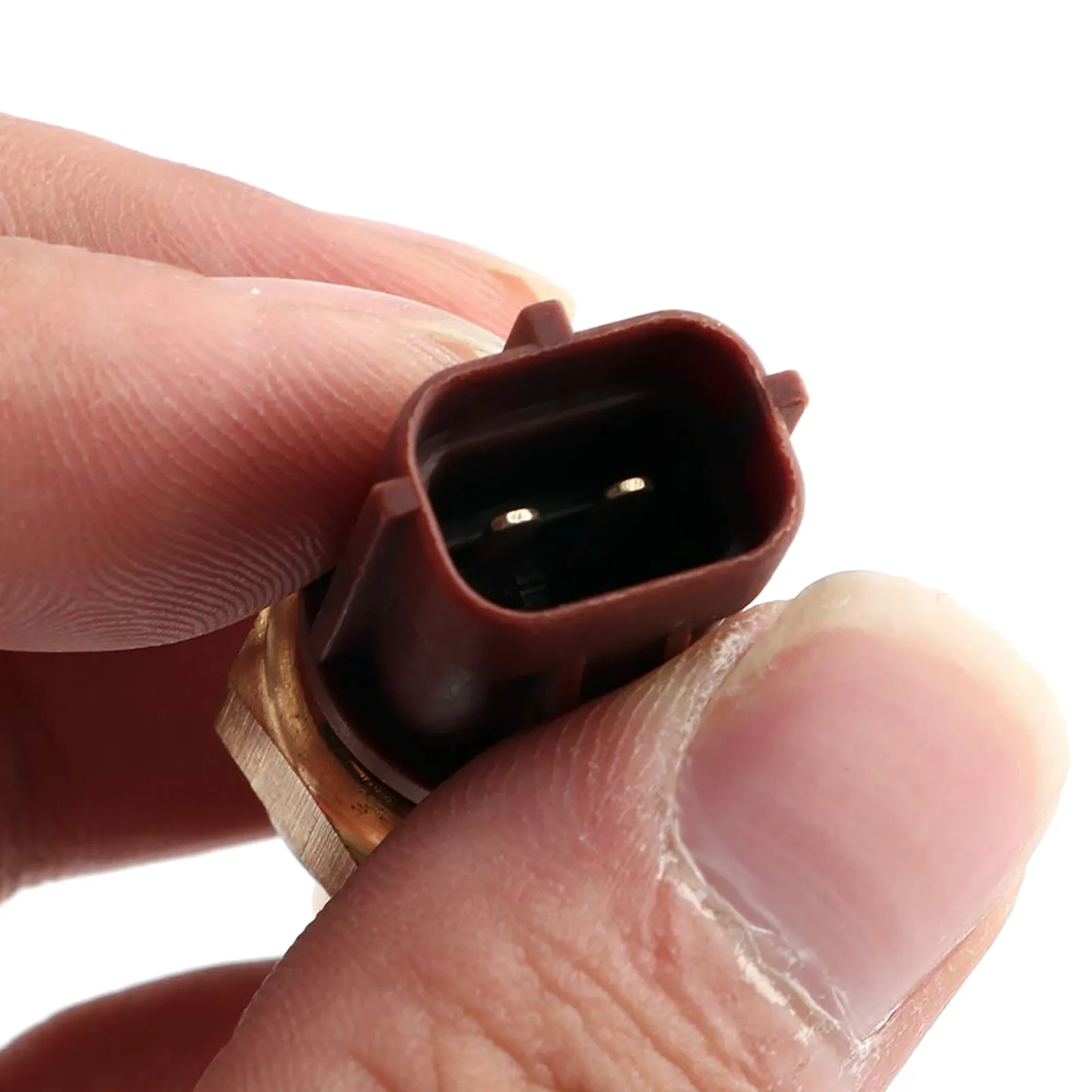

Number of pins	2 -pin connector
Connector Shape	oval
Housing Colour	brown
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.230 m
Shipping Height	0.050 m
Shipping Length	0.160 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
