Name: Coolant Temperature Sensor Subaru Forester SG SH SJ 22630-AA140 EJ205 EJ25 FB20 FB25
Brand: Aftermarket OEM Replacement
SKU: CCS90-Forester
Price: 59.99 AUD
Availability: InStock

BRAND NEW Aftermarket OEM Replacement coolant temperature sensor to suit Subaru Forester SG (2002-2008), SH (2008-2013) and SJ (2012-2018) across petrol and diesel engine variants.

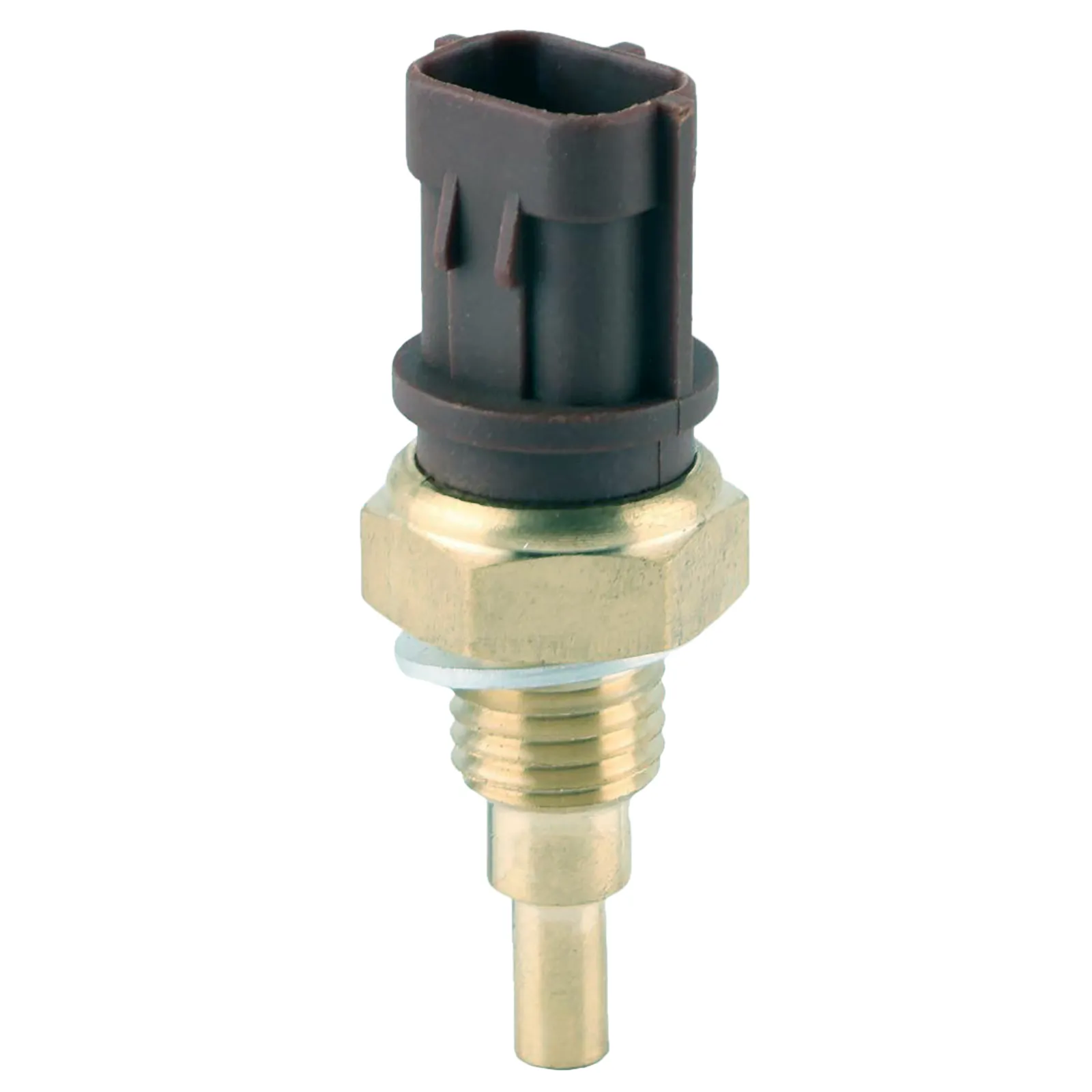

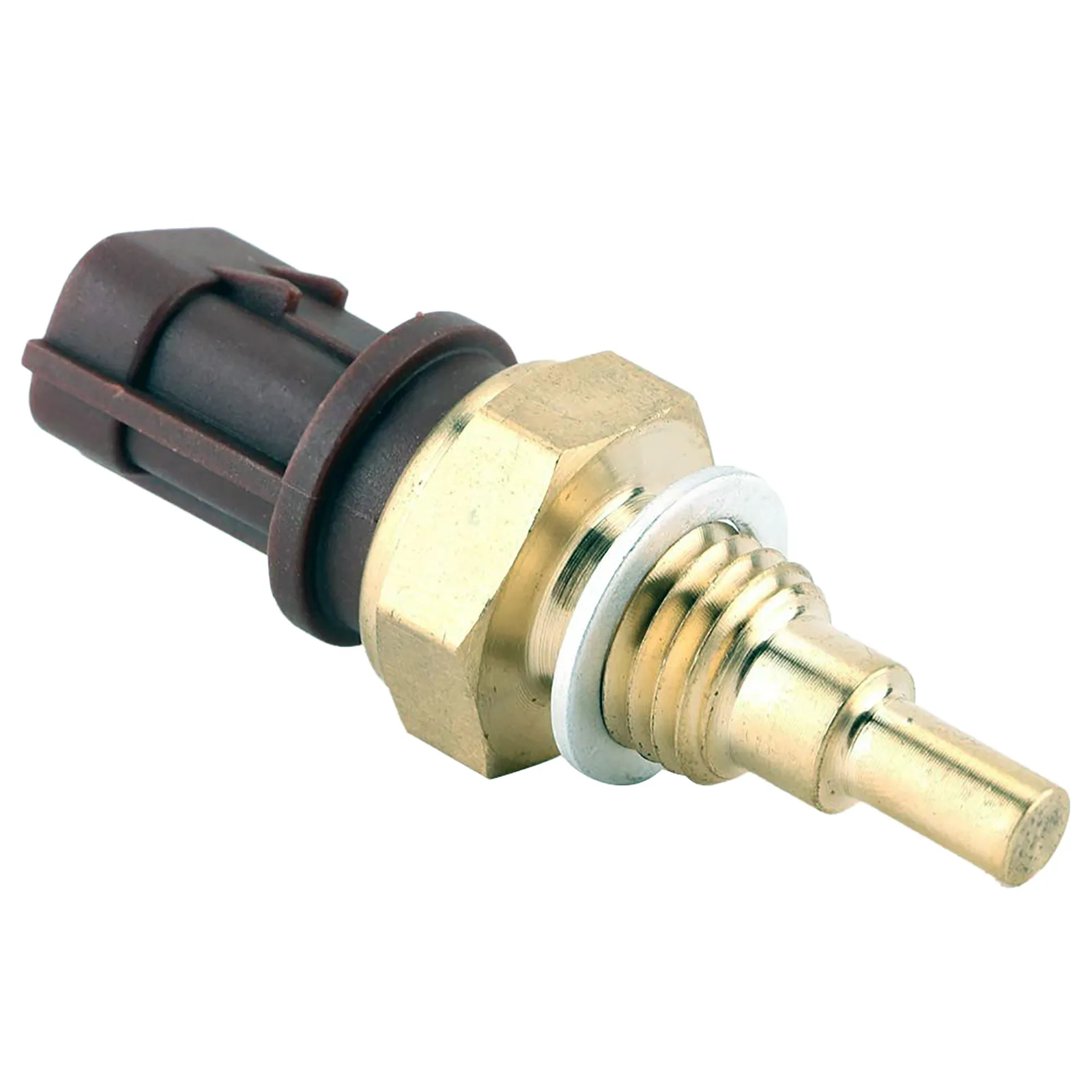

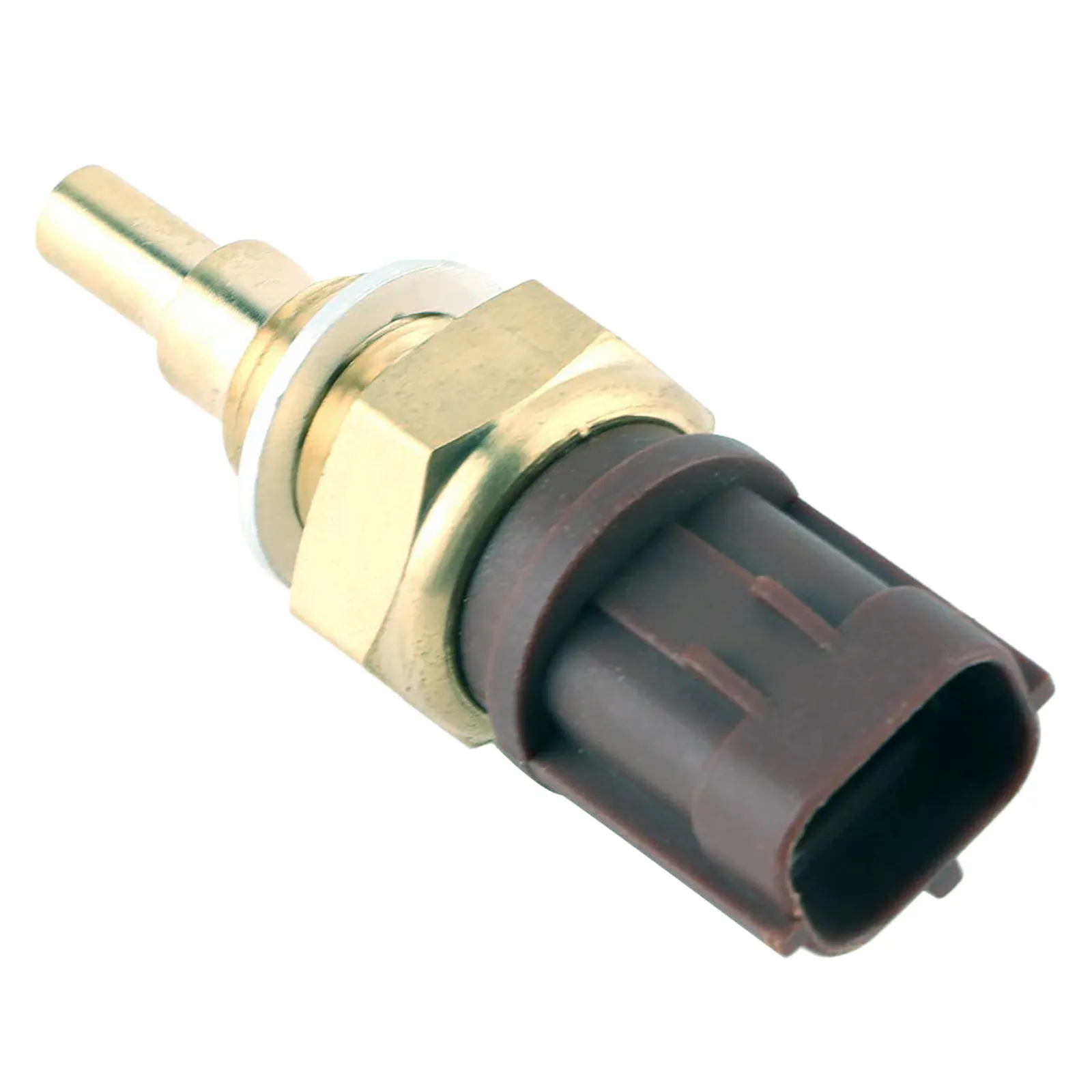

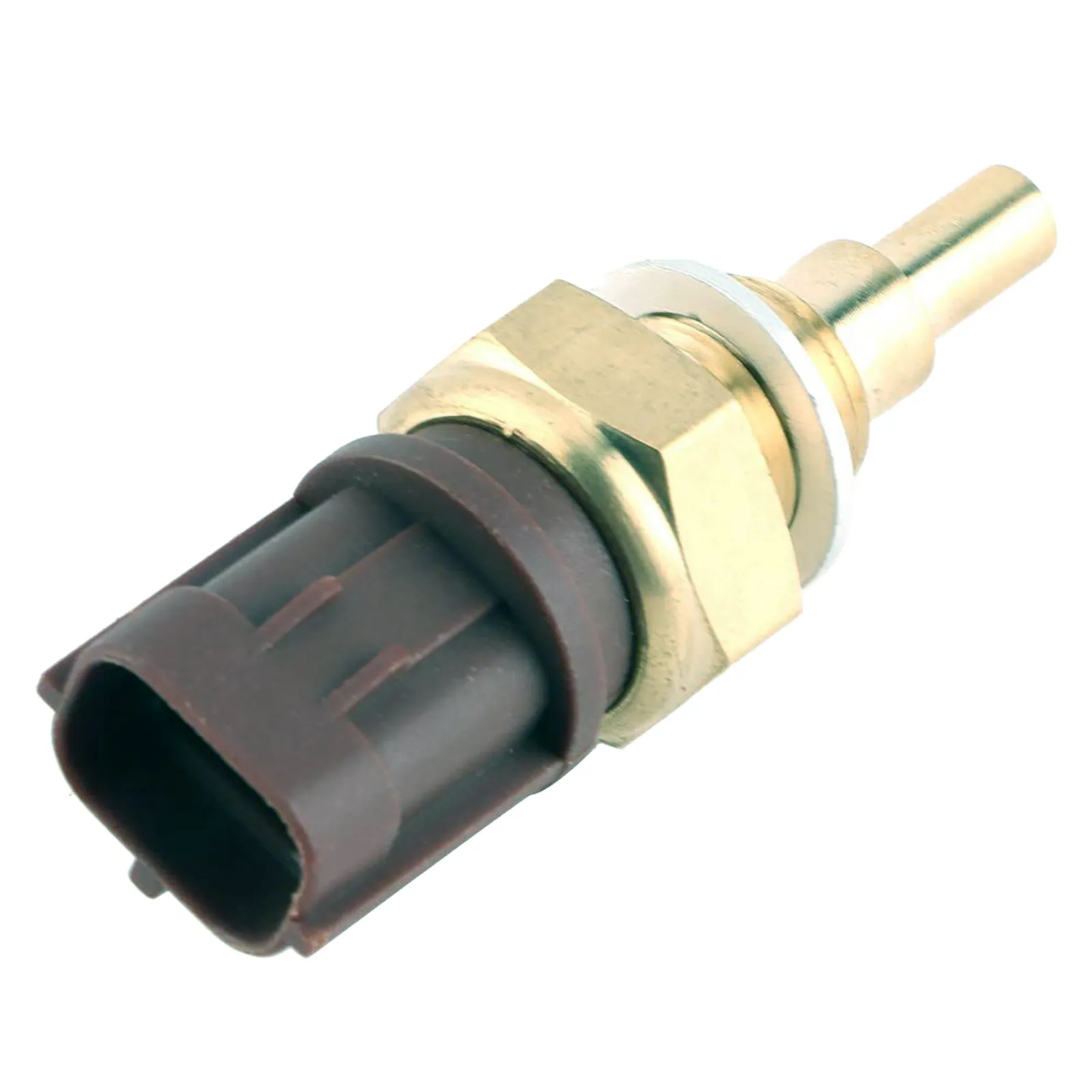

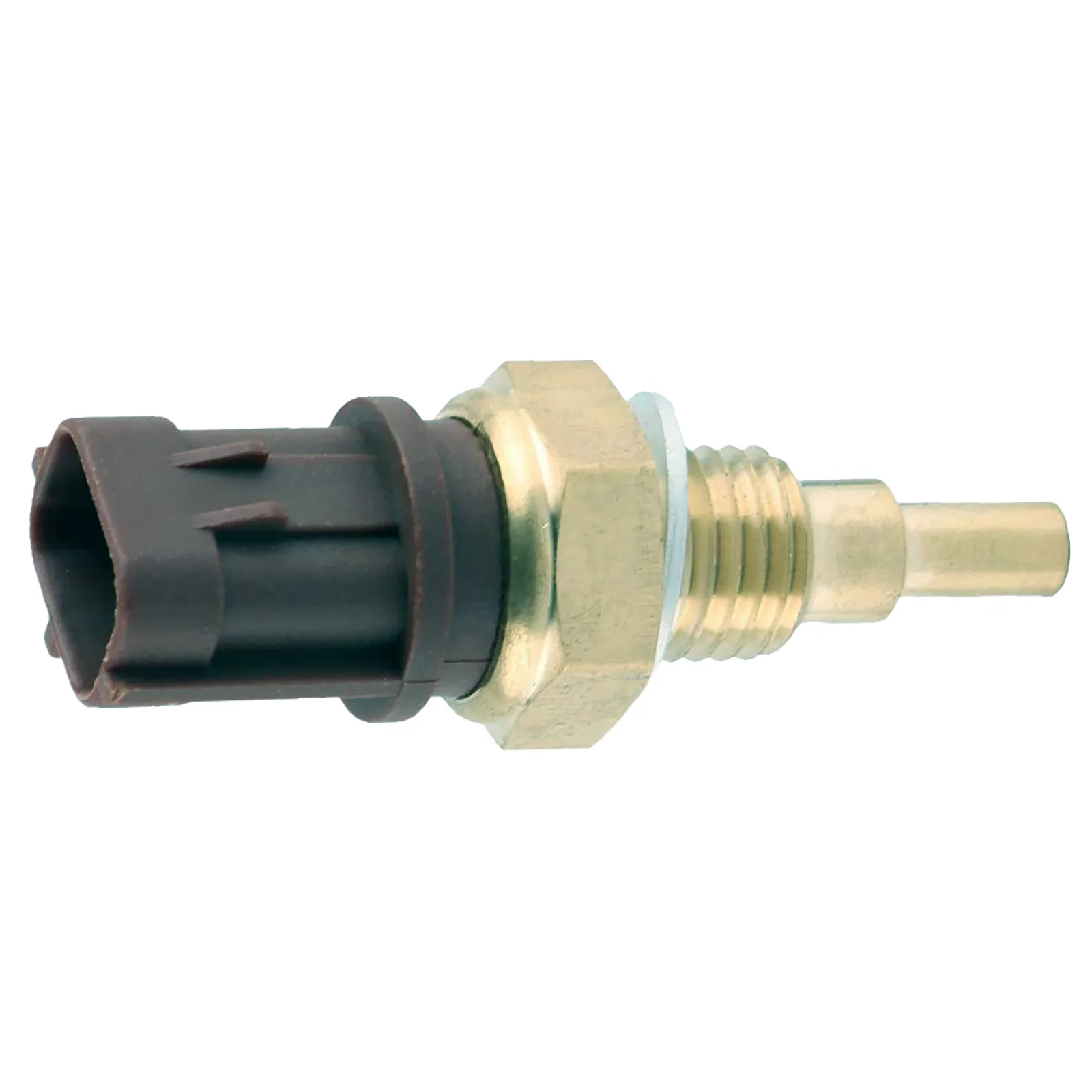

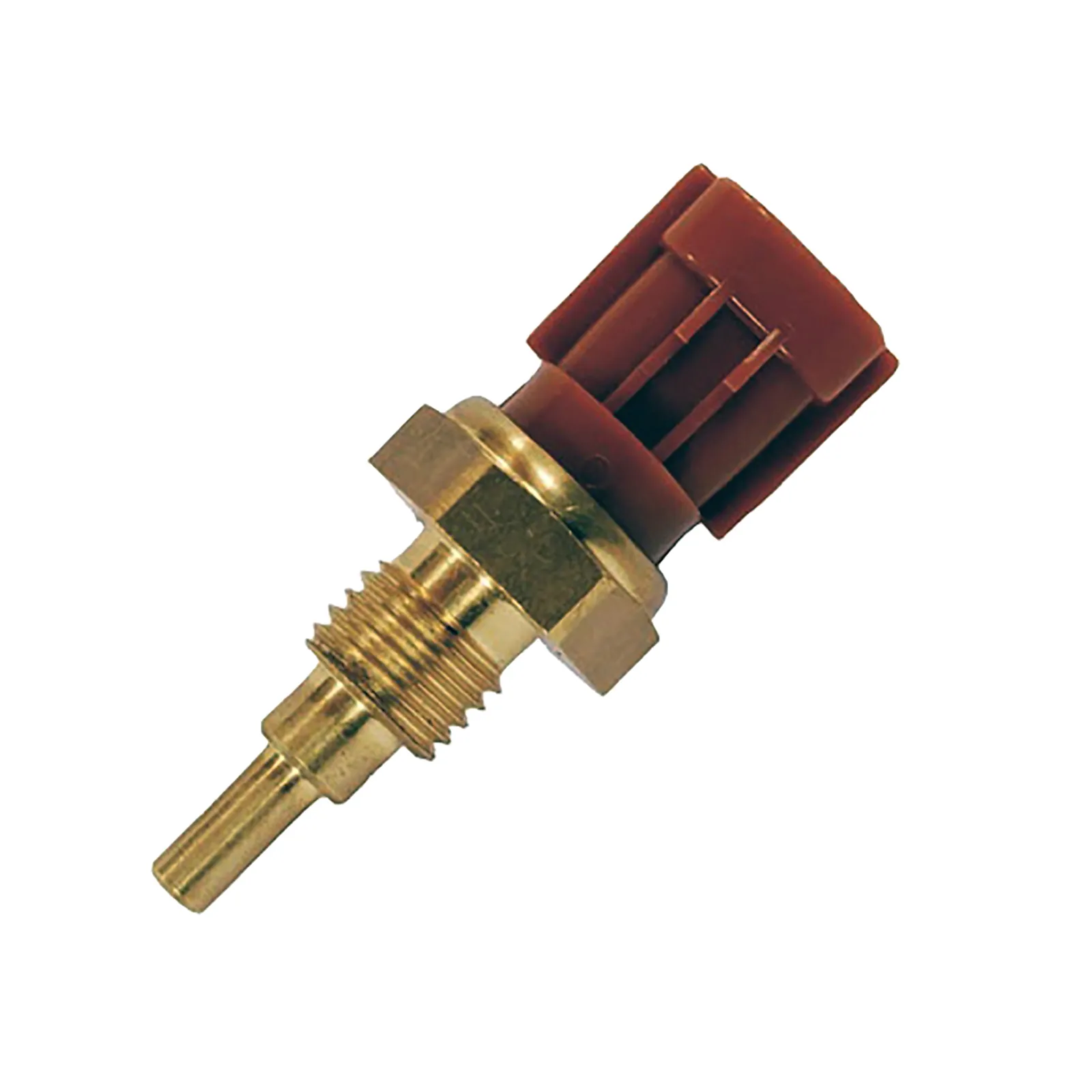

Forester running rich, idling rough when cold or throwing a coolant temp fault code? The ECT sensor is a common fail item on SG through SJ Foresters - heat cycling and age cause the NTC resistance to drift before the sensor fails outright. This is a direct plug-and-play replacement with oval 2-pin connector and brown housing. Same-day dispatch from Cranbourne VIC.

TO SUIT

Suits Subaru Forester SG5 S Turbo 2.0L EJ205 (2002-2008), SG9 2.5L EJ255 (2005-2008), SH9 2.5L EJ25 126kW (2009-2013), SH9 2.5L EJ255 169kW/193kW (from 02/2011), SHD/SHH/SHN Diesel 2.0L EE20Z (2008-2013), SHM 2.5L FB25 (2011-2013), SJ5 i 2.0L FB20 (2013-2018), SJ9 2.5L FB25 (2012-2018), SJD Diesel 2.0L EE20Z (2013-2018), SJG XT 2.0L FA20 177kW (2013-2018).

FITMENT CHECK

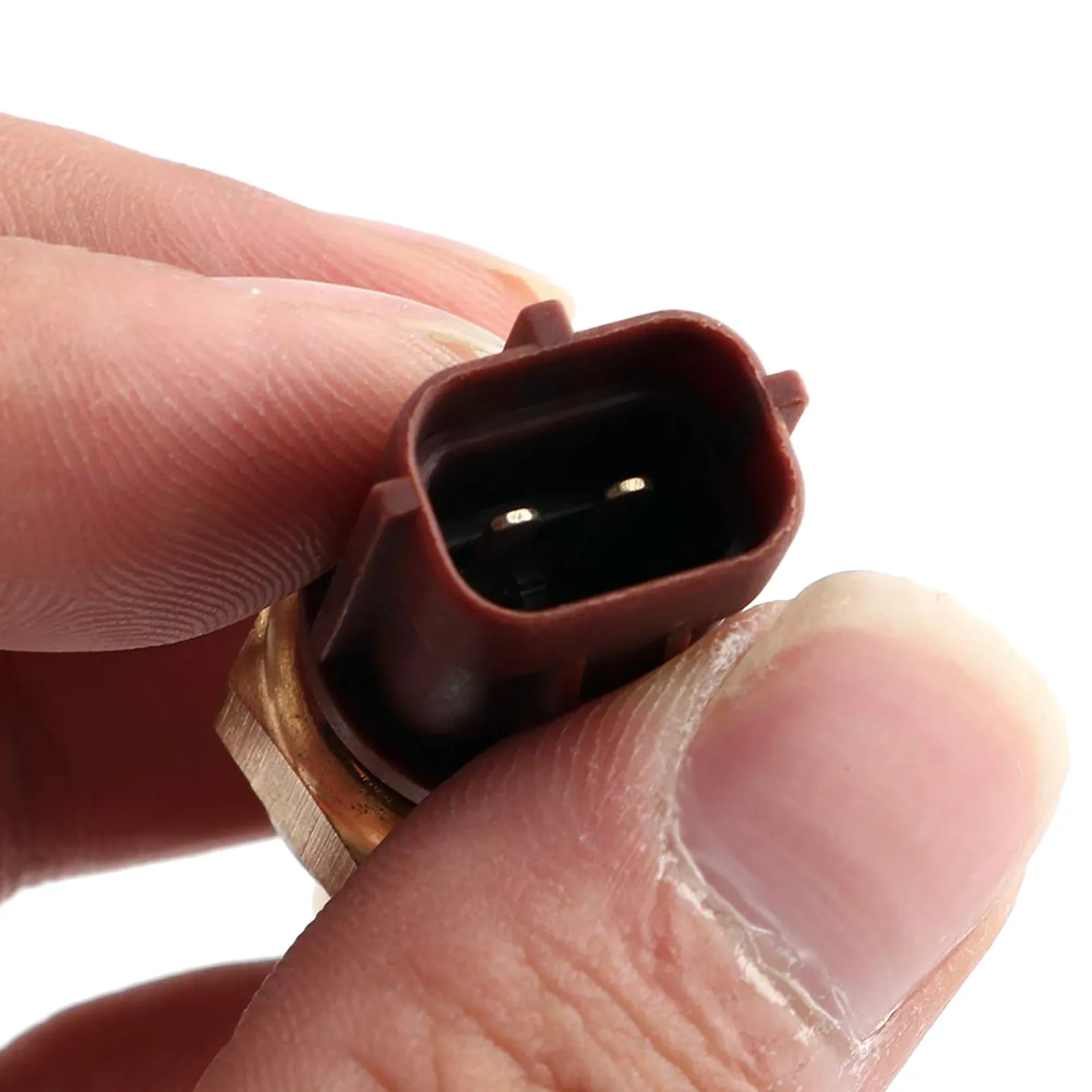

This sensor has an oval 2-pin connector and a brown housing. If your sensor has a D-shaped connector and a black housing the correct part is CTS2035 (OEM 22630-AA230). Both numbers appear in Forester catalogues but they are different connectors and not interchangeable - check your existing sensor before ordering.

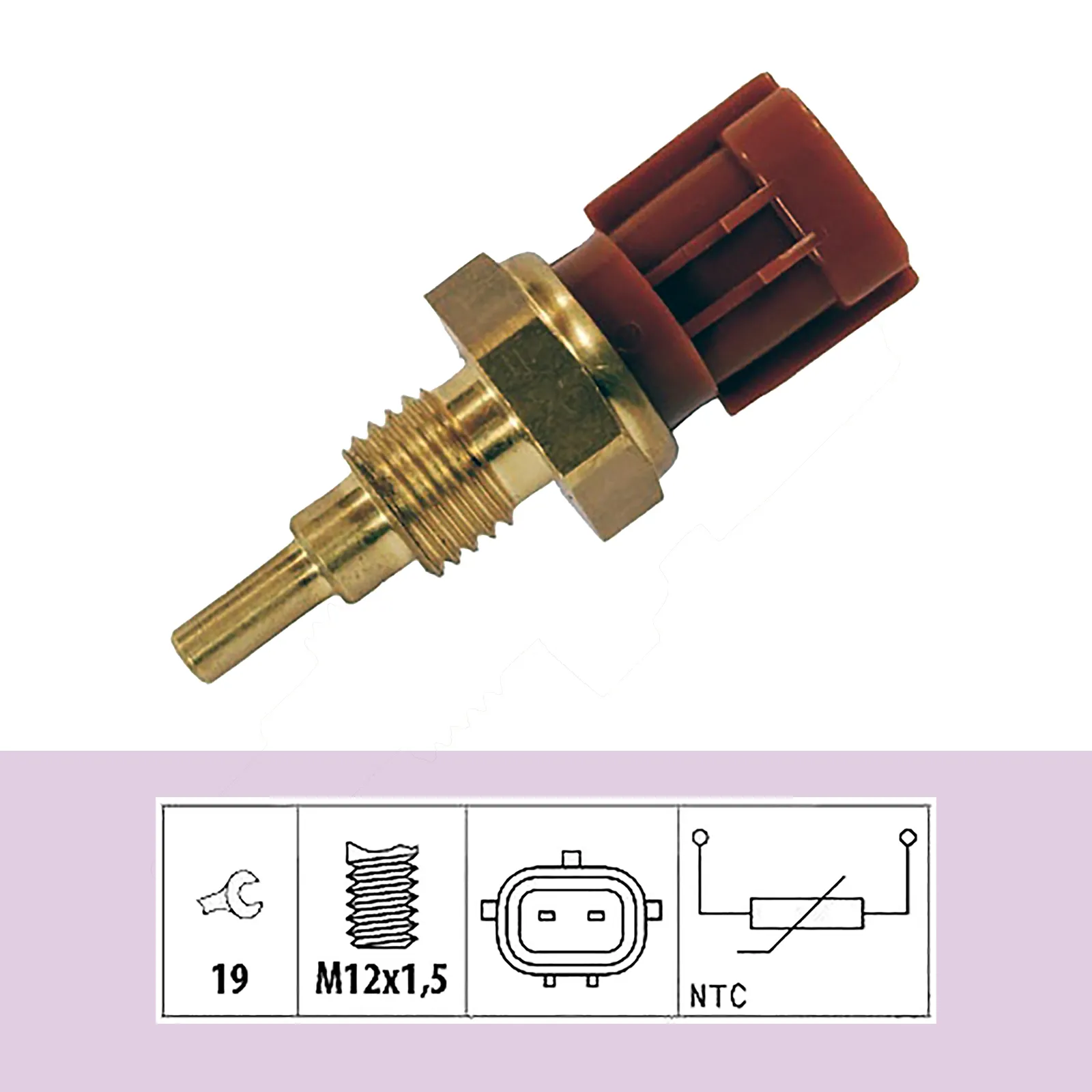

SPECIFICATIONS

Thread Size: M12 x 1.5
Spanner Size: 19mm
Connector: 2-pin oval
Housing Colour: Brown
Sensor Type: NTC (Negative Temperature Coefficient)
Mounting: Screw connection

OEM PART NUMBERS

22630-AA140
13650-73H00
13650-73H00-000
13650-M55K0-0
SU003-00420

OTHER PART NUMBERS

NTY: ECT-SU-000
VEMO: V24-72-0115
WALKER PRODUCTS: 211-1072
CTS-092
TCS141
CTS1107

PACKAGE INCLUDES

1 x Coolant Temperature Sensor - 2-pin oval connector - brown housing - M12x1.5 thread.

ABOUT THIS SENSOR

The ECT sensor on Subaru Forester EJ and FB engines is screwed into the cylinder head or coolant gallery and continuously reports coolant temperature to the ECU. It is one of the most influential inputs in the engine management system - used for fuel injection, ignition timing, idle control, fan operation and cold-start enrichment.

On high-mileage SG and SH Foresters the sensor can develop slowly drifting resistance, causing symptoms that come and go rather than a hard failure. A scan tool showing a coolant temperature that doesn't match ambient on a cold start, or slow warm-up on the gauge, often points to this sensor before a fault code is even stored.

COMMON SYMPTOMS OF FAILURE

Rich running or noticeably higher fuel consumption
Rough or lumpy idle especially when cold
Temperature gauge reading low or not moving
Cooling fan running at start-up or not activating at temperature
Hard cold start or extended cranking
Check engine light - codes P0115 P0116 P0117 P0118 P0119

[09/08 - 04/13] SUBARU FORESTER SHD/ SHH/ SHN D 2.0L Flat4 EE20Z 108kW
[03/13 - 07/18] SUBARU FORESTER SJD D 2.0L Flat4 EE20Z 108kW
[02/02 - 12/08] SUBARU FORESTER SG5 S Turbo 2.0L Flat4 EJ205 130kW
[01/09 - 04/13] SUBARU FORESTER SH9 2.5L Flat4 EJ25 126kW
[06/05 - 05/08] SUBARU FORESTER SG9 2.5L Flat4 EJ255 169kW
[02/11 - 04/13] SUBARU FORESTER SH9 2.5L Flat4 EJ255 169kW
[02/11 - 04/13] SUBARU FORESTER SH9 Turbo 2.5L Flat4 EJ255 193kW
[03/13 - 07/18] SUBARU FORESTER SJG XT 2.0L Flat4 FA20 Euro 5 177kW
[03/13 - 07/18] SUBARU FORESTER SJ5 i 2.0L Flat4 FB20 Euro 5 110kW
[03/11 - 09/13] SUBARU FORESTER SHM 2.5L Flat4 FB25 126kW
[11/12 - 07/18] SUBARU FORESTER SJ9 2.5L Flat4 FB25 126kW

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS90-Forester
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS90
Reference OEM Number	13650-73H00, SU003-00420
Other OEM Numbers	22630-AA140, 13650-73H00, SU003-00420, 1802332
Related Part Numbers	CTS-092, TCS141, CTS1107
Trade Part Numbers	NTY: ECT-SU-000, VEMO: V24-72-0115, WALKER: 211-1072
Product Specifics
Product Type	SENSOR
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Thread Size	M12x1.5 mm
Spanner Size	19 mm
Number of pins	2 -pin connector
Connector Shape	oval
Housing Colour	brown
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
