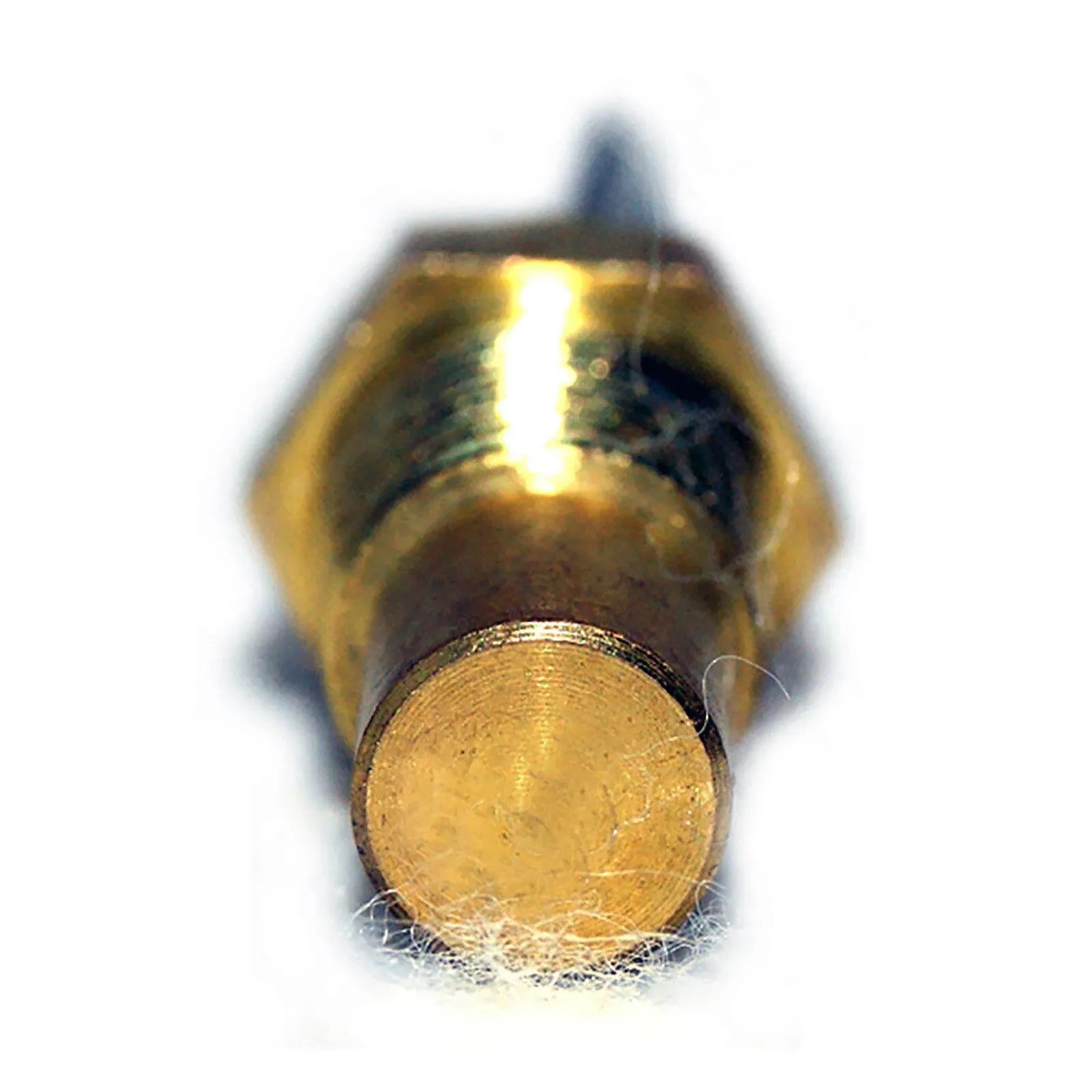

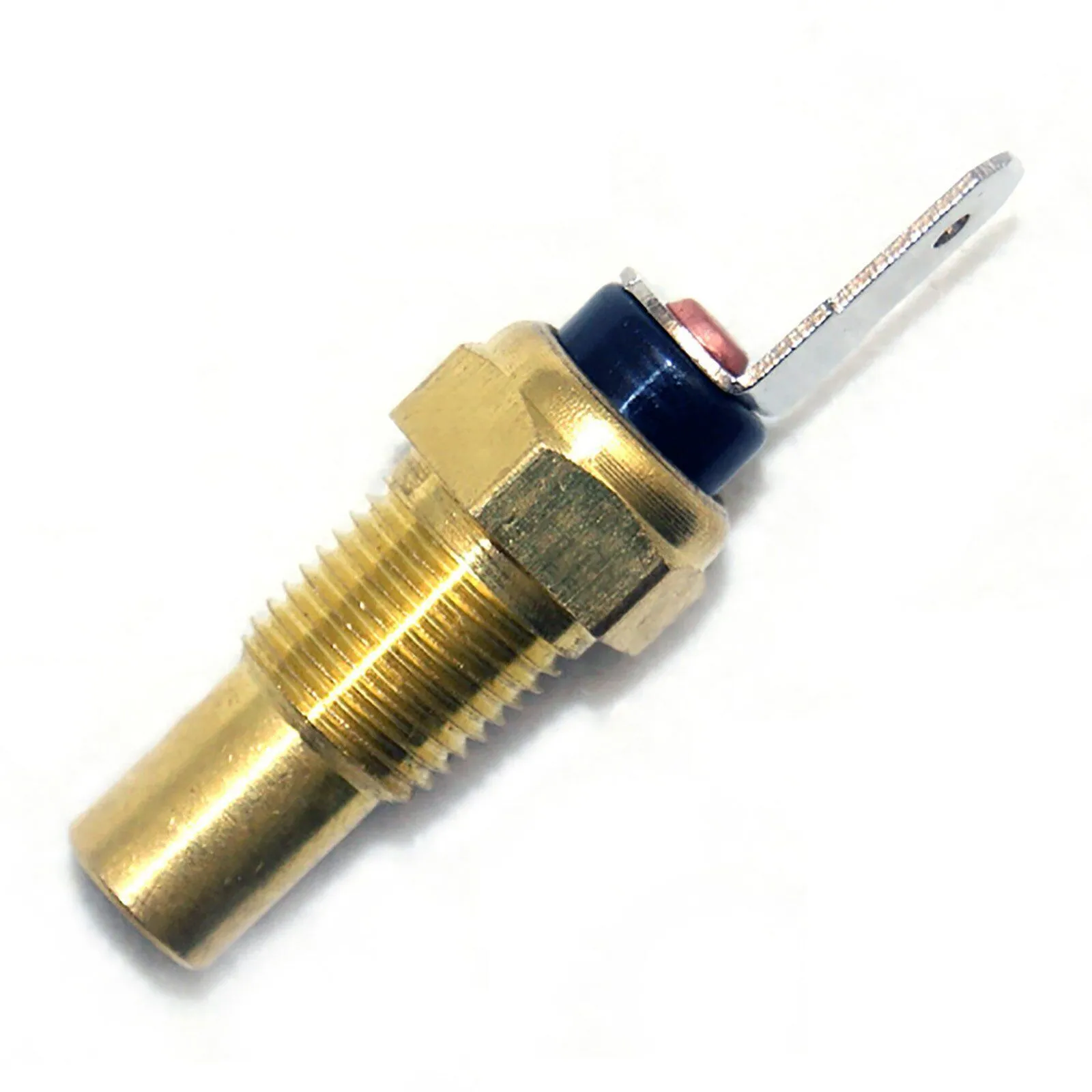

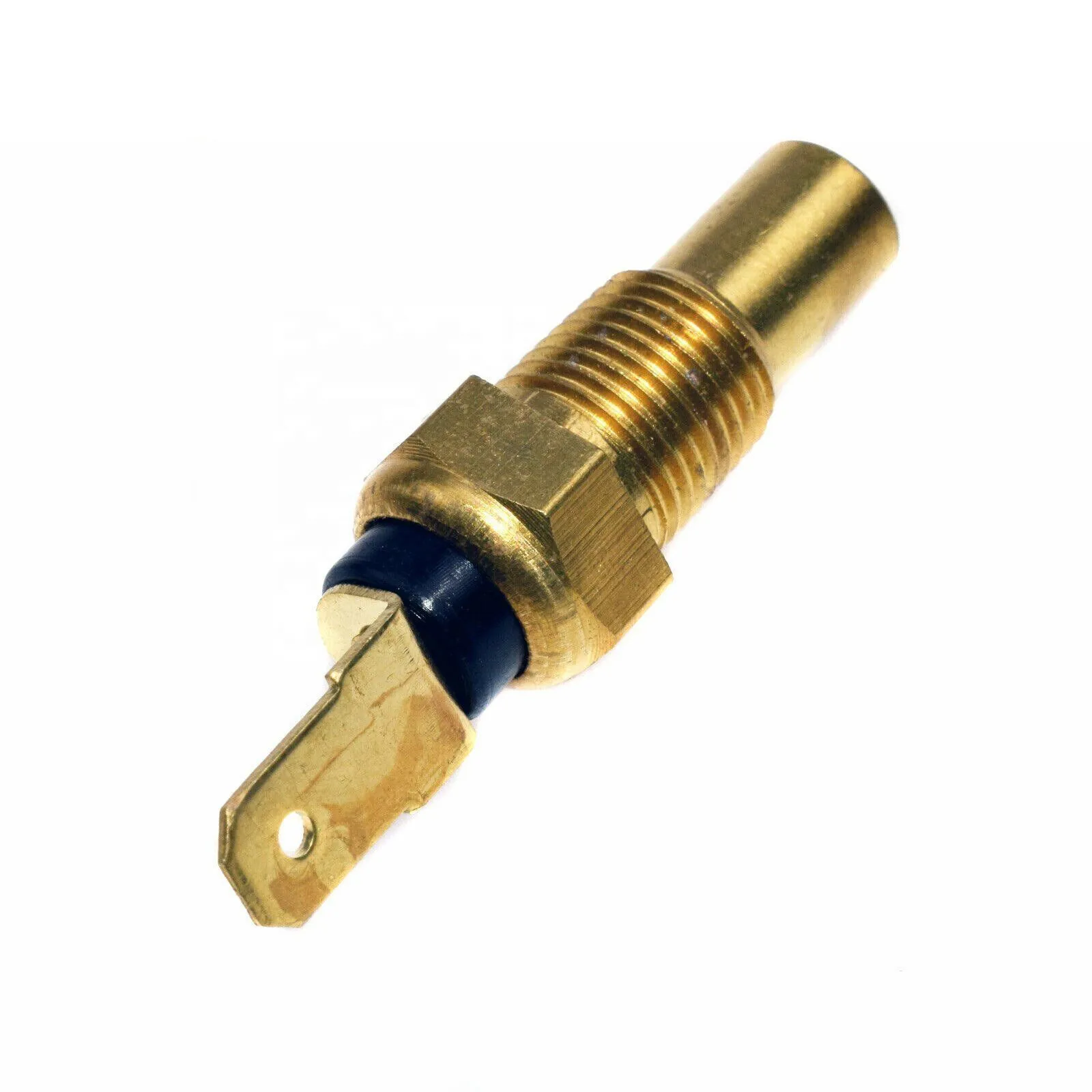

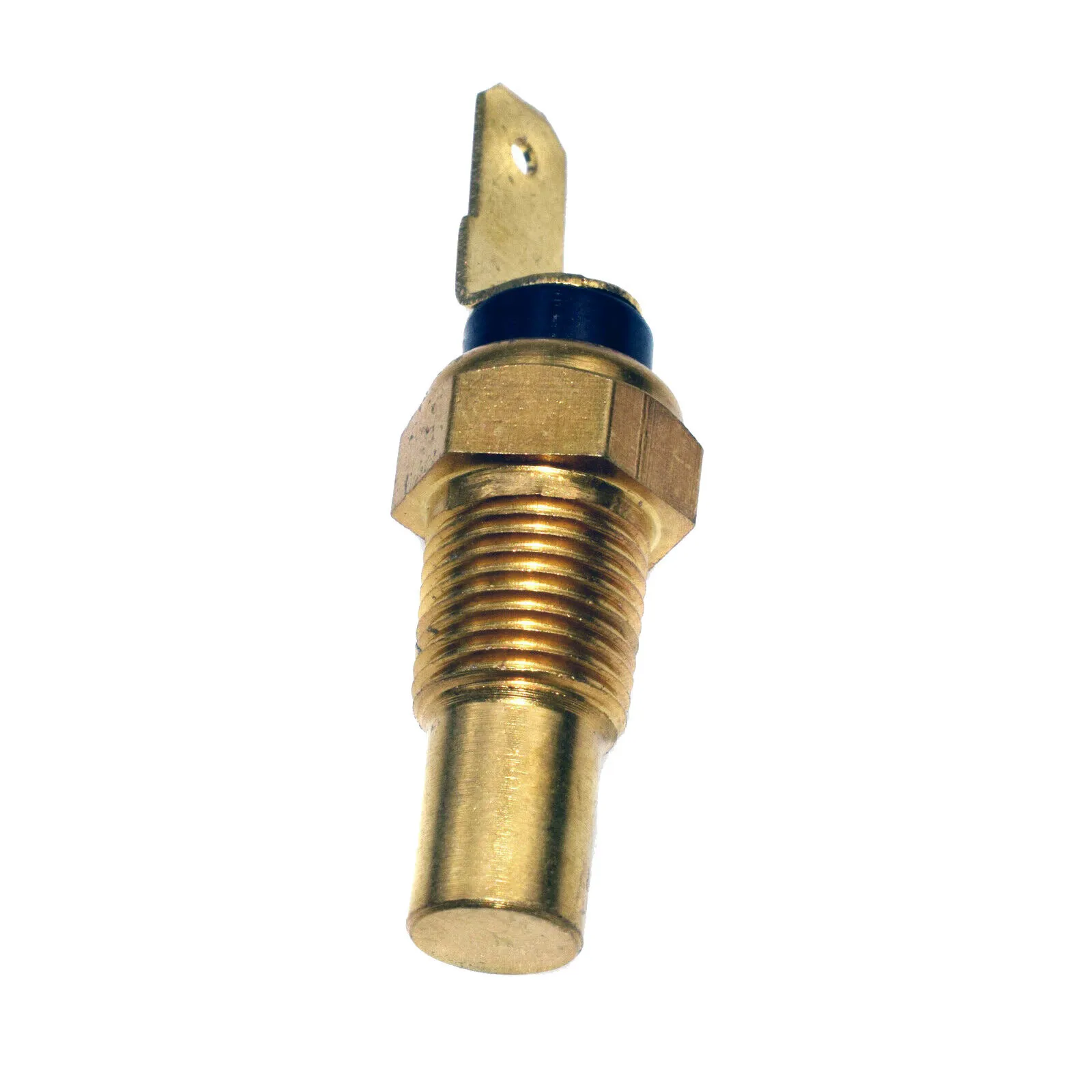

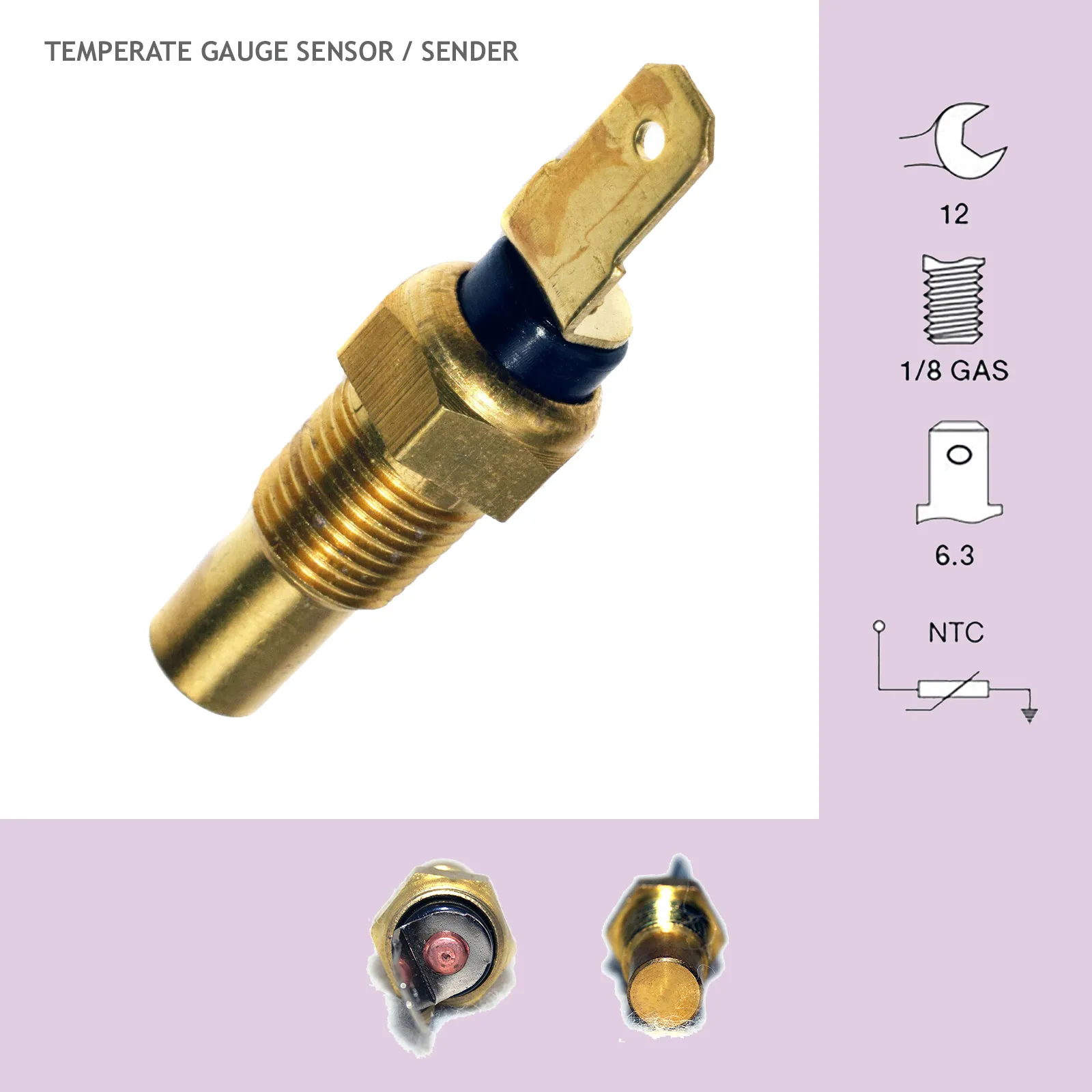

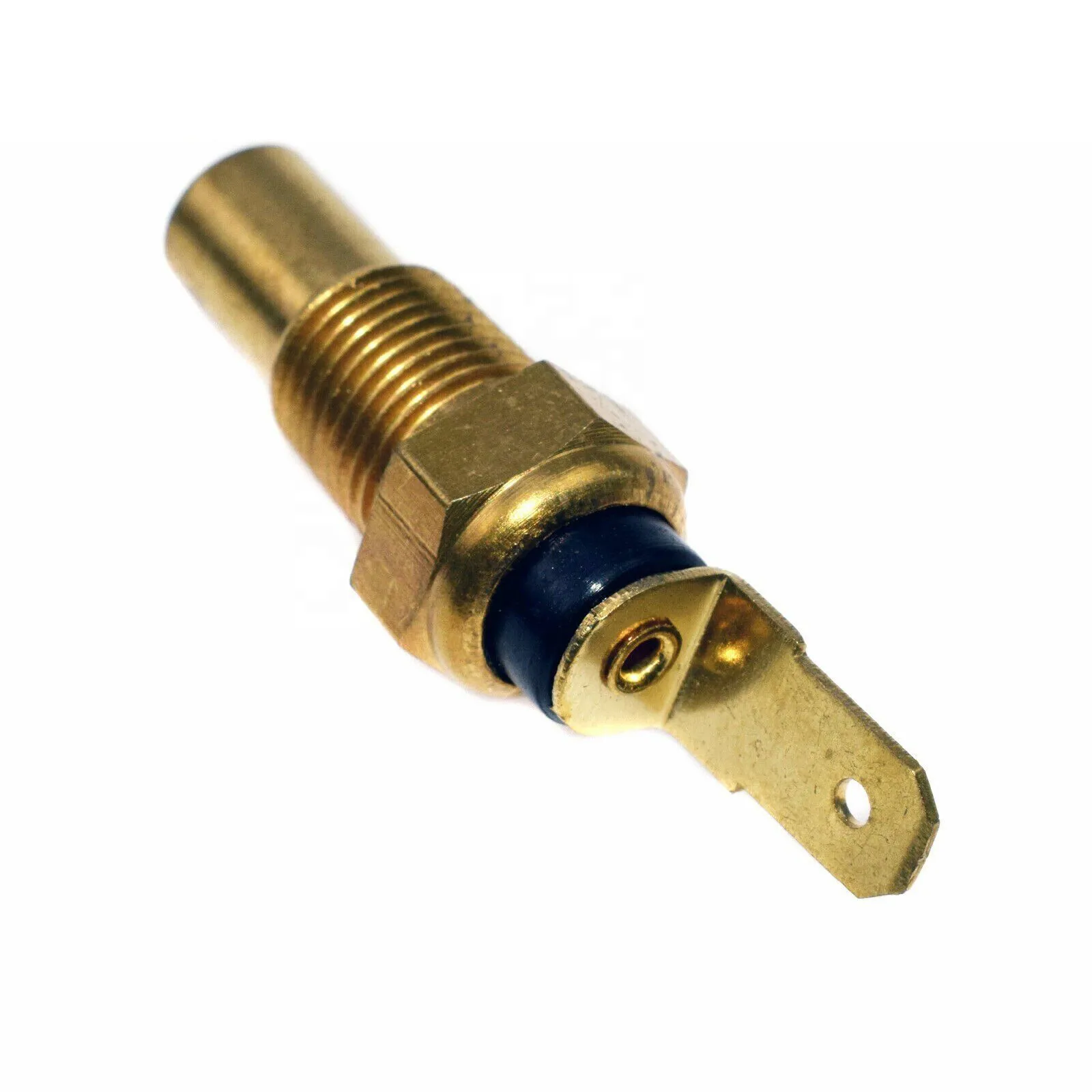

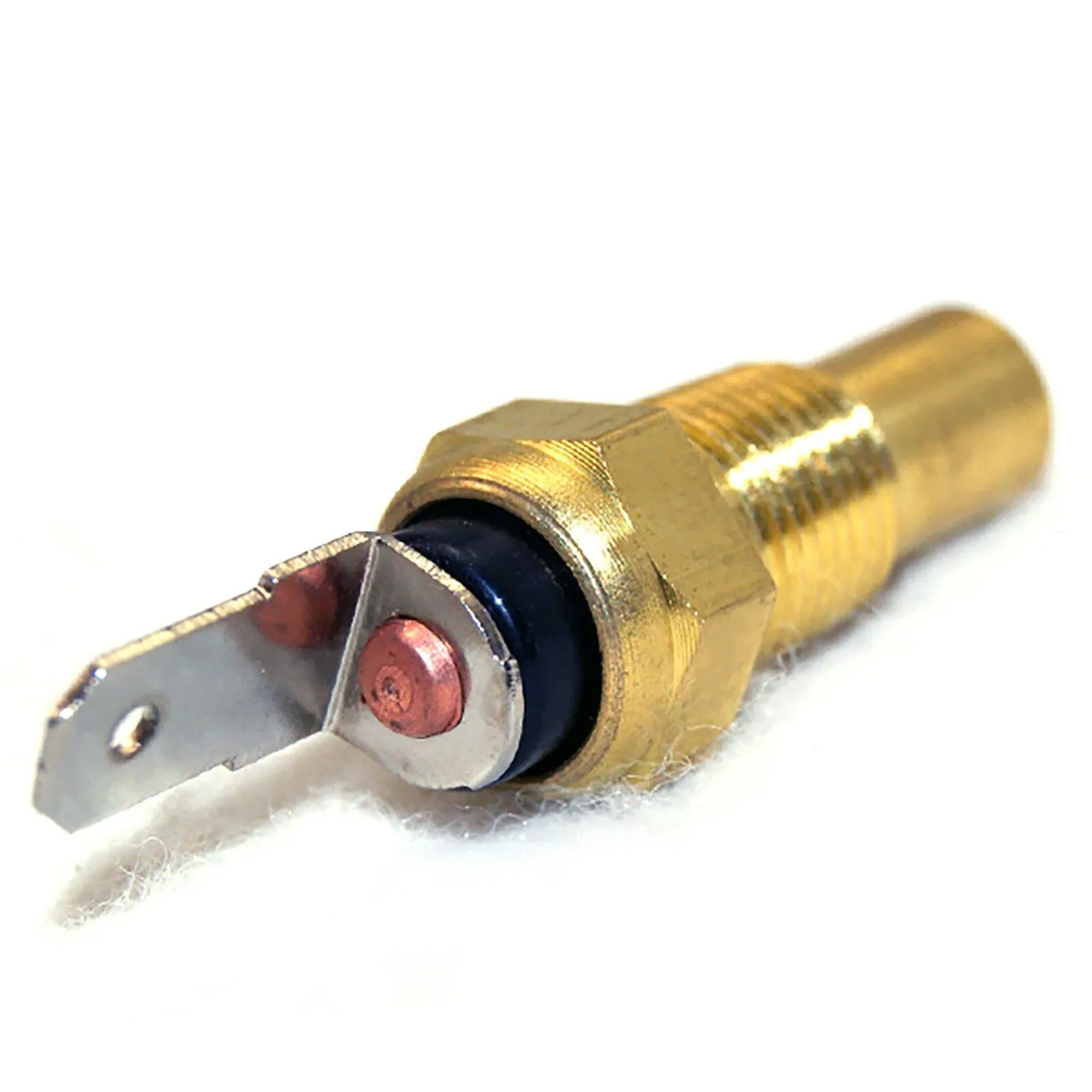

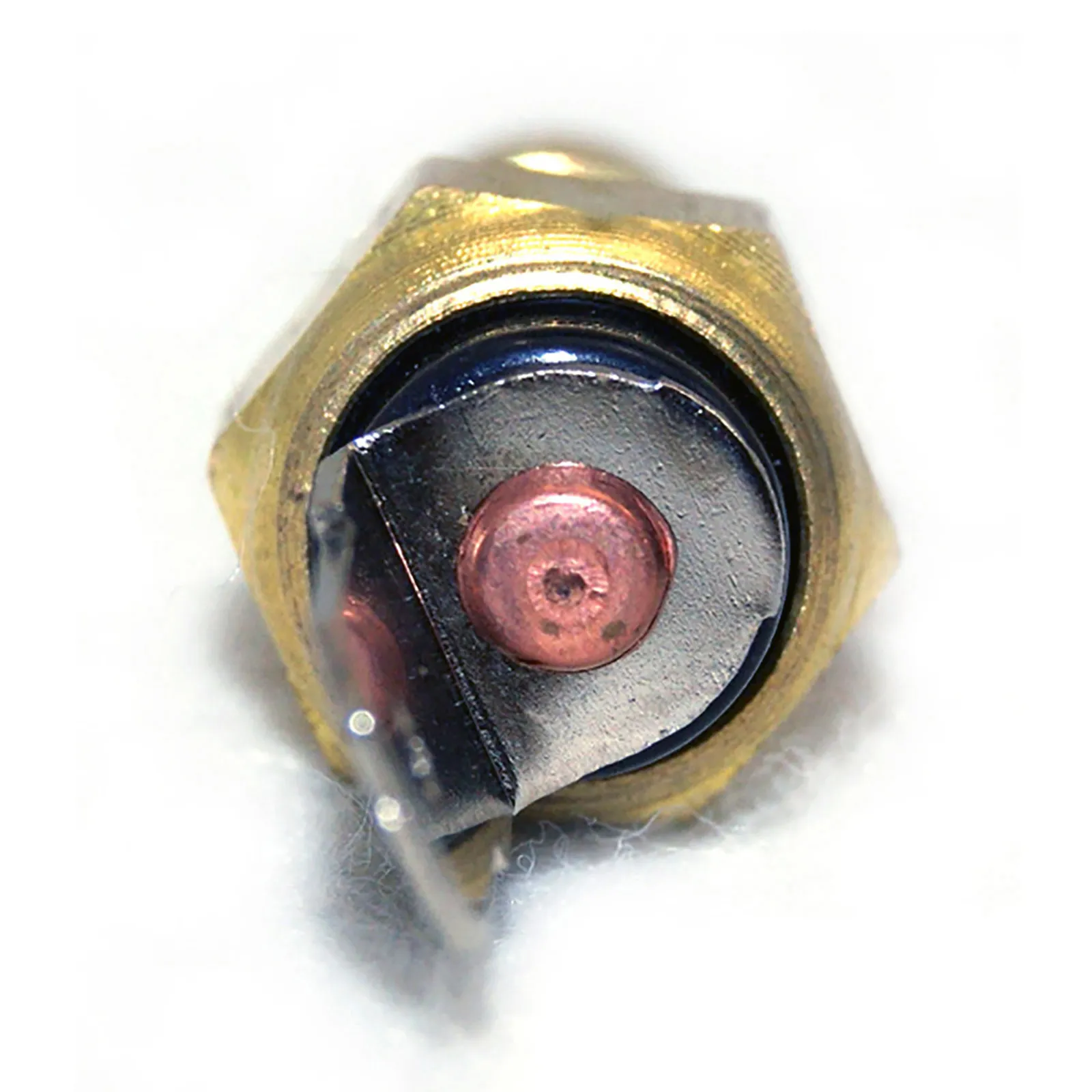

*Oem Quality* Coolant Temperature Sender Hyundai Sonata 1989-05 2.4 3.0 2.0

BRAND NEW *OEM QUALITY* COOLANT TEMPERATURE GUAGE SENDER / SENSOR TO SUIT HYUNDAI AND KIA VARIOUS VEHICLES

TO SUIT:

OEM# KK3701851X, KK37018510, 9465032520, 9465032510, 9465032500

PACKAGE INCLUDES:

1 X *OEM QUALITY* COOLANT TEMPERATURE GAUGE SENDER / SENSOR (1 PIN PLUG). Push-on Blade Terminal - Suits Temperature Gauge - 1/8 GAS Thread

The Engine Coolant Temperature Sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing.

Common signs of a bad or failing coolant temperature sensor include poor fuel economy, engine overheating black smoke from the engine, and the Check Engine Light turning on.

[06/98 - 04/00] HYUNDAI SONATA EF IV 16V 2.0L 4cyl G4JP 100kW
[10/01 - 05/05] HYUNDAI SONATA EF IV 2.4L 4cyl G4JS 104kW
[08/98 - 09/01] HYUNDAI SONATA EF IV i V6 2.5L V6 G6BV 127kW
[08/98 - 12/00] HYUNDAI SONATA EF IV V6 24V 2.5L V6 G6BV 118kW
[06/89 - 03/91] HYUNDAI SONATA Y-2 II 1.8L 4cyl G4CM 73kW
[03/89 - 02/92] HYUNDAI SONATA Y-2 II i 2.4L 4cyl G4CS 83kW
[04/90 - 10/93] HYUNDAI SONATA Y-2 II i V6 3.0L V6 G6AT 107kW
[10/93 - 08/98] HYUNDAI SONATA Y-3 III i 16V 2.0L 4cyl G4CP-D 102kW
[05/93 - 08/98] HYUNDAI SONATA Y-3 III i V6 3.0L V6 G6AT 107kW

Identification
SKU	CTS110-TTS004-6
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	TTS004
Reference OEM Number	9465032520
Other OEM Numbers	KK3701851X, KK37018510, 9465032520, 9465032510, 9465032500
Related Part Numbers	8342087703, 9465032520, CTS110, TS198, TTS004
Product Specifics
Product Type	sensor
Sensor Type	COOLANT TEMPERATURE GAUGE SENDER
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Thread Size	1/8 GAS
Spanner Size	12mm
Number of pins	1 -pin connector
Connector Shape	Round
Fitting Depth	20 mm
Housing Colour	Black
Plug Type	Blade Terminal
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.160 m
Shipping Height	0.030 m
Shipping Length	0.230 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER
Unit Of Measure	ea
