BRAND NEW *OEM Quality* Coolant Temperature Sender to suit Holden Rodeo KB TF TFR TFS, Jackaroo UBS, Frontera UES and Isuzu MU / Wizard / Vehicross - 1981 to 2005.

Temperature gauge unreliable on your Rodeo or Jackaroo? The coolant temperature sender is a common failure on these Isuzu-based Holden engines. Direct-fit replacement on OEM 96067371. Also suits Holden Apollo JK-JP and Holden Nova LE LF. Same-day dispatch from Melbourne.

TO SUIT

This sender suits the Holden Rodeo KB TFR16 TFR17 TFS17 TFR25 TFS25 TFR26 TFS26, Holden Jackaroo UBS13 UBS16 UBS17 UBS25 UBS26, Holden Frontera UES, Holden Piazza, Holden Apollo JK JL JM JP, Holden Barina MF MH, Holden Nova LE LF, and Isuzu MU / Wizard / Vehicross. Connector: 1-pin push-on blade. Thread: 1/8 GAS.

OEM PART NUMBERS

96067371
94847362
94247437
8942474371
1338507

OTHER PART NUMBERS

TTS004

PACKAGE INCLUDES

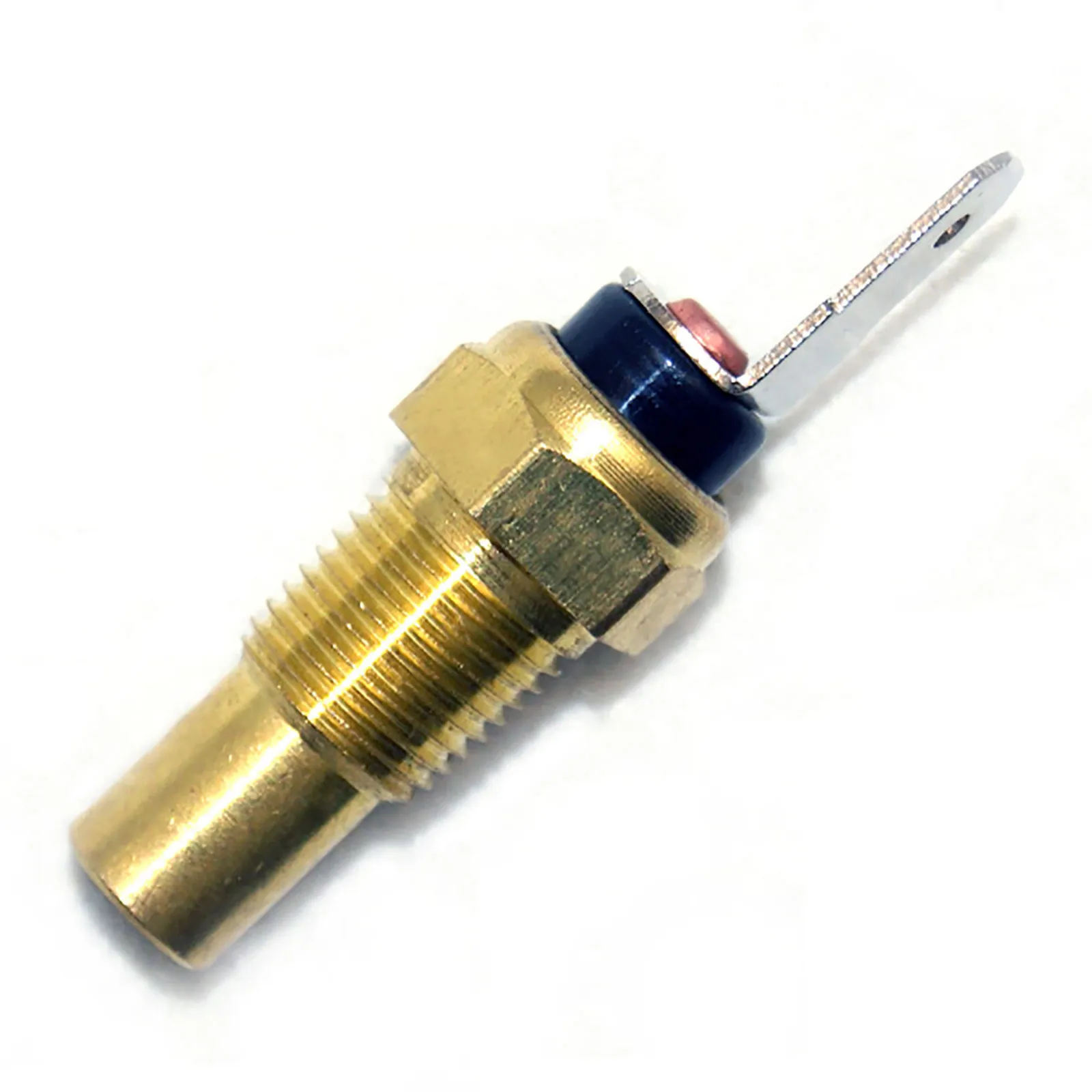

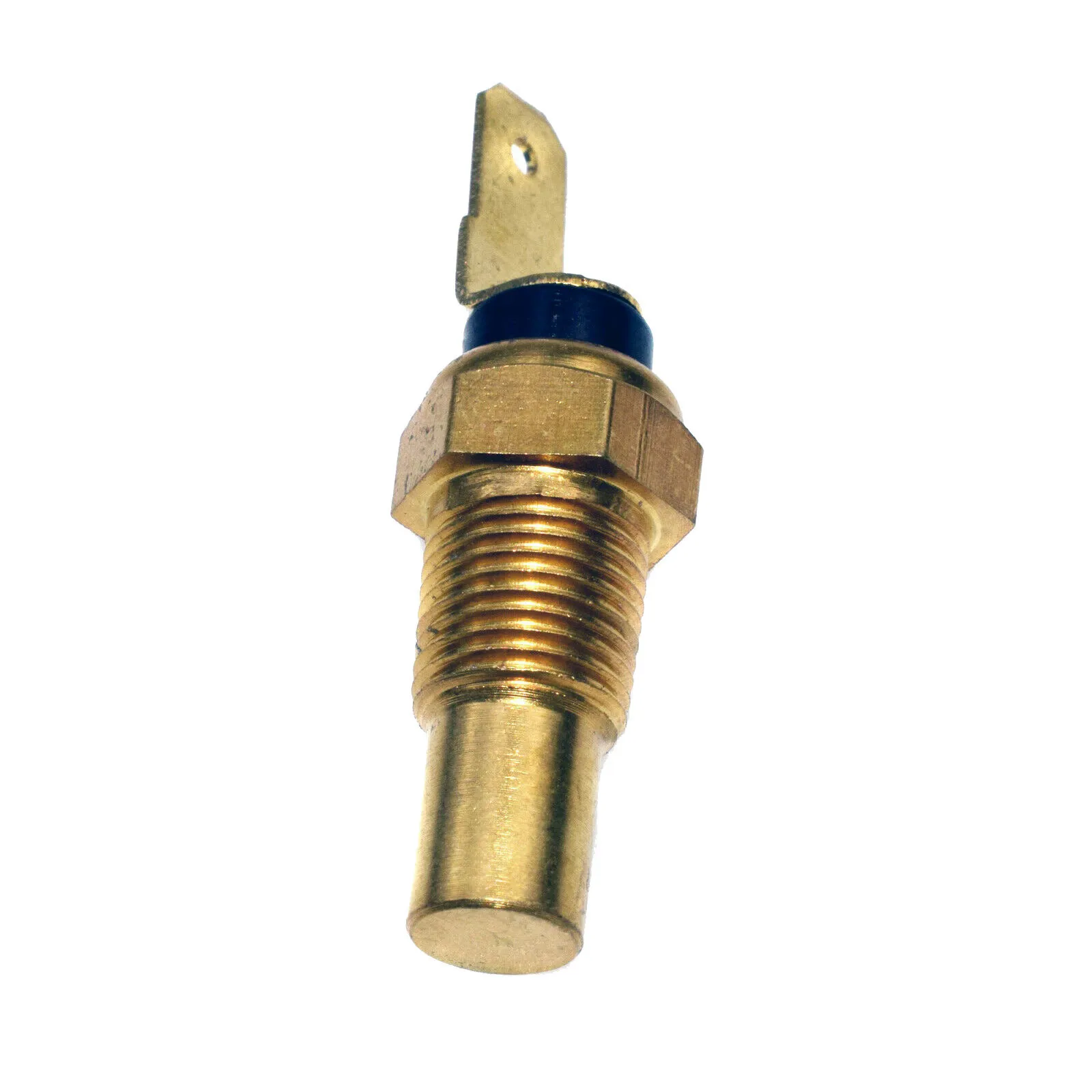

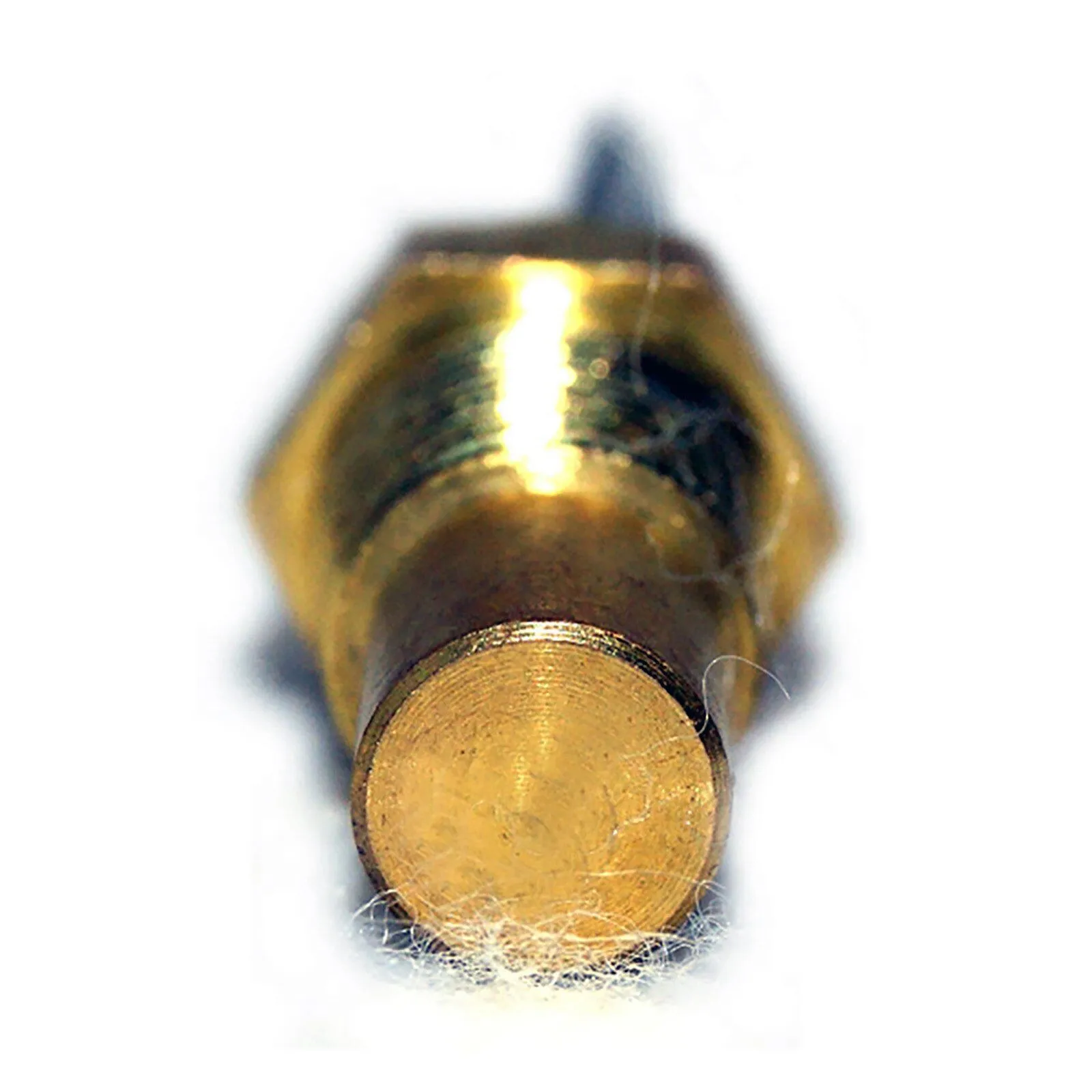

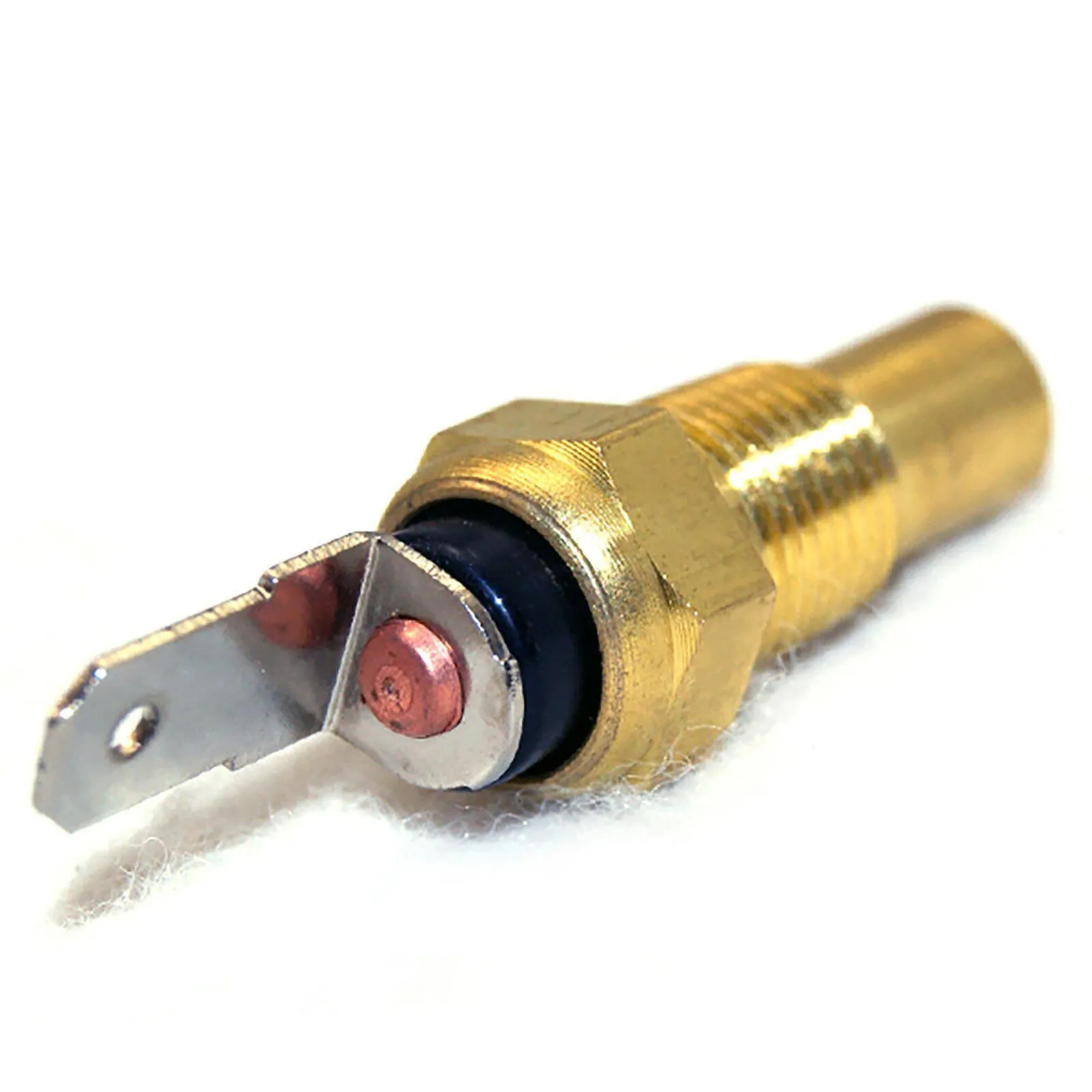

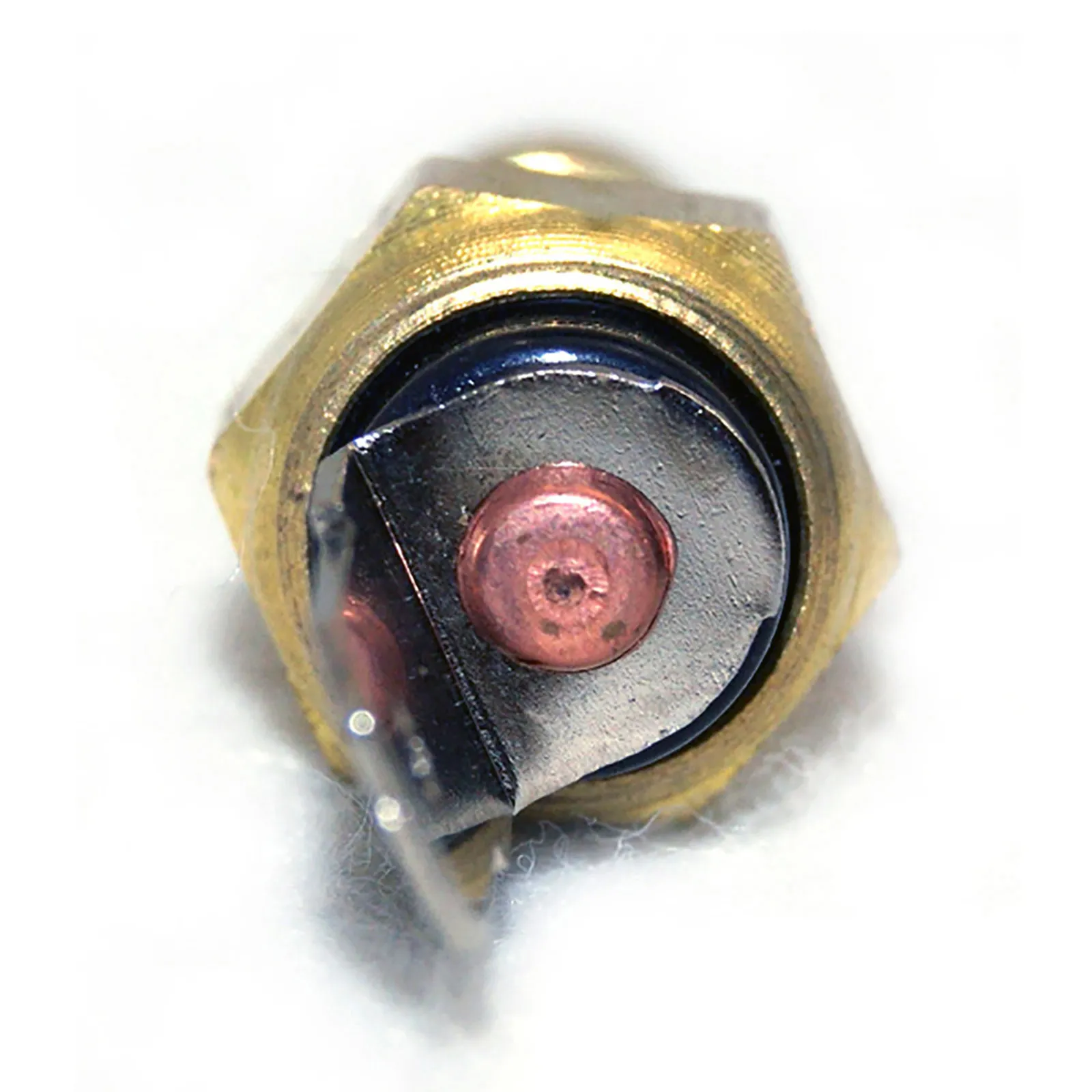

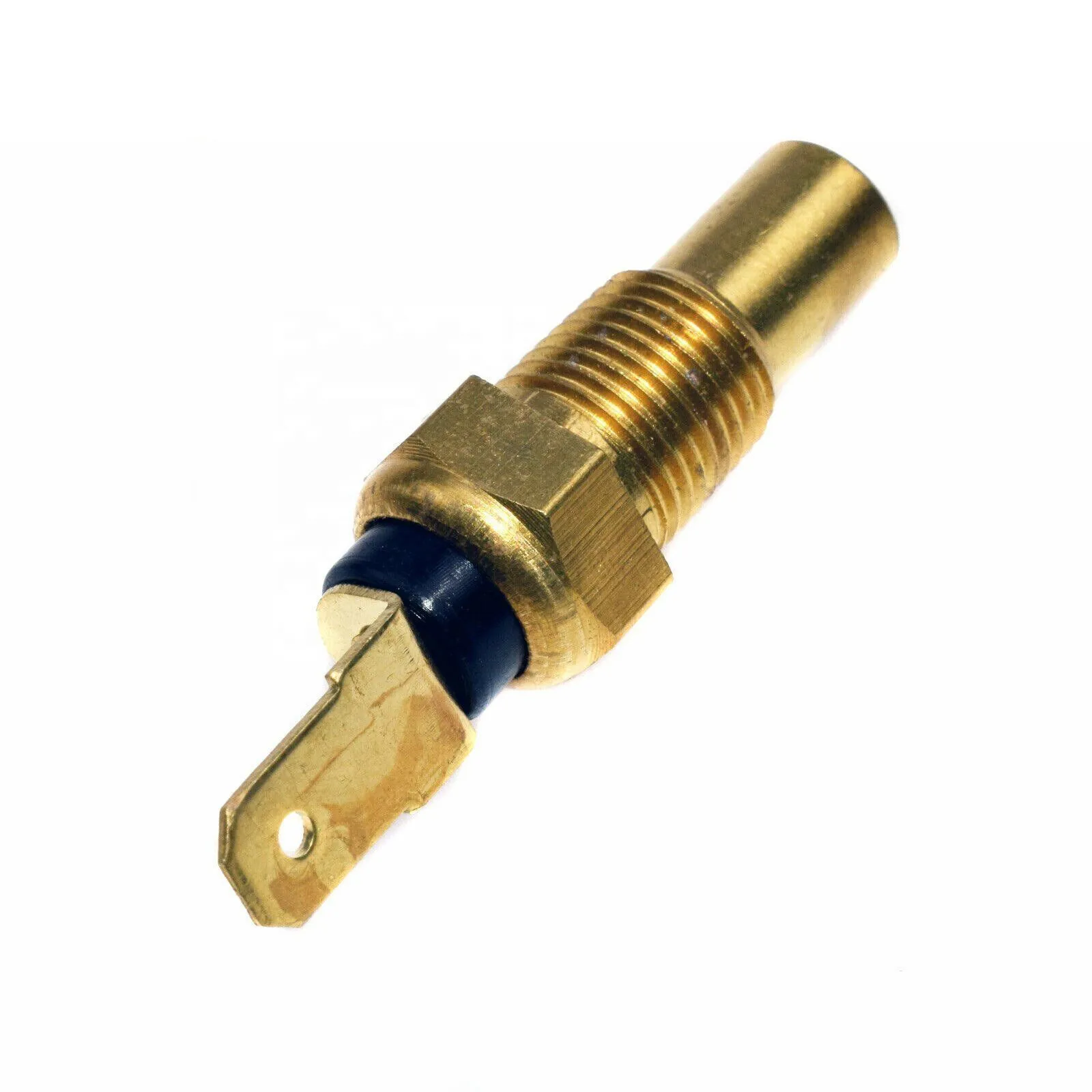

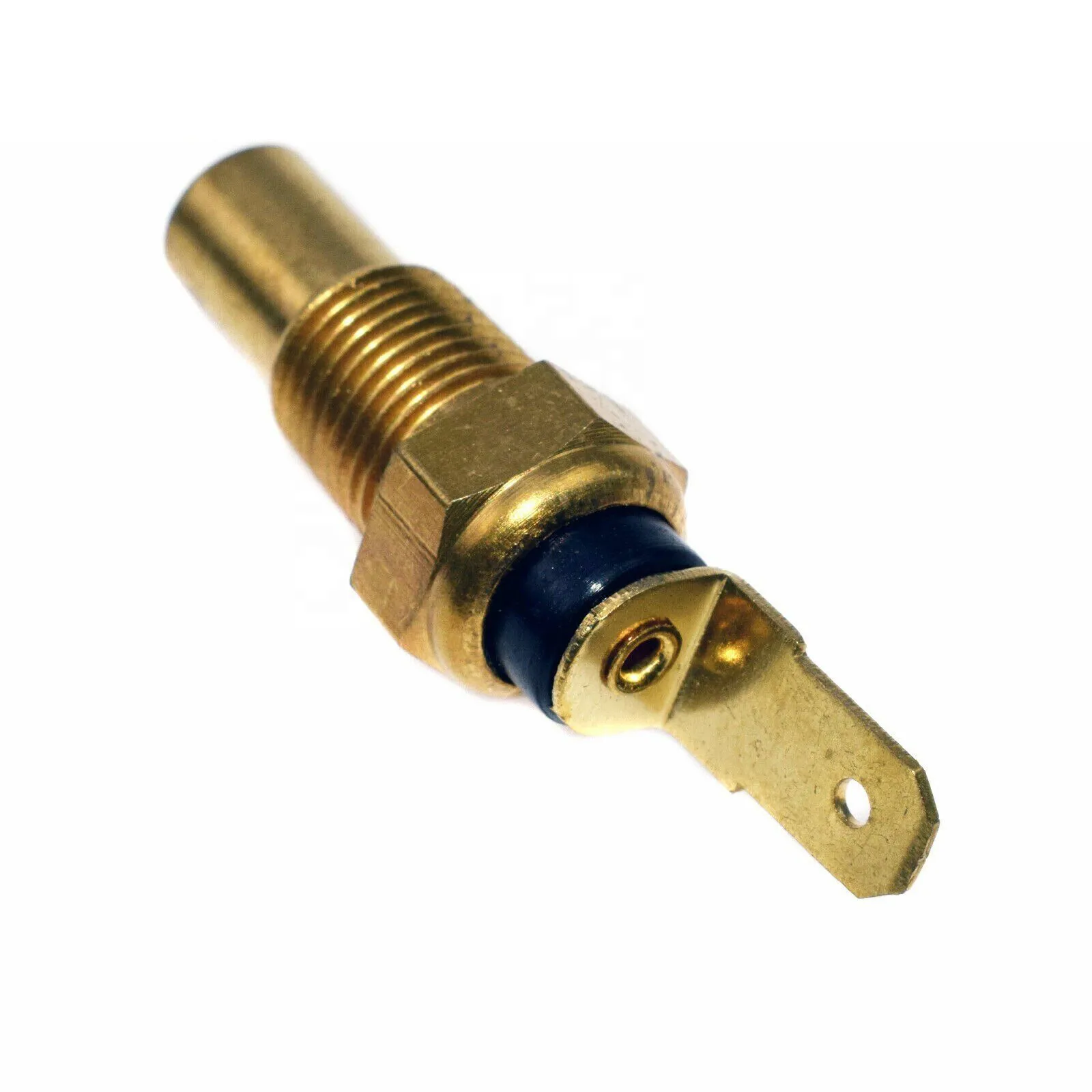

1 x Coolant Temperature Sender (1-pin push-on blade terminal / 1/8 GAS thread)

ABOUT THIS SENDER

The coolant temperature sender is a single-wire thermistor that drives the temperature gauge. It is separate from the ECU coolant temperature sensor and does not trigger fault codes when it fails. On Isuzu-based Holden engines it is typically located on the block or head near the thermostat housing.

On a working vehicle like the Rodeo or Jackaroo an unreliable gauge can mask a genuine overheating event. Replacing this inexpensive sender is always the recommended first step when gauge behaviour is abnormal.

COMMON SYMPTOMS OF FAILURE

Temperature gauge stuck at maximum or minimum
Gauge reading erratically or fluctuating
Gauge reads cold at operating temperature
Gauge reads hot immediately on cold start
Intermittent gauge behaviour

[01/82 - 12/88] HOLDEN RODEO KB27 KB42 1.8L G180Z (Petrol)
[01/83 - 12/88] HOLDEN RODEO KBD27 KBD42 KBD47 2.2L C223 (Diesel)
[08/85 - 12/88] HOLDEN RODEO KB29 KB49 KBD44 2.3L 4ZD1 (Petrol)
[02/88 - 06/98] HOLDEN RODEO TFR17 TFS17 2.6L 4ZE1 (Petrol)
[06/91 - 08/03] HOLDEN RODEO TFR16 2.3L 4ZD1 (Petrol)
[02/88 - 12/92] HOLDEN RODEO TFR54 TFS54 2.5L 4JA1 (Diesel)
[02/98 - 02/03] HOLDEN RODEO TFR25 TFS25 3.2L V6 6VD1 (Petrol)
[02/03 - 12/05] HOLDEN RODEO TFR26 TFS26 3.5L V6 6VE1 (Petrol)
[11/81 - 07/85] HOLDEN JACKAROO UBS13 1.9L G200Z (Petrol)
[08/85 - 12/88] HOLDEN JACKAROO UBS16 2.3L 4ZD1 (Petrol)
[07/88 - 03/92] HOLDEN JACKAROO UBS17 2.6L 4ZE1 (Petrol)
[04/92 - 02/98] HOLDEN JACKAROO / MONTEREY UBS25 3.2L V6 6VD1 (Petrol)
[03/98 - 09/04] HOLDEN JACKAROO / MONTEREY UBS26 RS 3.5L V6 6VE1 (Petrol)
[02/99 - 04/04] HOLDEN FRONTERA UES 3.2L V6 6VD1 (Petrol)
[04/85 - 12/87] HOLDEN PIAZZA YB Turbo 2.0L 4ZC1-T (Turbo Petrol)
[08/89 - 05/95] HOLDEN APOLLO JK JL JM JP 2.0L 3S-FC / 3S-FE / 2.2L 5S-FE / 3.0L 3VZ-FE
[02/89 - 05/94] HOLDEN BARINA MF MH GL 1.3L G13BA
[08/89 - 10/94] HOLDEN NOVA LE LF 1.4L 6A-FC / 1.6L 4A-FC
[05/85 - 05/86] HOLDEN GEMINI RB i 1.5L 4XC1
[02/89 - 07/94] ISUZU MU UCS17 USC17 2.6L 4ZE1 (Petrol)
[06/98 - 08/02] ISUZU MU UES25 / WIZARD UES25 3.2L V6 6VD1 (Petrol)
[04/97 - 12/00] ISUZU VEHICROSS UGS25 3.2L V6 6VD1 (Petrol)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CTS110-TTS004-9
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	TTS004
Reference OEM Number	96067371
Other OEM Numbers	96067371, 94847362, 94247437, 8942474371, 1338507
Related Part Numbers	CTS110, TS198, TTS004
Product Specifics
Product Type	SENSOR
Sensor Type	COOLANT TEMPERATURE GAUGE SENDER
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year

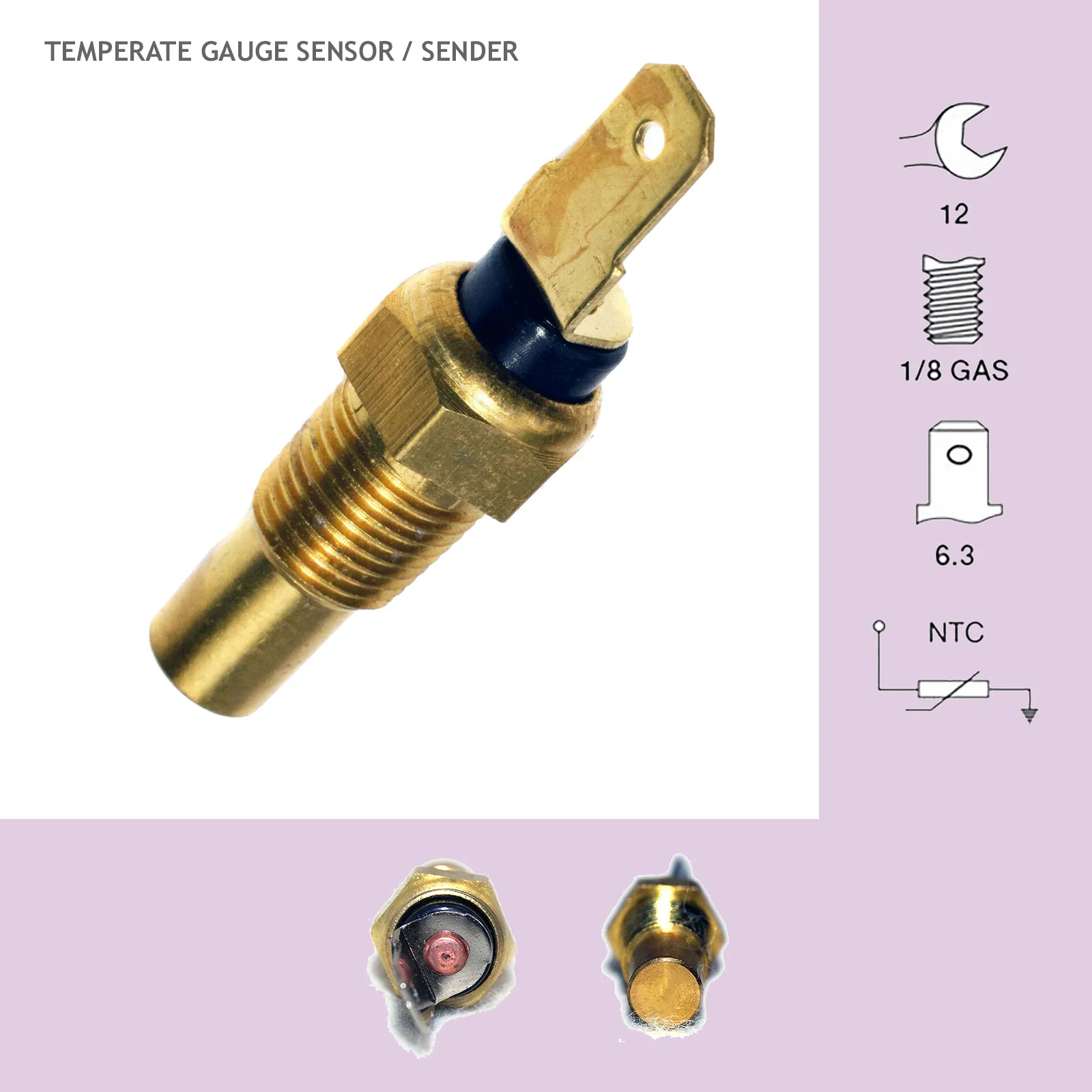

Thread Size	1/8 GAS
Spanner Size	12mm
Number of pins	1 -pin connector
Connector Shape	Round
Fitting Depth	20 mm
Housing Colour	Black
Plug Type	Blade Terminal
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
