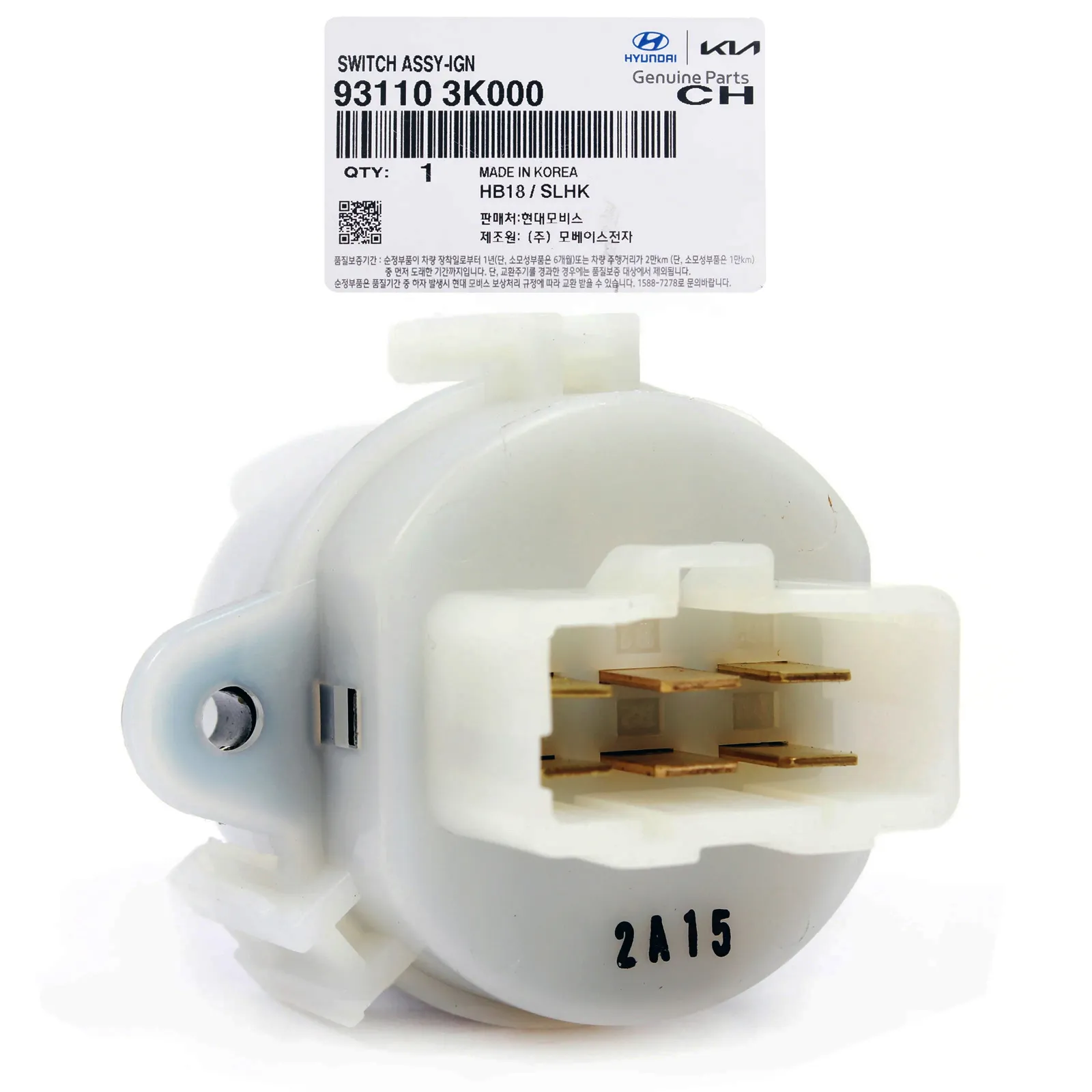

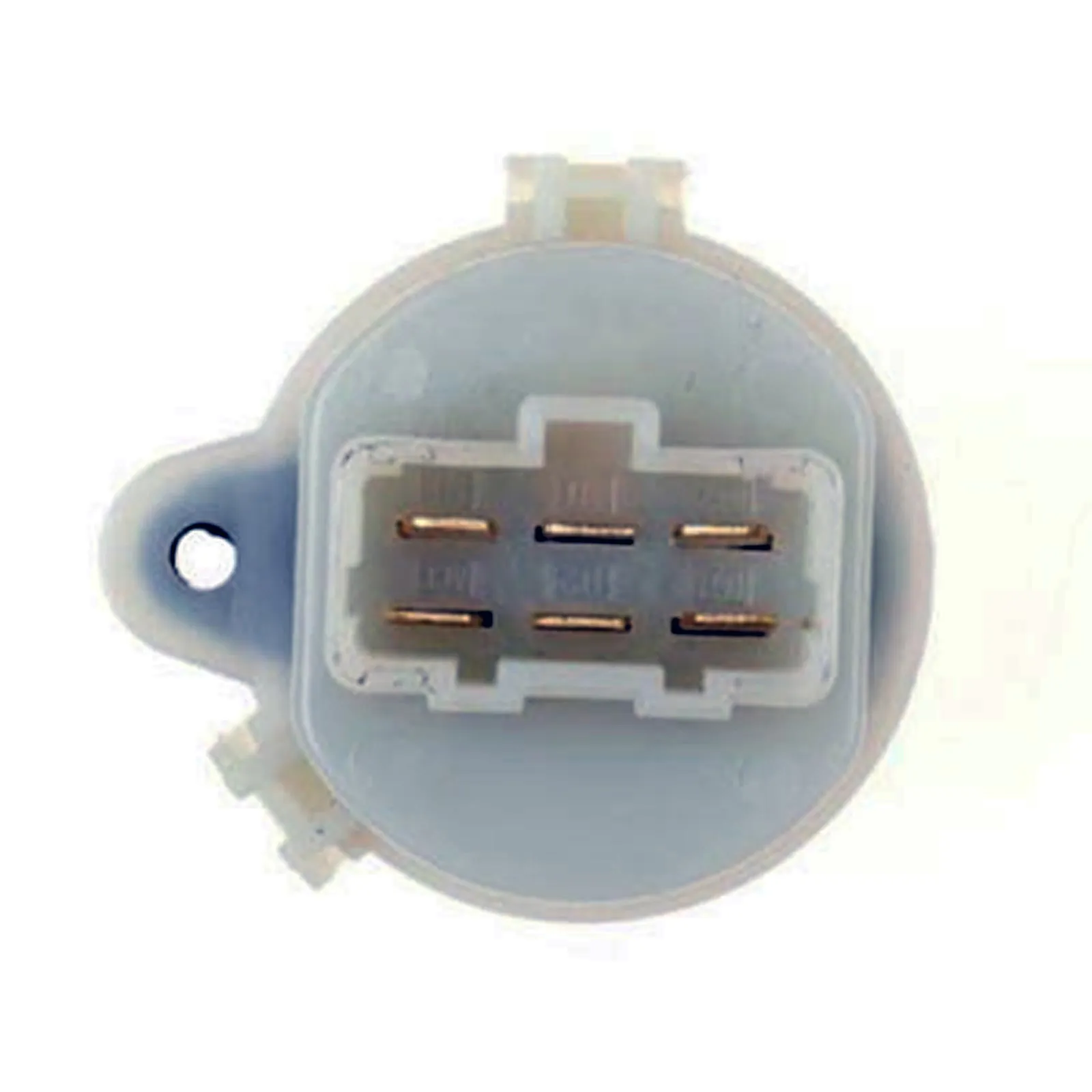

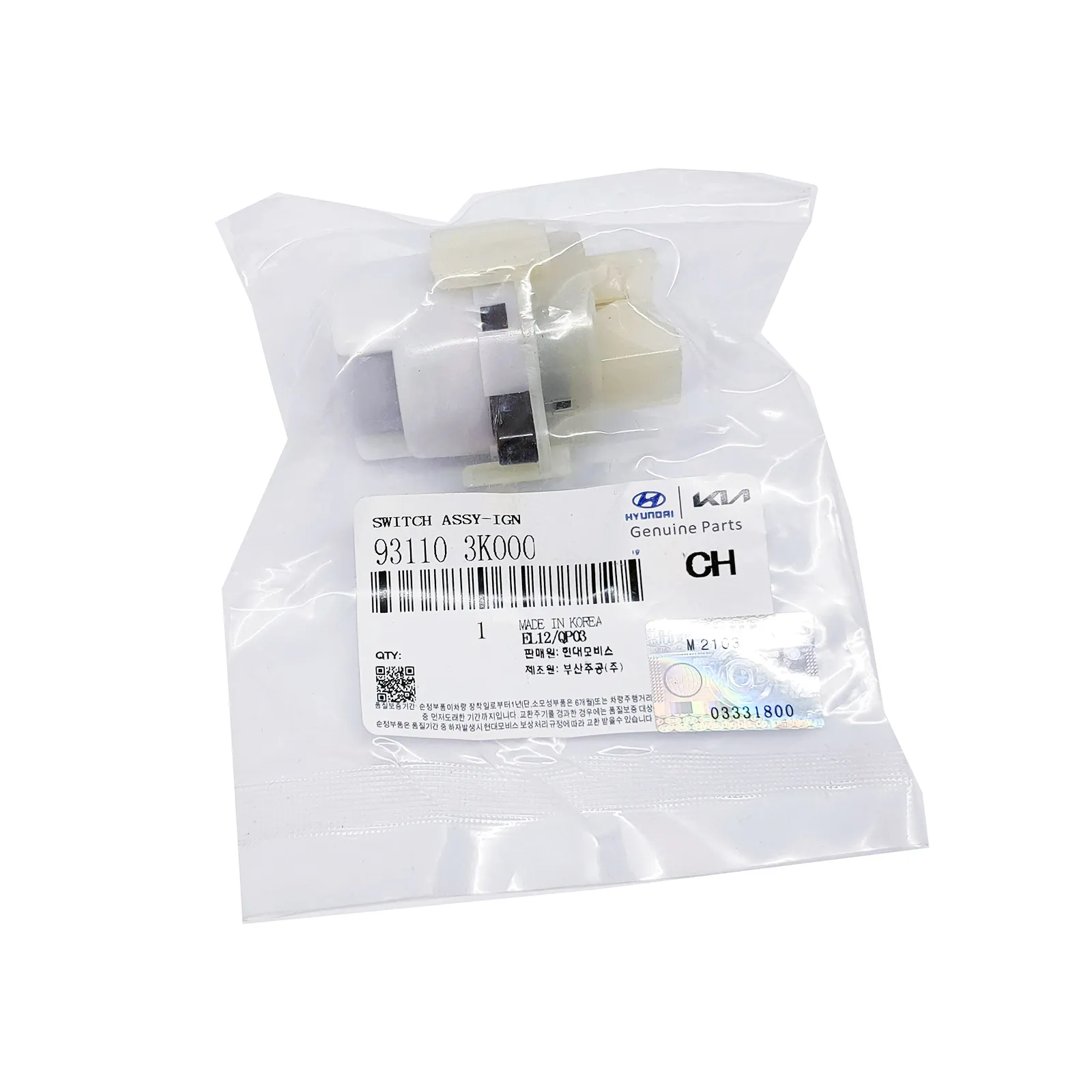

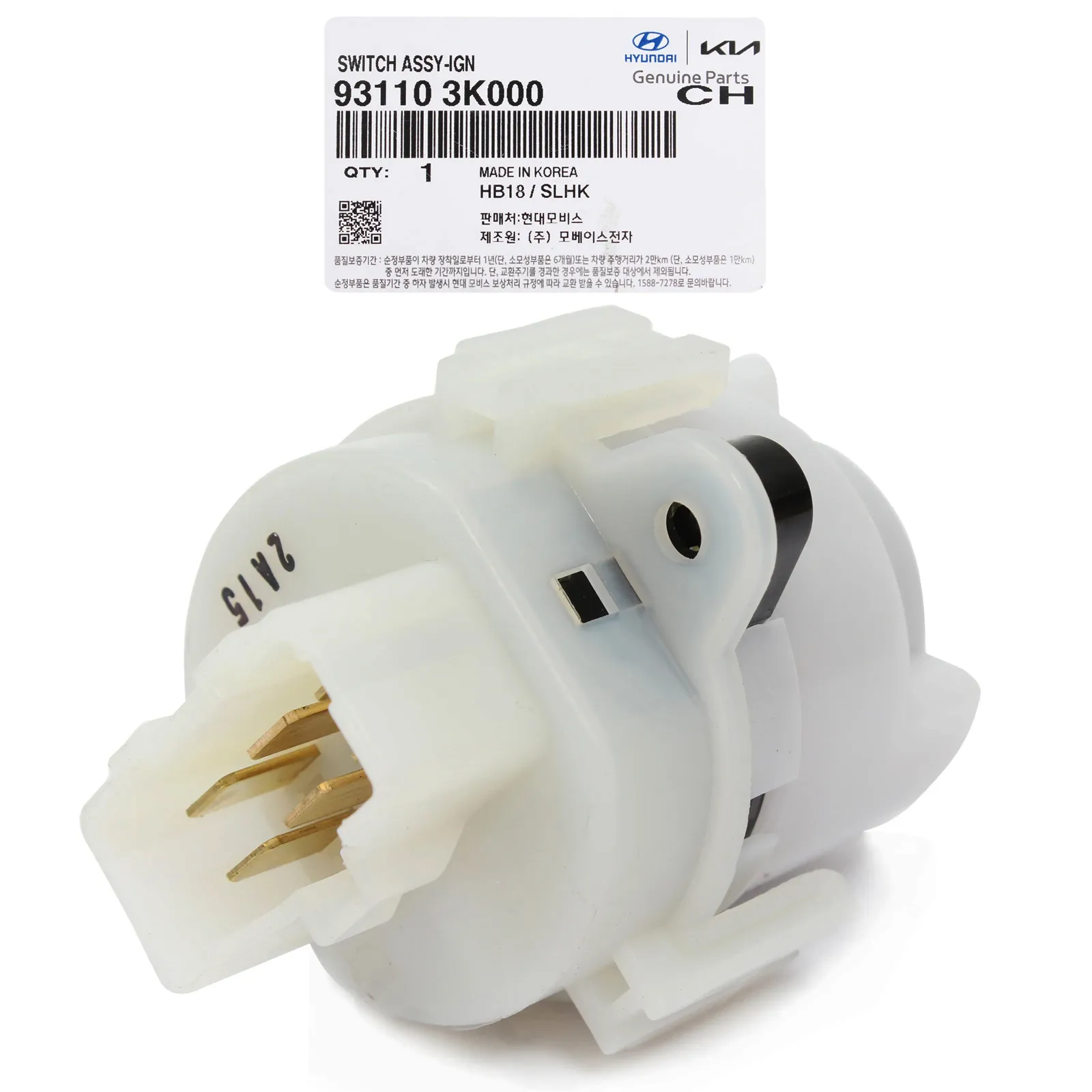

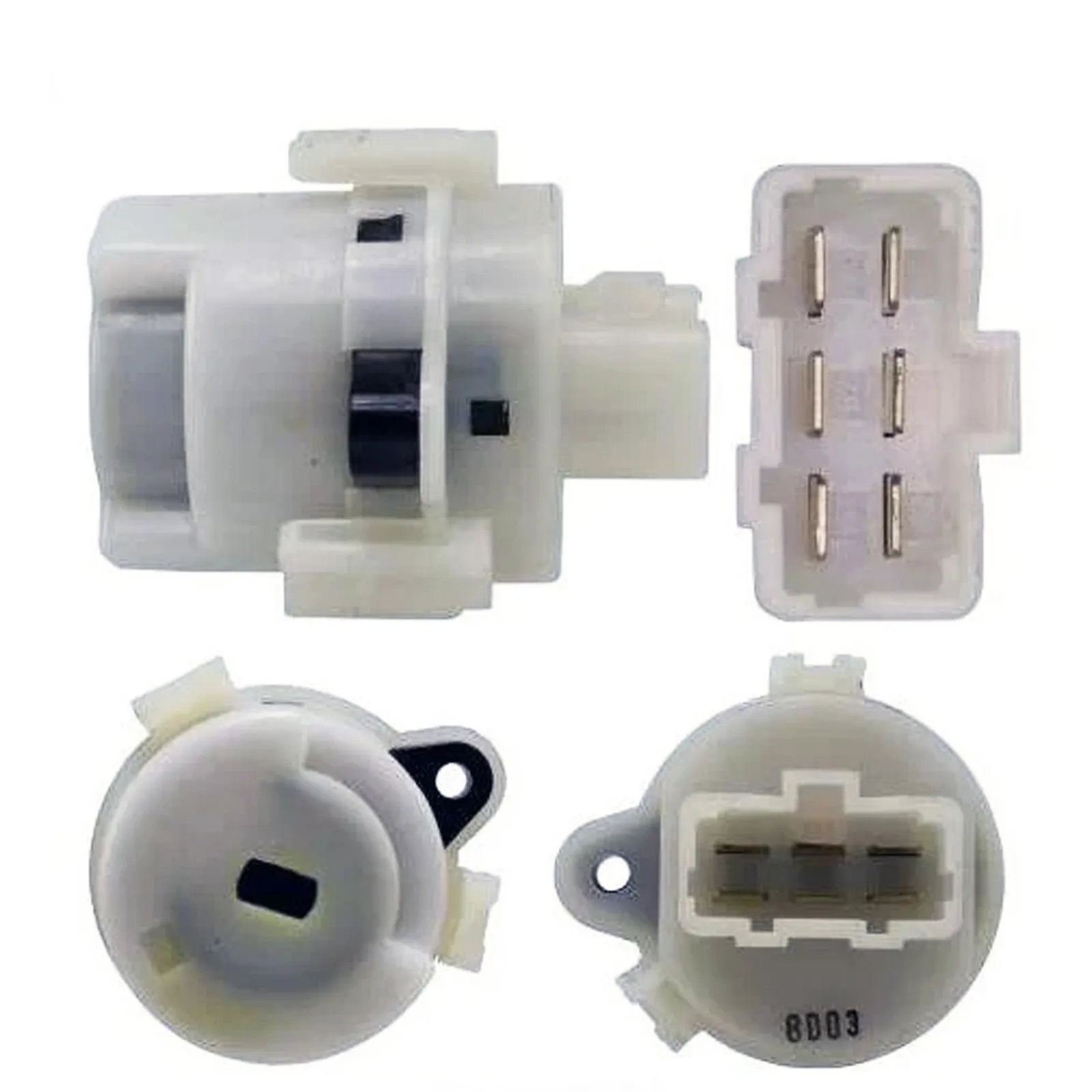

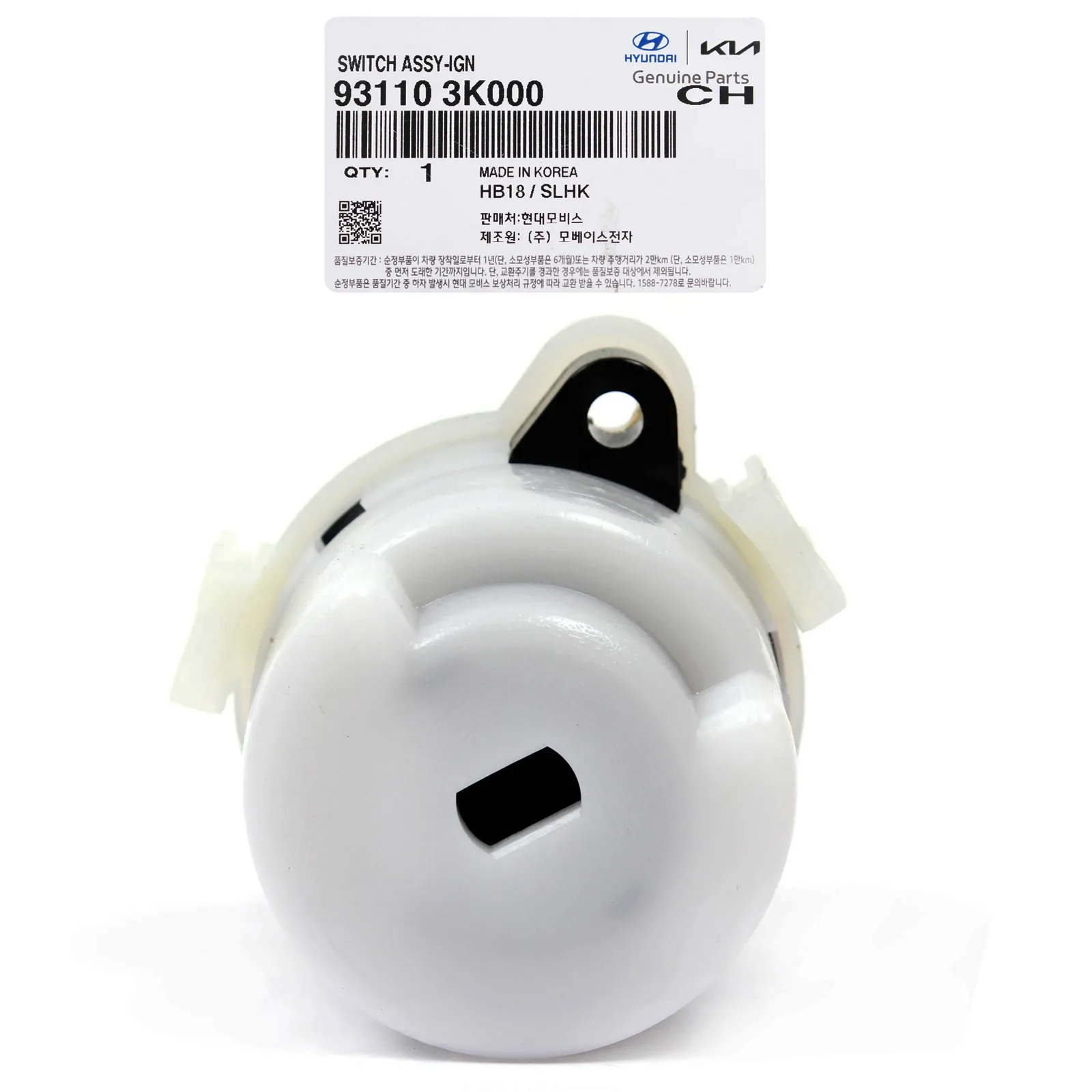

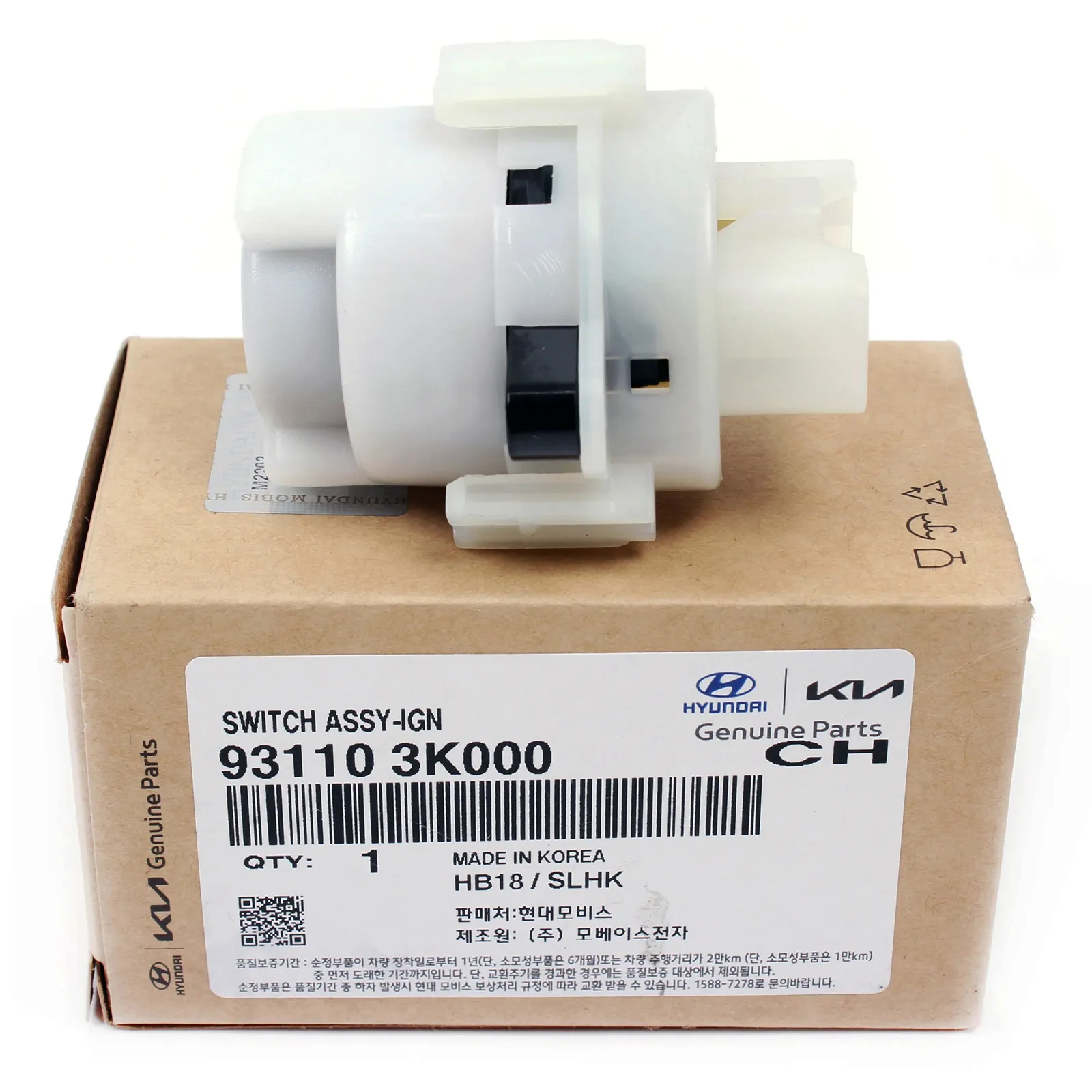

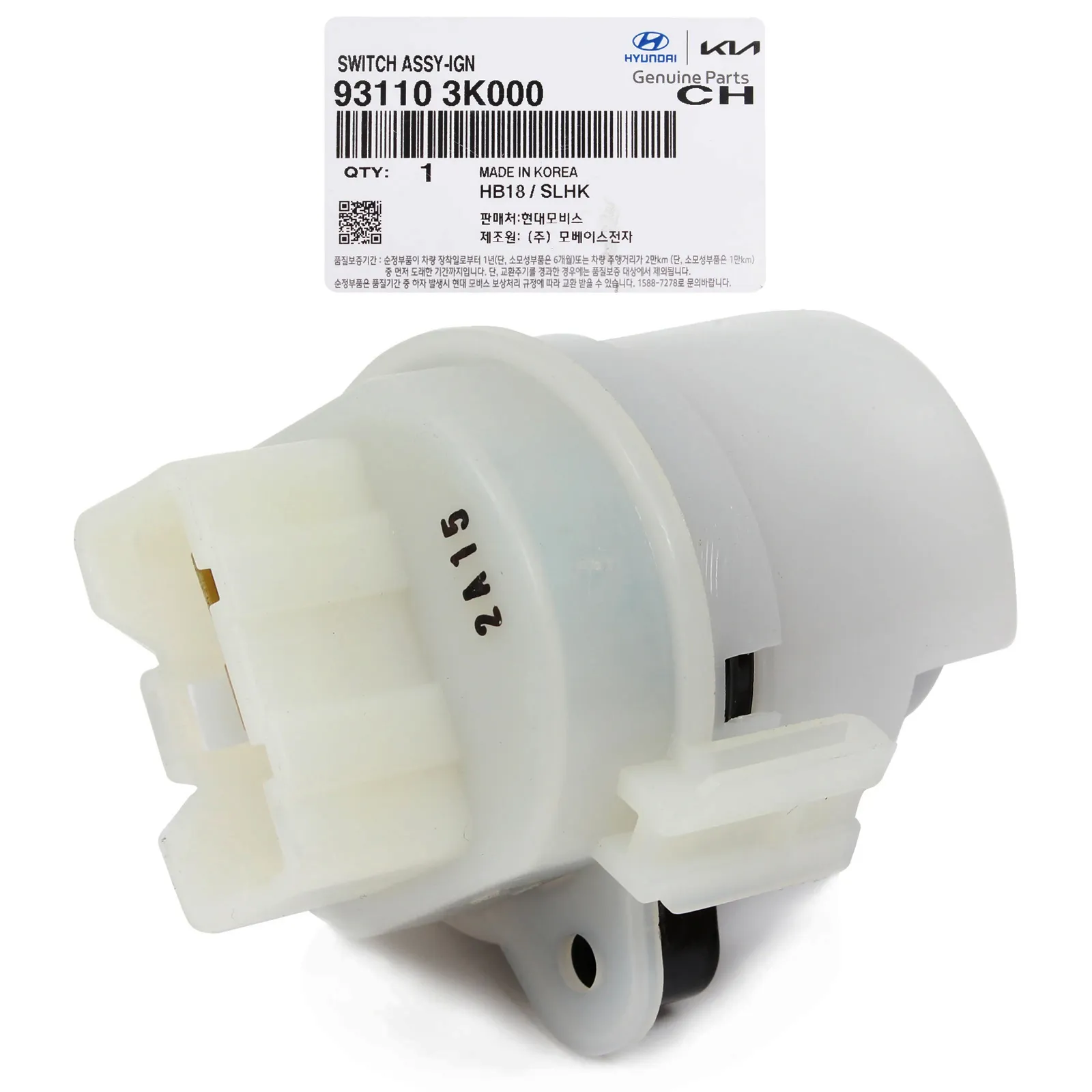

Ignition Starter Switch 931103K000 for Hyundai Santa-Fe CM Sonata NF 2005-ON

The ignition starter switch is the electrical component behind the ignition barrel that activates the starter motor and powers the ignition system when you turn the key. It sends power to the starter relay, ignition coils, fuel pump, and ECU. Unlike the ignition barrel which is the mechanical lock cylinder, the starter switch is the electrical contact that can wear out independently over time.

Common symptoms include turning the key with no response - no crank and no click from the starter relay. The engine may start intermittently, working some times but not others. Dashboard warning lights may flicker or fail to illuminate correctly on startup. In some cases accessories power on normally but the engine will not crank. These symptoms often worsen in hot weather as heat accelerates electrical contact wear.

If you turn the key and hear a single click from the starter relay but the engine does not crank, the fault is likely in the starter motor or its wiring. If you turn the key and hear nothing at all - no click, no relay activation - the fault is more likely in the ignition starter switch, ignition barrel, clutch switch (manual), or neutral safety switch (automatic). A multimeter test of voltage at the starter solenoid while cranking will confirm which side of the circuit is at fault.

If the switch has failed completely you will not be able to start the vehicle at all. If it is failing intermittently you may be able to start the vehicle but there is a risk it will not restart once switched off. Do not drive long distances if the switch is unreliable - being stranded with a no-start condition is a safety risk, particularly on busy roads or in remote areas.

No - the ignition starter switch is a passive electrical component with no programming requirements. It is a direct plug-in replacement. However if your vehicle has a transponder immobiliser system built into the ignition barrel assembly, the barrel and switch may need to be replaced as a matched pair and the immobiliser may require coding by a locksmith or dealer.

The ignition barrel is the mechanical lock cylinder that you insert the key into. The ignition switch (starter switch) is the electrical component attached to the back of the barrel that makes and breaks the electrical circuits when you turn the key. They are separate components - the barrel can wear mechanically while the switch contacts are still good, or the switch contacts can fail while the barrel operates correctly. Both can be replaced independently on most vehicles.
