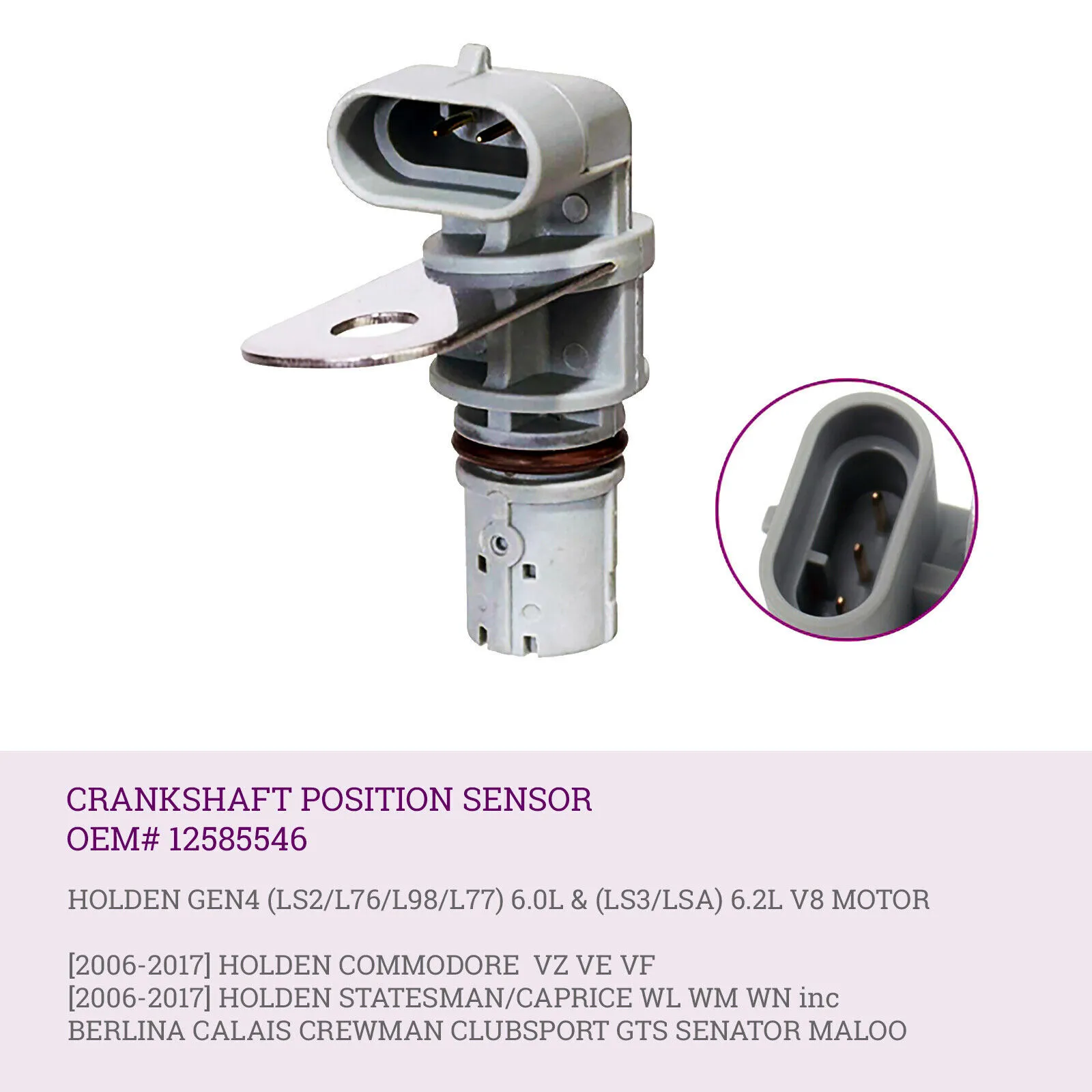

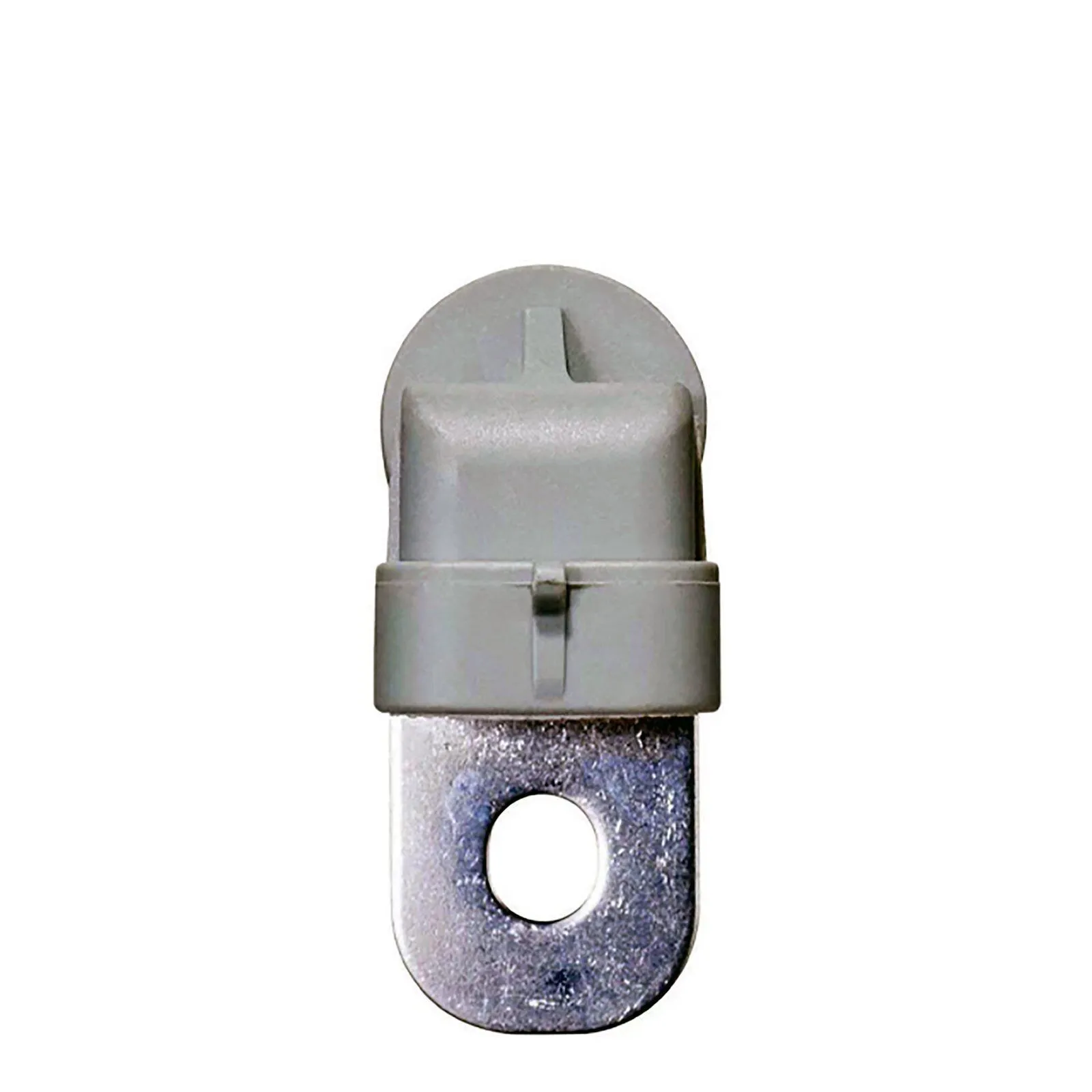

Name: Crank Angle Sensor Holden V8 GEN4 LS2 6.0L VZ VE VF Commodore
Brand: Aftermarket OEM Replacement
SKU: CSCA353-2
Price: 85.97 AUD
Availability: InStock

BRAND NEW *OEM Quality* Crank Angle Sensor to suit Holden Commodore, Calais, Caprice, Statesman, and HSV with the Gen4 V8 - covering L76, L77, L98, LS2, LS3, and LSA engine codes.

Check engine light, rough idle, or misfires on your Gen4 V8? A worn crank angle sensor is a common cause. This is a direct-fit replacement, packed and shipped from Cranbourne VIC.

TO SUIT

This sensor suits the Holden Commodore VZ VE VF and Calais with the Gen4 6.0L V8 (L76/L77/L98), and HSV Clubsport, GTS, Senator, and Maloo with the Gen4 6.0L LS2 and 6.2L LS3/LSA V8 (2004-2017), plus Statesman and Caprice WL/WM/WN. See full engine-by-engine vehicle list below.

OEM PART NUMBERS

12585546
12703627

OTHER PART NUMBERS

ACDelco: 213-3520
VEMO: V51-72-0173

PACKAGE INCLUDES

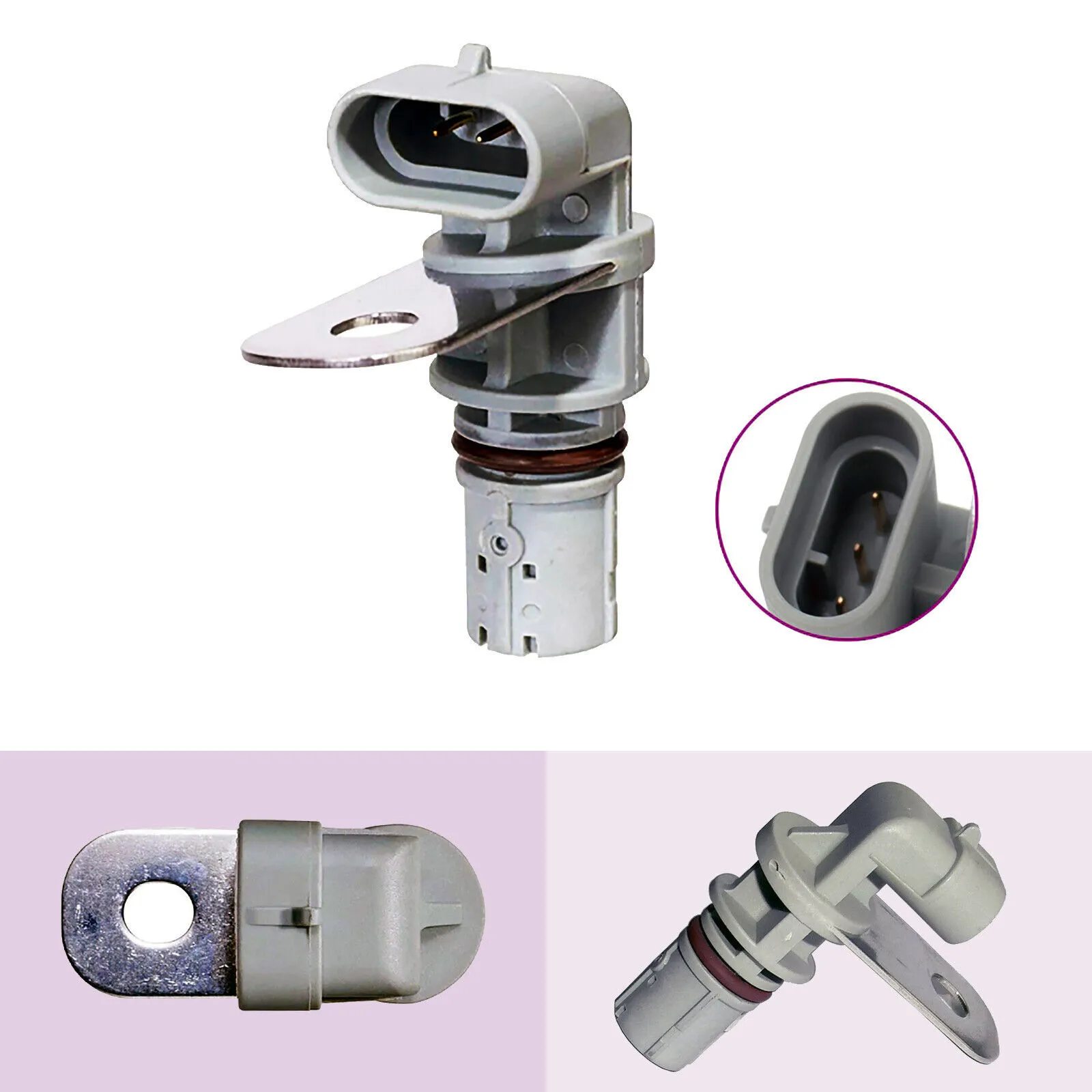

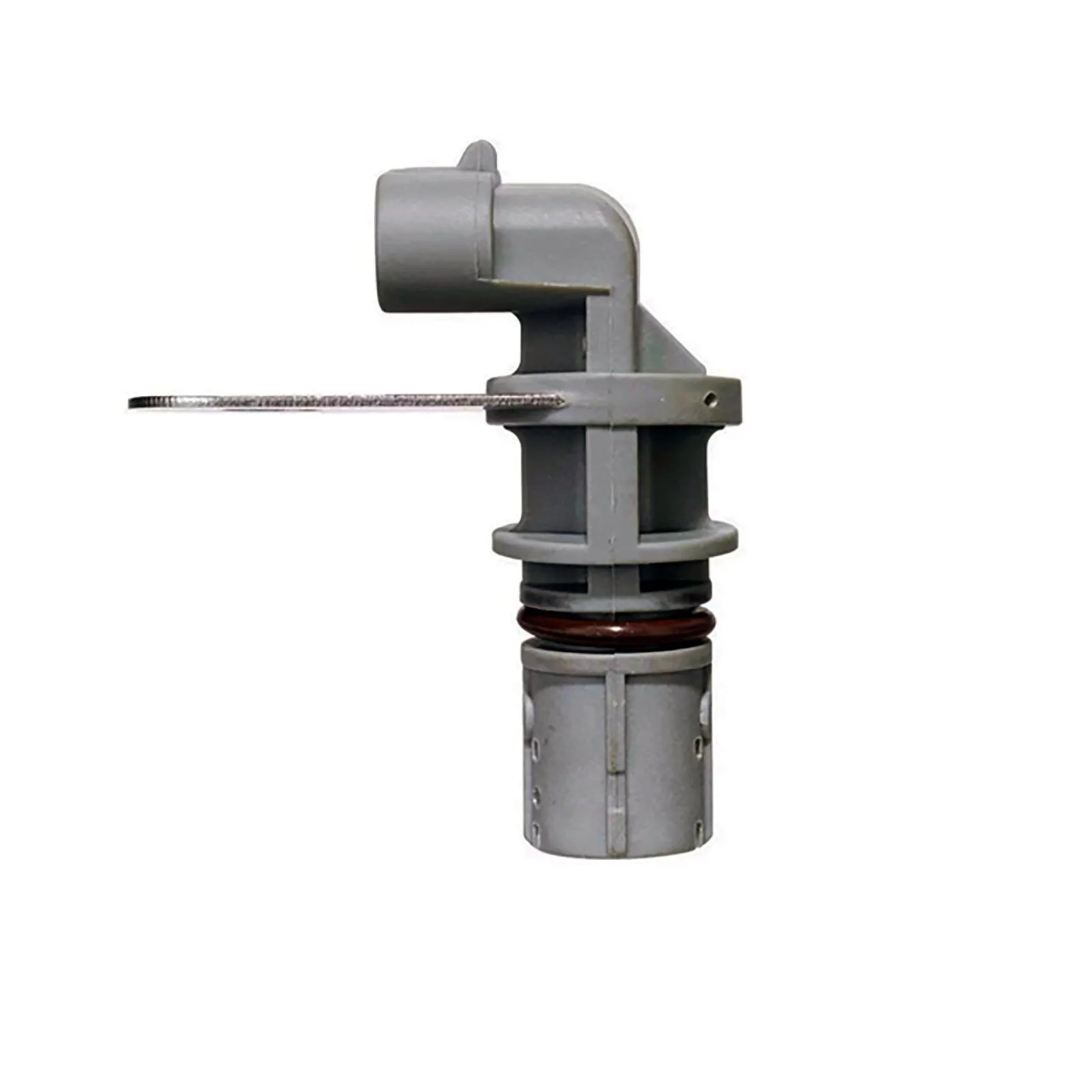

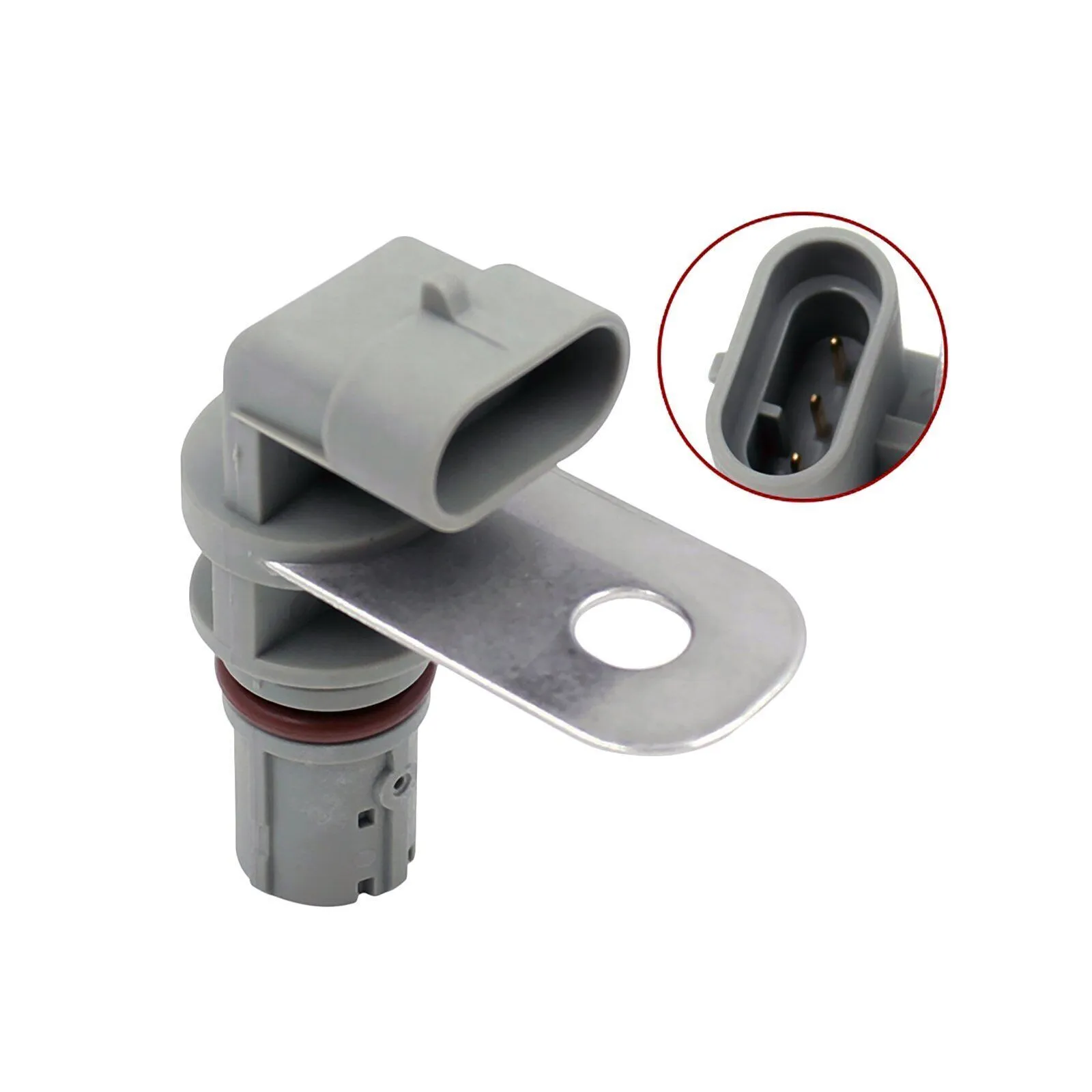

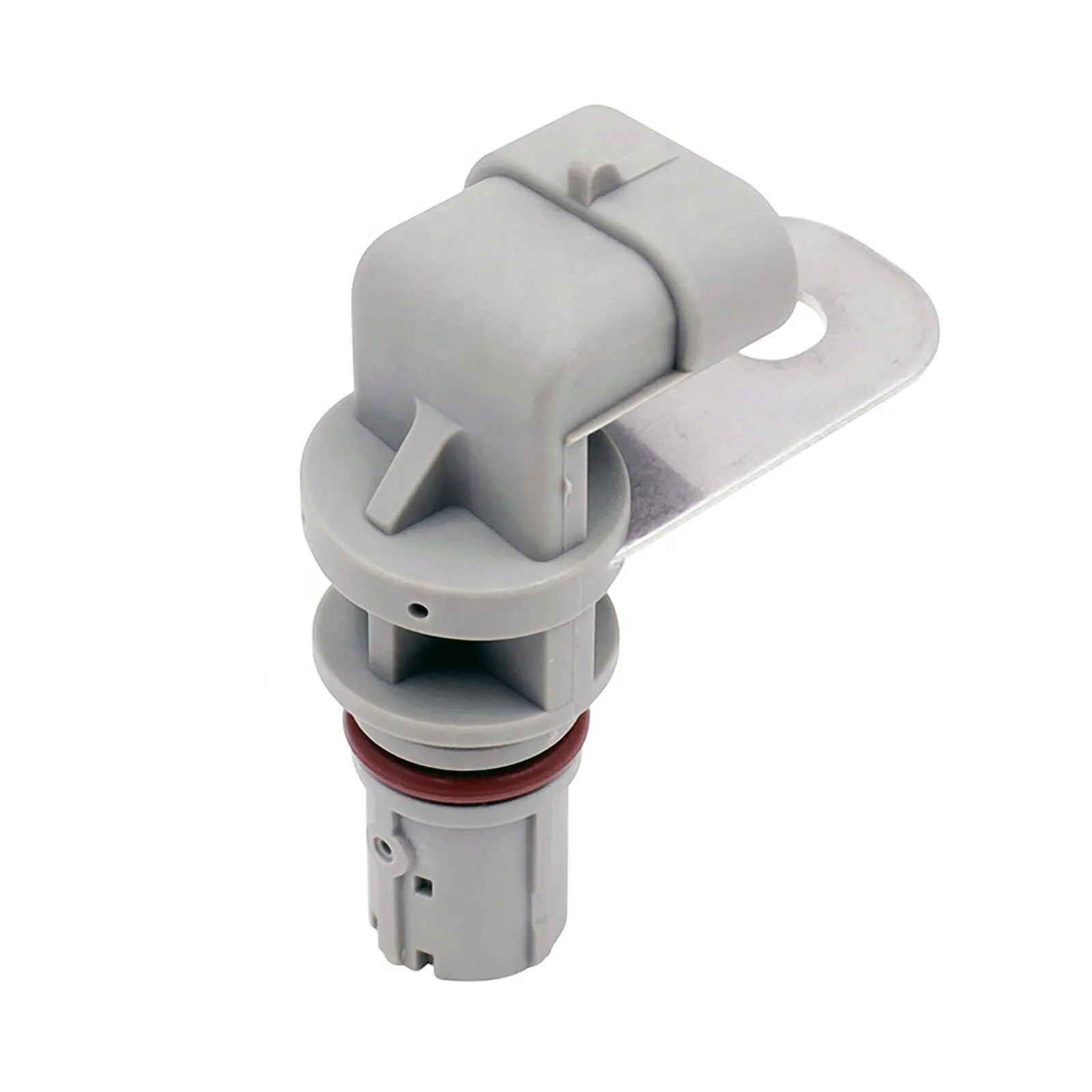

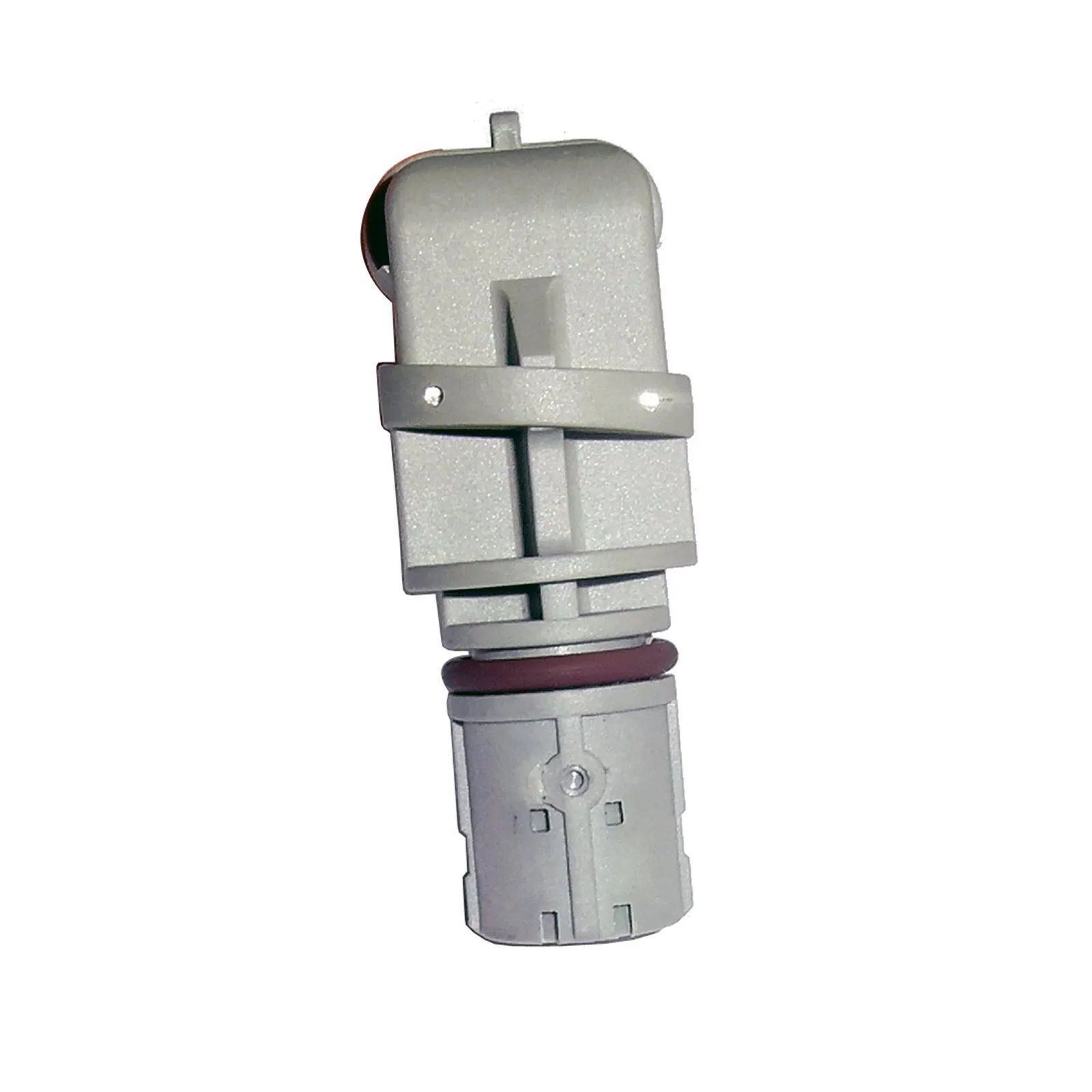

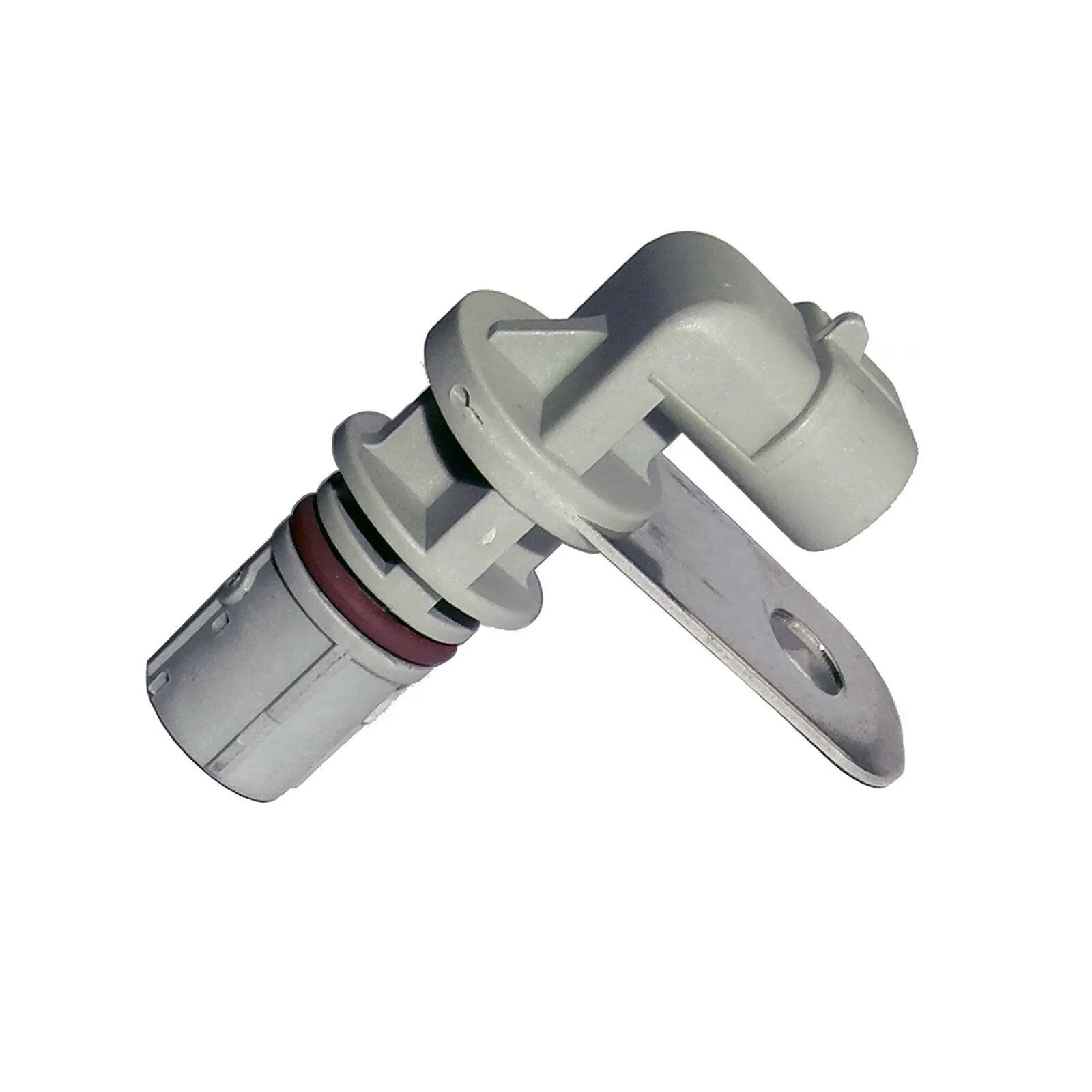

1 x Crank Angle Sensor - 3-pin connector.

ABOUT THIS SENSOR

The crank angle sensor monitors crankshaft position and rotational speed, sending this data to the ECU to calculate injection timing, ignition timing, and cylinder identification.

When the sensor signal is lost or intermittent, the engine can misfire, run roughly, stall, or fail to start.

COMMON SYMPTOMS OF FAILURE

Difficulty starting the vehicle
Intermittent stalling
Check engine light on
Uneven acceleration
Engine misfires or vibrates
Rough idle

L76 MOTOR

[01/09 – 12/09] HDT VC RETRO VE GROUP 2 Gen4 L76 6.0L V8
[08/04 – 07/06] HOLDEN BERLINA VZ Gen4 L76 6.0L V8
[08/04 – 07/07] HOLDEN BERLINA VZ Gen4 L76 6.0L V8
[08/09 – 08/10] HOLDEN CALAIS VE SERIES 1 MY10 Gen4 L76 6.0L V8
[08/04 – 07/06] HOLDEN CALAIS VZ Gen4 L76 6.0L V8
[08/06 – 08/10] HOLDEN CAPRICE WM SERIES 1 Gen4 L76 6.0L V8
[01/09 – 08/10] HOLDEN COMMODORE VE SERIES 1 SS/SSV MY9.5-MY10 Gen4 L76 6.0L V8
[08/04 – 07/06] HOLDEN COMMODORE VZ Gen4 L76 6.0L V8
[08/04 – 07/06] HOLDEN CREWMAN VZ CROSS 8 Gen4 L76 6.0L V8
[01/06 – 07/07] HOLDEN CREWMAN VZ SS Gen4 L76 6.0L V8
[08/06 – 08/10] HOLDEN STATESMAN WM SERIES 1 Gen4 L76 6.0L V8

L77 MOTOR

[09/10 – 04/13] HOLDEN CALAIS VE SERIES 2 Gen4 L77 6.0L V8
[05/13 – 07/15] HOLDEN CALAIS VF SERIES 1 Gen4 L77 6.0L V8
[09/10 – 04/13] HOLDEN CAPRICE WM SERIES 2 Gen4 L77 6.0L V8
[05/13 – 07/15] HOLDEN CAPRICE WN SERIES 1 Gen4 L77 6.0L V8
[09/10 – 04/13] HOLDEN COMMODORE VE SERIES 2 SS/SSV Gen4 L77 6.0L V8
[05/13 – 07/15] HOLDEN COMMODORE VF SERIES 1 SS/SSV Gen4 L77 6.0L V8

L98 MOTOR

[01/08 – 12/09] HDT VC RETRO VE GROUP 2 Gen4 L98 6.0L V8
[01/09 – 12/10] HDT VC RETRO VE GROUP 3 Gen4 L98 6.0L V8
[01/08 – 12/09] HDT VH RETRO VE GROUP 2 Gen4 L98 6.0L V8
[01/09 – 12/10] HDT VH RETRO VE GROUP 3 Gen4 L98 6.0L V8
[08/06 – 07/09] HOLDEN BERLINA VE SERIES 1 Gen4 L98 6.0L V8
[08/06 – 07/09] HOLDEN CALAIS VE SERIES 1 Gen4 L98 6.0L V8
[01/08 – 07/09] HOLDEN CALAIS VE SERIES 1 Gen4 L98 6.0L V8
[01/09 – 08/10] HOLDEN COMMODORE VE SERIES 1 SS/SSV MY9.5-MY10 Gen4 L98 6.0L V8
[09/07 – 12/08] HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 Gen4 L98 6.0L V8
[08/06 – 12/08] HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 Gen4 L98 6.0L V8
[01/08 – 12/08] HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 Gen4 L98 6.0L V8
[08/06 – 08/07] HOLDEN COMMODORE VZ Gen4 L98 6.0L V8
[01/06 – 07/07] HOLDEN CREWMAN VZ THUNDER SS Gen4 L98 6.0L V8

LS2 MOTOR

[08/06 – 03/08] HSV CLUBSPORT VE E-SERIES SERIES 1 Gen4 LS2 6.0L V8
[08/06 – 03/08] HSV GTS VE E-SERIES SERIES 1 Gen4 LS2 6.0L V8
[10/07 – 03/08] HSV MALOO VE E-SERIES SERIES 1 Gen4 LS2 6.0L V8
[08/06 – 03/08] HSV SENATOR VE E-SERIES SERIES 1 Gen4 LS2 6.0L V8

LS3 MOTOR

[08/15 – 12/17] HOLDEN CAPRICE WN SERIES 2 Gen4 LS3 6.2L V8
[04/08 – 08/09] HSV CLUBSPORT VE E-SERIES SERIES 1 Gen4 LS3 6.2L V8
[09/09 – 08/10] HSV CLUBSPORT VE E-SERIES SERIES 2 Gen4 LS3 6.2L V8
[09/10 – 04/13] HSV CLUBSPORT VE E-SERIES SERIES 3 Gen4 LS3 6.2L V8
[04/08 – 08/09] HSV GTS VE E-SERIES SERIES 1 Gen4 LS3 6.2L V8
[09/09 – 08/10] HSV GTS VE E-SERIES SERIES 2 Gen4 LS3 6.2L V8
[09/10 – 04/13] HSV GTS VE E-SERIES SERIES 3 Gen4 LS3 6.2L V8
[06/13 – 08/15] HSV MALOO VF GEN-F SERIES 1 Gen4 LS3 6.2L V8
[06/13 – 08/15] HSV SENATOR VF GEN-F SERIES 1 Gen4 LS3 6.2L V8

LSA MOTOR

[09/15 – 12/17] HSV SENATOR VF GEN-F2 SERIES 2 Gen4 LSA 6.2L V8

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA353-2
Barcode #	9341554004351
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CSCA353-2
Reference OEM Number	12585546
Other OEM Numbers	12585546, 12703627, 213-3520
Related Part Numbers	CAS-159, CSCA353, EH0403, SC223, TCAS186
Trade Part Numbers	ACDelco: 213-3520, VEMO: V51-72-0173
Product Specifics
Sensor Type	CRANKSHAFT POSITION SENSOR
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Ean	9341554004351

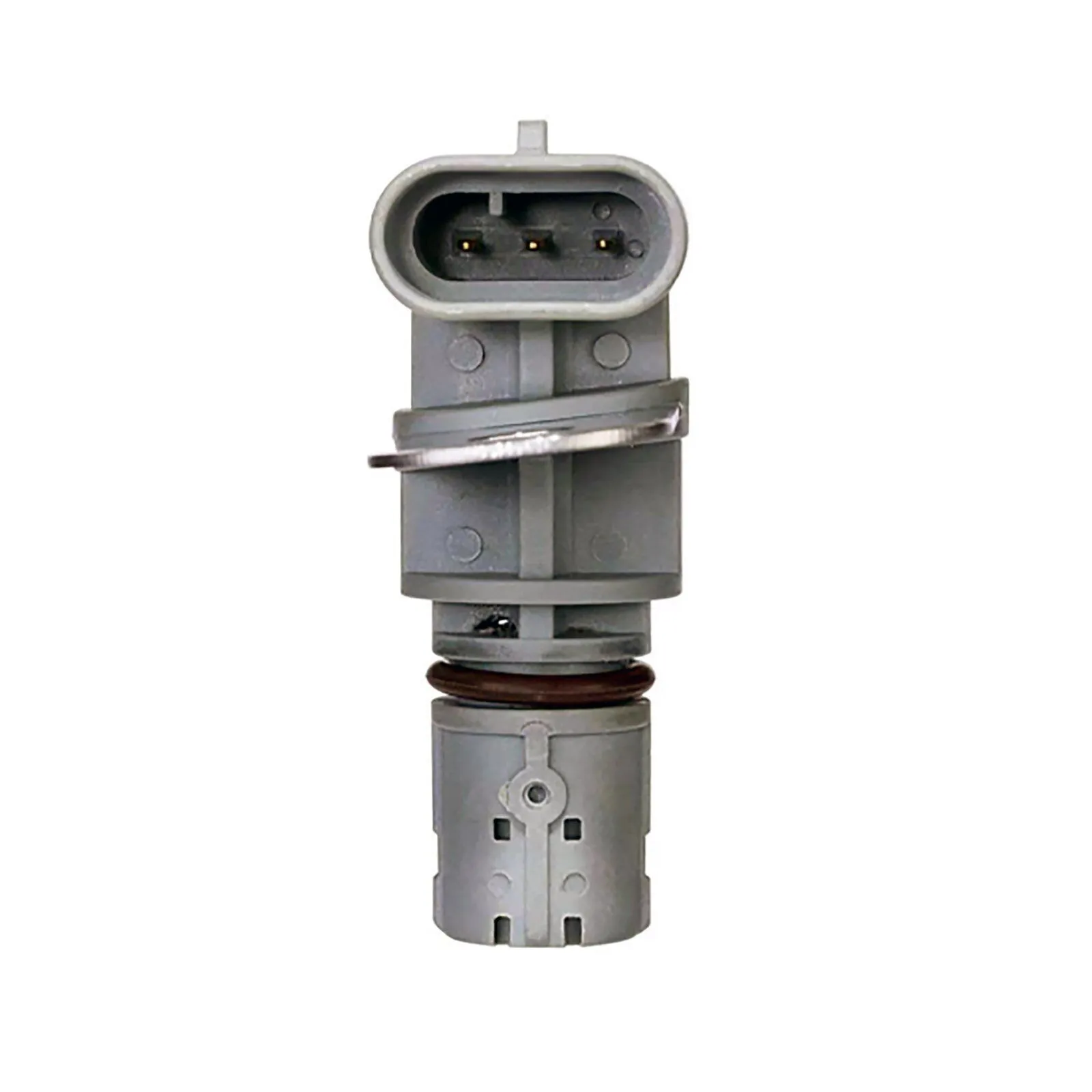

Number of pins	3 -pin connector
Supplementary Article Info	without cable
Rated Voltage	12 V
Housing Colour	Grey
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
