BRAND NEW *OEM Quality* coolant temperature sensor to suit Holden Barina TM with the 1.6L F16D4 and 1.4L A14NET engines, and the Opel-badged Corsa D twin-platform variants.

If your Barina or Corsa is showing a temperature warning, running rough when warm, or logging a P0115 fault - the coolant temperature sensor is a common wear item on this platform and a straightforward fix. Direct plug-in replacement. Packed and shipped from Cranbourne VIC.

TO SUIT

This sensor suits the Holden Barina TM (2011-2019) with the 1.6L F16D4 and 1.4L A14NET Turbo engines, across Hatchback and Sedan body styles. It also suits the Opel-badged Corsa D (2012-2013) with the equivalent 1.4L A14XER and 1.6L Turbo engines - the same GM small-car platform sold under both badges - refer to the full compatibility list below.

OEM PART NUMBERS

55591002
55591401
55353807
55563530
1338246
1338369
1338370
6338045

OTHER PART NUMBERS

VEMO: V30-72-0124
HELLA: 6PT 358 058-221
WALKER PRODUCTS: 211-1129

PACKAGE INCLUDES

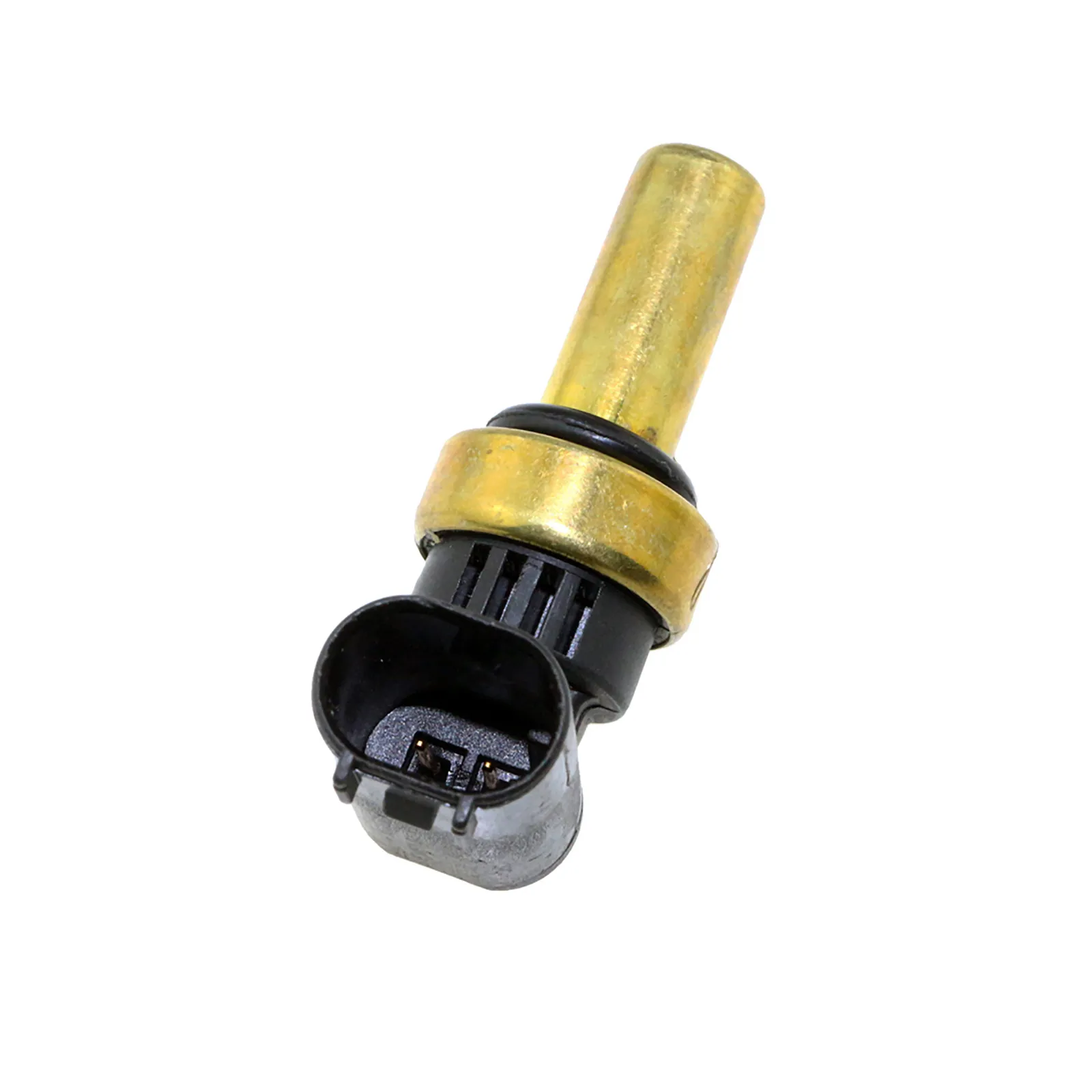

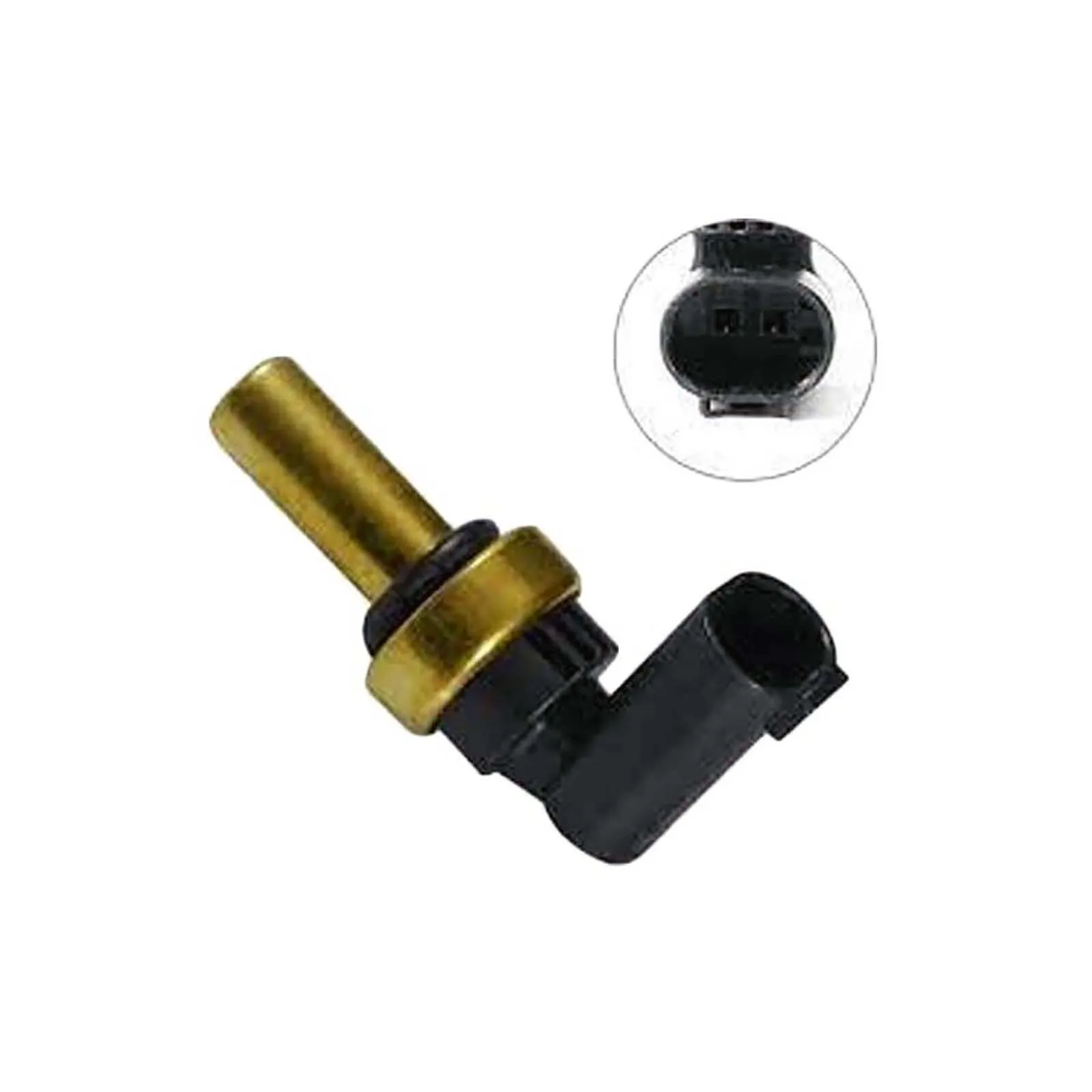

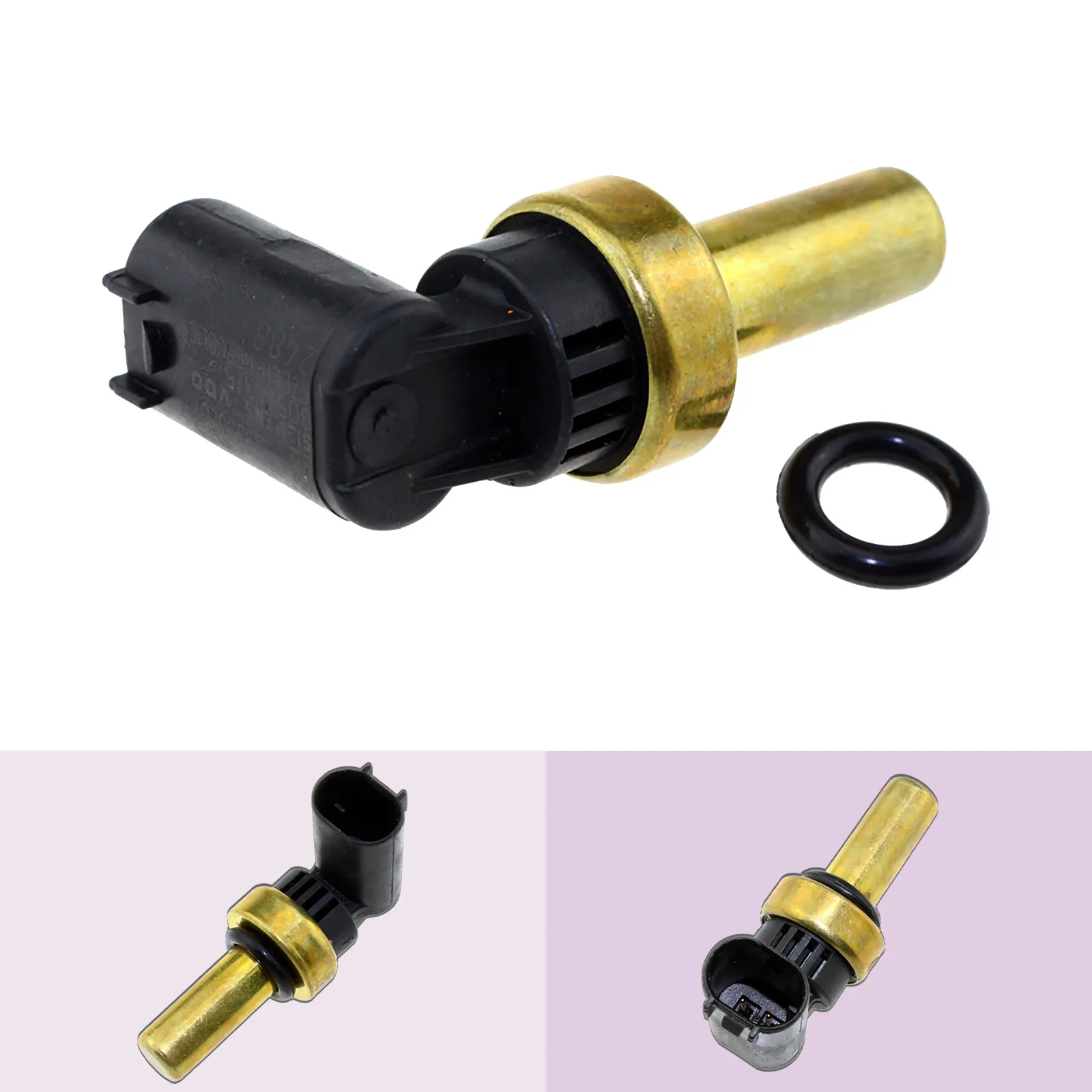

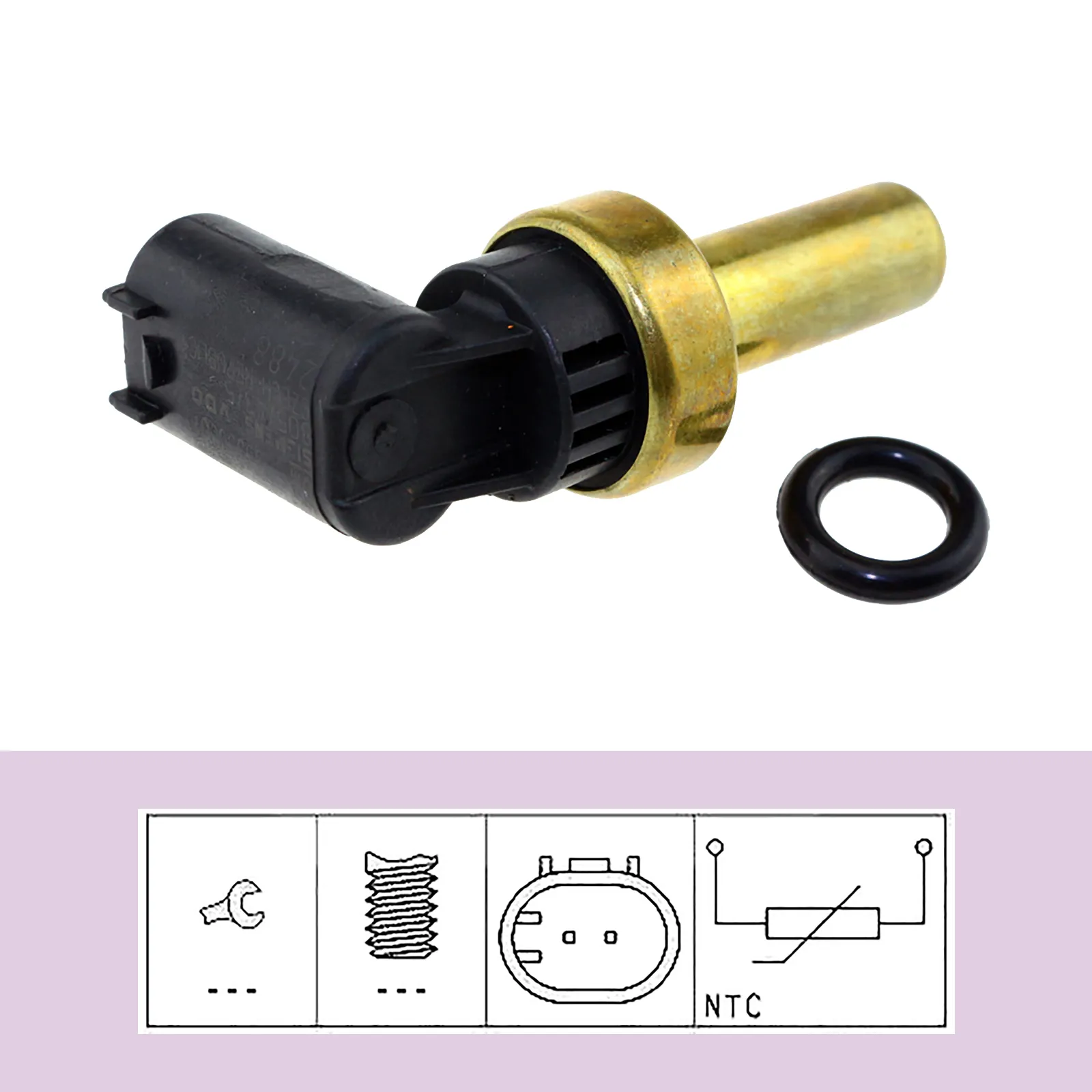

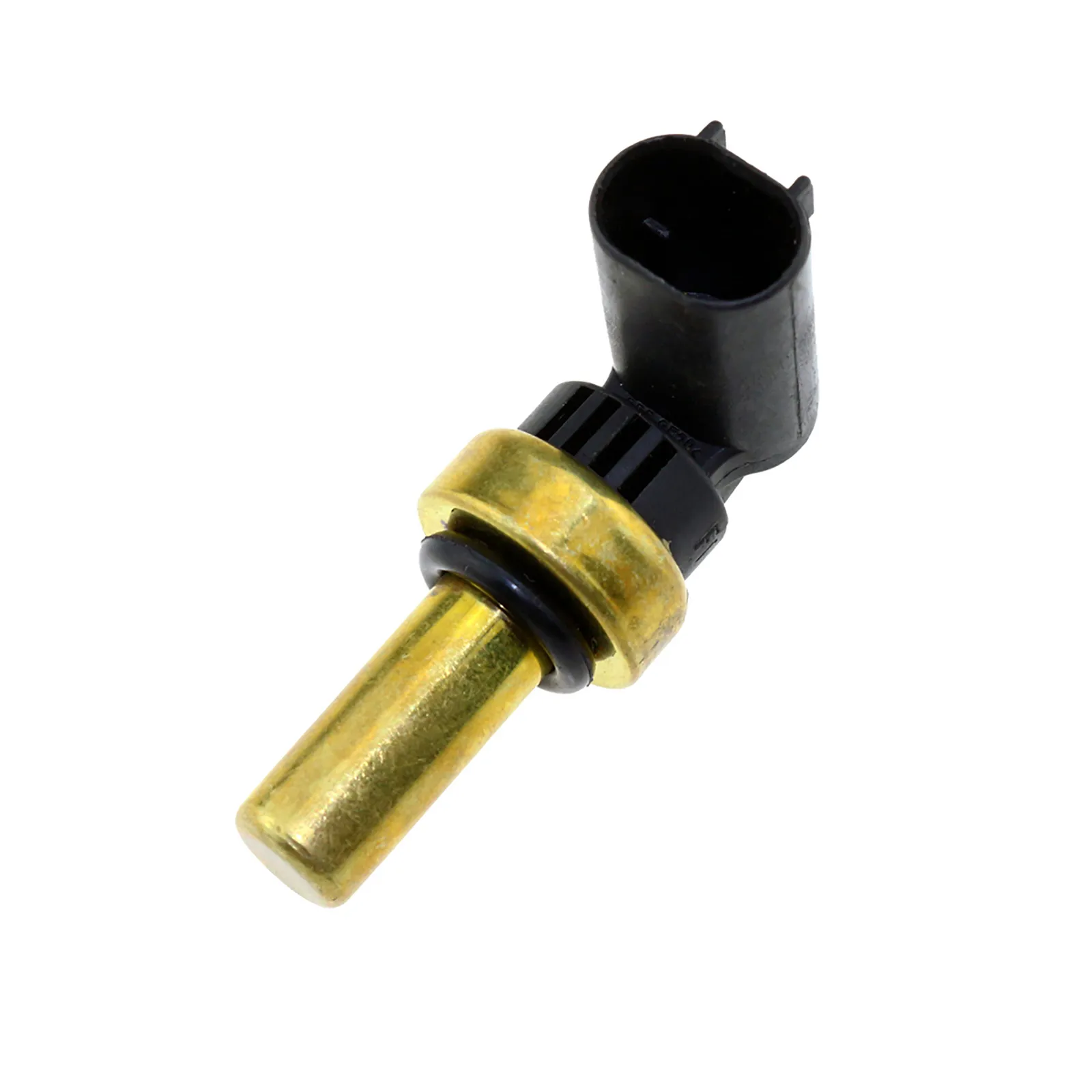

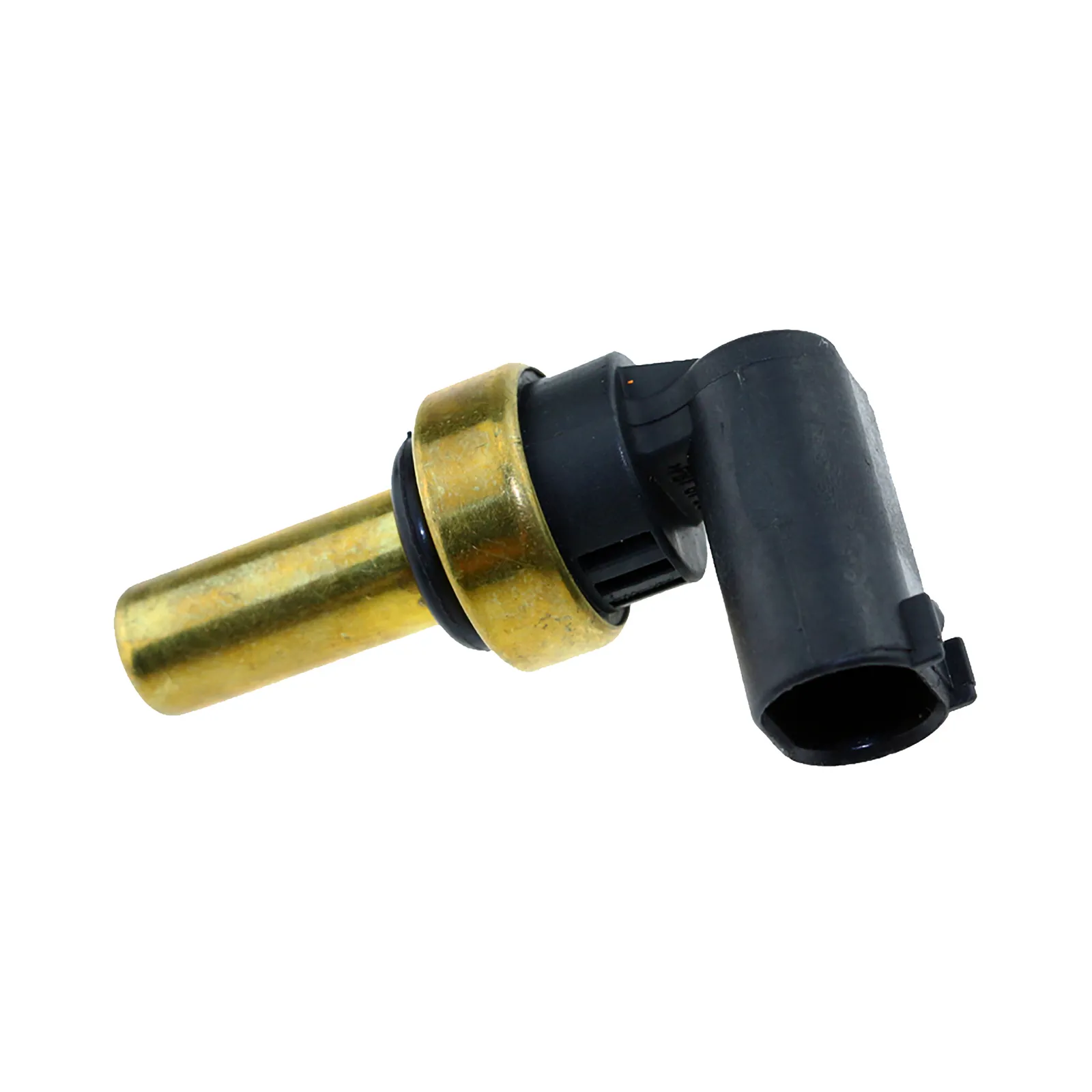

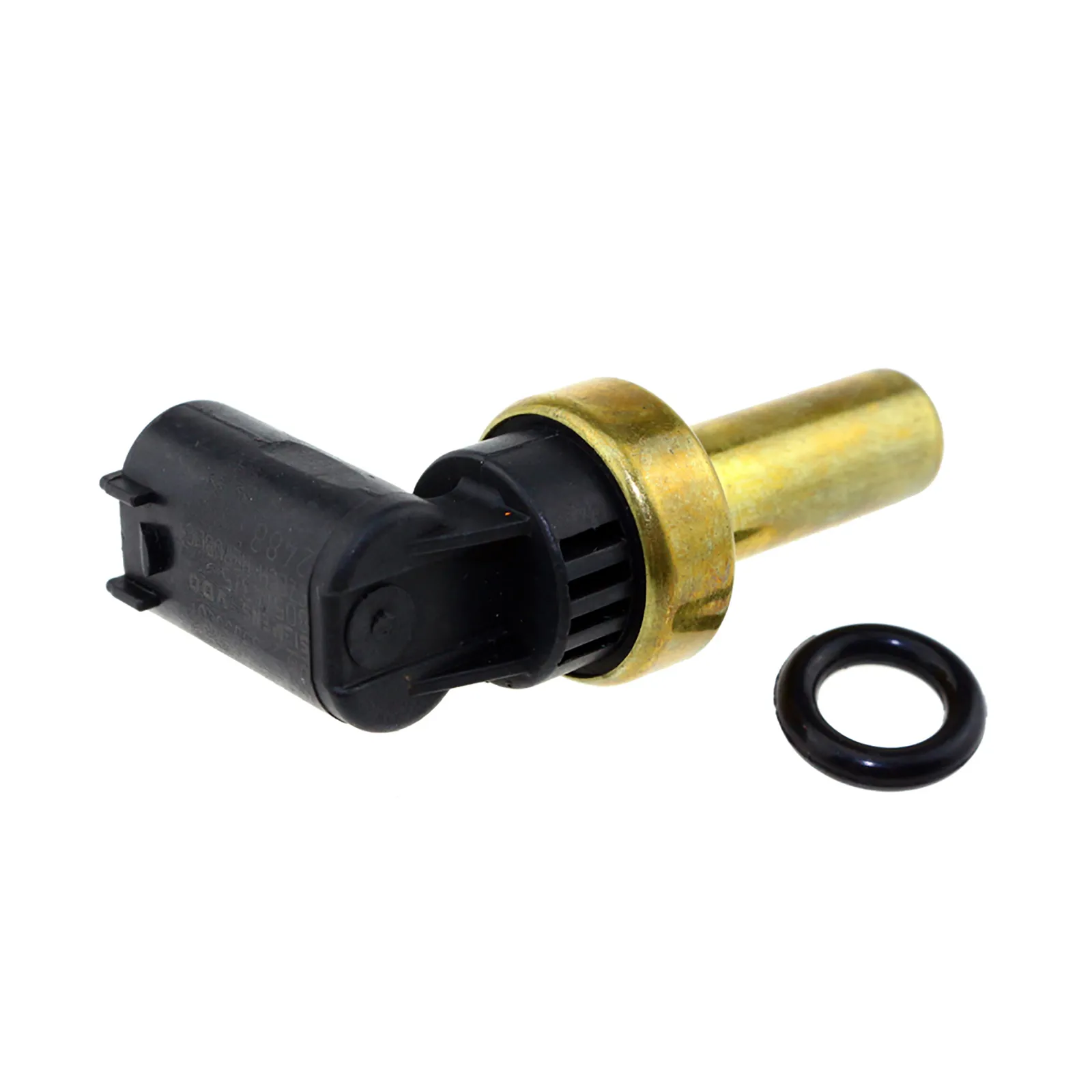

1 x BRAND NEW coolant temperature sensor with 2-pin connector and seal ring.

ABOUT THIS SENSOR

The coolant temperature sensor (CTS / ECT sensor) monitors engine coolant temperature and sends a voltage signal to the ECU. The ECU uses this data to control fuel injection quantity, ignition timing, idle speed, and cooling fan operation across all driving conditions - from cold starts through to operating temperature.

A failed or drifting sensor sends incorrect temperature data to the ECU - causing the engine to run rich when warm, overheat without warning, or idle poorly. On the Barina TM platform the sensor is a known wear item and relatively straightforward to replace.

COMMON SYMPTOMS OF FAILURE

Check engine light with fault code P0115 / P0116 / P0117 / P0118
Temperature gauge reading incorrectly or erratically
Poor fuel consumption - engine running rich when warm
Rough idle or hunting idle when at operating temperature
Cooling fan running constantly or not at all
Hard starting when cold

[2011 - 2019] HOLDEN BARINA TM 1.6L 4cyl F16D4 85kW (Hatchback i)
[2012 - 2016] HOLDEN BARINA TM 1.6L 4cyl F16D4 85kW (Sedan i)
[2013 - 2016] HOLDEN BARINA TM 1.4L 4cyl A14NET 103kW (Hatchback RS Turbo)
[2012 - 2013] OPEL CORSA D 1.4L 4cyl A14XER 74kW (Hatchback 1.4 (L08, L68))
[2012 - 2013] OPEL CORSA D 1.6L 4cyl A16LER,B16LER,Z16LER 141kW (Hatchback Turbo)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS47-3
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS47
Reference OEM Number	55591002
Other OEM Numbers	55591002, 55591401
Trade Part Numbers	VEMO: V30-72-0124, HELLA: 6PT 358 058-221, WALKER: 211-1129
Product Specifics
Product Type	SENSOR
Sensor Type	Coolant Temperature Sensor
Number of pins	2-Pin
Connector Shape	oval
Housing Colour	Black
Mounting Type	Clipped
Compatible Makes	Holden
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
