Coolant Temp Sensor 22630-44B20 Suits Nissan Navara D22 3.0L ZD30DDT 2001-2006

BRAND NEW OEM Quality COOLANT TEMPERATURE SENSOR TO SUIT NISSAN / INFINITI

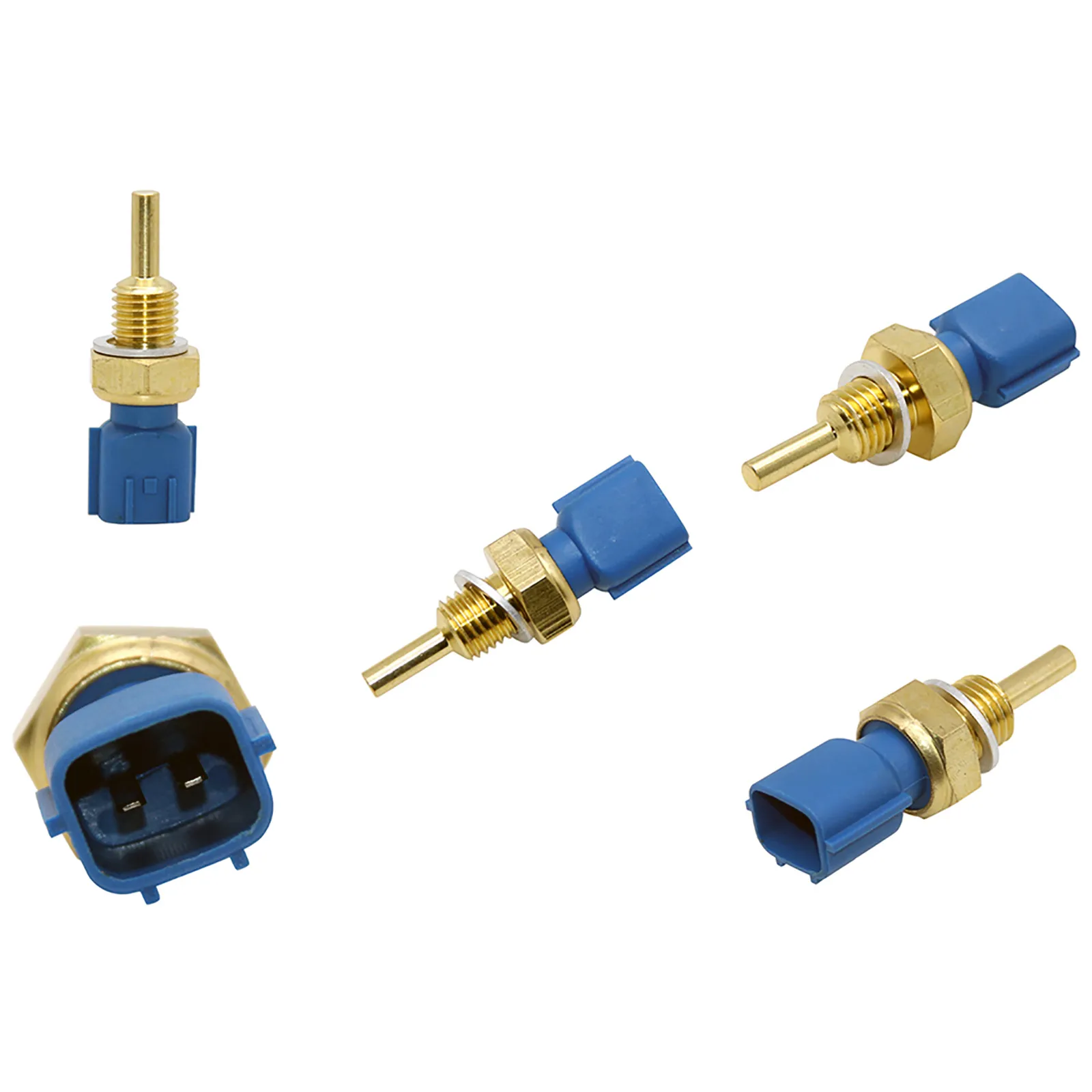

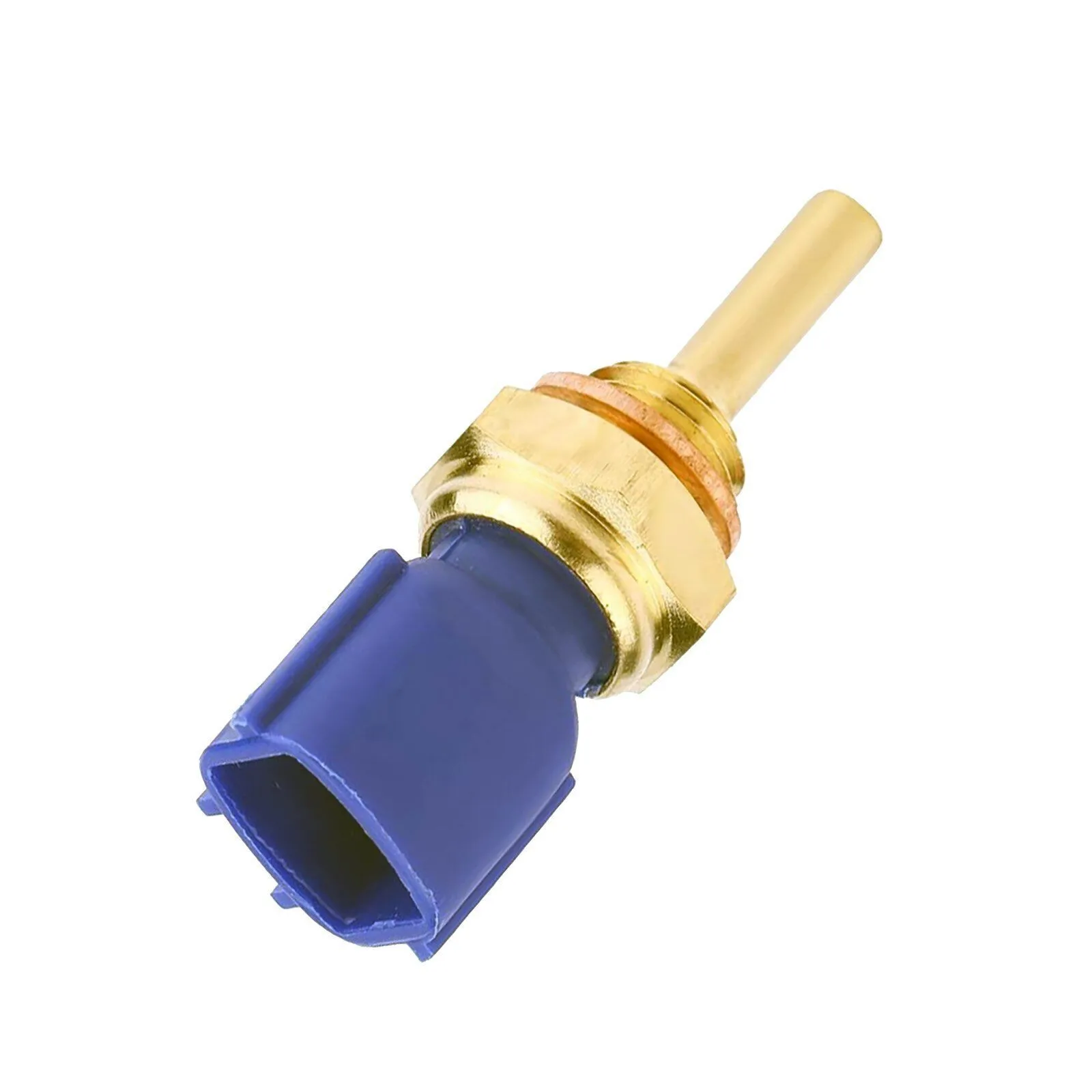

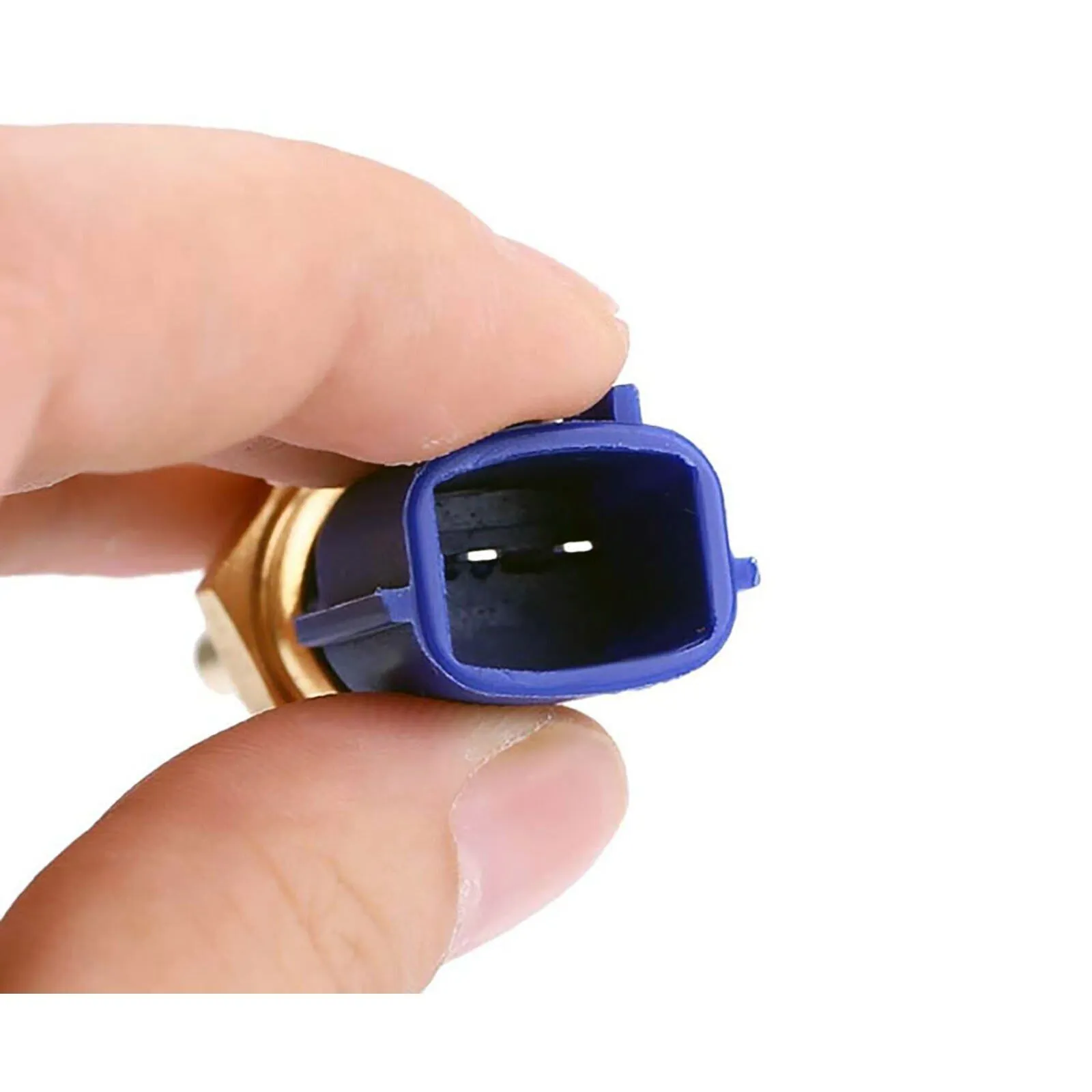

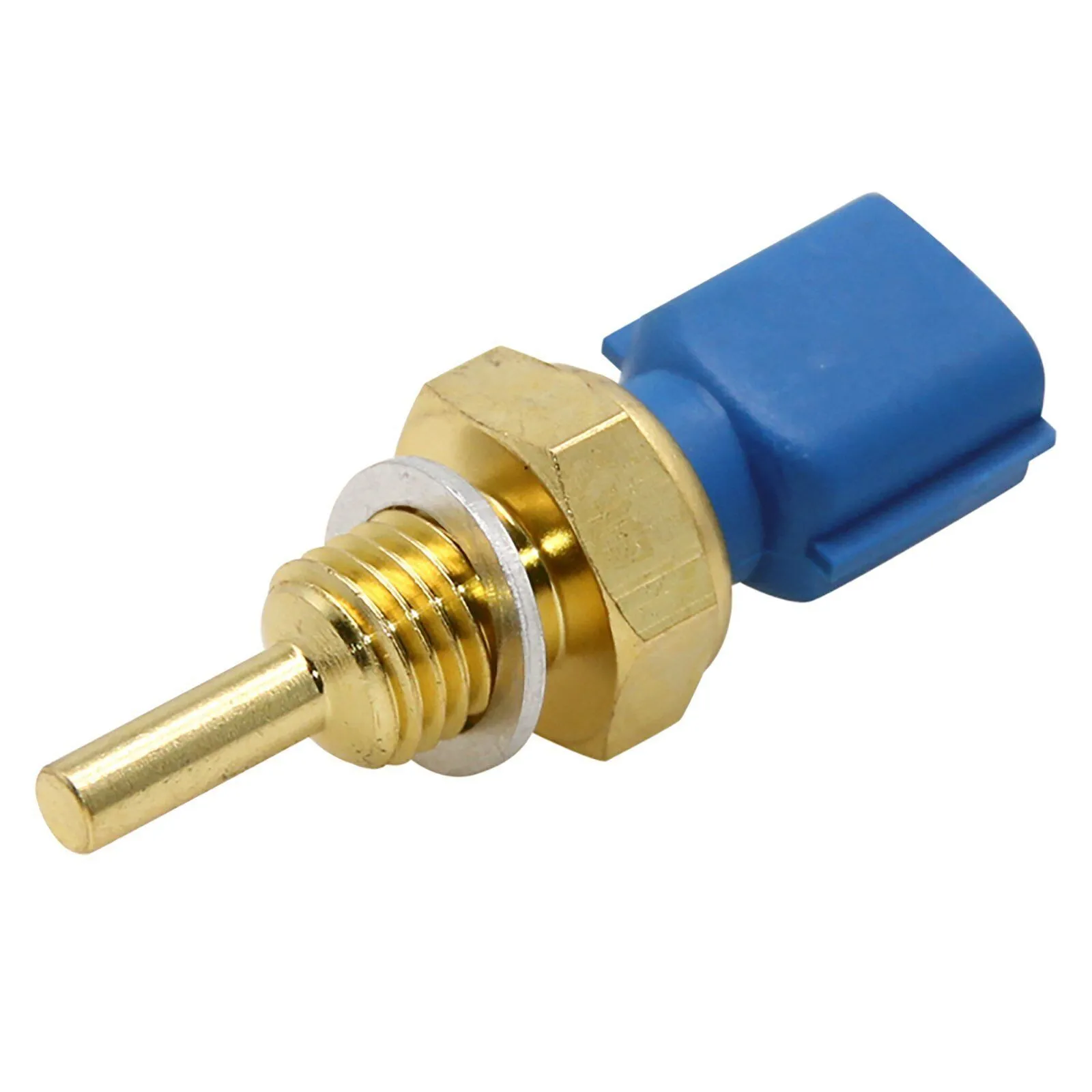

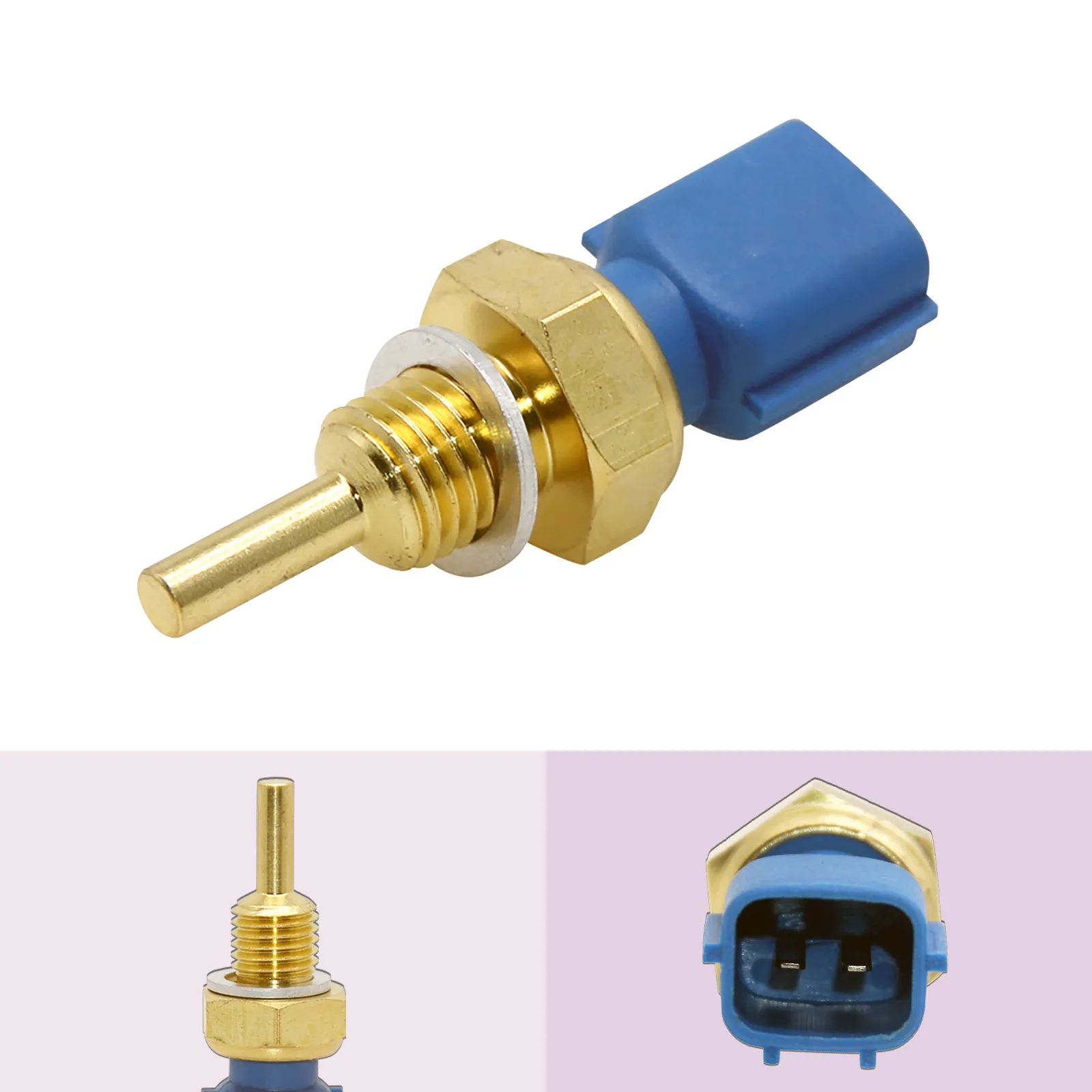

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

Nissan Navara D22 with YD25 engine (located on the driver's side of the Cylinder Head towards the front)

Nissan Navara D40 Spanish Built models with VIN# starting with VSK with YD25 engine from 02/2006 onwards

Nissan Navara D40 Thai Built models with VIN# starting with MNT with YD25 engine (located on the driver's side of the Cylinder Head towards the front)

SUITS

[2015-2017] NISSAN NAVARA D23 2.5L 4cyl NP300 QR25DE

[2005-2011] NISSAN NAVARA D40 4.0L V6 VQ40DE

[2005-2015] NISSAN NAVARA D22 D40 2.5L 4cyl YD25DDTi

[2001-2006] NISSAN NAVARA D22 3.0L 4cyl ZD30DDT

[2000-2005] NISSAN NAVARA D22 3.0L V6 VG30E

[2003-2005] NISSAN NAVARA D22 3.3L V6 VG33E

[1988-2001] NISSAN NAVARA D21 D22 2.7L 4cyl TD27

[1992-2000] NISSAN NAVARA D21 D22 2.4L (KA24 E /DE)

[1997-2001] NISSAN NAVARA D22 3.2L 4cyl QD32

OEM# 22630-44B20

SPECIFICATION

Features?

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

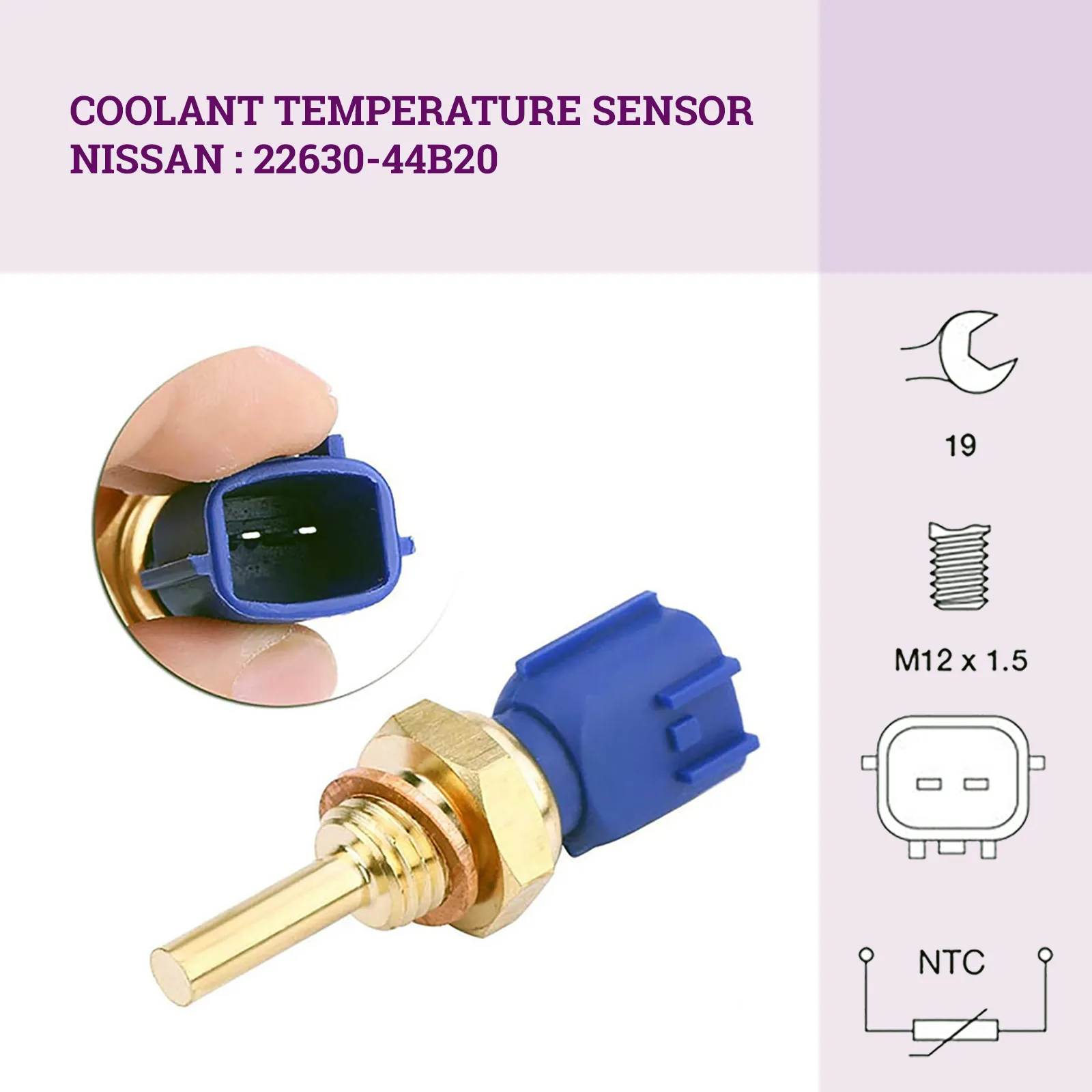

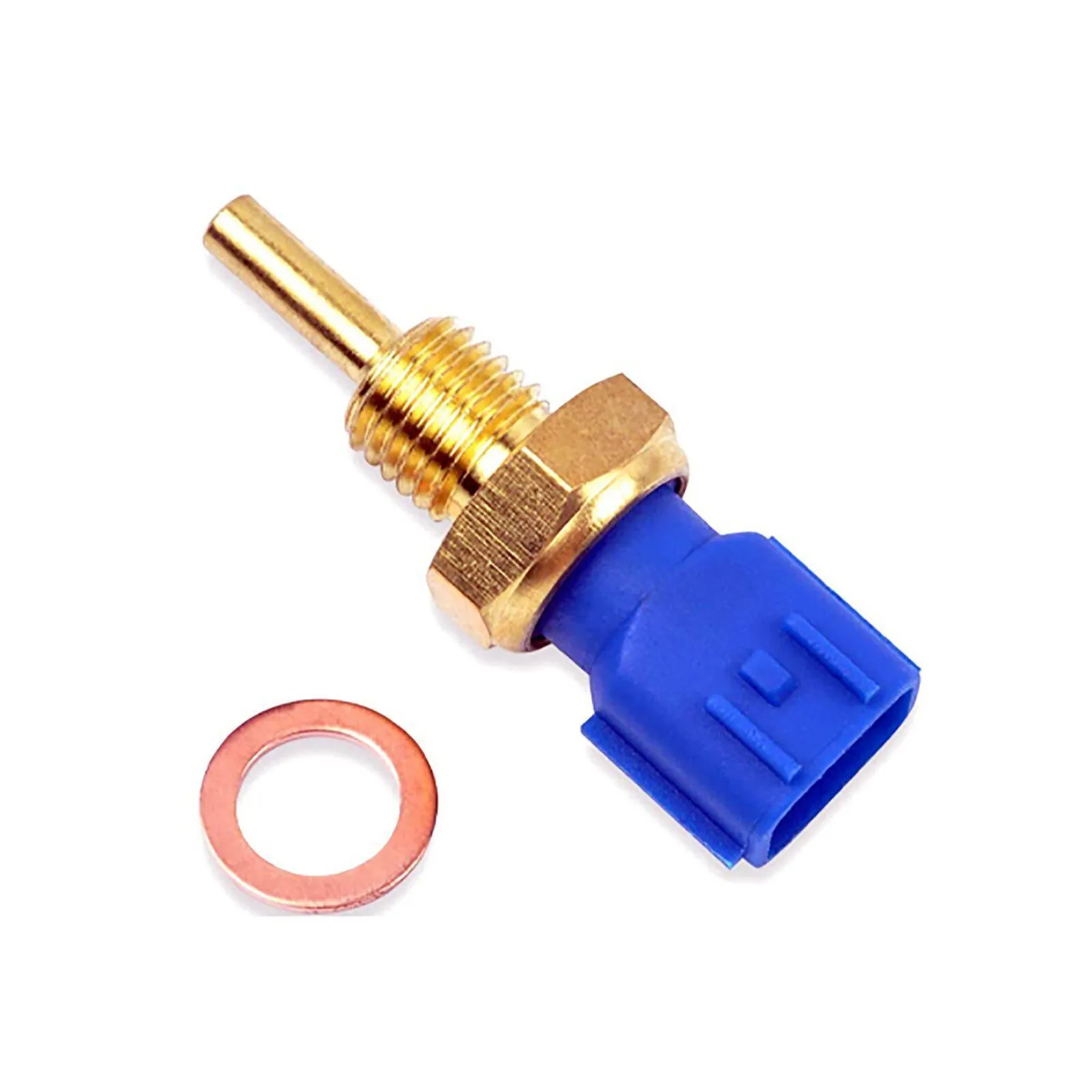

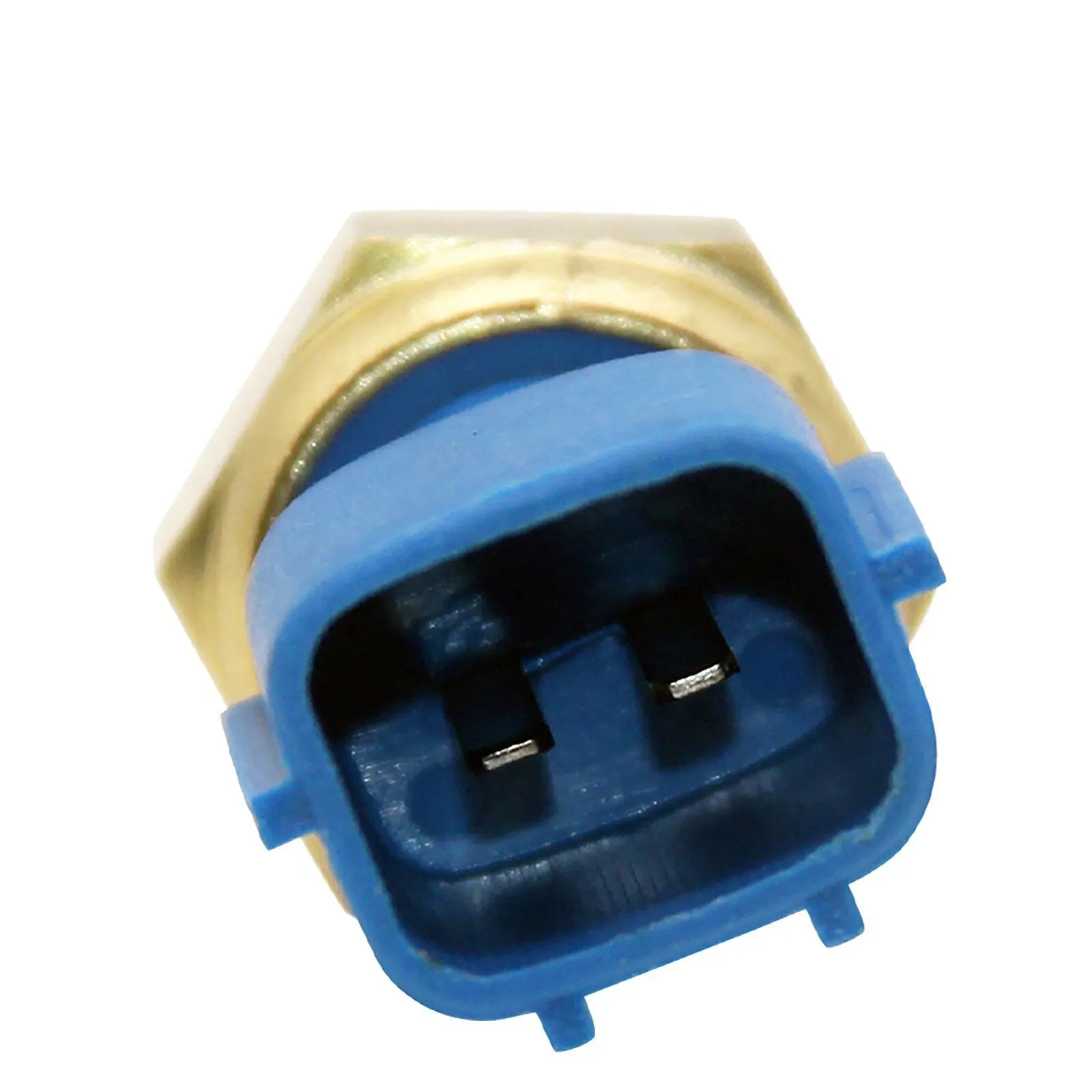

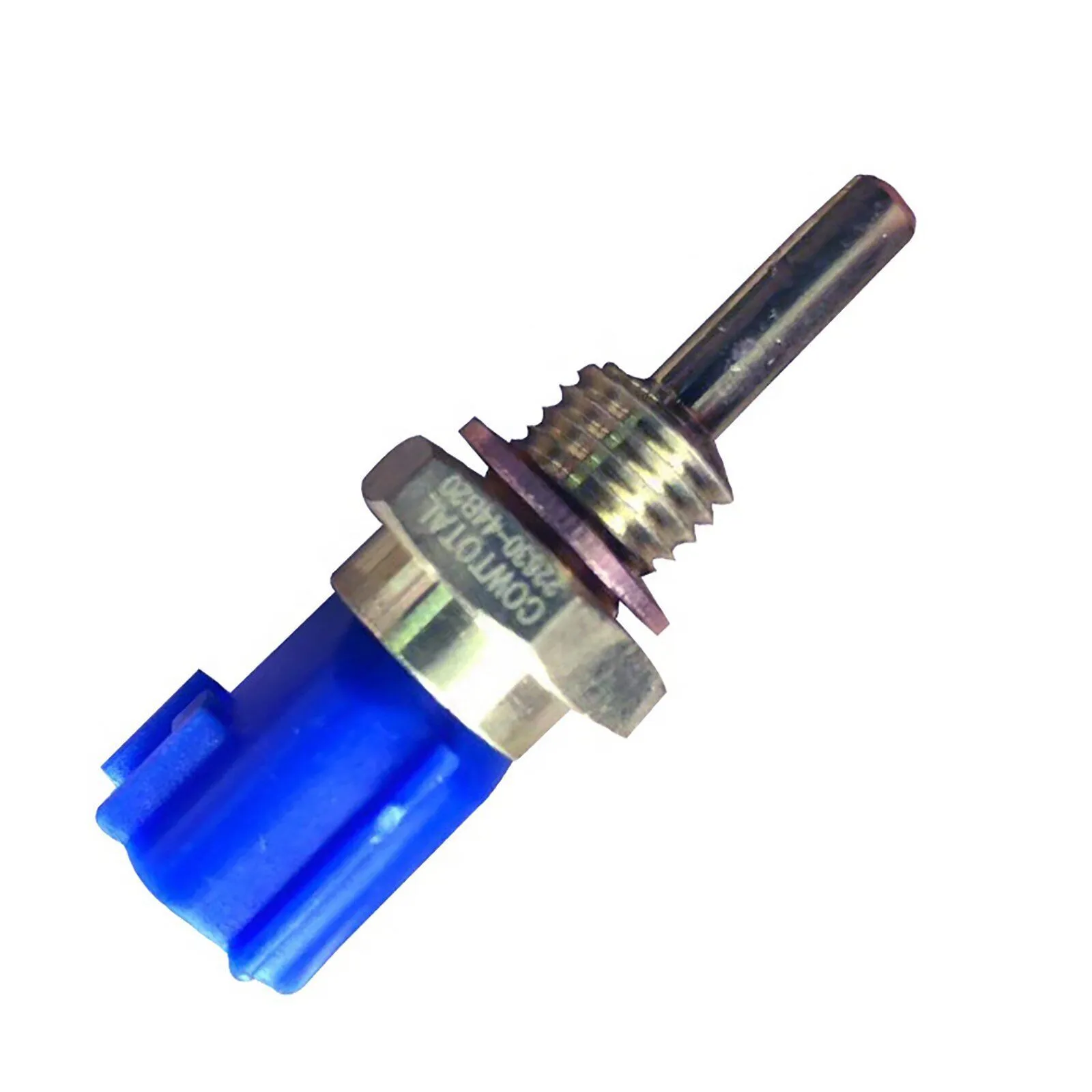

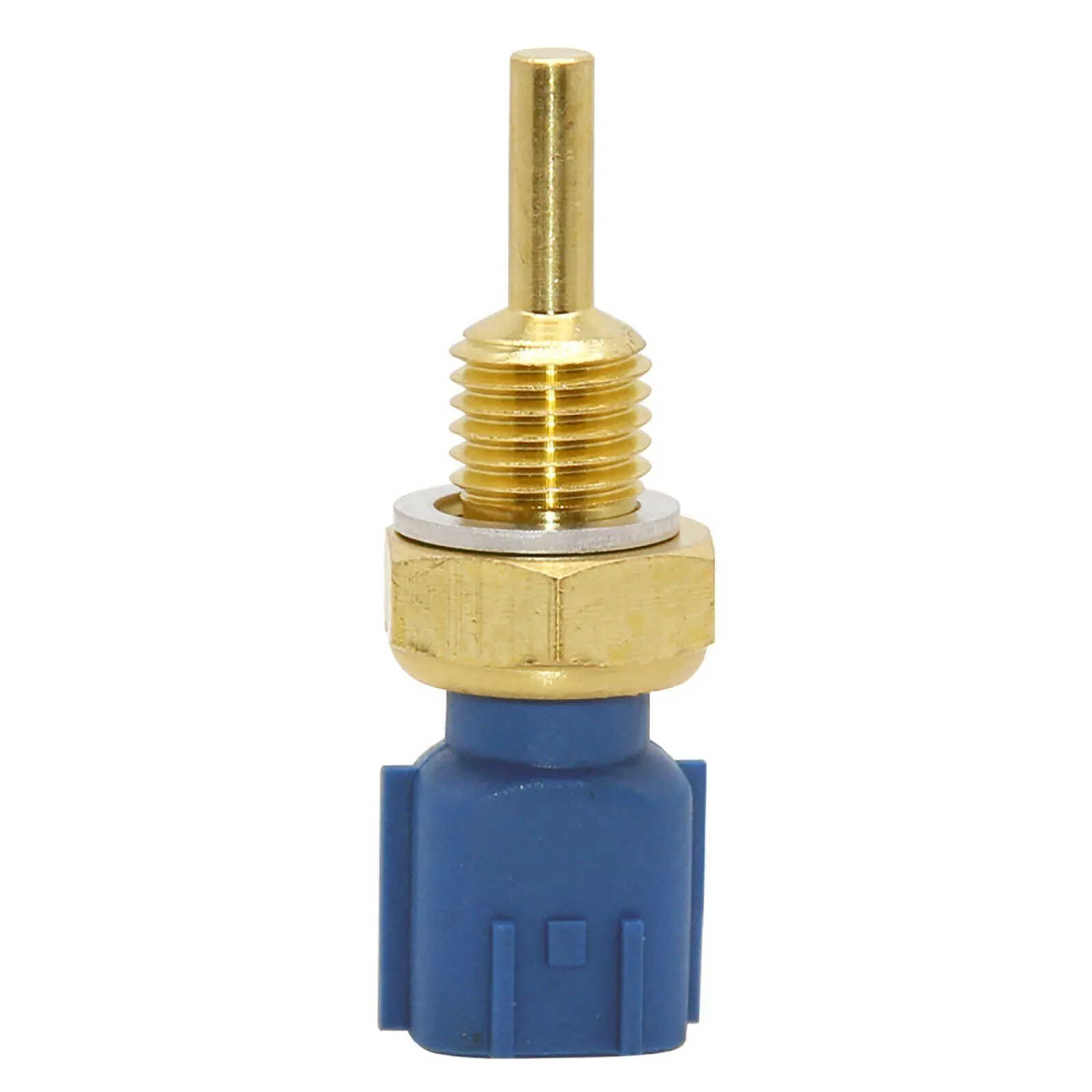

1* Temperature Sensor (2 -pin connector). Rounded Rectangular Connector - M12x1.5 Thread The water temperature sender is designed to measure the integrity of the engine cooling system. The sender responds to changes in engine coolant temperature, displayed via the operation of the water temperature light or gauge. The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES:

ABOUT YOUR VEHICLE'S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
• As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
• Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
• All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.
