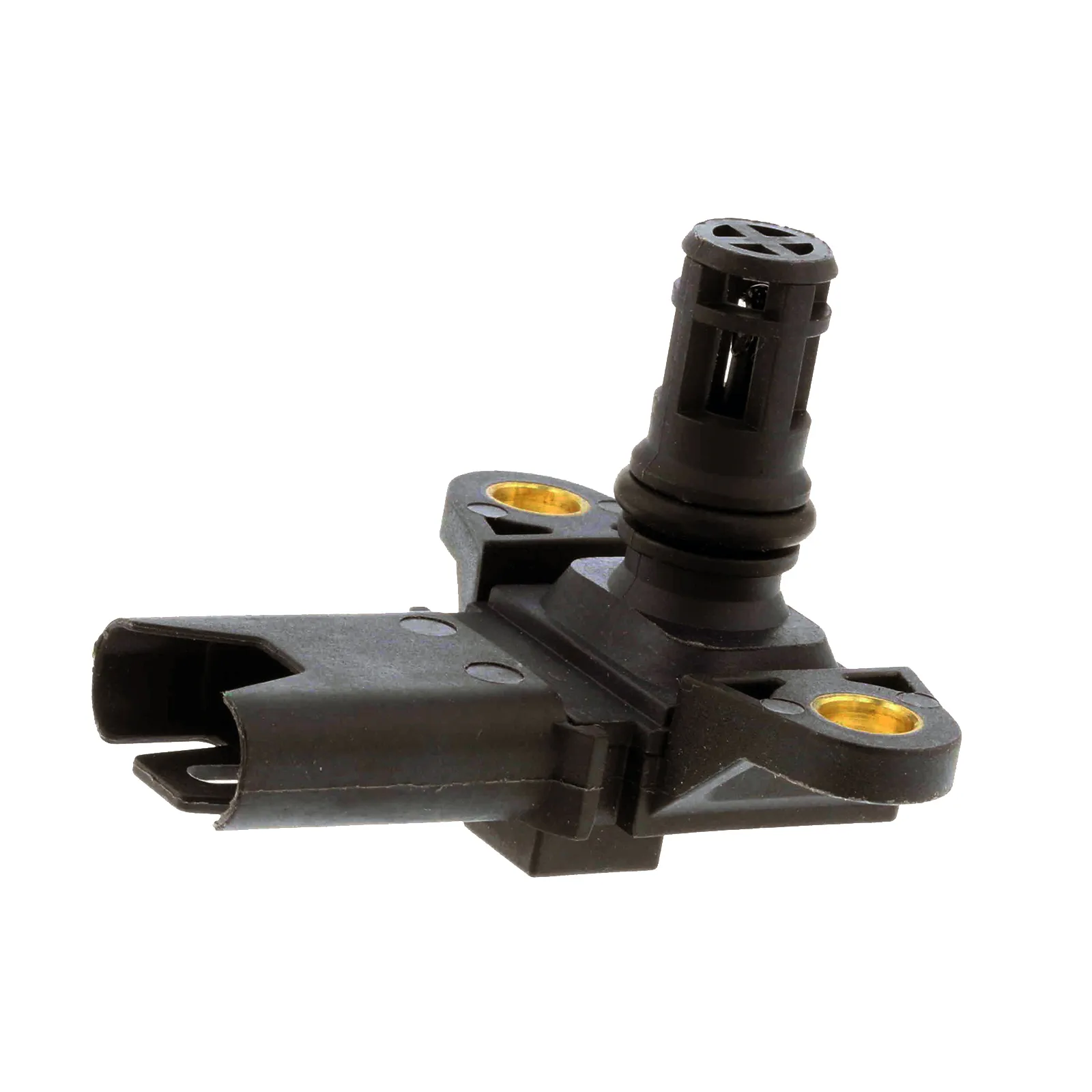

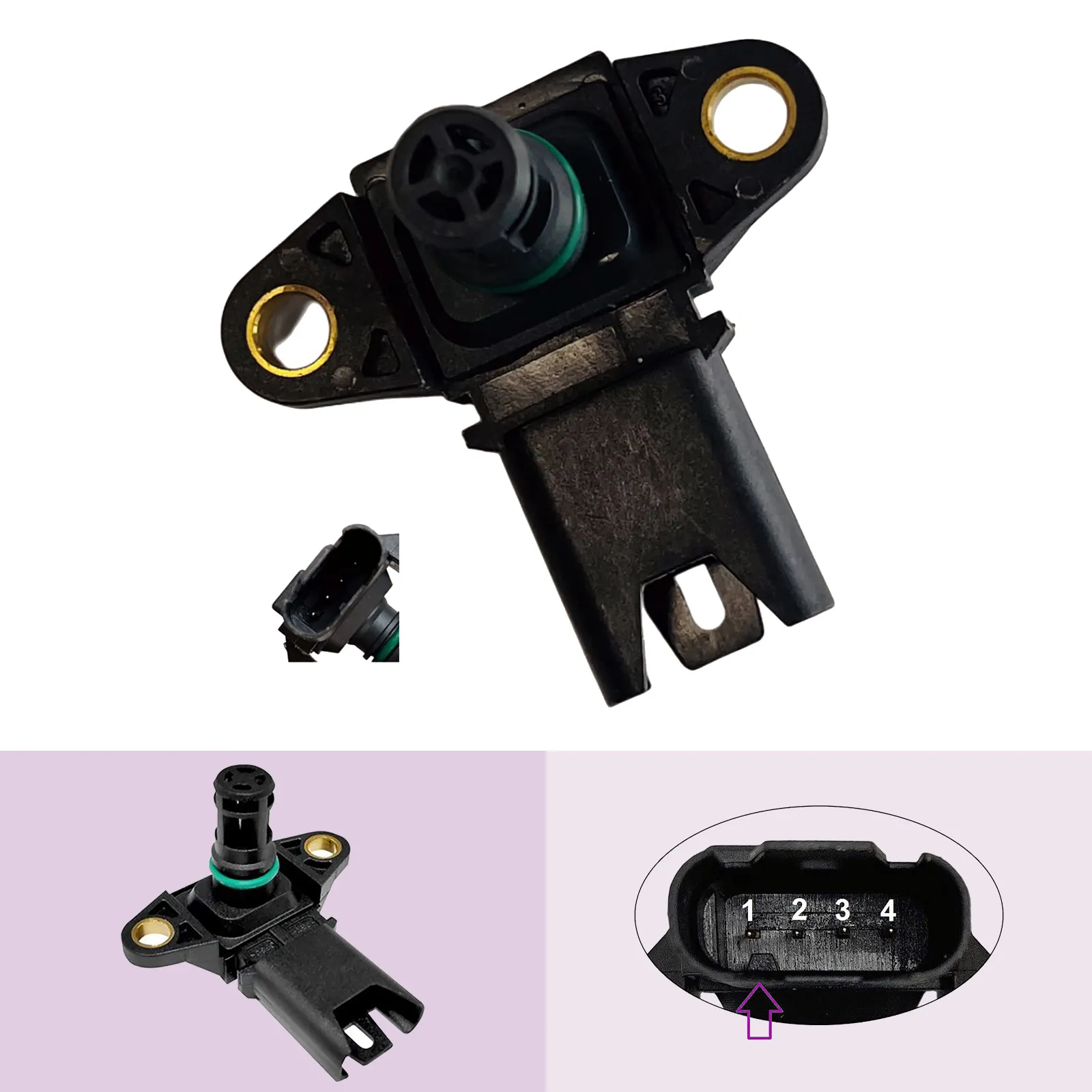

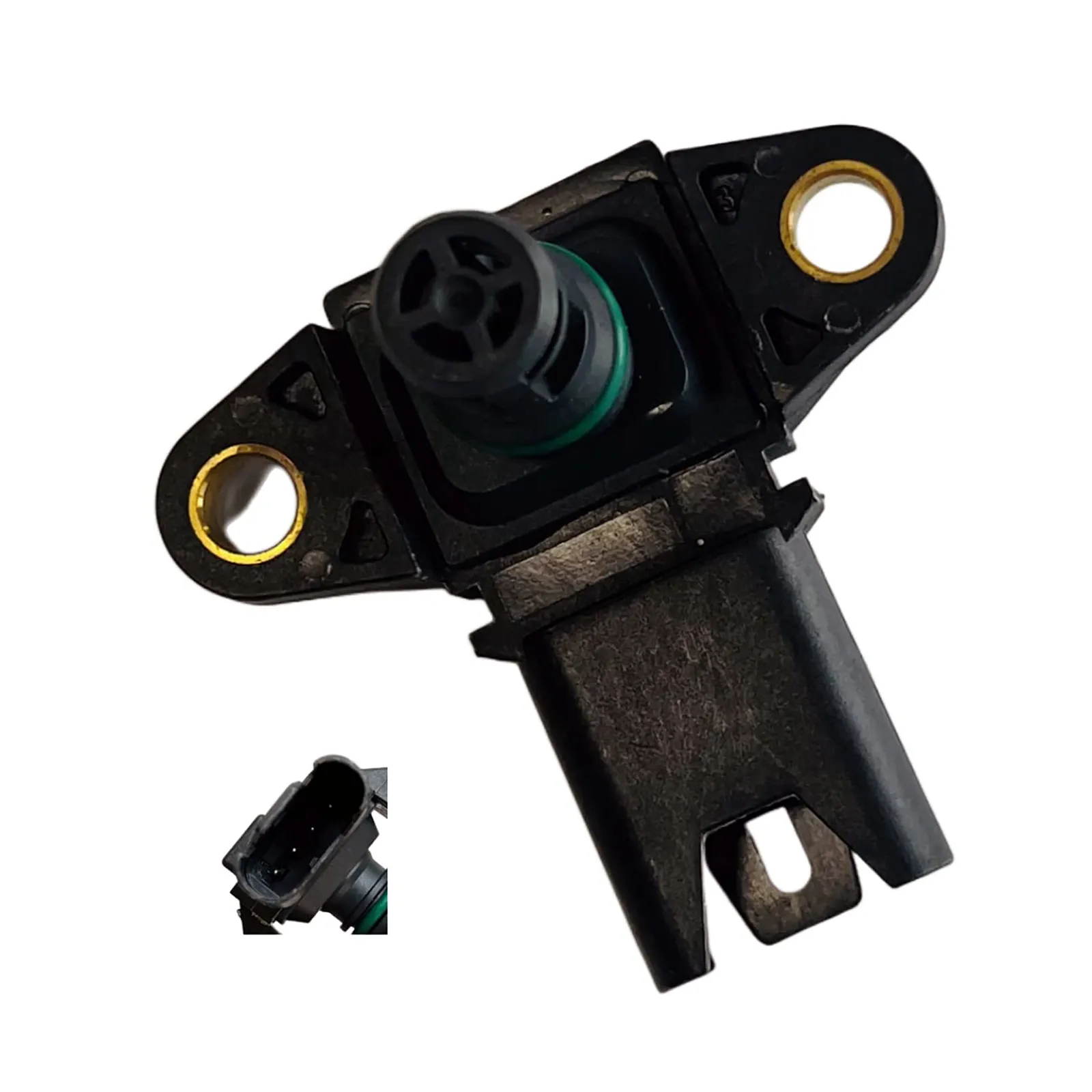

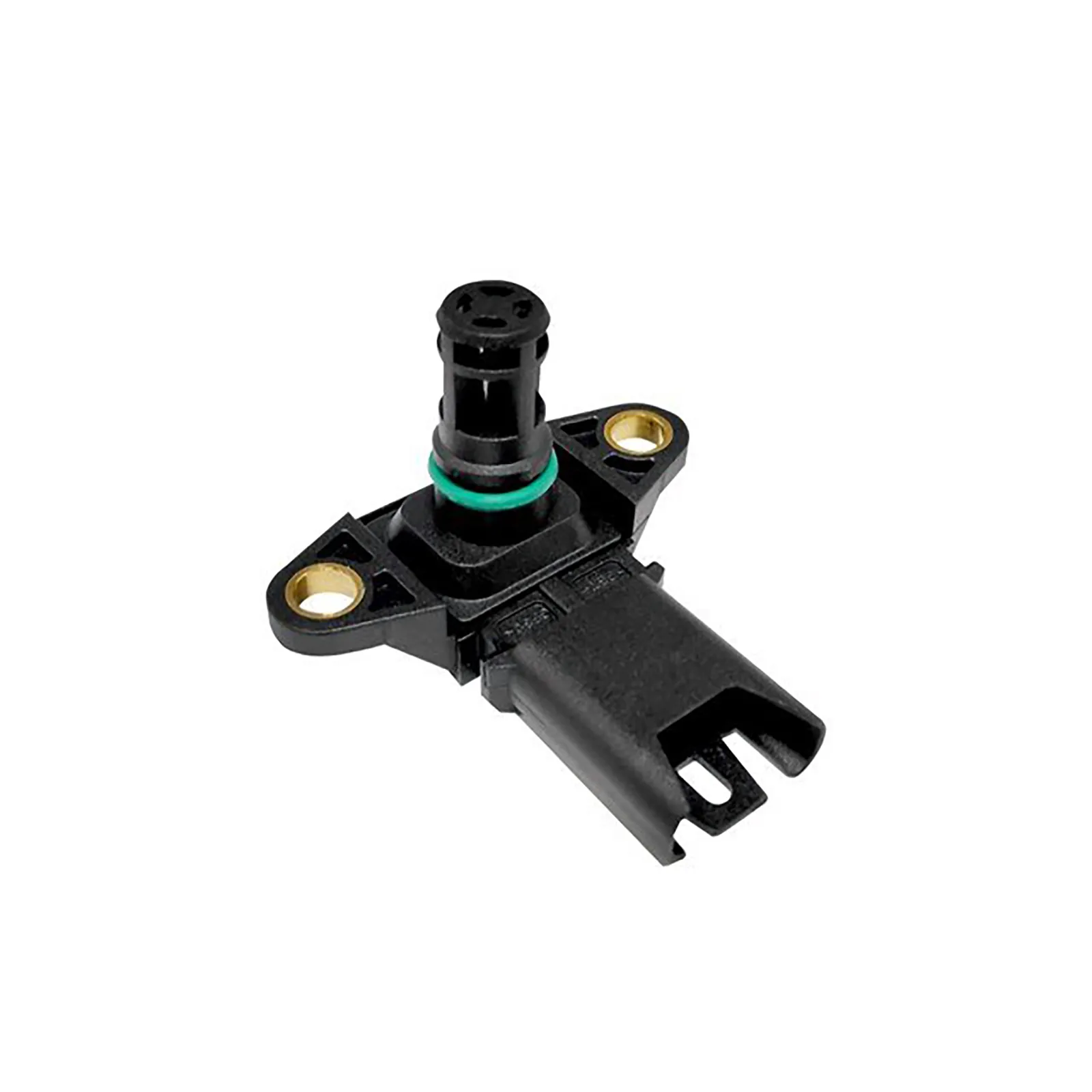

BRAND NEW OEM Quality MAP SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) TO replace BMW OEM: 13627585493 (13 62 7 585 493)

OEM# 13627551429, 13627585493, 13629797773, 7551429, 7585493, 9797773

Package Includes:

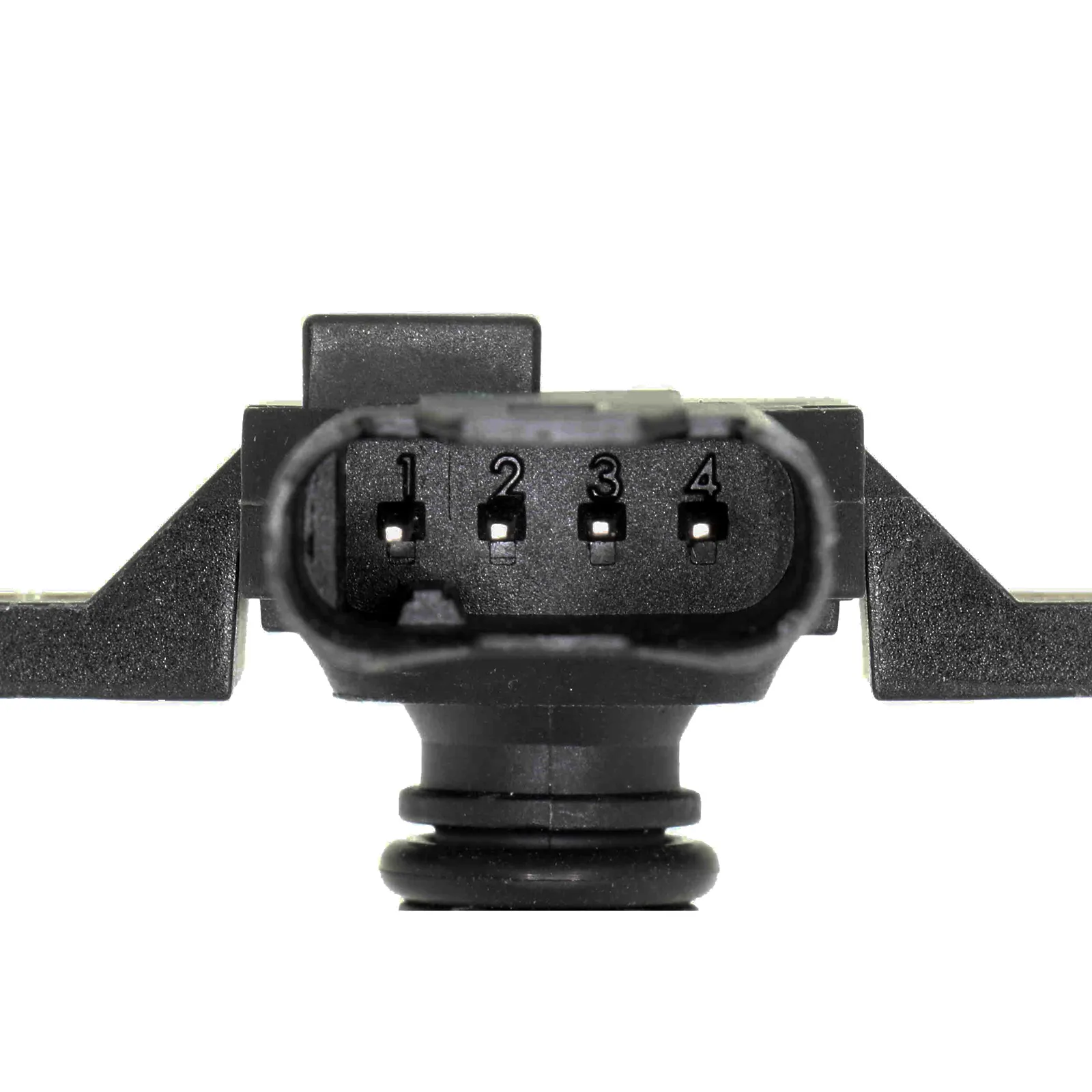

1* MAP SENSOR (4-PIN OVAL PLUG).2.5 BAR SENSOR. Fitting Position before exhaust turbocharger, Intake Manifold.

Manifold Absolute Pressure Sensor or MAP sensor provides instantaneous manifold pressure information to the engine's electronic control module (ECM). This data is used to calculate air density and determine the engine's air mass flow rate, which in turn determines the required fuel metering for optimum combustion.

TO SUIT:

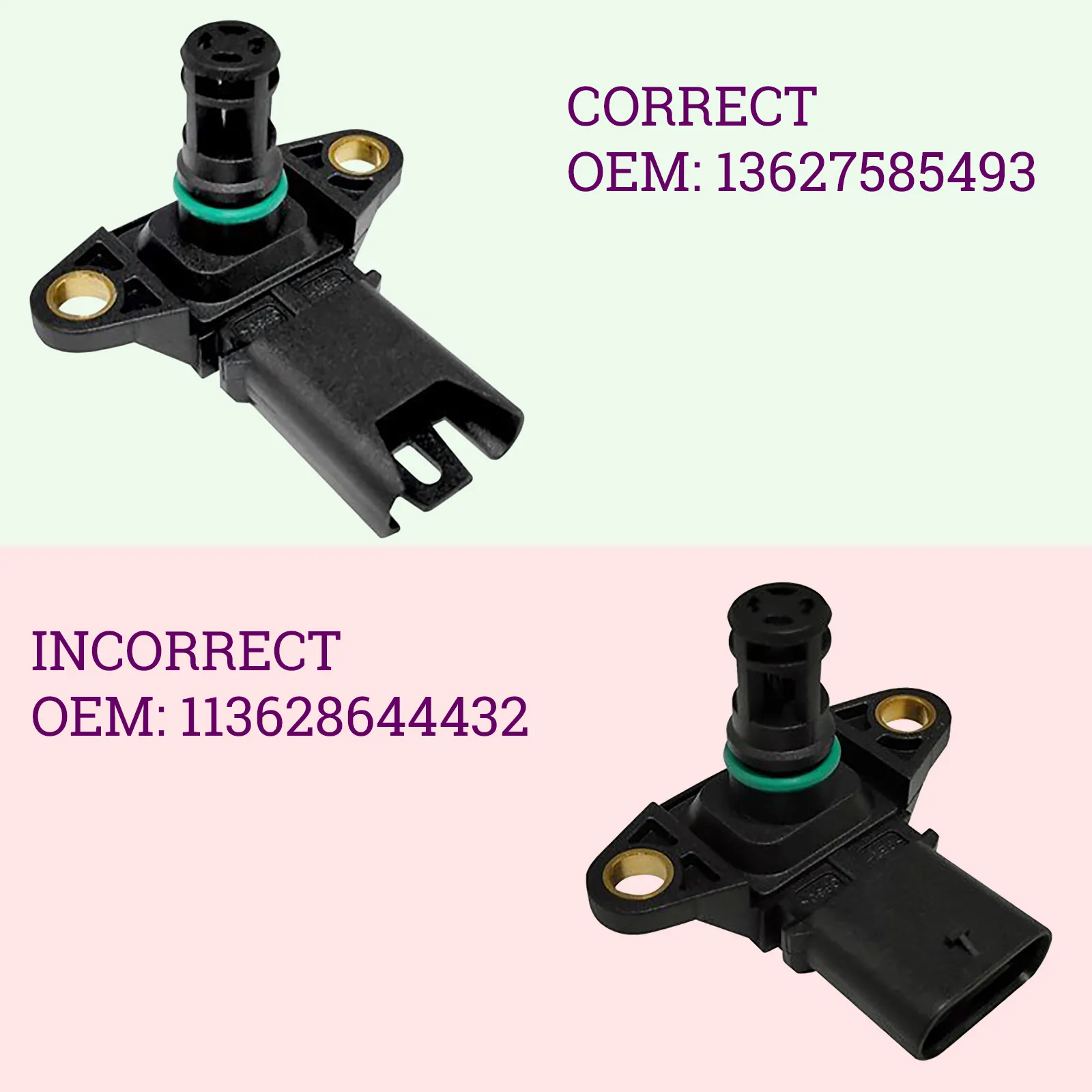

Note on fitment: Cars of the 2011 and later model year may need to check their production date. On E9X 3 series, this includes 2011 E90 335i/335xi sedan and E92/E93 3 Series 335i/335xi Coupe & Convertible 2011, 2012 and 2013 model years. There were potentially two different pressure sensors BMW used. Depending on the location of the sensor (in the intake charge pipe OR in the intake manifold) you may need the 'other' later-style sensor, BMW part # 13627599042. This circumstance applies to E9X 3 series 3/2011 and newer, F10 5 series 3/2011 and newer, X5 9/2010 and newer, and others.

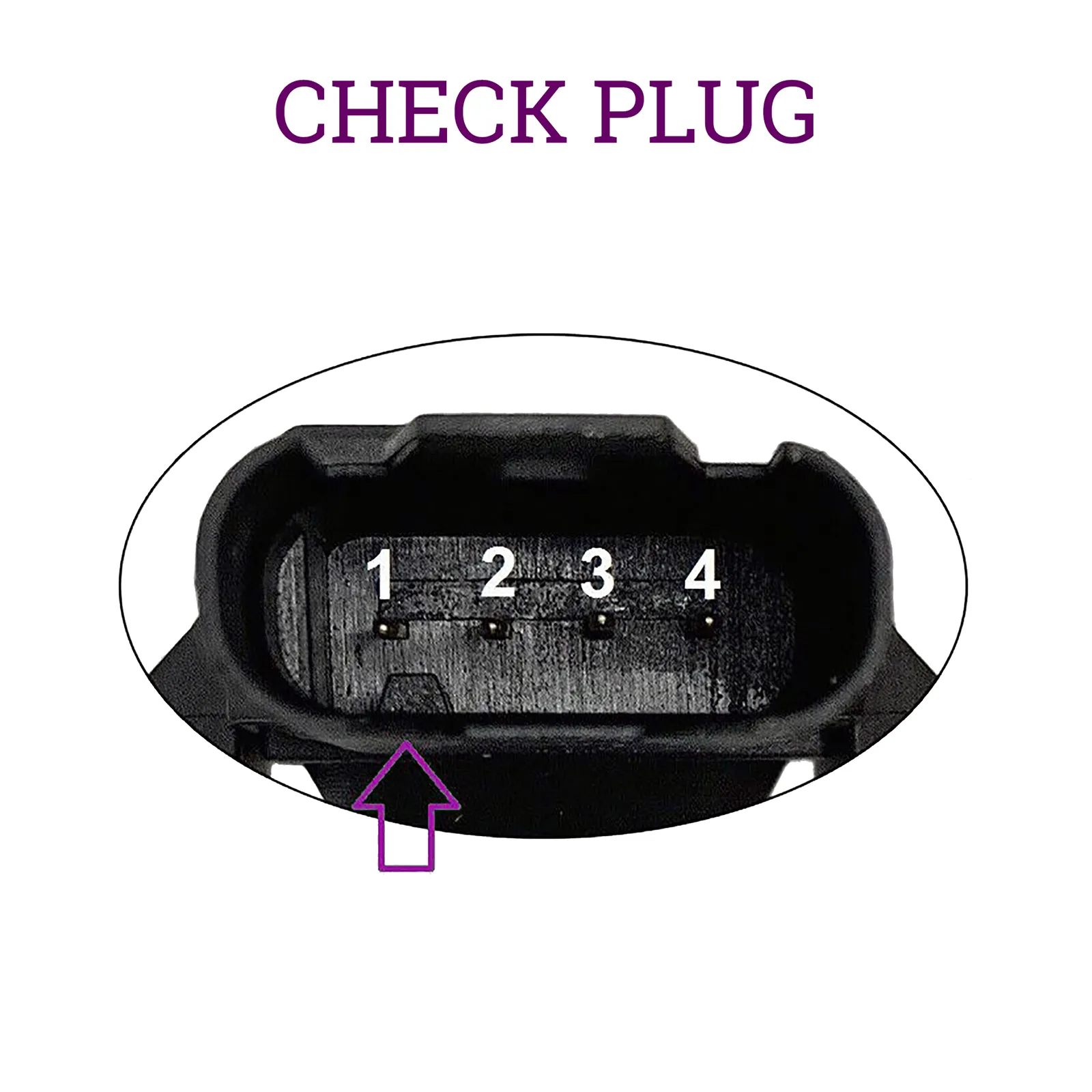

Note for V8/V12 cars (5/6/7/X series): Car built 3/2012 and later may have a different sensor, depending the location of the sensor. Check your existing sensor/plug to make sure this pressure sensor is compatible.

[01/08 - 12/10] BMW 135i E82 3.0L 6cyl N54 B30 A 225kW
[01/08 - 12/11] BMW 135i E82 3.0L 6cyl N54 B30 A 225kW
[01/08 - 12/10] BMW 135i E88 3.0L 6cyl N54 B30 A 225kW
[01/08 - 12/10] BMW 335i E91 3.0L 6cyl N54 B30 A 225kW
[01/06 - 12/08] BMW 335i E92 3.0L 6cyl N54 B30 A 225kW
[01/06 - 12/10] BMW 335i E92 3.0L 6cyl N54 B30 A 225kW
[01/08 - 12/10] BMW 335i E92 3.0L 6cyl N54 B30 A 225kW
[01/09 - 12/12] BMW 740Li F02 3.0L 6cyl N54 B30 A 240kW
[01/09 - 12/12] BMW 740i F01 3.0L 6cyl N54 B30 A 240kW
[01/11 - 12/12] BMW M 1M E82 3.0L 6cyl N54 B30 A 250kW
[01/08 - 12/10] BMW X6 E71 XDRIVE 35i 3.0L 6cyl N54 B30 A 225kW
[01/09 - 12/12] BMW Z4 E89 SDRIVE 35i 3.0L 6cyl N54 B30 A 225kW
[01/10 - 12/16] BMW Z4 E89 SDRIVE 35is 3.0L 6cyl N54 B30 A 250kW
[01/10 - 12/13] BMW 135i E88 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/12] BMW 335i E91 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/13] BMW 335i E92 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/13] BMW 335i E93 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/17] BMW 535i F07 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/16] BMW 535i F10 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/17] BMW 535i F11 3.0L 6cyl N55 B30 A 225kW
[01/11 - 12/18] BMW 640i F12 3.0L 6cyl N55 B30 A 235kW
[01/12 - 12/15] BMW 740Li F02 3.0L 6cyl N55 B30 A 235kW
[01/12 - 12/15] BMW 740i F01 3.0L 6cyl N55 B30 A 235kW
[01/10 - 12/13] BMW X5 E70 XDRIVE 35i 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/14] BMW X6 E71 XDRIVE 35i 3.0L 6cyl N55 B30 A 225kW
[01/10 - 12/11] BMW 550i F07 4.4L V8 N63 B44 A 300kW
[01/10 - 12/13] BMW 550i F10 4.4L V8 N63 B44 A 300kW
[01/11 - 12/12] BMW 650i F12 4.4L V8 N63 B44 A 300kW
[01/09 - 12/12] BMW 750Li F02 4.4L V8 N63 B44 A 300kW
[01/09 - 12/12] BMW 750i F01 4.4L V8 N63 B44 A 300kW
[01/10 - 12/13] BMW X5 E70 XDRIVE 50i 4.4L V8 N63 B44 A 300kW
[01/08 - 12/10] BMW X6 E71 XDRIVE 50i 4.4L V8 N63 B44 A 300kW
[01/10 - 12/14] BMW X6 E71 XDRIVE 50i 4.4L V8 N63 B44 A 300kW
[01/09 - 12/15] BMW 760Li F02 6.0L V12 N74 B60 A 400kW

What fault codes does a faulty MAP sensor trigger?

A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.

How do I test a MAP sensor?

With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.

Can I drive with a faulty MAP sensor?

You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.

What does a MAP sensor do?

The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.

What are the symptoms of a faulty MAP sensor?

Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.

What is the difference between a MAP sensor and a MAF sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.

Identification
SKU	MAP1193-MP257_6
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	MAP1193
Reference OEM Number	13627585493
Other OEM Numbers	13627551429, 13627585493, 13629797773
Related Part Numbers	MP257, V20-72-0090
Trade Part Numbers	7551429, 7585493, 9797773
Product Specifics
Product Type	SENSOR
Sensor Type	Manifold Absolute Pressure (MAP) Sensor
Fitting Position	before exhaust turbocharger, Intake Manifold
Number of pins	4 -pin connector
Connector Shape	oval
Supplementary Article Info	with integrated air temperature sensor

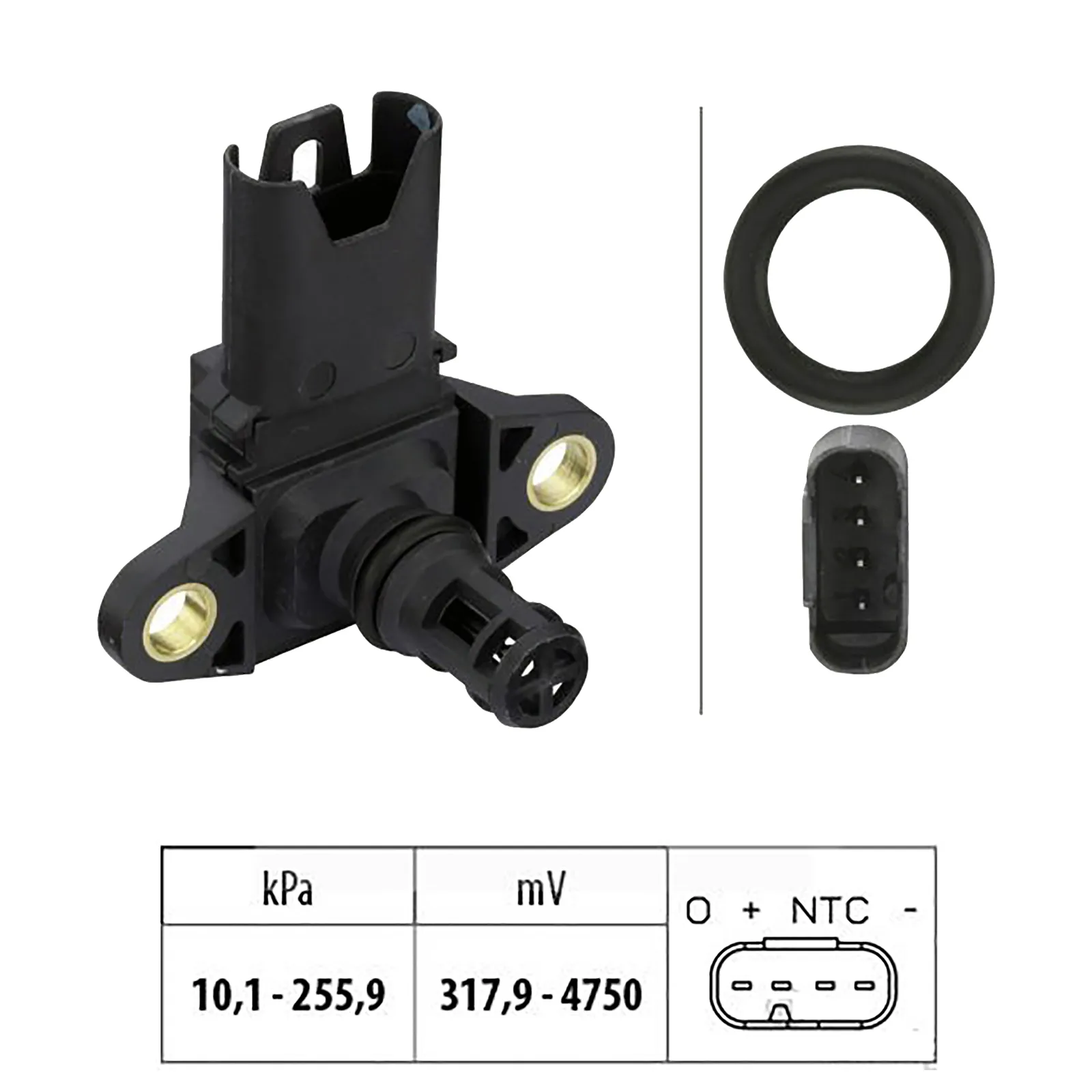

Pressure Range	15 kPa, until 250 kPa
Number of mounting bores	2
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
