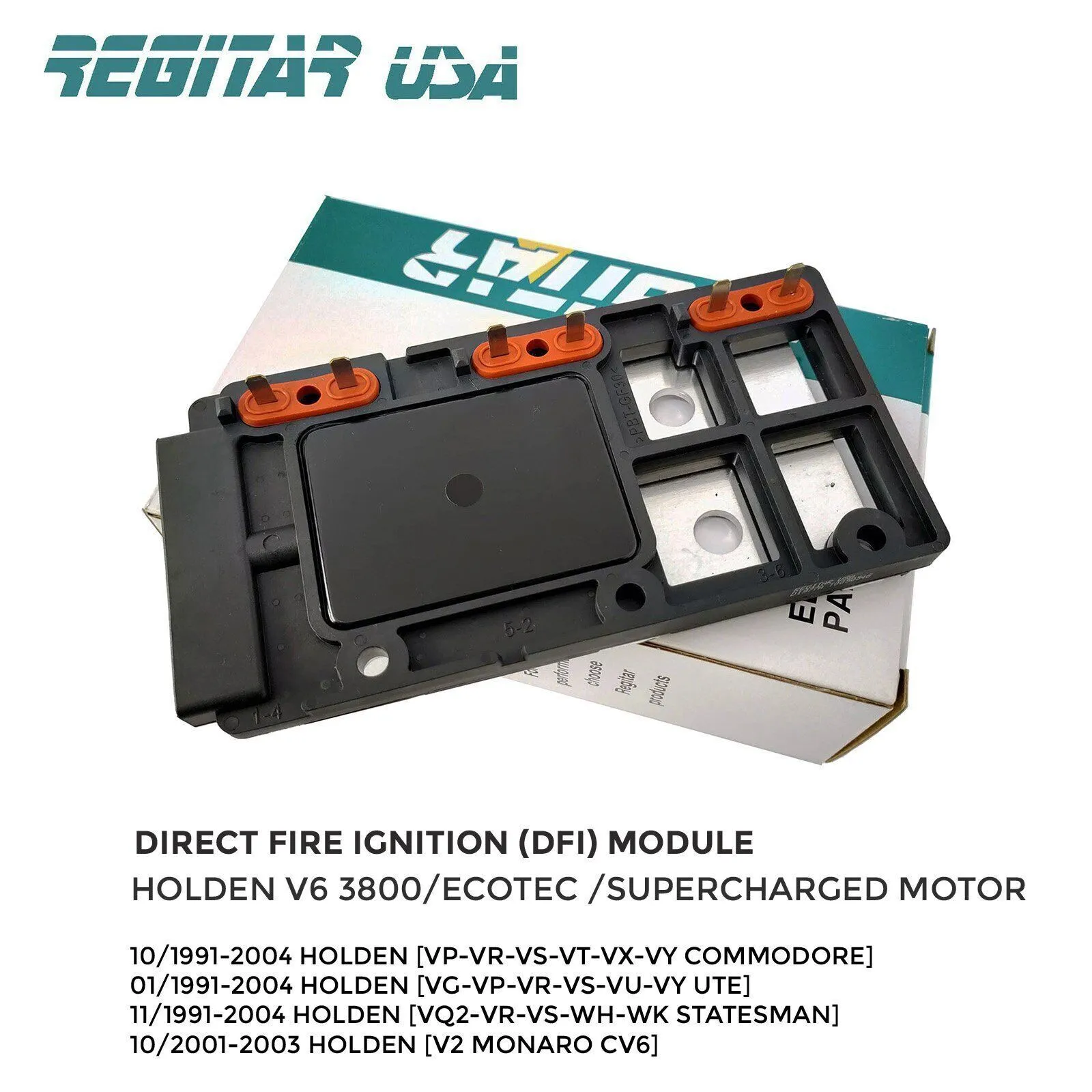

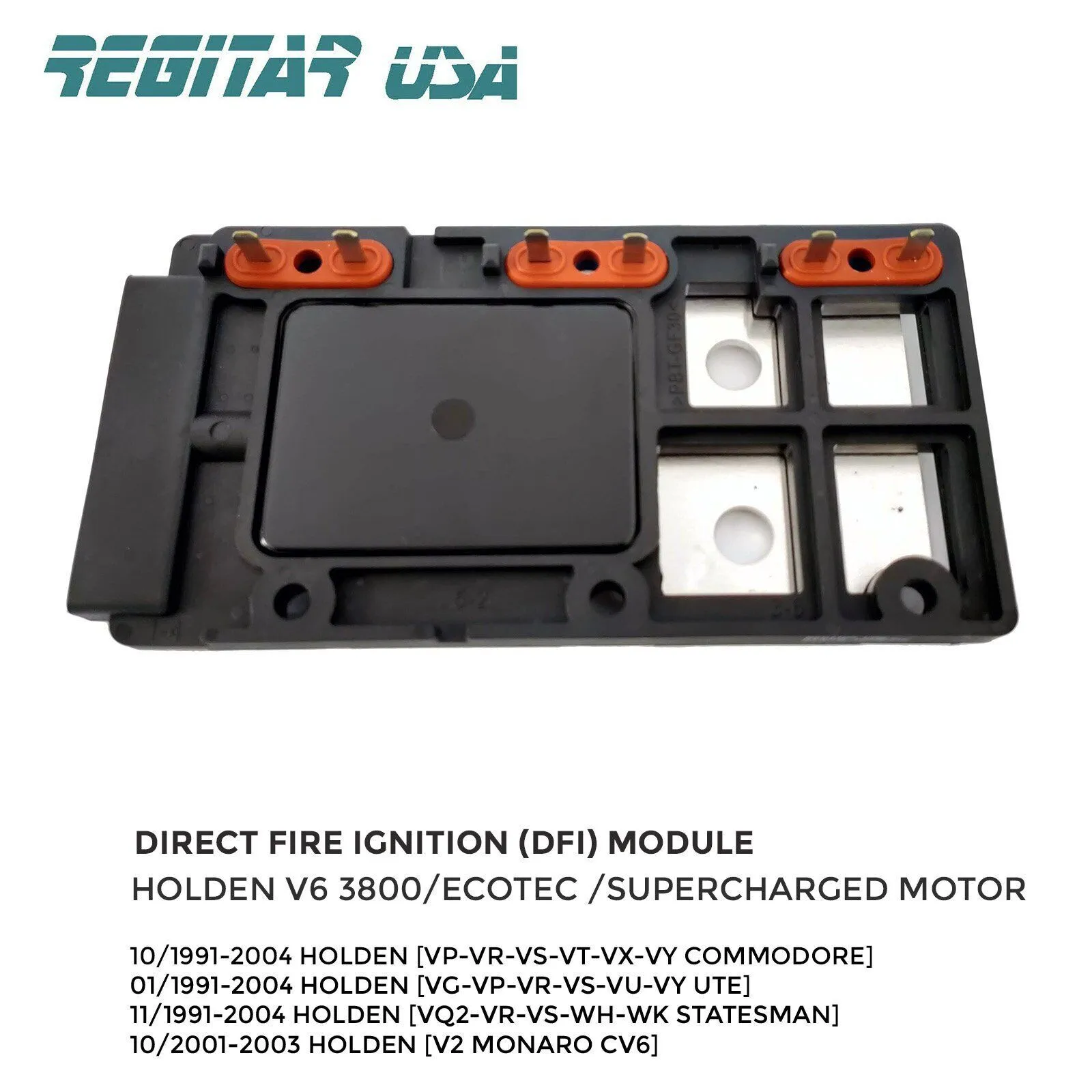

BRAND NEW *OEM QUALITY* Direct Fire Ignition (DFI) Module TO SUIT HOLDEN COMMODORE 3.8L ECOTEC and SUPERCHARGED Engines



TO SUIT:

The Direct Fire Ignition (DFI) Module is compatible with the following Holden Motors.

  • L27 HOLDEN V6 3800 3.8L MOTOR
  • L36 HOLDEN V6 ECOTEC 3.8L MOTOR
  • L67 HOLDEN V6 SUPERCHARGED 3.8L MOTOR


This *OEM QUALITY* Ignition module is Suitable for the Below Commodore variants.

  • [1991-2004] HOLDEN VP VR VS VT VX VY COMMODORE
  • [1991-2004] HOLDEN VG VP VR VS VU VY UTE
  • [1991-2004] HOLDEN VQ2 VR VS WH WK STATESMAN
  • [2001-2003] HOLDEN V2 MONARO CV6

This module suits a range of Holden vehicles fitted with Buick, Ecotec, and Supercharged V6 engines.



OEM#

10469470, 10475225, 10494012

  • Delphi: DS1004
  • BOSCH: F005X03237
  • BOSCH: BIM802



PACKAGE INCLUDES:

1 X *OEM QUALITY* DIRECT FIRE IGNITION (DFI) MODULE.

BETTER THAN OEM

THIS IS A PREMIUM QUALITY IGNITION CONTROL MODULE FOR YOUR HOLDEN / GENERAL MOTORS VEHICLE



The Direct Fire Ignition (DFI) module is a component in a vehicle’s engine that controls the coils and enables a spark to be produced at the correct time in each cylinder.

If the DFI modules fail, the car will correctly fire for a short distance or at all, and then it will stall for no apparent reason when a load is put on the engine. After a short period, the engine will restart and run for a while longer. These symptoms can have other causes, but the DFI module is often the first thing to check.
The ignition module is the heart of your entire ignition system. It serves to create a spark strong enough to ignite the air-fuel mixture and to control the timing of the spark plugs by opening and closing the ignition coil ground circuit. Heating up of ignition coils, engine stalling, shaking when accelerating, and engine not sparking could be the indications of a faulty ignition module.

This REGITAR USA ignition module is a premium replacement designed to exceed OEM specifications. With years of expertise in the ignition system, REGITAR USA understands the importance of getting things right.

  • L27 MOTOR
  • [10/91 - 07/93] HOLDEN CALAIS VP V6 3.8L V6 L27 127kW
  • [08/93 - 04/95] HOLDEN CALAIS VR V6 3.8L V6 L27 130kW
  • [03/94 - 04/95] HOLDEN CAPRICE VR V6 3.8L V6 L27 130kW
  • [01/88 - 09/91] HOLDEN COMMODORE VG V6 3.8L V6 L27 125kW
  • [10/91 - 07/93] HOLDEN COMMODORE VP V6 3.8L V6 L27 127kW
  • [09/91 - 07/93] HOLDEN COMMODORE VP V6 3.8L V6 L27 127kW
  • [08/93 - 04/95] HOLDEN COMMODORE VR V6 3.8L V6 L27 130kW
  • [04/90 - 09/93] HOLDEN STATESMAN VQ V6 3.8L V6 L27 127kW
  • [03/94 - 04/95] HOLDEN STATESMAN VR V6 3.8L V6 L27 130kW
  • [09/91 - 07/93] HOLDEN COMMODORE VP V6 3.8L V6 L27/ LN3 127kW
  •
  • L36 MOTOR
  • [09/89 - 11/91] TOYOTA LEXCEN VN 3.8L V6 L36 125kW
  • [11/91 - 08/93] TOYOTA LEXCEN VP 3.8L V6 L36 127kW
  • [08/93 - 10/95] TOYOTA LEXCEN VR 3.8L V6 L36 130kW
  • [11/95 - 12/97] TOYOTA LEXCEN VS 3.8L V6 L36 147kW
  • [04/95 - 08/97] HOLDEN CALAIS VS V6 3.8L V6 L36(231CUV6) 147kW
  • [04/95 - 05/98] HOLDEN CAPRICE VS V6 3.8L V6 L36(231CUV6) 147kW
  • [10/96 - 06/99] HOLDEN CAPRICE VS V6 Supercharged 3.8L V6 L36(231CUV6) 165kW
  • [06/99 - 08/01] HOLDEN CAPRICE WH V6 3.8L V6 L36(231CUV6) 147kW
  • [08/01 - 04/03] HOLDEN CAPRICE WH V6 3.8L V6 L36(231CUV6) 152kW
  • [05/03 - 07/04] HOLDEN CAPRICE WK V6 3.8L V6 L36(231CUV6) 152kW
  • [04/95 - 08/97] HOLDEN COMMODORE VS V6 3.8L V6 L36(231CUV6) 147kW
  • [04/95 - 12/00] HOLDEN COMMODORE VS V6 3.8L V6 L36(231CUV6) 147kW
  • [12/00 - 09/02] HOLDEN COMMODORE VU V6 3.8L V6 L36(231CUV6) 147kW
  • [06/99 - 04/03] HOLDEN STATESMAN WH V6 3.8L V6 L36(231CUV6) 147kW
  • [08/01 - 04/03] HOLDEN STATESMAN WH V6 3.8L V6 L36(231CUV6) 152kW
  • [05/03 - 07/04] HOLDEN STATESMAN WK V6 3.8L V6 L36(231CUV6) 152kW
  • [04/95 - 06/99] HOLDEN STATESMAN VS V6 3.8L V6 L36(231CUV6)/ LN3 147kW
  •
  • L67 SUPERCHARGED MOTOR
  • [09/96 - 06/97] HOLDEN CALAIS VS V6 Supercharged 3.8L V6 L67 165kW
  • [09/97 - 10/00] HOLDEN CALAIS VT V6 Supercharged 3.8L V6 L67 171kW
  • [09/00 - 08/02] HOLDEN CALAIS VX V6 Supercharged 3.8L V6 L67 171kW
  • [09/02 - 08/04] HOLDEN CALAIS VY V6 Supercharged 3.8L V6 L67 171kW
  • [06/99 - 08/01] HOLDEN CAPRICE WH V6 Supercharged 3.8L V6 L67 171kW
  • [08/95 - 06/97] HOLDEN COMMODORE VS V6 Supercharged 3.8L V6 L67 165kW
  • [09/97 - 08/00] HOLDEN COMMODORE VT V6 Supercharged 3.8L V6 L67 171kW
  • [09/00 - 08/02] HOLDEN COMMODORE VX V6 Supercharged 3.8L V6 L67 171kW
  • [09/02 - 08/04] HOLDEN COMMODORE VY V6 Supercharged 3.8L V6 L67 171kW
  • [12/01 - 08/03] HOLDEN MONARO V2 3.8L V6 L67 171kW
  • [10/96 - 06/99] HOLDEN STATESMAN VS V6 Supercharged 3.8L V6 L67 165kW
  • [06/99 - 04/03] HOLDEN STATESMAN WH V6 Supercharged 3.8L V6 L67 171kW
  • [05/03 - 07/04] HOLDEN STATESMAN WK V6 Supercharged 3.8L V6 L67 171kW
  • [07/99 - 09/00] HSV GRANGE WH V6 Supercharged 3.8L V6 L67 180kW
  • [03/98 - 10/00] HSV XU6 VT V6 Supercharged 3.8L V6 L67 180kW
  • [09/00 - 10/02] HSV XU6 VX V6 Supercharged 3.8L V6 L67 180kW
  •
  • LN3 MOTORS
  • [08/88 - 10/91] HOLDEN CALAIS VN V6 3.8L V6 LN3 125kW
  • [09/97 - 10/00] HOLDEN CALAIS VT V6 3.8L V6 LN3 147kW
  • [09/00 - 09/02] HOLDEN CALAIS VX V6 3.8L V6 LN3 152kW
  • [09/02 - 08/04] HOLDEN CALAIS VY V6 3.8L V6 LN3 152kW
  • [08/88 - 10/91] HOLDEN COMMODORE VN V6 3.8L V6 LN3 125kW
  • [01/88 - 03/91] HOLDEN COMMODORE VN V6 3.8L V6 LN3 125kW
  • [09/97 - 08/00] HOLDEN COMMODORE VT V6 3.8L V6 LN3 147kW
  • [09/97 - 08/02] HOLDEN COMMODORE VT V6 3.8L V6 LN3 147kW
  • [12/01 - 09/02] HOLDEN COMMODORE VU V6 3.8L V6 LN3 152kW
  • [09/00 - 09/02] HOLDEN COMMODORE VX V6 3.8L V6 LN3 152kW
  • [09/02 - 08/04] HOLDEN COMMODORE VY V6 3.8L V6 LN3 152kW
  • [09/03 - 07/04] HOLDEN CREWMAN VY V6 3.8L V6 LN3 152kW
  • [06/03 - 12/04] HOLDEN ONE TONNER VY V6 3.8L V6 LN3 152kW
  • [10/89 - 07/91] HSV COMMODORE VN V6 3.8L V6 LN3 125kW
  • [10/89 - 07/91] HSV COMMODORE VN V6 3.8L V6 LN3 132kW
  • [02/92 - 06/93] HSV COMMODORE VP V6 3.8L V6 LN3 125kW
  • [09/91 - 02/92] HSV LS VG V6 3.8L V6 LN3 125kW
  • [03/92 - 07/93] HSV LS VP V6 3.8L V6 LN3 127kW
SKU CM414
Barcode # 9341554028050
Brand: REGITAR USA
Part Number: DS1004
Reference OEM Number: 10469470
Other OEM Numbers: 10469470, 10475225, 10494012
Related Part Numbers: CM414, D1977A, JA1045, IM021, TIM049
Trade Part Numbers: BOSCH: F005X03237, BOSCH: BIM802
Note: CHECK IMAGES. CONFIRM WITH OEM NUMBER
Unit Of Measure ea
