BRAND NEW OEM Quality ENGINE COOLANT TEMPERATURE SENSOR TO SUIT Ford Focus Fiesta Mondeo Escape

TO SUIT:

Ford Focus LR LS LT LV LW LZ (1.5L 1.6L 1.8L 2.0L 2.3L) [2002-2019]
Ford Fiesta WP WQ WS WT WZ (1.0L 1.4L 1.5L 1.6L 2.0L) [2004-2019]
Ford Mondeo HA HB HC HD HE MA MB MC MD (2.0L 2.3L) [1995-2021]
Ford Escape BA ZA ZB ZC ZD ZG (1.5L 3.0L) [2001-2021]
Mazda Tribute EP (3.0L) [2001-2008]

OEM#

1109340, 1458378, 1484876, 1540574, 1702985, 1802332, 1803883, 1892398, 4093827, 4529853,

1L2A-12A648-AA, 1L2Z-12A648-AA,

3L8A-12A648-BA, 3L8A-12A648-BB,

7C11-12A648-AA, 7C11-12A648-AB, 7C11-12A648-AC, 7C1Z-12A648-A,

7M51-12A648-AA, 7M51-12A648-BA,

DY1188,

XS6F-12A648-CA, XS6F-12A648-CB, XS6Z-12A648-CA,

U20218840

HELLA: 6PT 009 309-781
VEMO: V25-72-0048
WALKER PRODUCTS: 211-1107
WALKER PRODUCTS: 211-2005

PACKAGE INCLUDES:

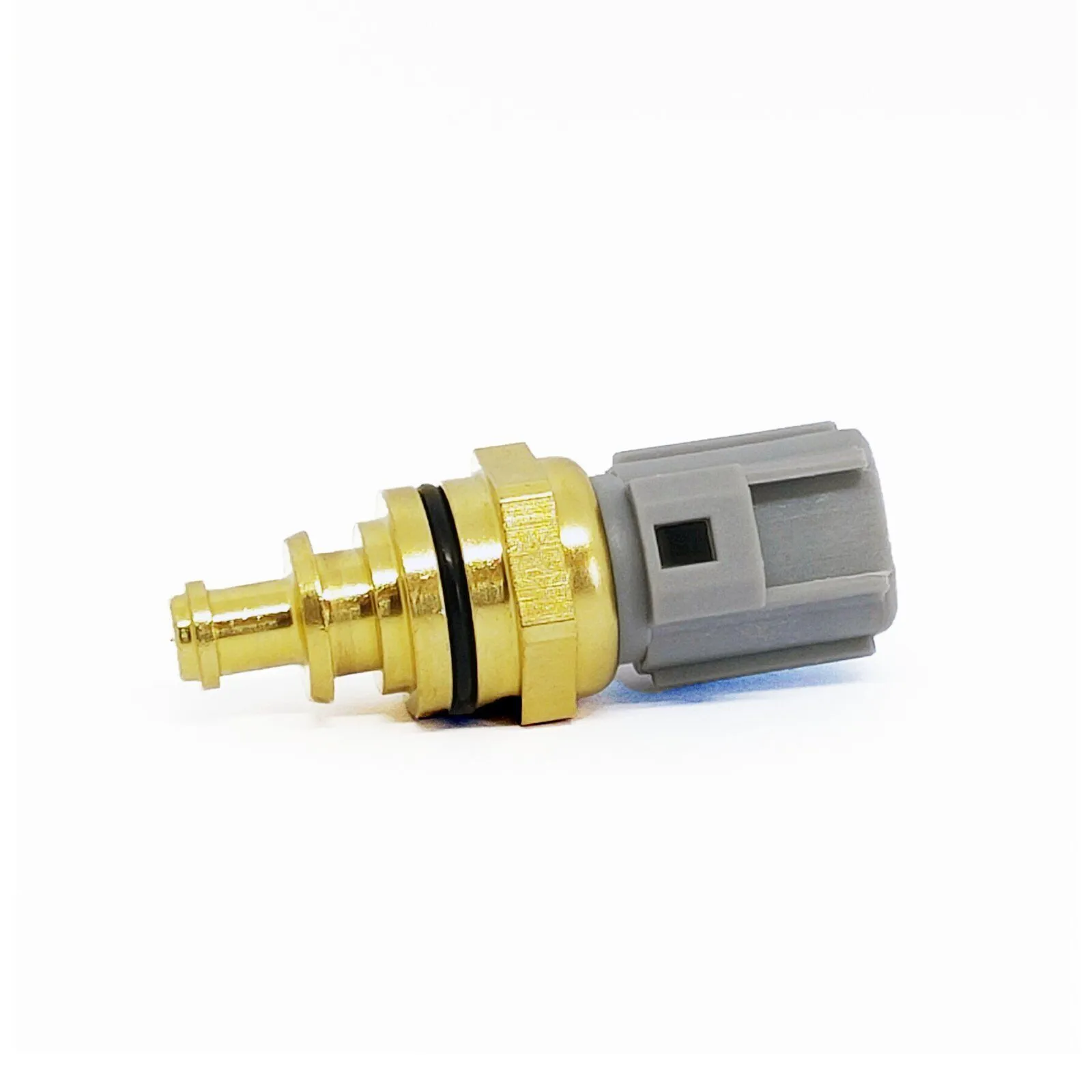

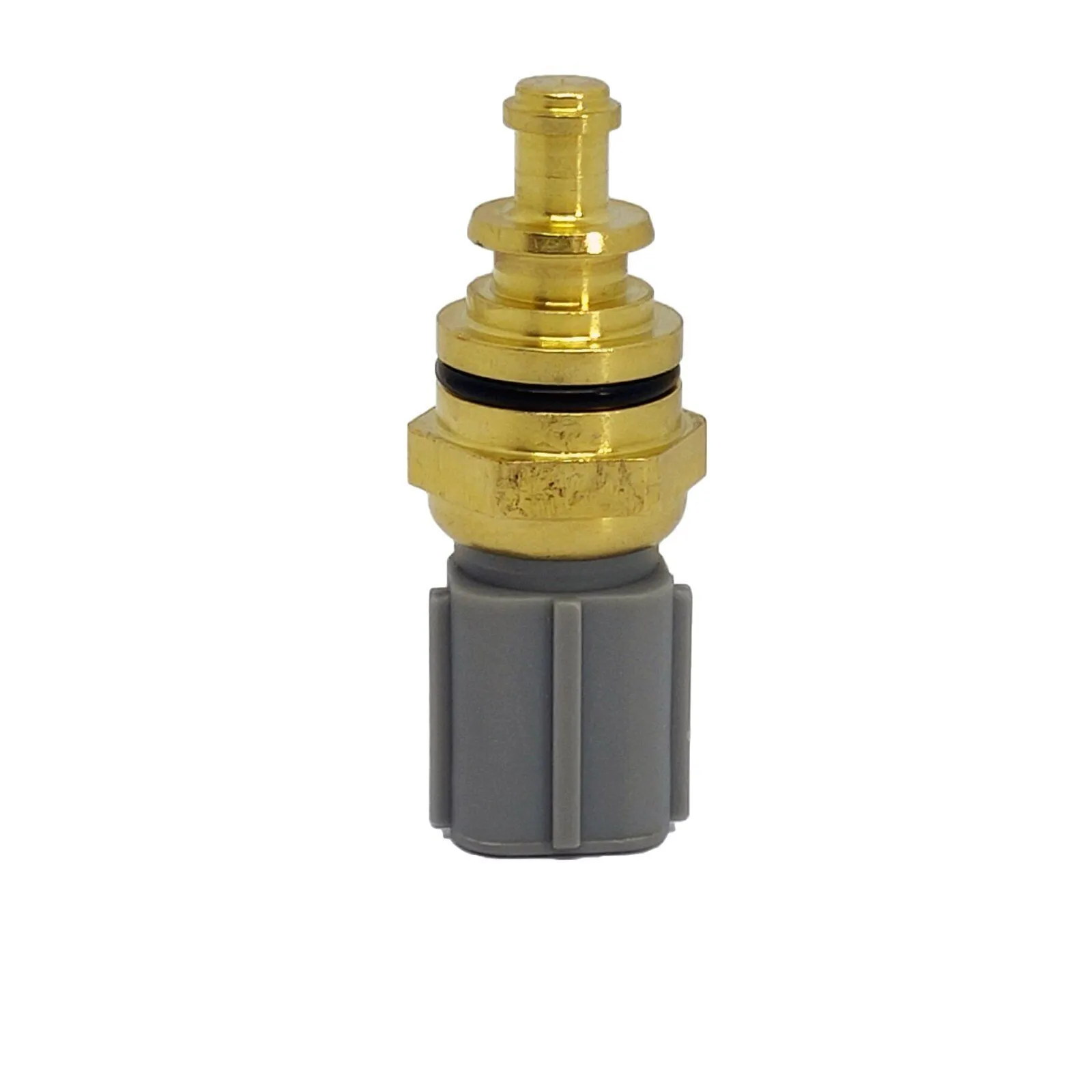

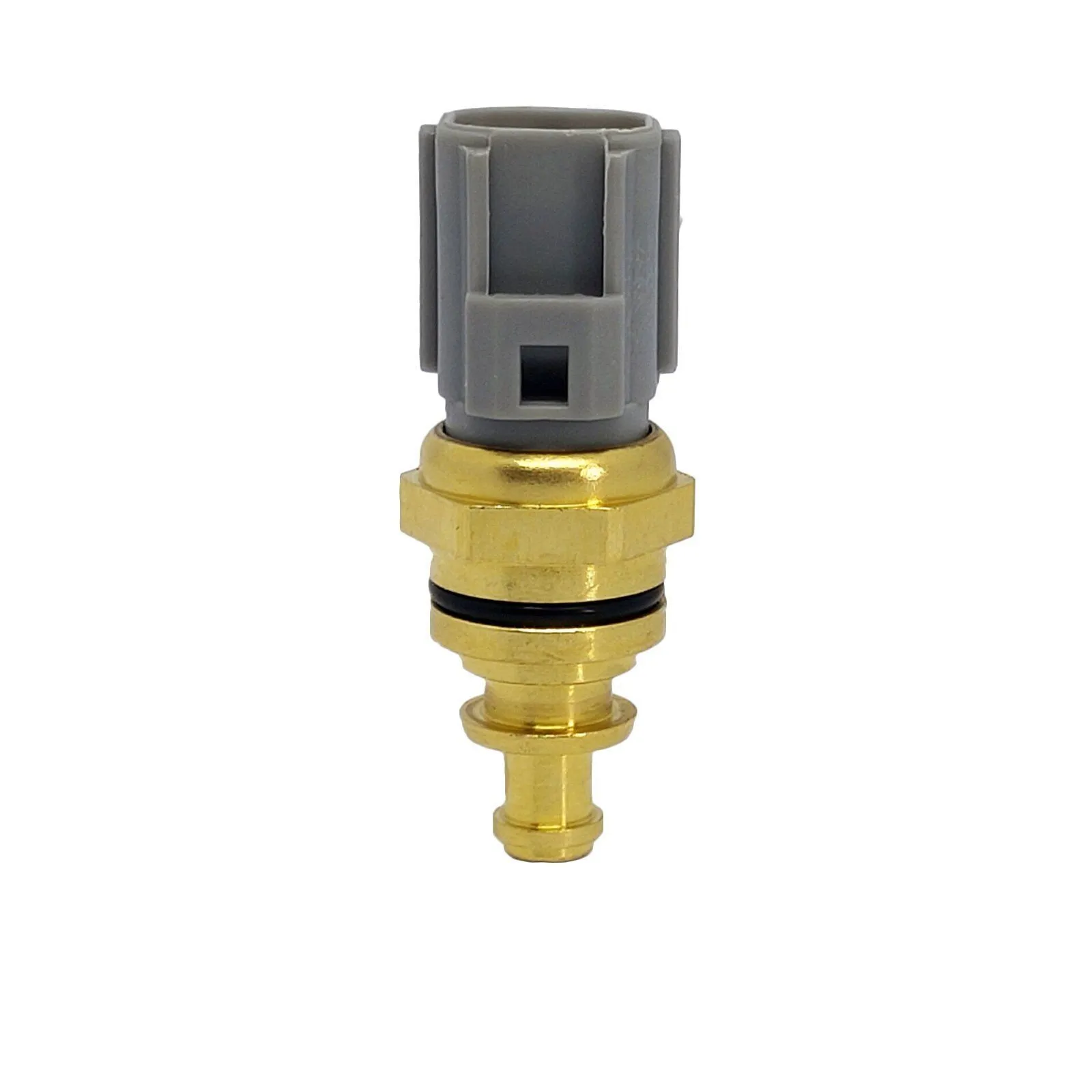

1 X OEM Quality ENGINE COOLANT TEMPERATURE SENSOR (3-PIN PLUG).

The Engine Coolant Temperature Sensor, often called ECT sensor or CTS (Coolant Temperature Sensor), is a crucial component in a vehicle's engine management system. It measures the temperature of the engine coolant and sends this information to the engine control unit (ECU) or the powertrain control module (PCM). This data helps the ECU adjust fuel injection, ignition timing, and other engine parameters to ensure optimal performance, fuel efficiency, and emission control.

If the coolant temperature sensor malfunctions or fails, it can lead to issues such as incorrect fuel mixture, poor engine performance, increased emissions, or problems with starting the engine. A failing sensor might cause the engine to run too rich or too lean, impacting fuel efficiency and potentially causing damage to the engine over time.

COMMON QUESTIONS

Where is this sensor located?
Usually found on the thermostat housing or the engine block near the coolant outlet.

Will this fix my temperature gauge?
Yes if your gauge is fluctuating or reading zero this sensor is often the culprit.

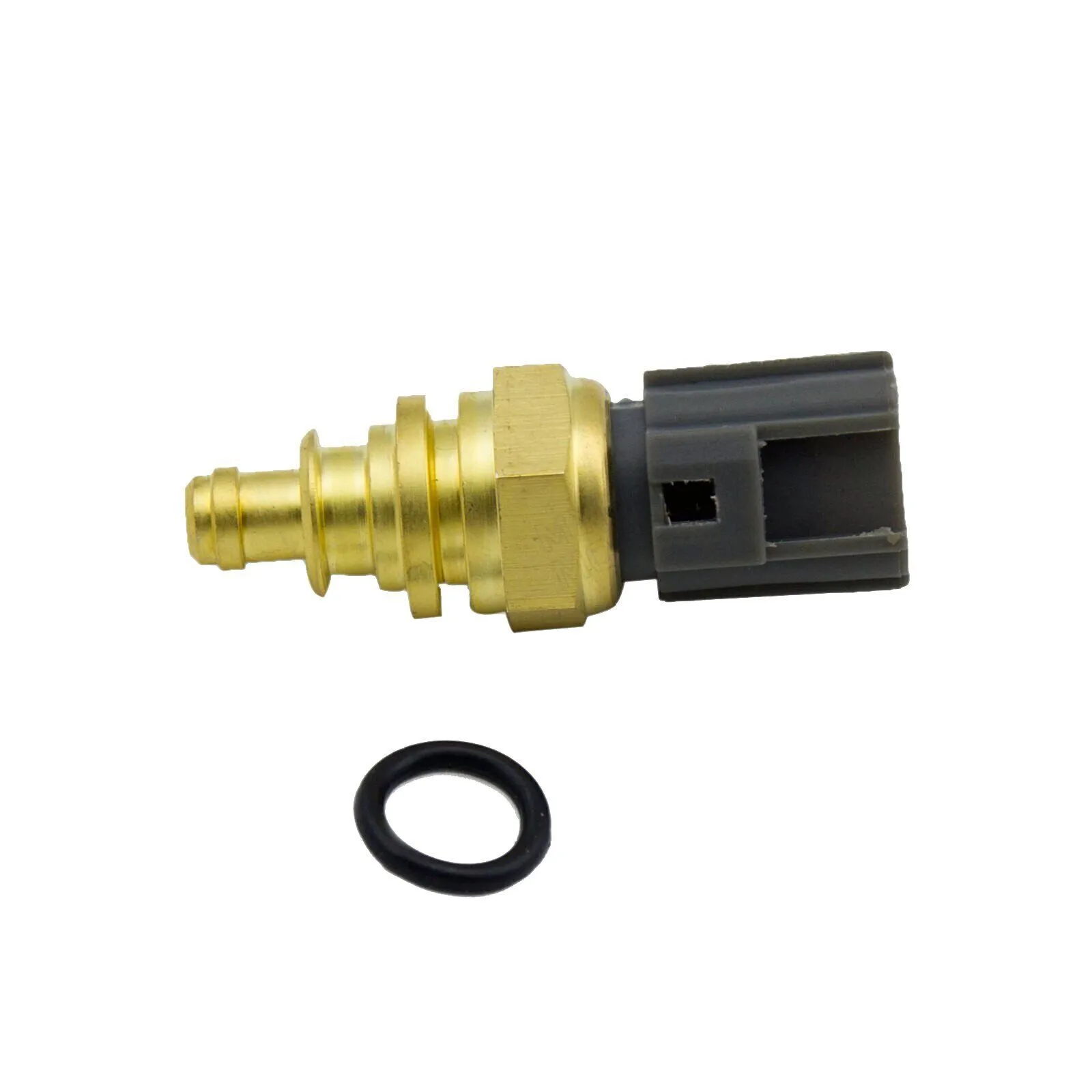

Does it come with a seal?
Yes a new high-temperature seal ring is included.

[10/99 - 03/03] FORD COUGAR SW / SX (2.5L V6 LCBC 125kW)
[02/05 - 12/06] FORD COURIER PH i (4.0L V6 1V 154kW)
[12/13 - 09/17] FORD ECOSPORT BK / BL (1.5L 4cyl UEJB Euro 5 82kW)
[12/13 - 12/19] FORD ECOSPORT BK / BL EcoBoost (1.0L 3cyl M1JC Euro 5 92kW)
[10/17 - 10/19] FORD ECOSPORT BK / BL Ti-VCT (1.5L 3cyl XZJF 90kW)
[03/01 - 03/04] FORD ESCAPE BA / ZA / ZB / ZC / ZD (3.0L V6 AJ 150kW)
[03/04 - 12/08] FORD ESCAPE BA / ZA / ZB / ZC / ZD (3.0L V6 AJ 152kW)
[09/16 - 03/20] FORD ESCAPE ZG EcoBoost (1.5L 4cyl M9MA 134kW)
[07/15 - 05/22] FORD EVEREST UA / UA II I TDCi (3.2L 5cyl P5-AT 143kW)
[10/01 - 01/08] FORD EXPLORER UT / UX / UZ (4.0L V6 T40VSEX 157kW)
[01/12 - 12/14] FORD FALCON FG EcoBoost XT (2.0L 4cyl C20HDTX 179kW)
[11/14 - 10/16] FORD FALCON FG X i (2.0L 4cyl C20HDTX 176kW)
[04/04 - 12/08] FORD FIESTA WP / WQ i (1.6L 4cyl FYJA / FYJB 74kW)
[06/07 - 03/09] FORD FIESTA WP / WQ i XR4 (2.0L 4cyl N4JB 110kW)
[10/09 - 12/10] FORD FIESTA WS i (1.4L 4cyl SPJA 71kW)
[10/08 - 12/10] FORD FIESTA WS i (1.6L 4cyl HXJA / HXJB 88kW)
[10/10 - 12/12] FORD FIESTA WT i (1.6L 4cyl HXJA / HXJB 89kW)
[05/13 - 12/18] FORD FIESTA WZ (1.5L 4cyl UEJD Euro 5 82kW)
[09/13 - 12/18] FORD FIESTA WZ EcoBoost (1.0L 3cyl M1JE 92kW)
[09/13 - 12/17] FORD FIESTA WZ ST (1.6L 4cyl JTJB / JTJA Euro 5 134kW)
[09/02 - 06/05] FORD FOCUS LR (2.0L 4cyl EDDD 85kW)
[09/02 - 04/05] FORD FOCUS LR i (1.8L 4cyl EYDE 85kW)
[09/02 - 04/05] FORD FOCUS LR i (2.0L 4cyl EDDB 96kW)
[04/03 - 04/05] FORD FOCUS LR I ST170 (2.0L 4cyl ALDA 127kW)
[06/05 - 06/07] FORD FOCUS LS i (2.0L 4cyl AODA / AODB 107kW)
[05/05 - 03/09] FORD FOCUS LS / LT i (2.0L 4cyl AODB / AODE 107kW)
[12/07 - 03/09] FORD FOCUS LT i (2.0L 4cyl AODB / AODE 107kW)
[07/07 - 03/09] FORD FOCUS LT i (2.0L 4cyl AODB / AODE 107kW)
[01/08 - 12/08] FORD FOCUS LV i (2.0L 4cyl AODB / AODE 107kW)
[03/09 - 08/11] FORD FOCUS LV i (2.0L 4cyl AODB / AODE 107kW)
[08/11 - 07/15] FORD FOCUS LW GDI (2.0L 4cyl MGDA 125kW)
[08/11 - 07/15] FORD FOCUS LW i (1.6L 4cyl PNDA 92kW)
[08/12 - 07/15] FORD FOCUS LW ST215 (2.0L 4cyl R9DA 184kW)
[05/15 - 12/18] FORD FOCUS LZ i (1.5L 4cyl M9DD 132kW)
[11/15 - 12/18] FORD FOCUS LZ RS (2.3L 4cyl YVDA Euro 6 257kW)
[05/15 - 12/18] FORD FOCUS LZ ST (2.0L 4cyl R9DA 184kW)
[10/14 - 08/16] FORD KUGA TF EcoBoost (1.5L 4cyl M9MA 134kW)
[09/15 - 08/16] FORD KUGA TF EcoBoost (1.5L 4cyl M9MA 134kW)
[04/13 - 11/14] FORD KUGA TF EcoBoost (1.6L 4cyl JQMA / JQMB 110kW)
[04/13 - 11/14] FORD KUGA TF EcoBoost (1.6L 4cyl JTMA 134kW)
[11/14 - 08/16] FORD KUGA TF EcoBoost (2.0L 4cyl R9MA / R9MB Euro 6 178kW)
[12/96 - 02/00] FORD MONDEO HA / HB / HC / HD (2.0L 4cyl NGA / NGB / NGC / NGD 94kW)
[02/00 - 04/01] FORD MONDEO HE (2.0L 4cyl NGA / NGB / NGC / NGD 94kW)
[03/07 - 01/15] FORD MONDEO MA / MB i 16 V (2.3L 4cyl SEBA 118kW)
[09/10 - 01/15] FORD MONDEO MA / MB / MC i 16V (2.0L 4cyl TNBA 149kW)
[03/07 - 11/14] FORD MONDEO MA / MB / MC i 16V (2.3L 4cyl SEBA 118kW)
[06/09 - 11/14] FORD MONDEO MB / MC i 16 V (2.3L 4cyl SEBA 118kW)
[09/14 - 04/19] FORD MONDEO MD EcoBoost (2.0L 4cyl R9CB / R9CF / R9CH 177kW)
[09/14 - 04/19] FORD MONDEO MD EcoBoost (2.0L 4cyl TNCD / TNCF 149kW)
[02/01 - 01/04] MAZDA TRIBUTE EPFW V6 (3.0L V6 AJ 149kW)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS44-2
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS44

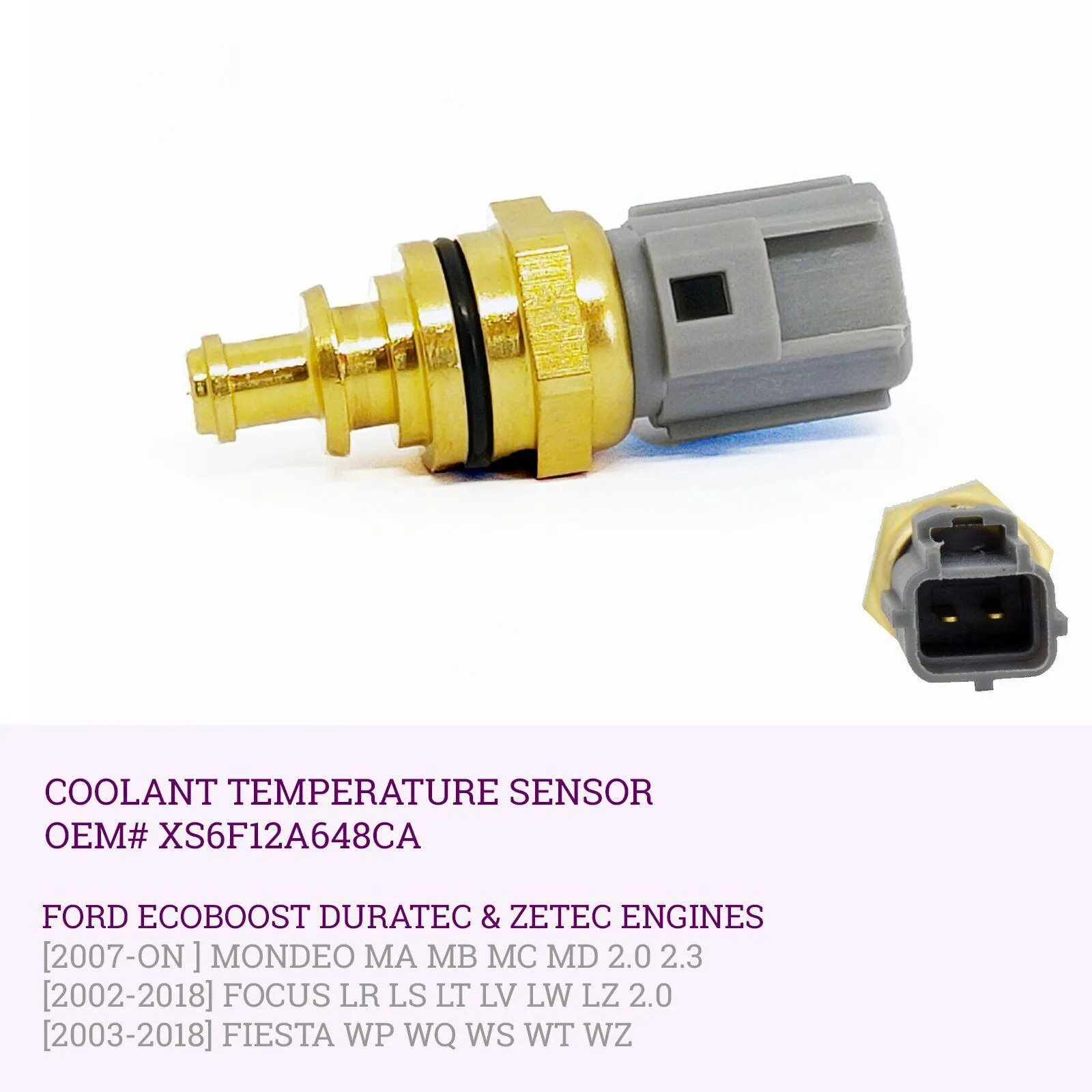

Reference OEM Number	XS6F12A648CA
Other OEM Numbers	1L2A-12A648-AA, 7C11-12A648-AB, XS6F-12A648-CA
Related Part Numbers	TCS112, TS10329, TX104
Trade Part Numbers	1109340, 1458378, 1484876, 1540574, 1803883
Product Specifics

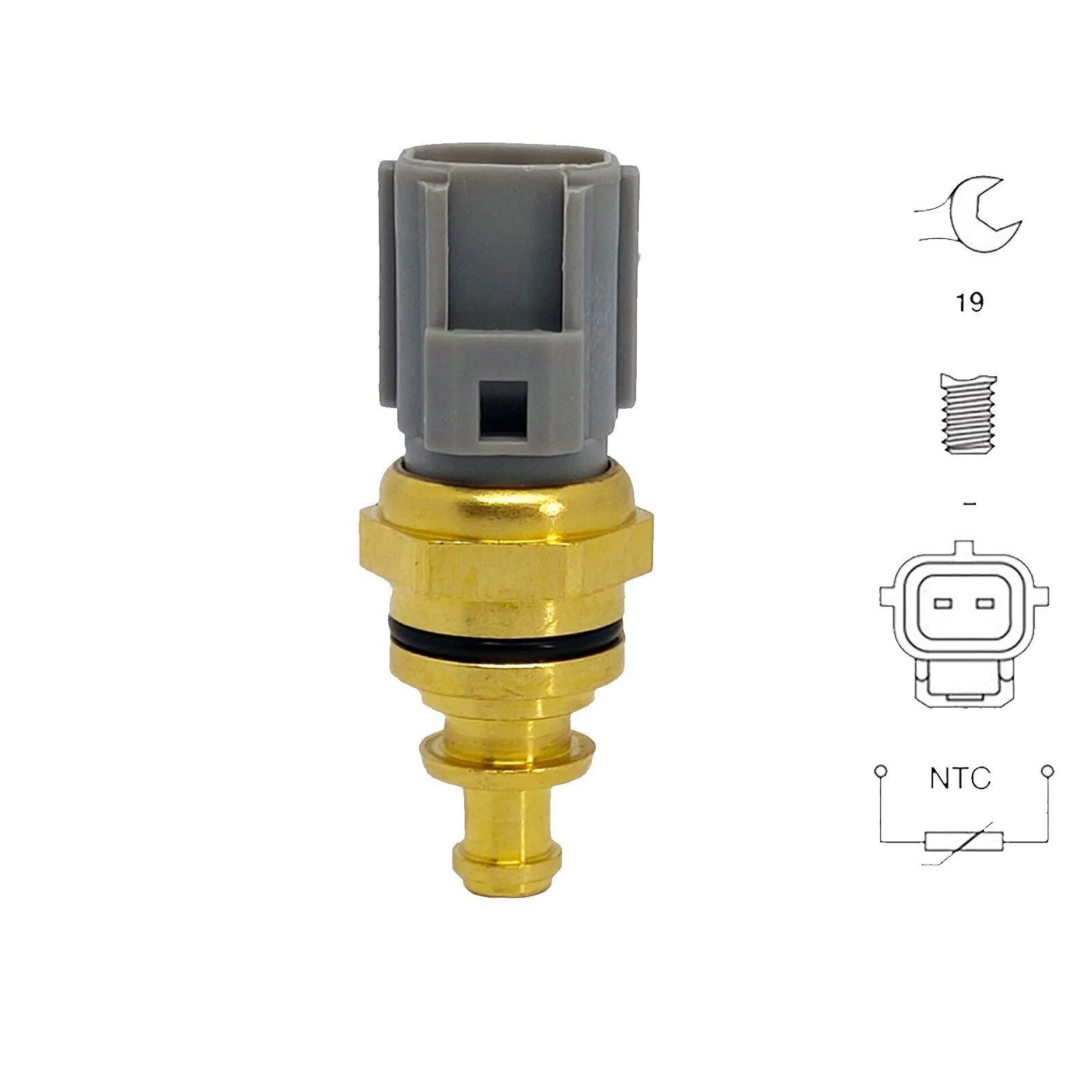

Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit,Clip-In Type Sensor. Suits ECU
Manufacturer Warranty	1 Year

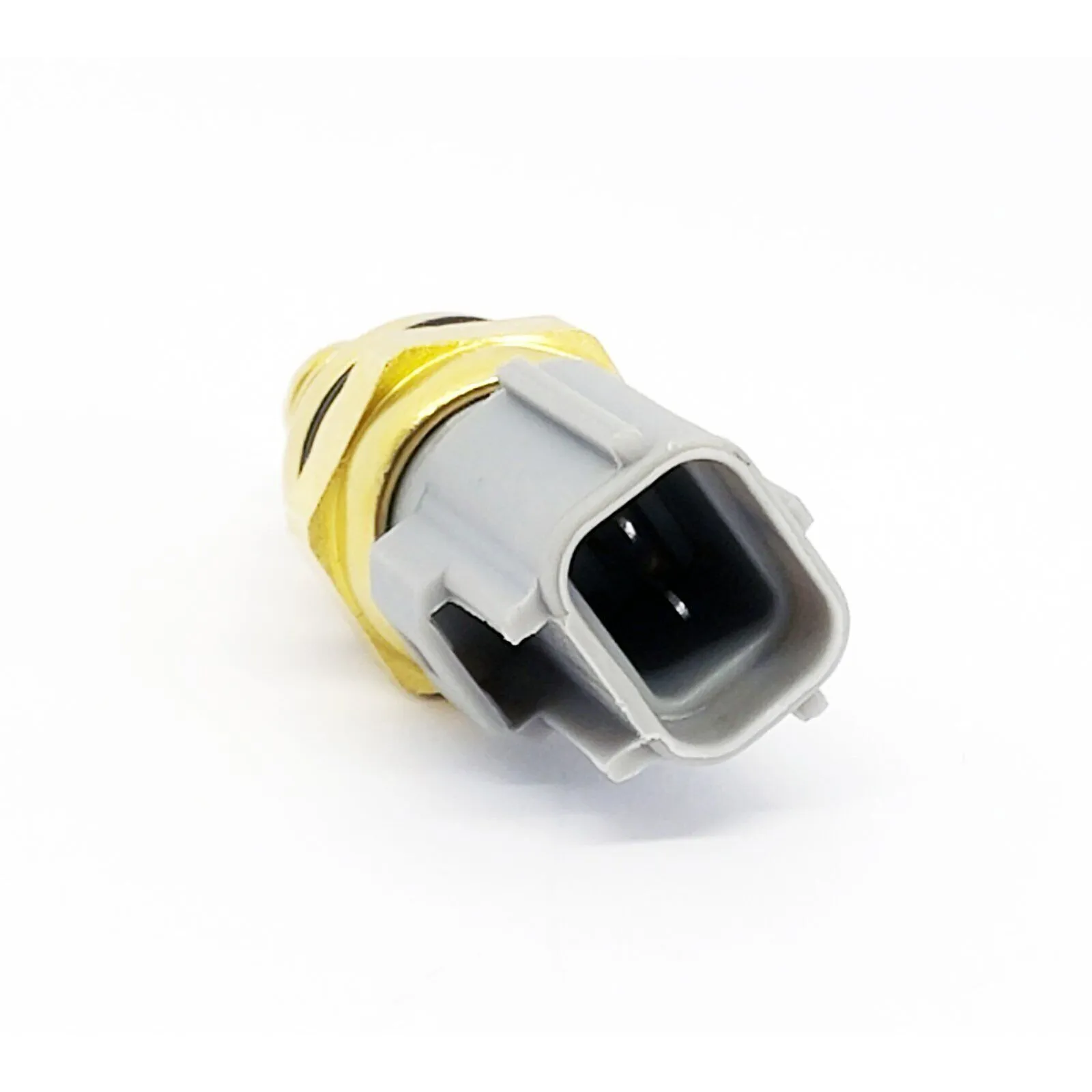

Number of pins	2 -pin connector
Connector Shape	oval
Supplementary Article Info	without cable
Housing Colour	Grey
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
