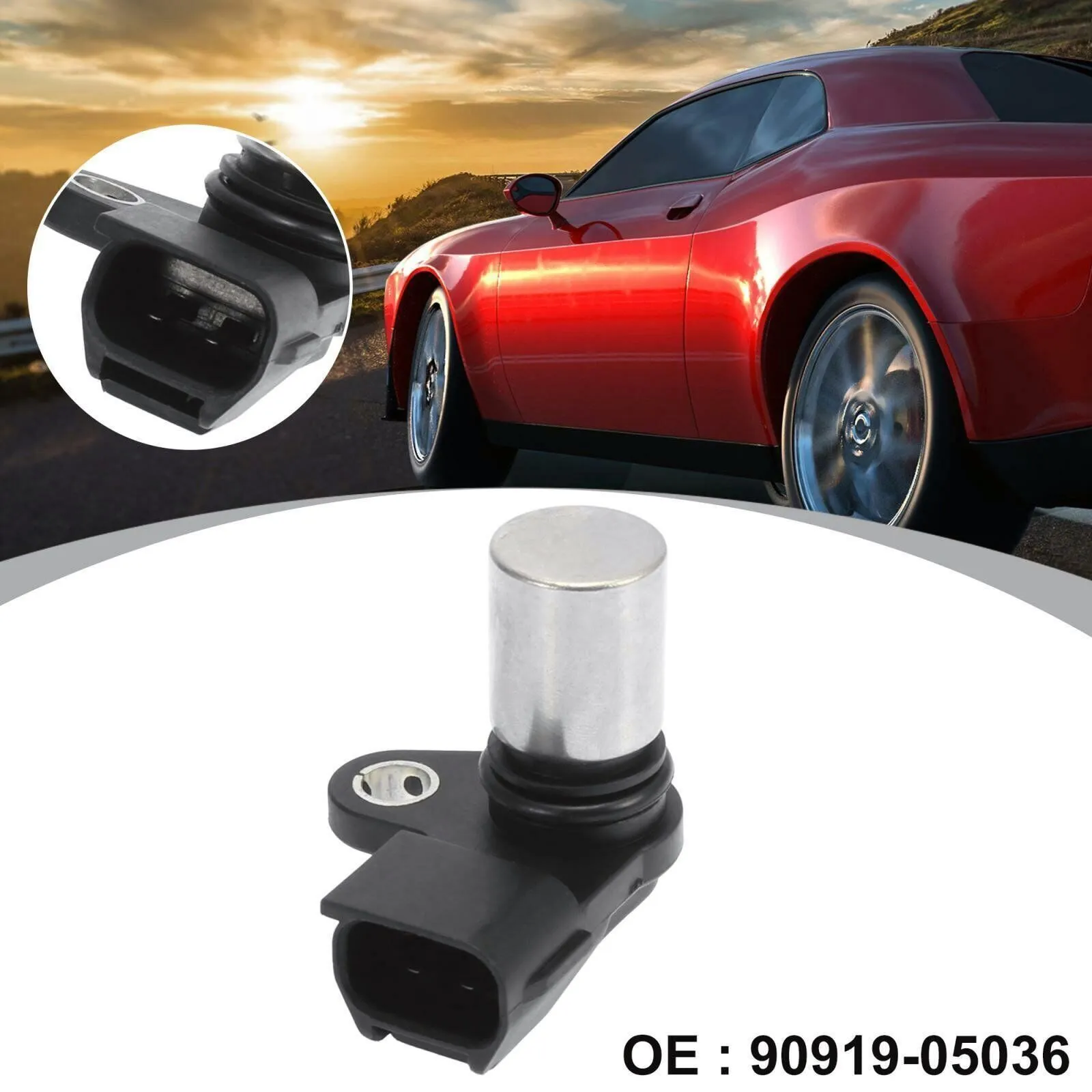

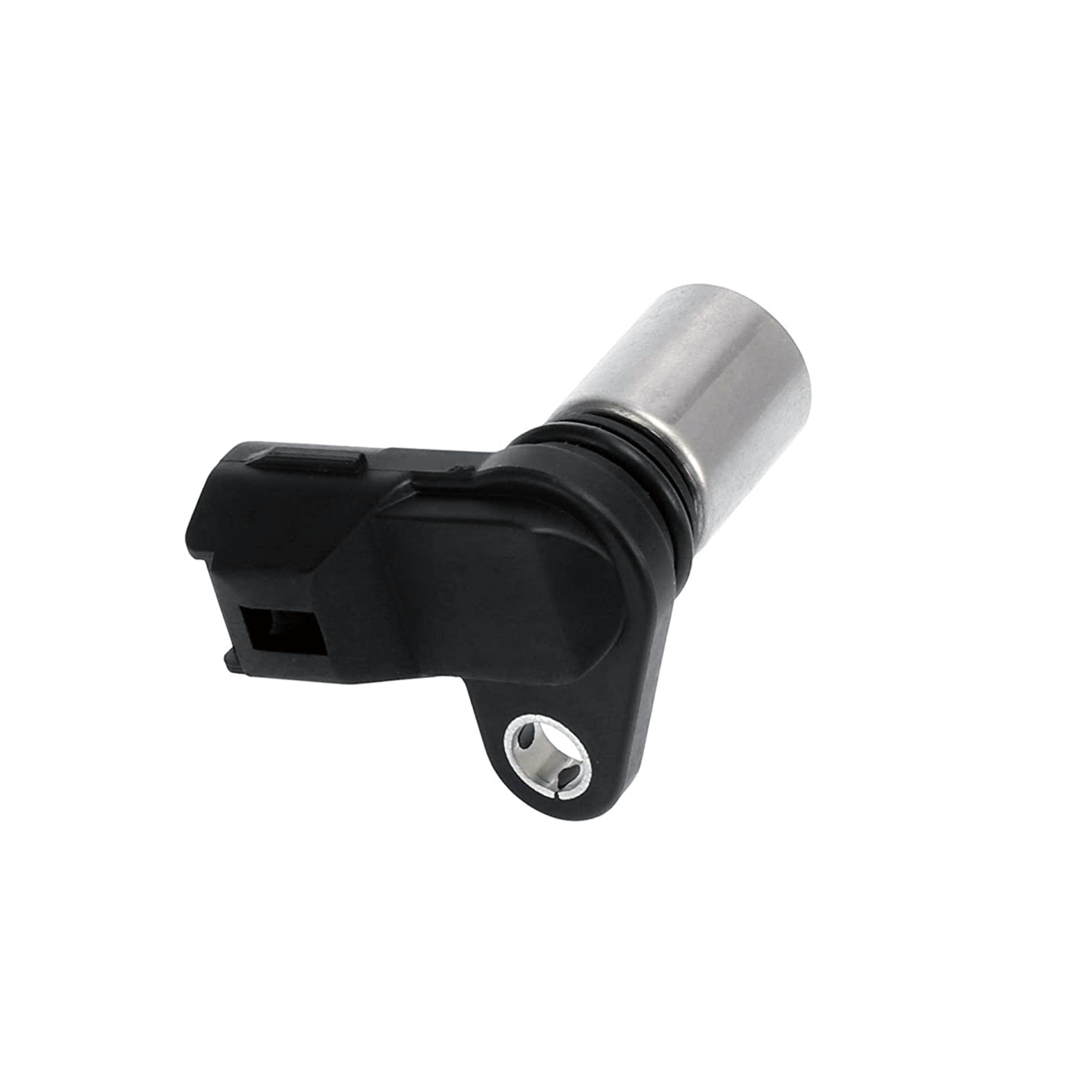

BRAND NEW *OEM QUALITY* CAMSHAFT POSITION SENSOR TO SUIT TOYOTA

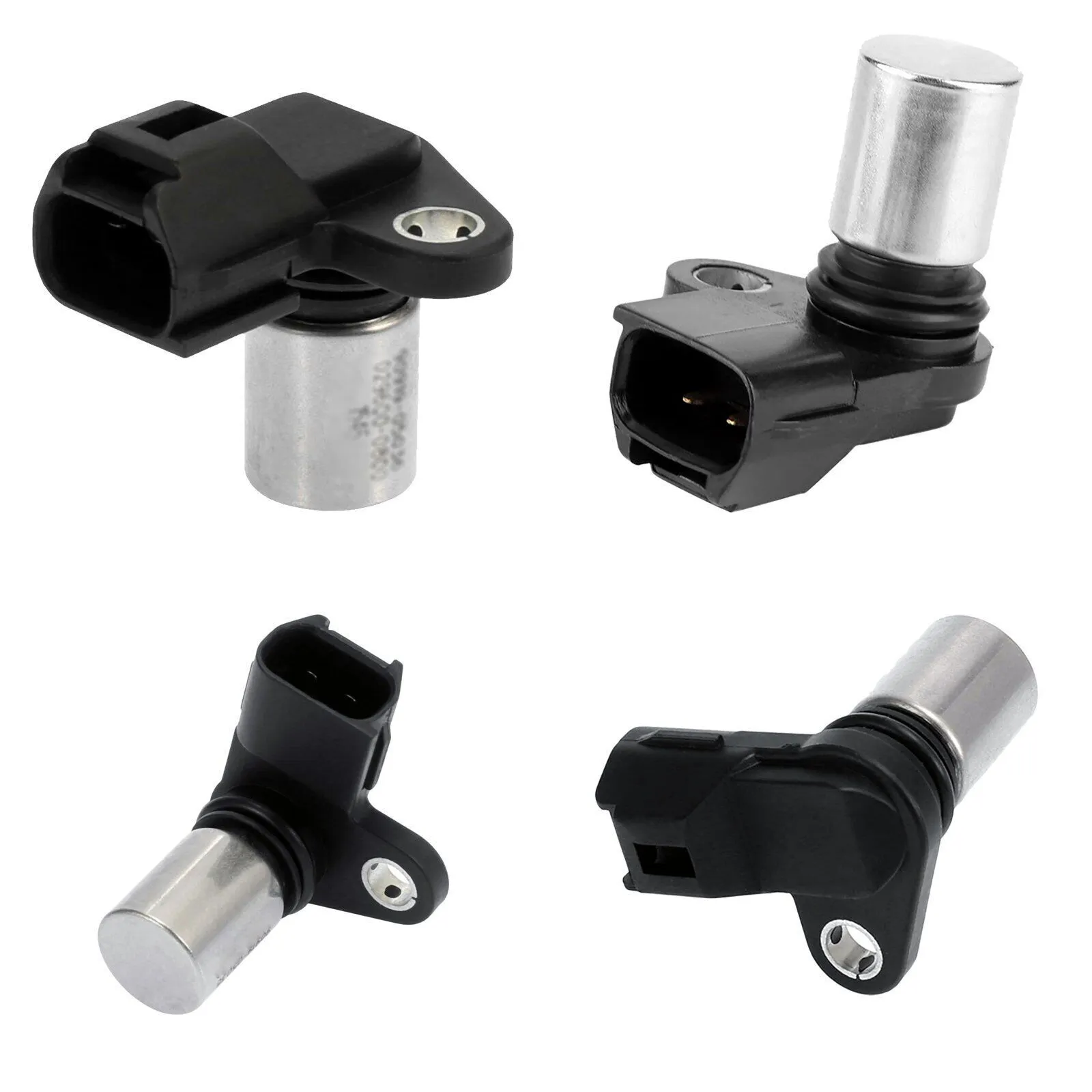

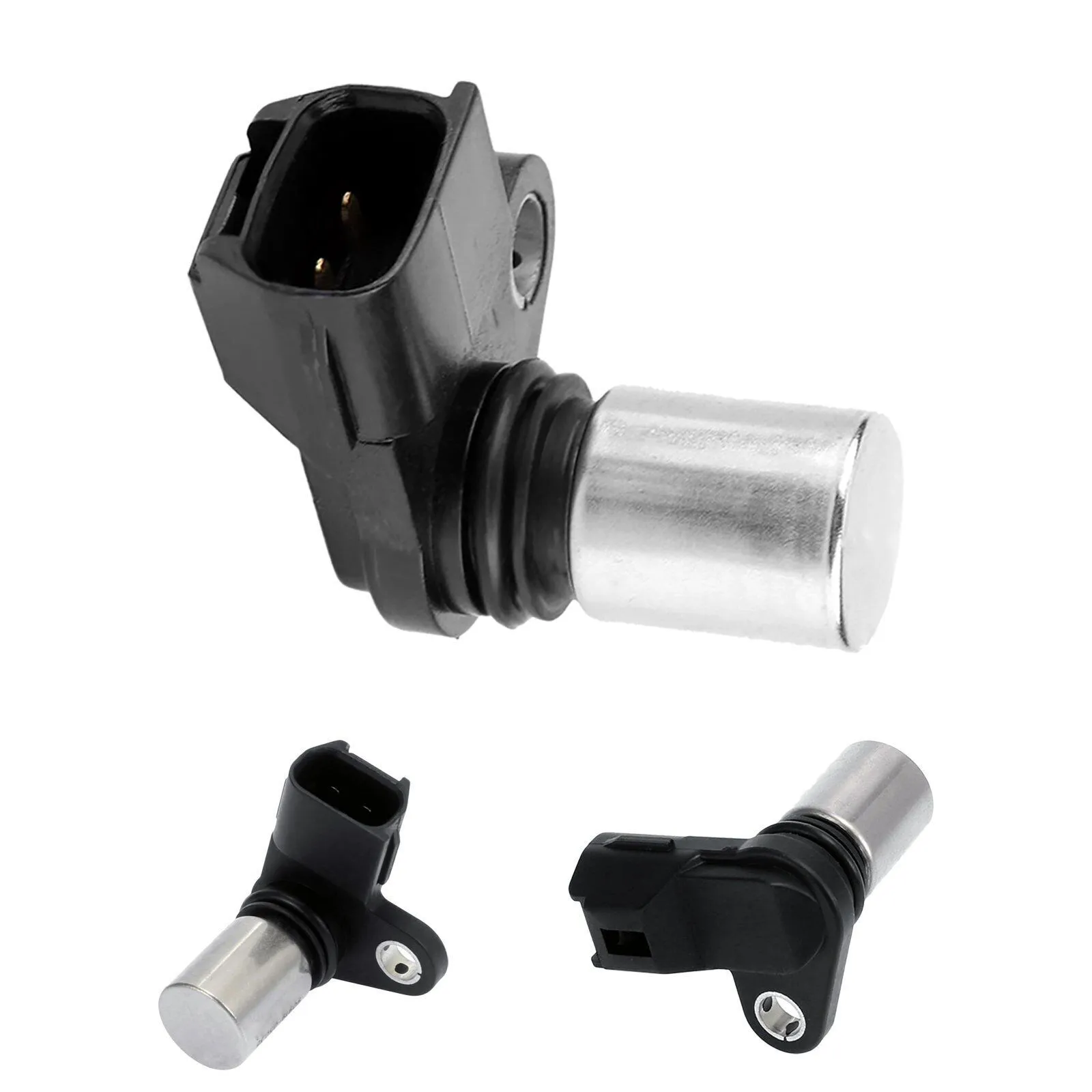

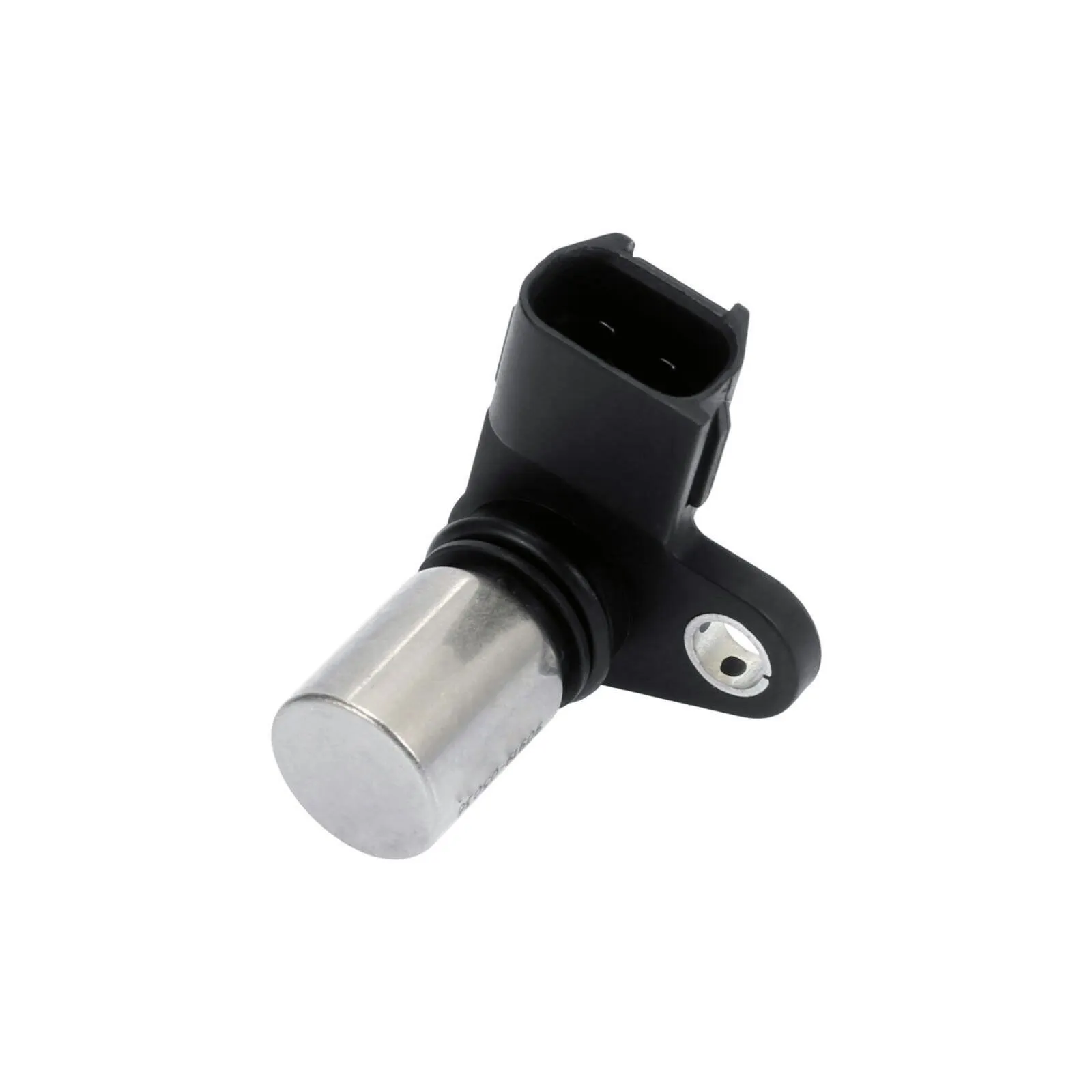

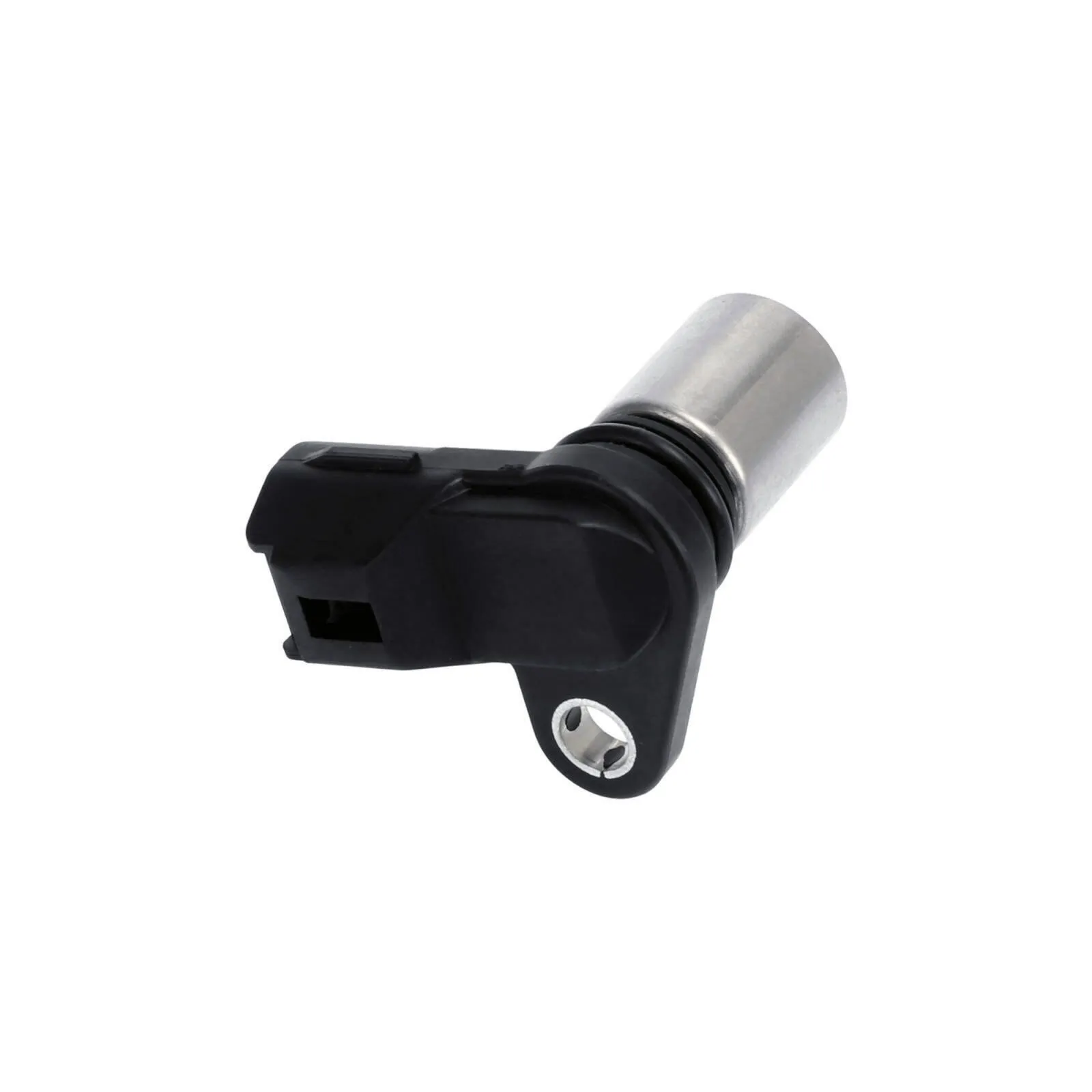

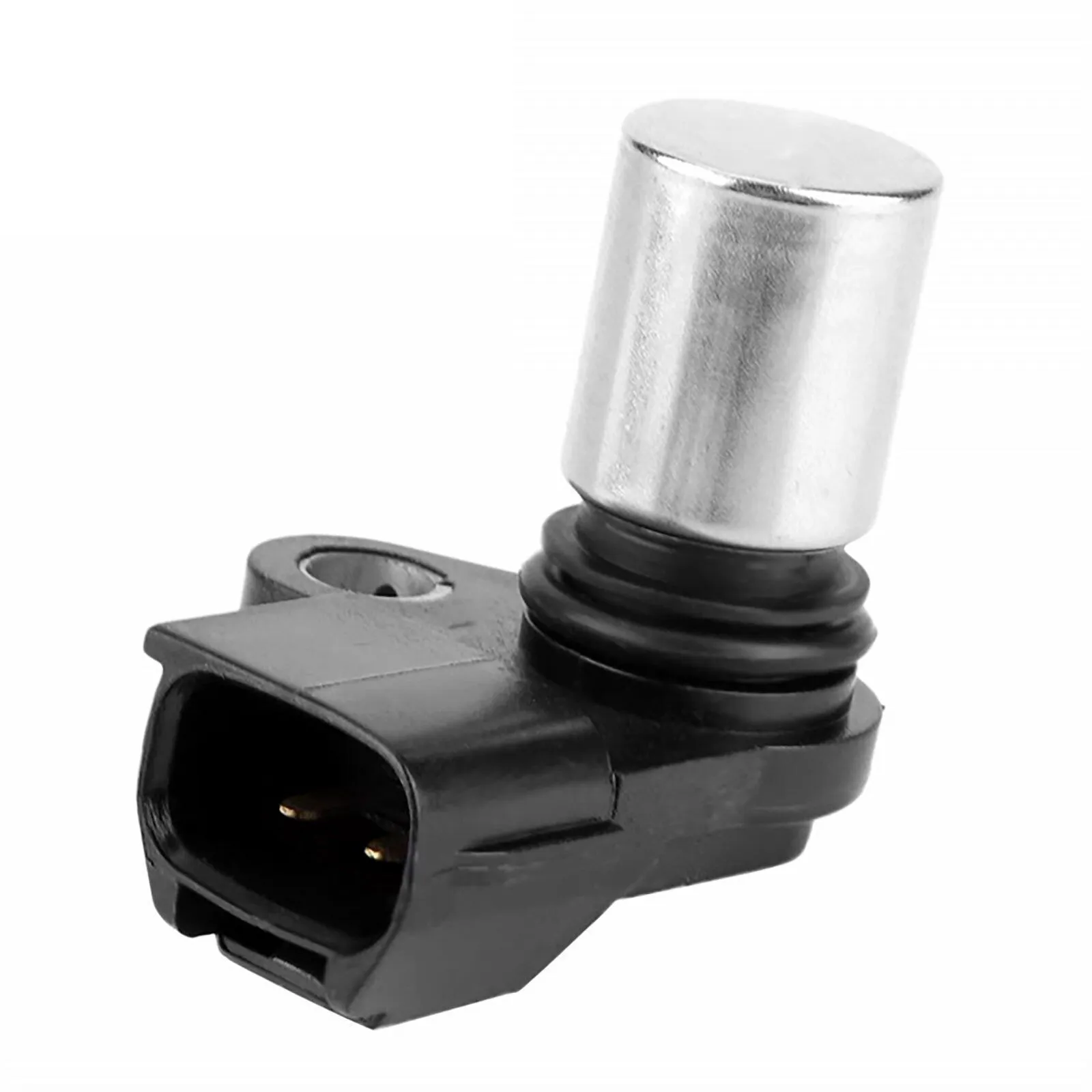

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND
CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

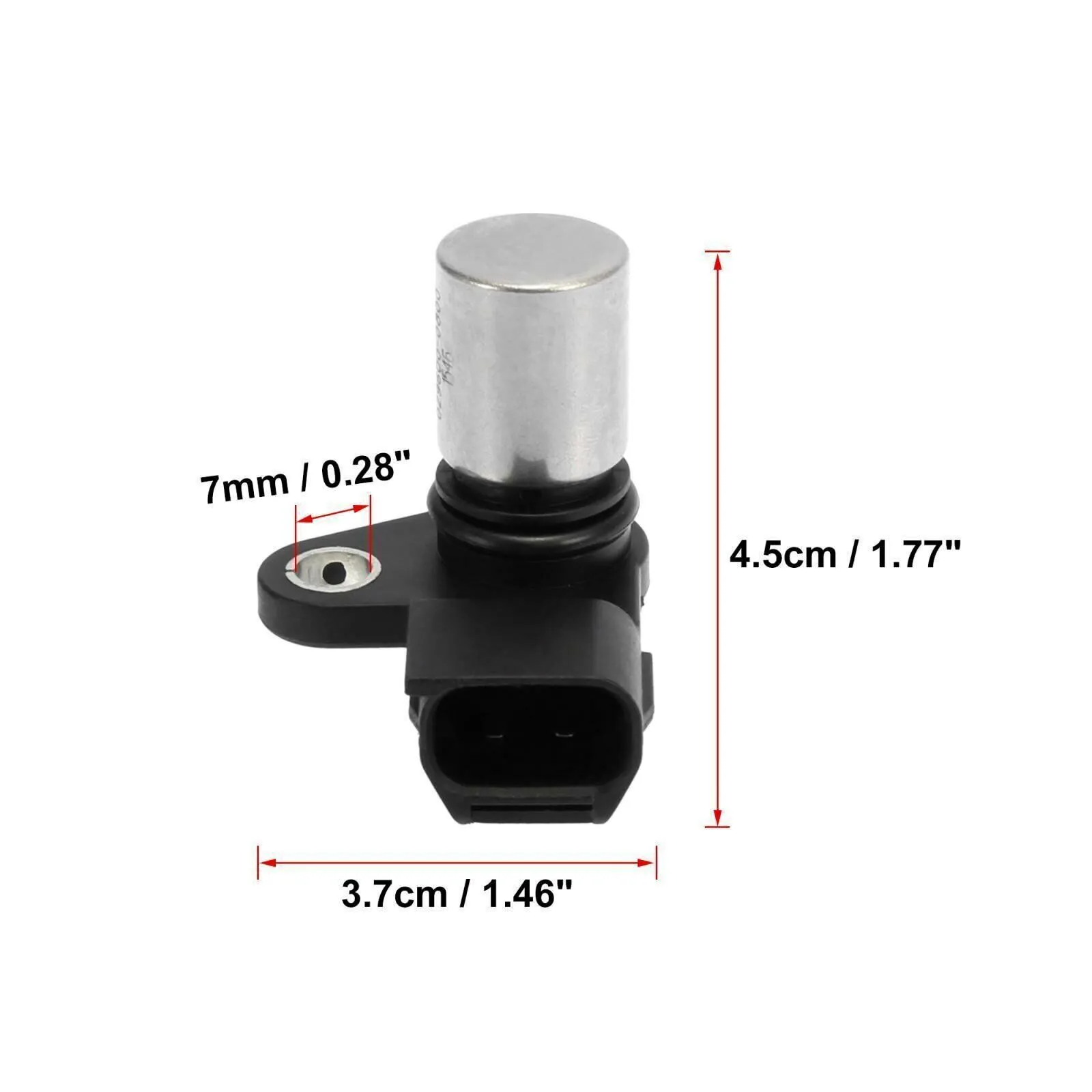

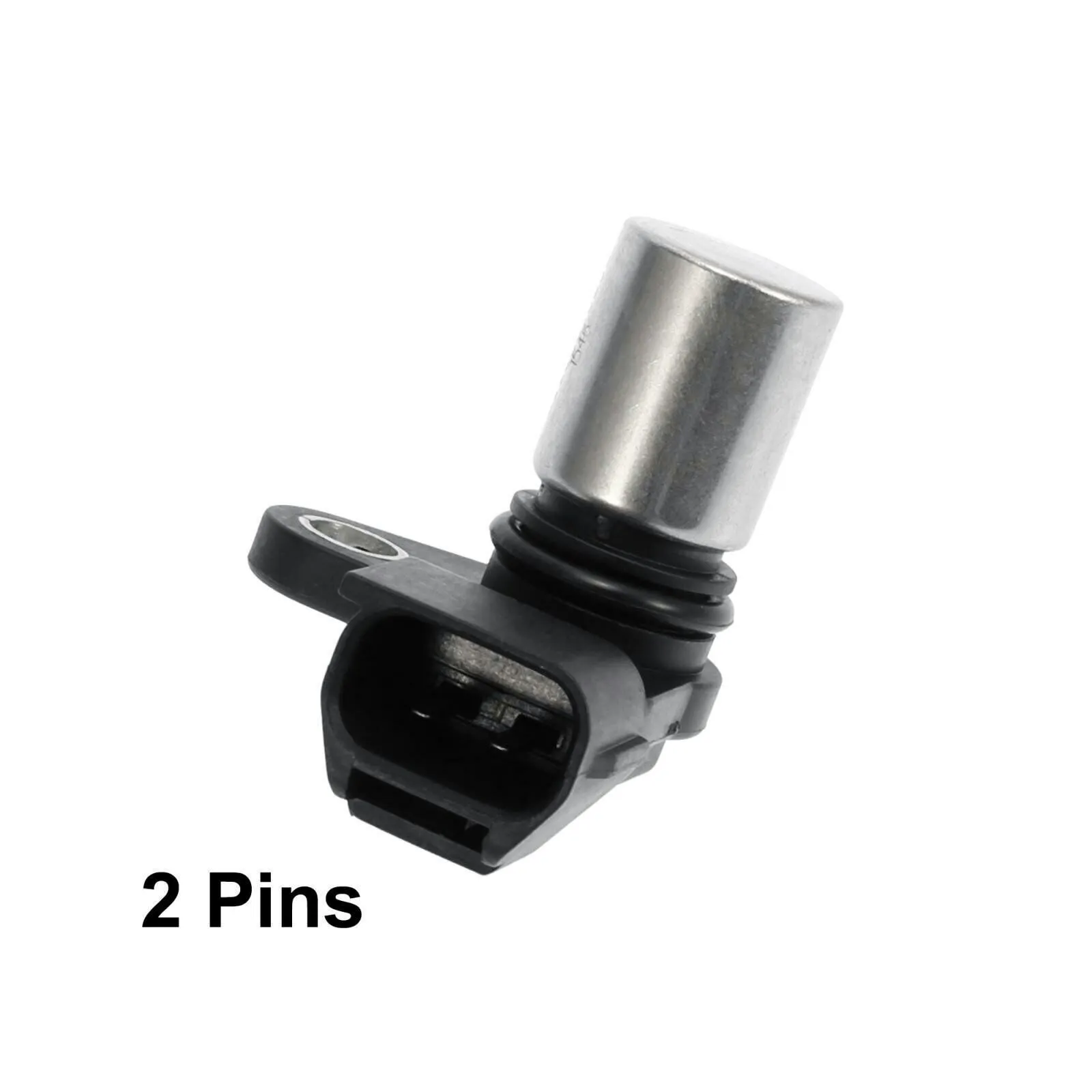

Number of pins | 2 -pin connector |
Connector Shape | oval |
Socket color | Black |
Supplementary Article/Info 2 | without cable |
Number of mounting bores | 1 |
Sensor Type | Inductive Sensor |
Resistor | 1.1 kOhm |
Fitting Depth | 30 mm |
for OE No. | 90919-A5002 |
The task of the camshaft sensor is to work with the crankshaft sensor to define the exact position of the crankshaft drive. Through the combination of both sensor signals, the engine control unit knows when the first cylinder is at the top dead point.
A faulty camshaft sensor can cause the following symptoms:
Reasons for failure of the camshaft sensor can be:

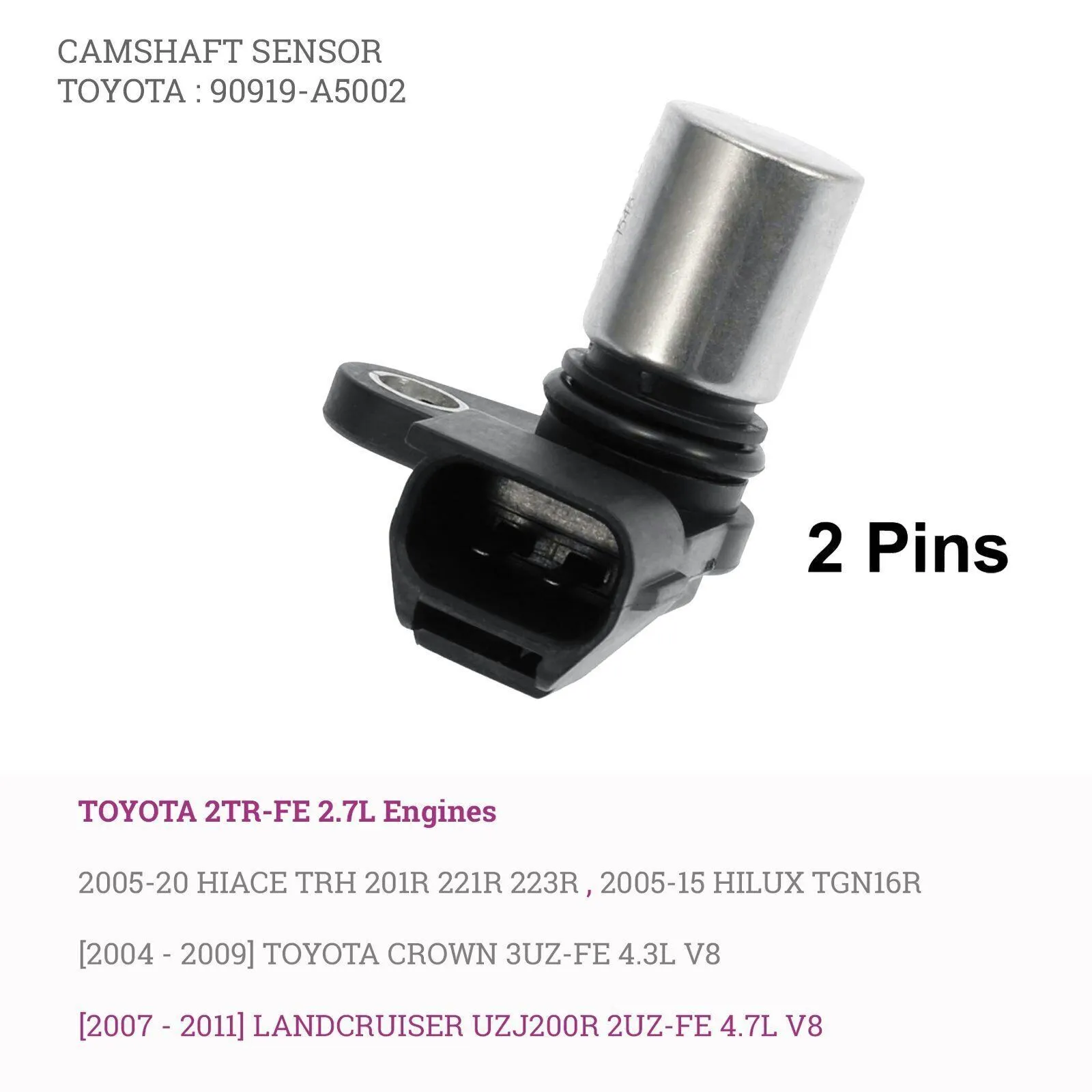

VEHICLE MODEL | ENGINE | LITRE | CYL | YEAR |
TOYOTA CROWN UZS186 (GREY IMPORT) | 3UZ-FE | 4.3L | V8 | [07/04 – 02/09] |
TOYOTA HIACE TRH201R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/14] |
TOYOTA HIACE TRH201R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/19] |
TOYOTA HIACE TRH201R | 2TR-FE | 2.7L | 4cyl | [01/15 – 12/19] |
TOYOTA HIACE TRH221R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/14] |
TOYOTA HIACE TRH221R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/16] |
TOYOTA HIACE TRH221R | 2TR-FE | 2.7L | 4cyl | [01/15 – 12/19] |
TOYOTA HIACE TRH223R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/14] |
TOYOTA HIACE TRH223R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/16] |
TOYOTA HIACE TRH223R | 2TR-FE | 2.7L | 4cyl | [01/15 – 12/19] |
TOYOTA HILUX TGN16R | 2TR-FE | 2.7L | 4cyl | [01/08 – 12/15] |
TOYOTA HILUX TGN16R | 2TR-FE | 2.7L | 4cyl | [01/05 – 12/15] |
TOYOTA LANDCRUISER UZJ200R | 2UZ-FE | 4.7L | V8 | [09/07 – 12/11] |
What does a Camshaft/Crankshaft Position Sensor do?
The Camshaft sensor determines which cylinder is firing to establish injector synchronization and coil firing sequence in DIS systems. Crankshaft sensors set ignition timing, supply the RPM signal, and determine engine speed.
Where are these sensors located?
The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.
Will a malfunctioning Cam or Crank Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause vehicle stalling or a no-start condition.
What are the common causes of failure?
Typically these sensors fail due to exposure to high heat.
How to determine if these sensors are malfunctioning?
Look for RPM on a scan tool while cranking the engine. If the engine runs, a scope is the best diagnostic tool.
Typical trouble codes: Crankshaft P0335; Camshaft P0340.
What makes Our Standard Camshaft and Crankshaft Position Sensors the best?
SKU | CSCA118-1 |
Barcode # | 5012759969038 |
Brand: | Aftermarket OEM Replacement |
Part Number: | SS11154, 9091905036 |
Reference OEM Number: | 90919A5002 |
Other OEM Numbers: | 90919-05036, 90919-A5002, 9091905036 |
Related Part Numbers: | CSCA118, SC258 |
Unit Of Measure | ea |
