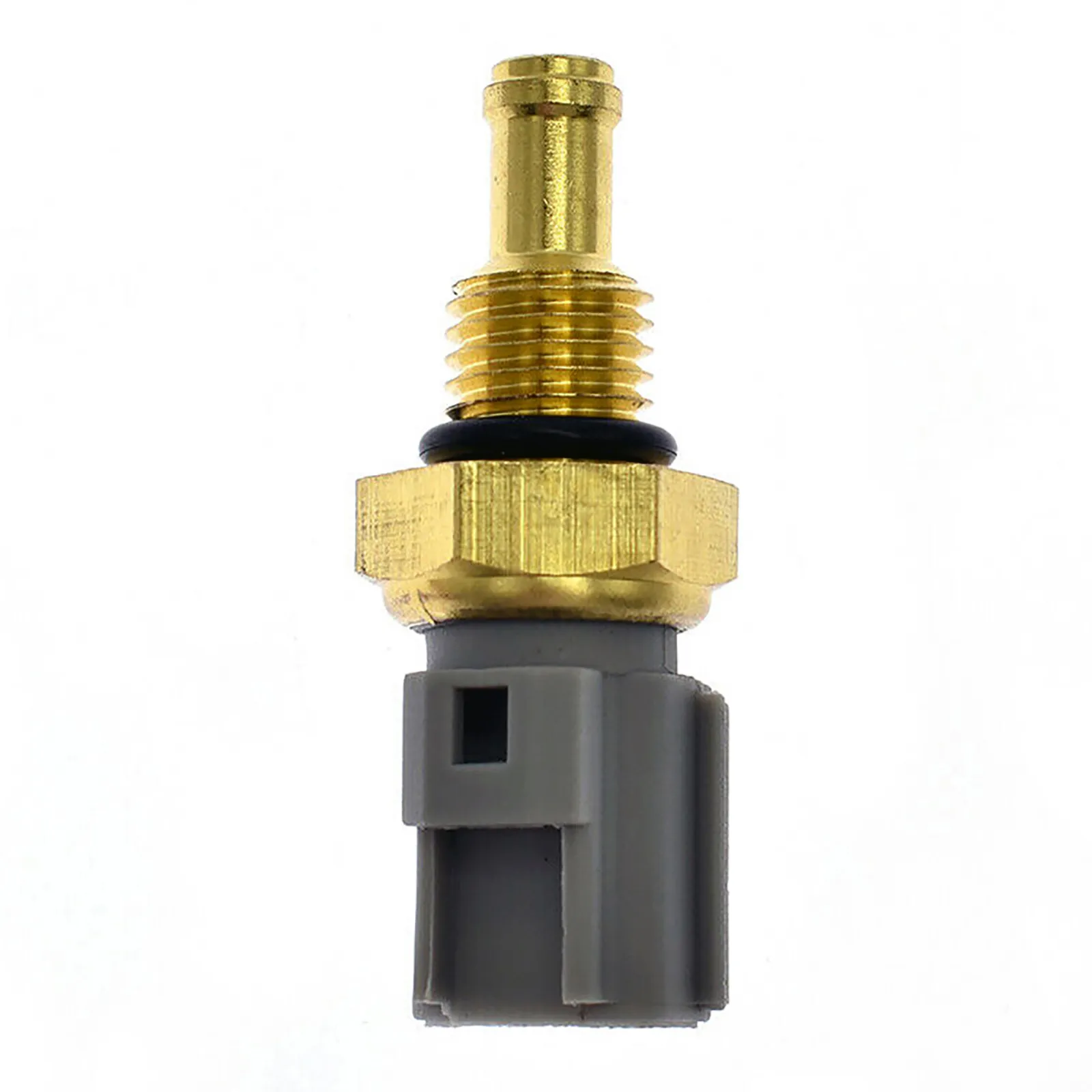

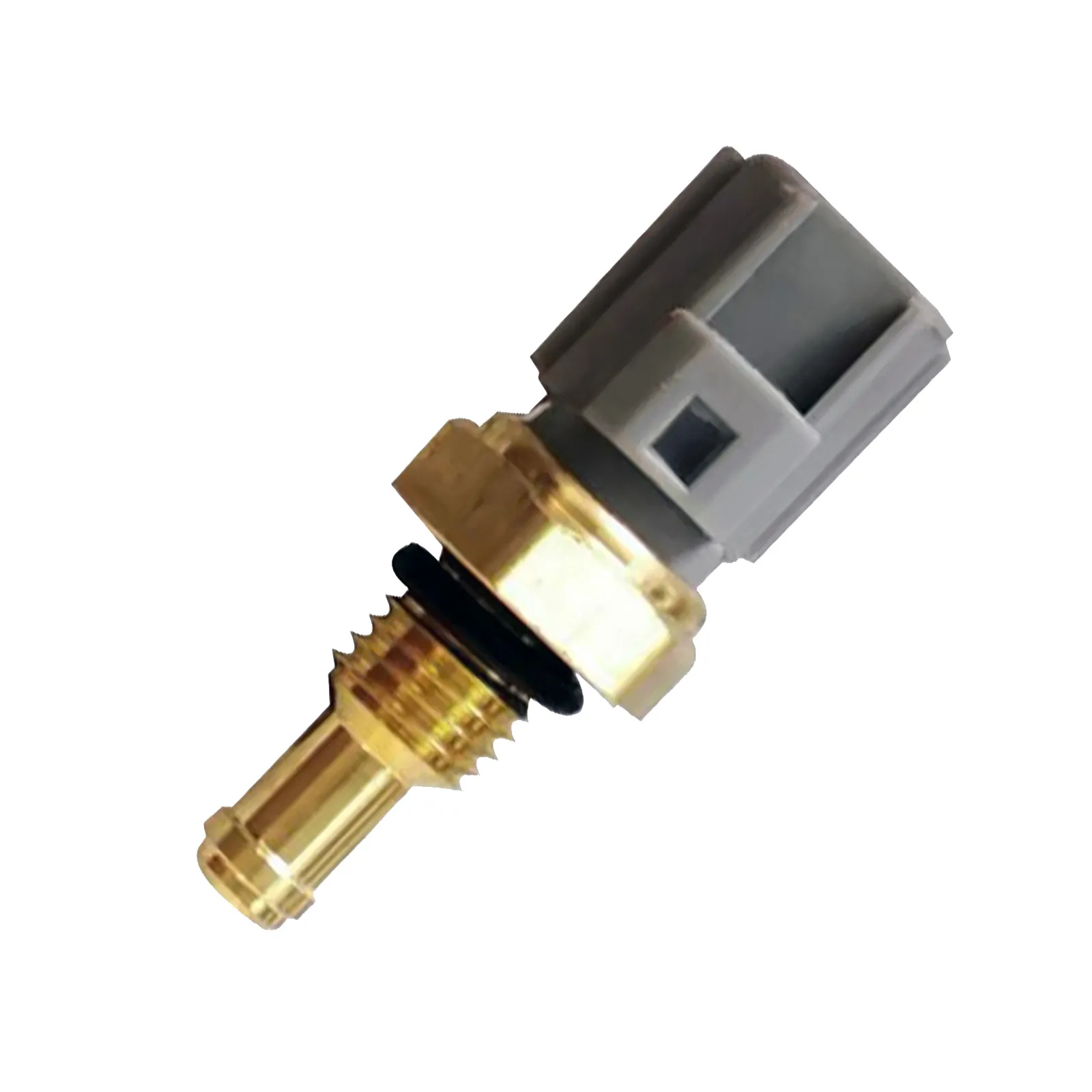

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR TO SUIT FORD

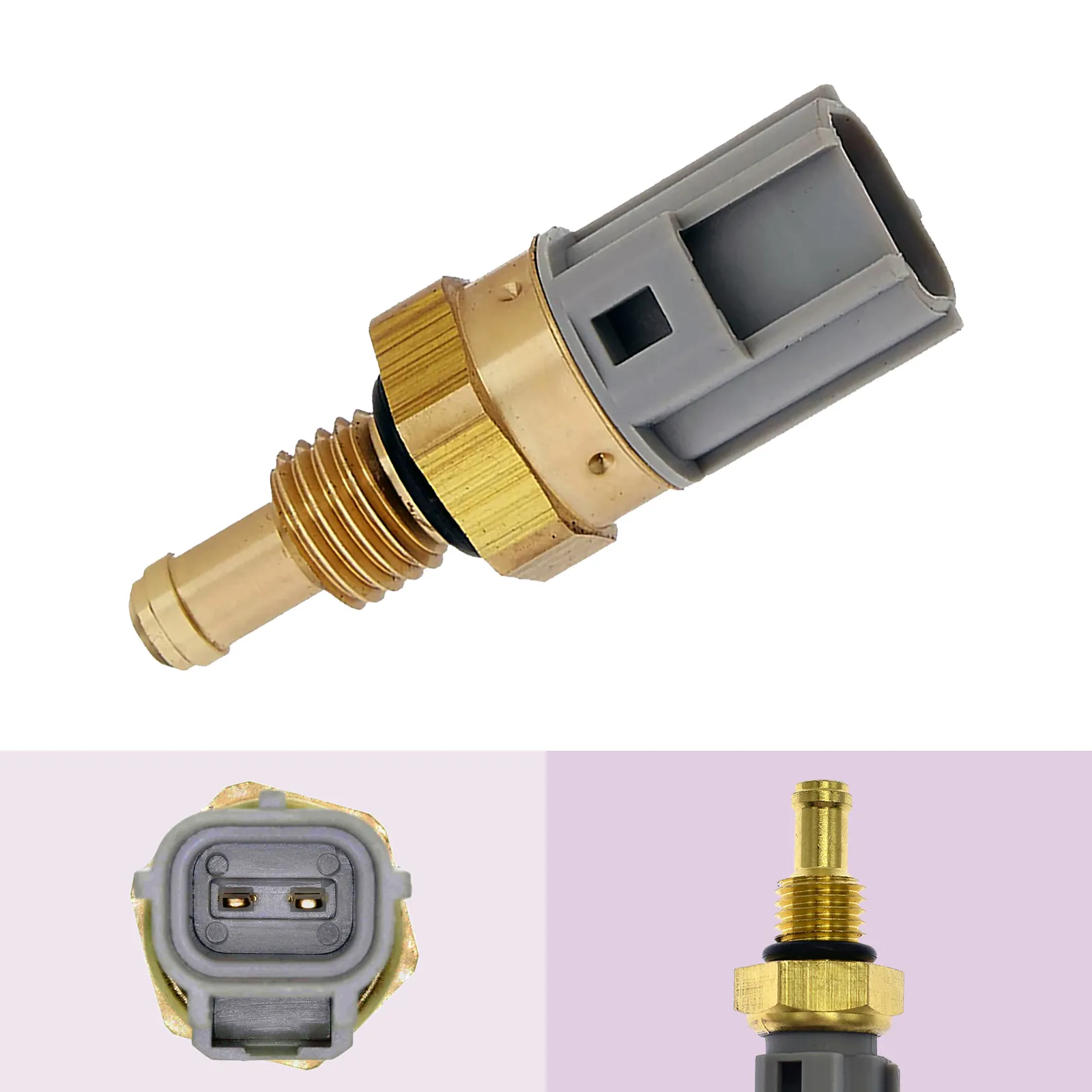

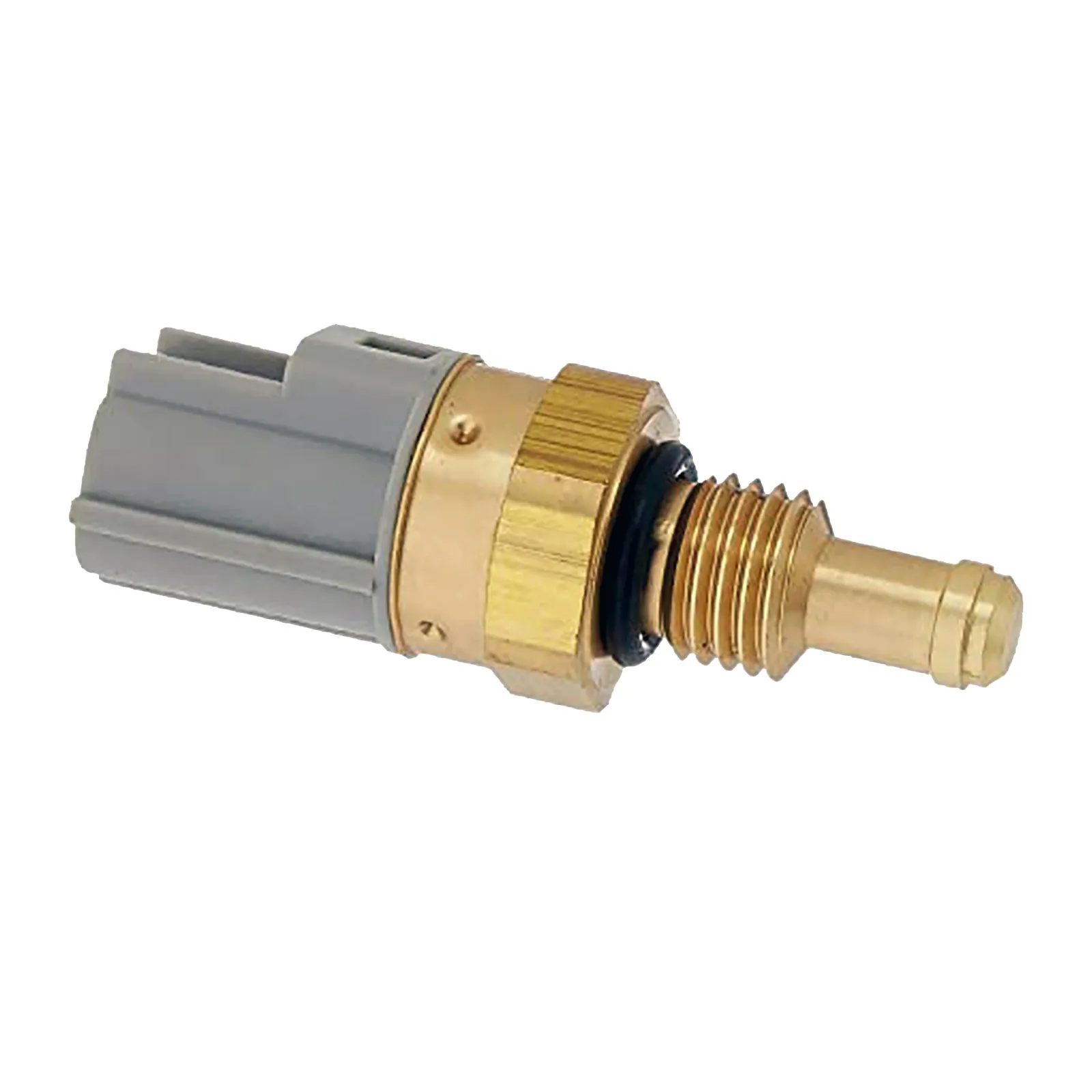

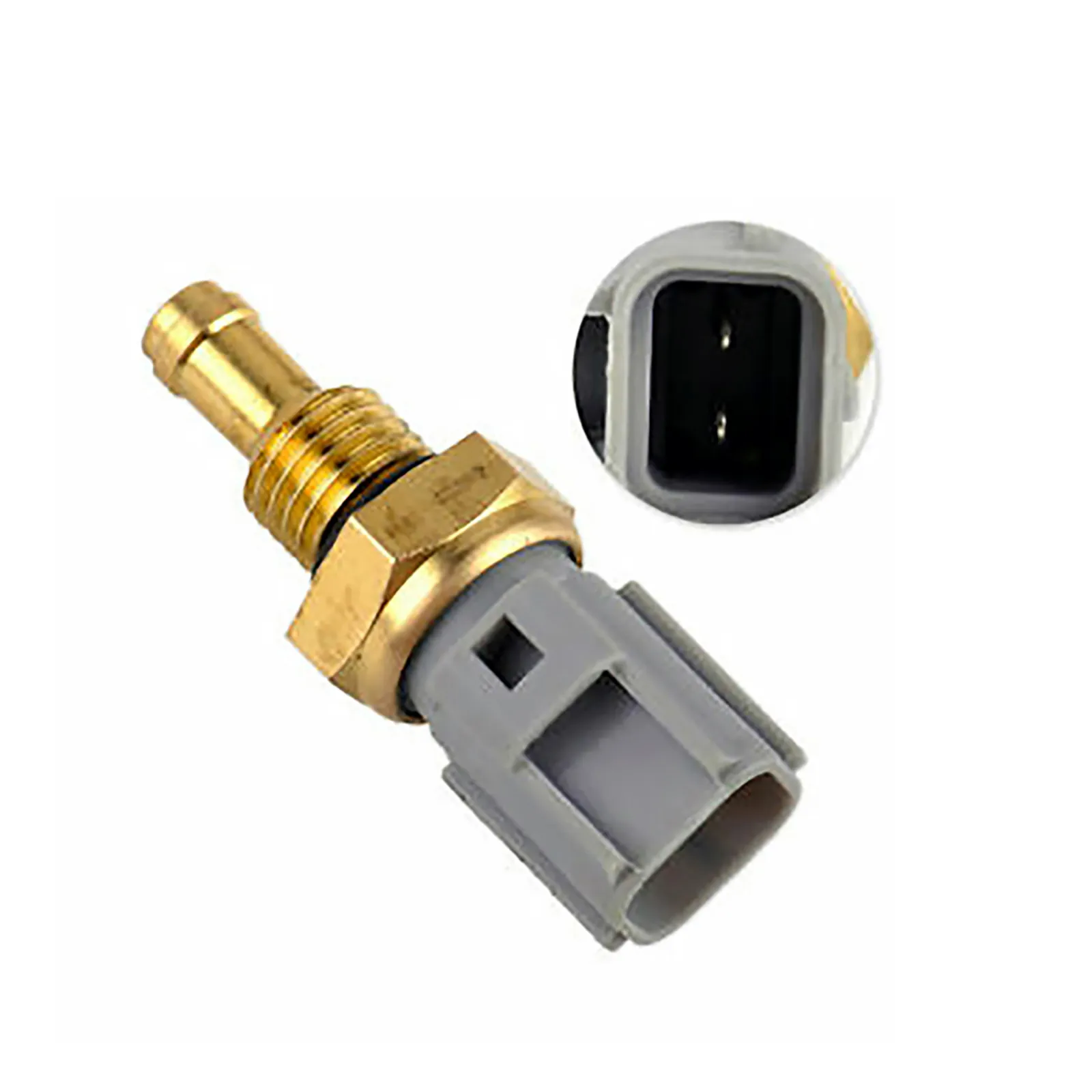

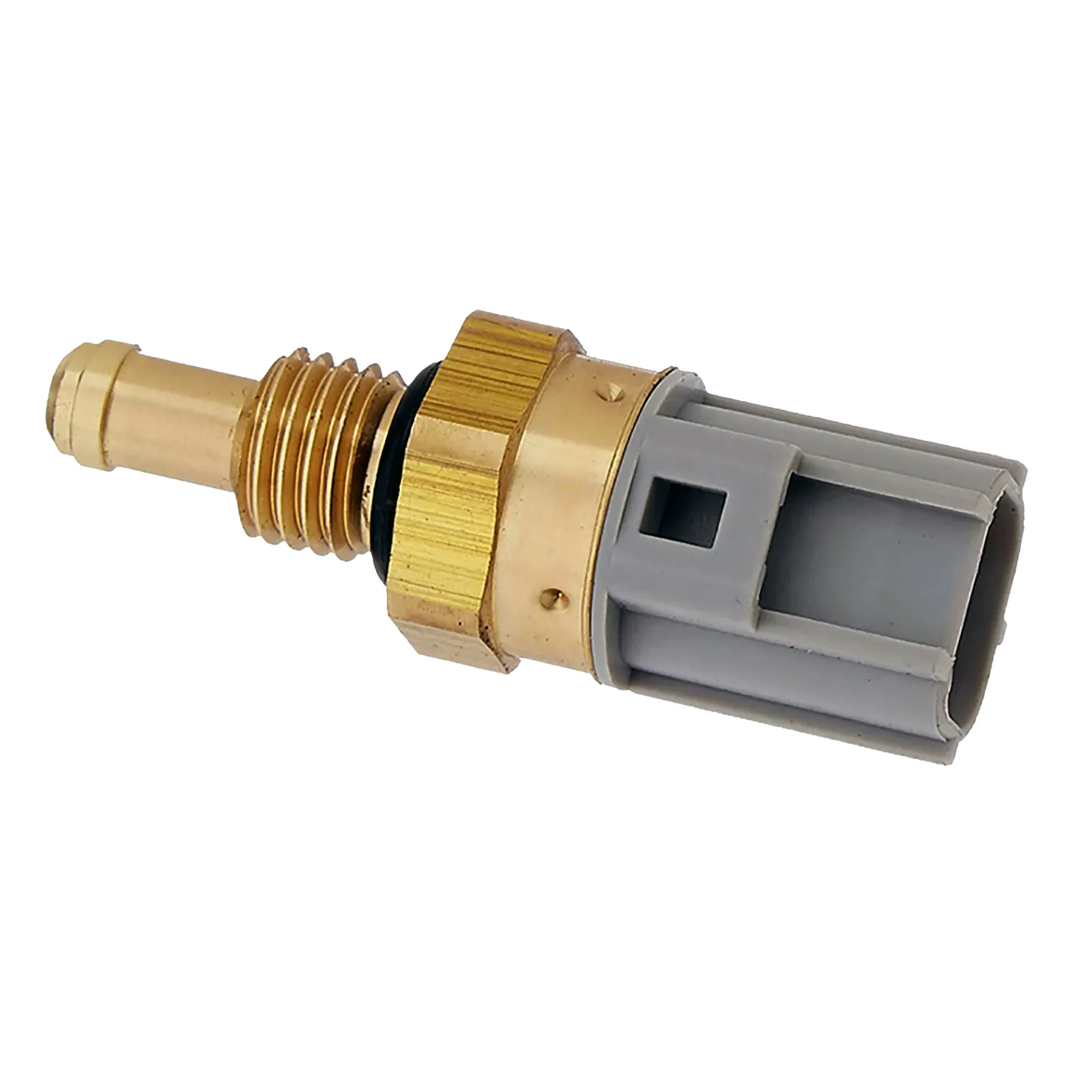

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

Cougar SW 1999-2001
Fiesta WP-WQ 2004-2008 2.0L Petrol XR4 (From 05/03/2007-On)

Focus Cabriolet 2007-2011
Focus LS/LT 2005-2009 2.0L Petrol (From 01/10/2004-On)
Focus LV 2009-2011 2.0L Petrol (From 19/11/2008-On)

Mondeo MA/MB/MC 2007-2014 2.3L (From 03/03/2008-On)
Ranger PX 2011- (XL-Plus September 2015-On) 2.0L Petrol
Transit VM 2006-On 2.3L (From 15/04/2006-On)

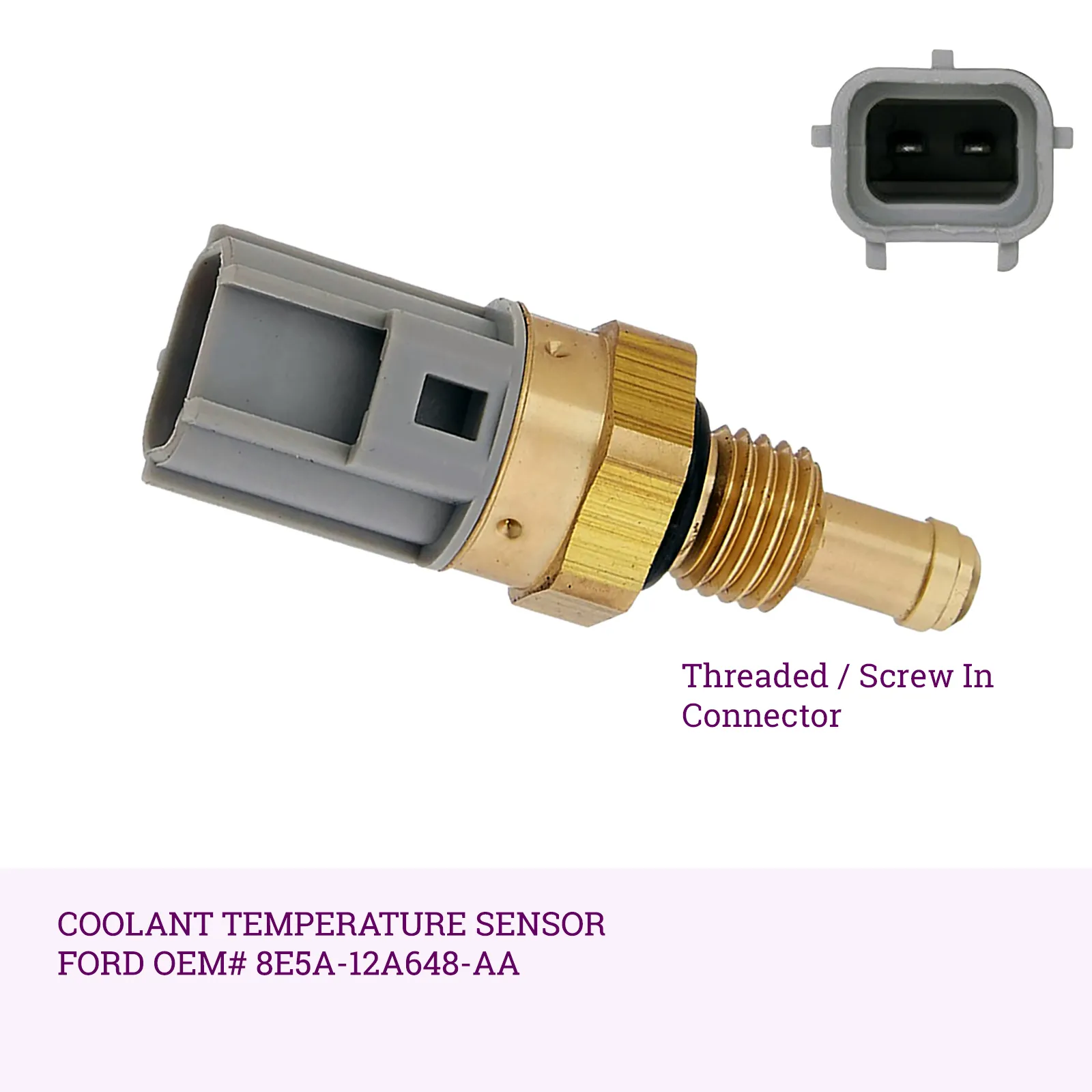

OEM# 8E5A-12A648-AA

• for OE No: 8E5A-12A648-AA

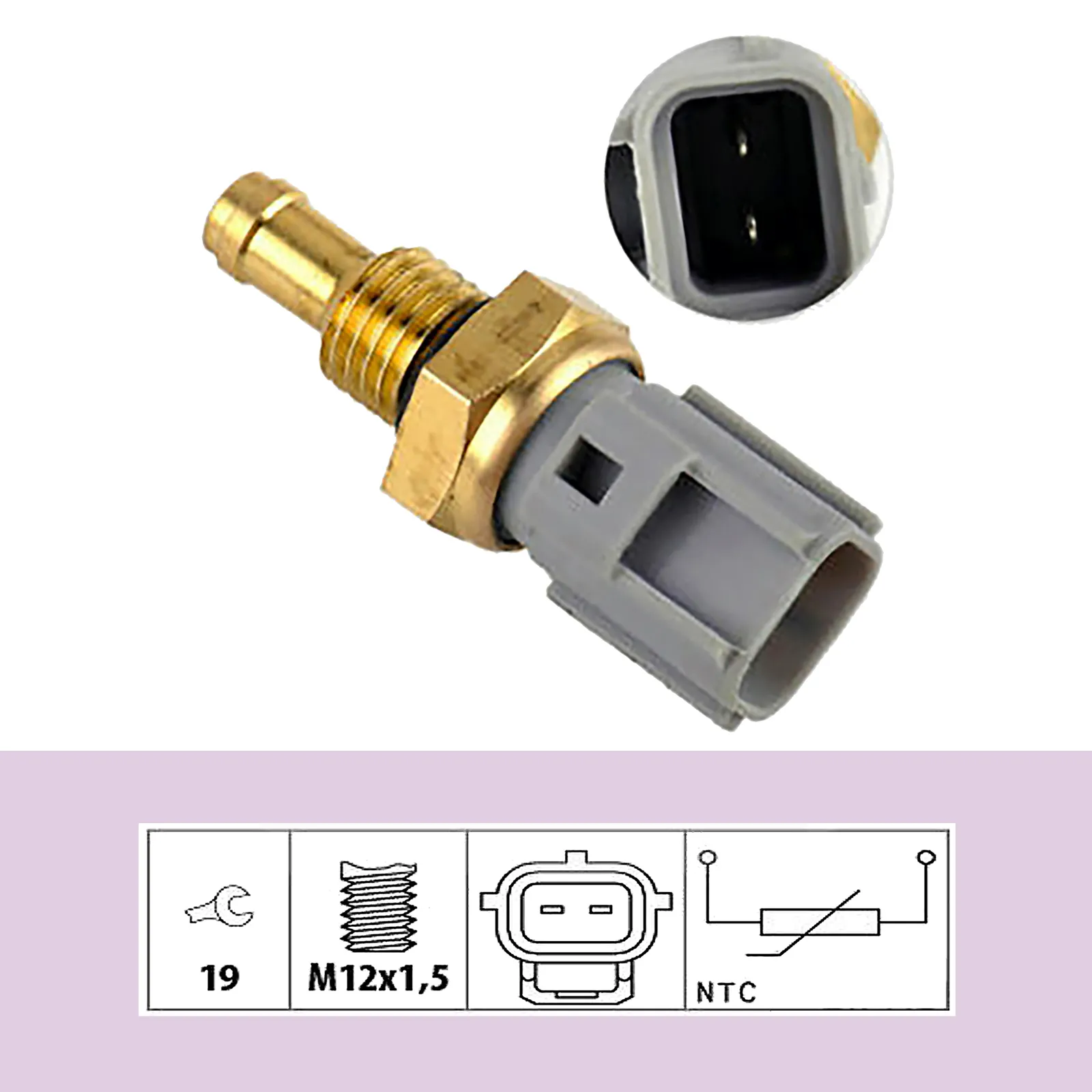

• External Thread: M 12×1.5 mm
• Spanner size: 19 mm

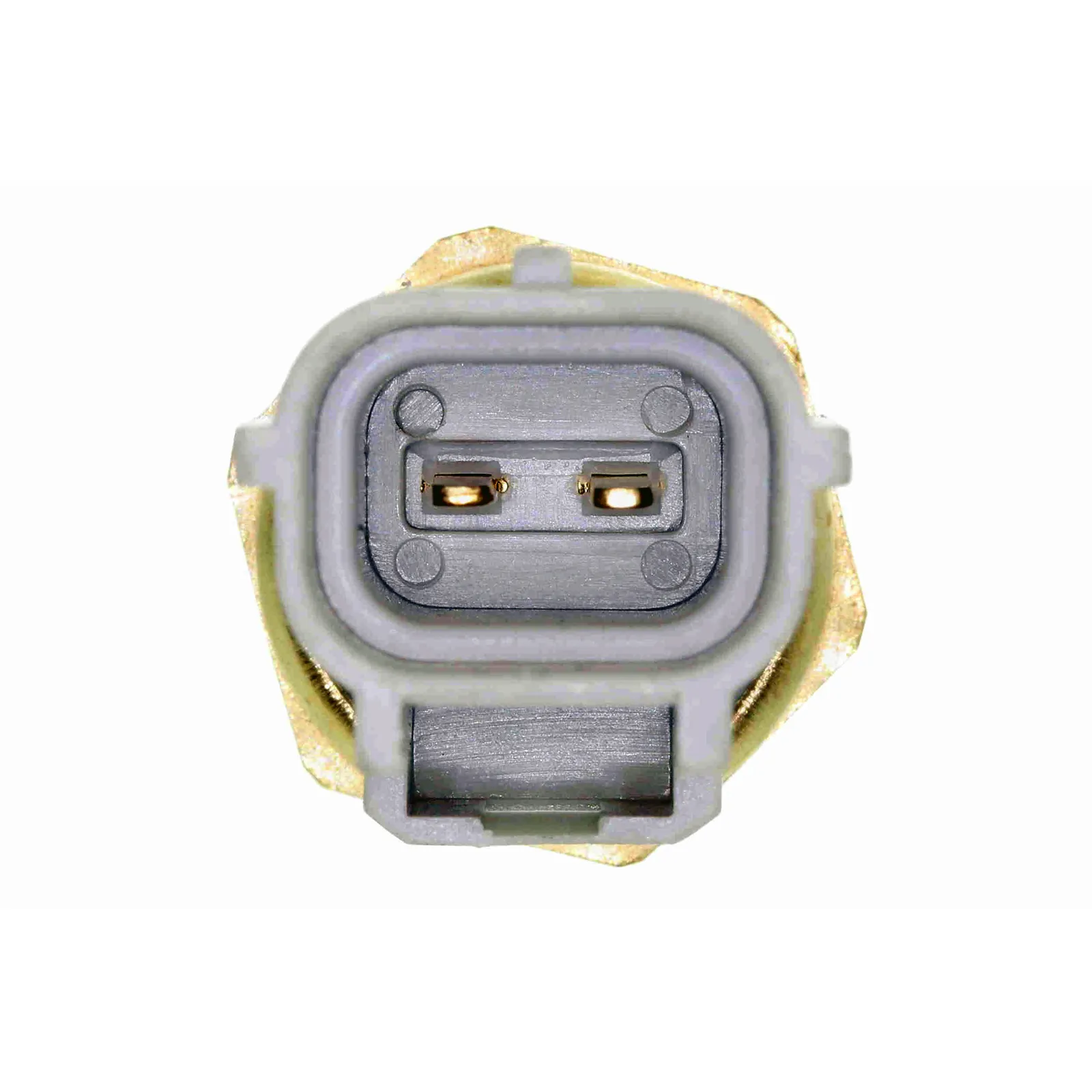

• Number of pins: 2 -pin connector
• Connector Shape: Rectangular
• Socket Color: Light Grey

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

COMPATIBLE VEHICLES

[01/04 – 12/06] FORD ESCAPE ZB 2.3L 4cyl L3-VE
[01/06 – 12/08] FORD ESCAPE ZC 2.3L 4cyl L3-VE
[01/08 – 12/12] FORD ESCAPE ZD 2.3L 4cyl L3-VE

[01/97 – 12/98] FORD EXPLORER UP 4.0L V6 245 cu.in Cologne 153kW
[01/99 – 12/99] FORD EXPLORER UQ 4.0L V6 245 cu.in Cologne 153kW
[01/00 – 12/01] FORD EXPLORER US 4.0L V6 245 cu.in Cologne 153kW
[01/03 – 12/03] FORD EXPLORER UX 4.0L V6 245 cu.in Cologne 153kW

[01/07 – 12/08] FORD FIESTA WQ XR4 2.0L 4cyl Duratec N4JB 110kW
[01/05 – 12/07] FORD FOCUS LS 2.0L 4cyl Duratec AODB AODE 107kW
[01/07 – 12/08] FORD FOCUS LT 2.0L 4cyl Duratec AODB AODE 107kW
[01/07 – 12/09] FORD FOCUS LT 2.0L 4cyl Duratec AODB AODE 107kW
[01/08 – 12/08] FORD FOCUS LV 2.0L 4cyl Duratec AODB AODE 107kW
[01/09 – 12/11] FORD FOCUS LV 2.0L 4cyl Duratec AODB AODE 107kW

[01/98 – 12/99] FORD MONDEO HD 2.0L 4cyl Zetec ZH20 NGA 94kW
[01/07 – 12/09] FORD MONDEO MA 2.3L 4cyl Duratec SEBA 118kW
[01/09 – 12/10] FORD MONDEO MB 2.3L 4cyl Duratec SEBA 118kW
[01/10 – 12/14] FORD MONDEO MC 2.3L 4cyl Duratec SEBA 118kW

[09/11 – 05/15] FORD RANGER PX 2.5L 4cyl Duratec DPAT 122kW

[01/11 – 12/13] FORD TRANSIT VM 2.2L 4cyl Duratorq CVR 114kW
[01/06 – 12/10] FORD TRANSIT VM 2.2L 4cyl Duratorq QVFA 81kW
[01/06 – 12/08] FORD TRANSIT VM 2.3L 4cyl Duratec GZFA 104kW
[01/06 – 12/11] FORD TRANSIT VM 2.4L 4cyl Duratorq H9FB 103kW

ABOUT YOUR VEHICLE’S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 for low input, or P0118 for high input. The coolant temperature sensor reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
• As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
• Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
• All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.
