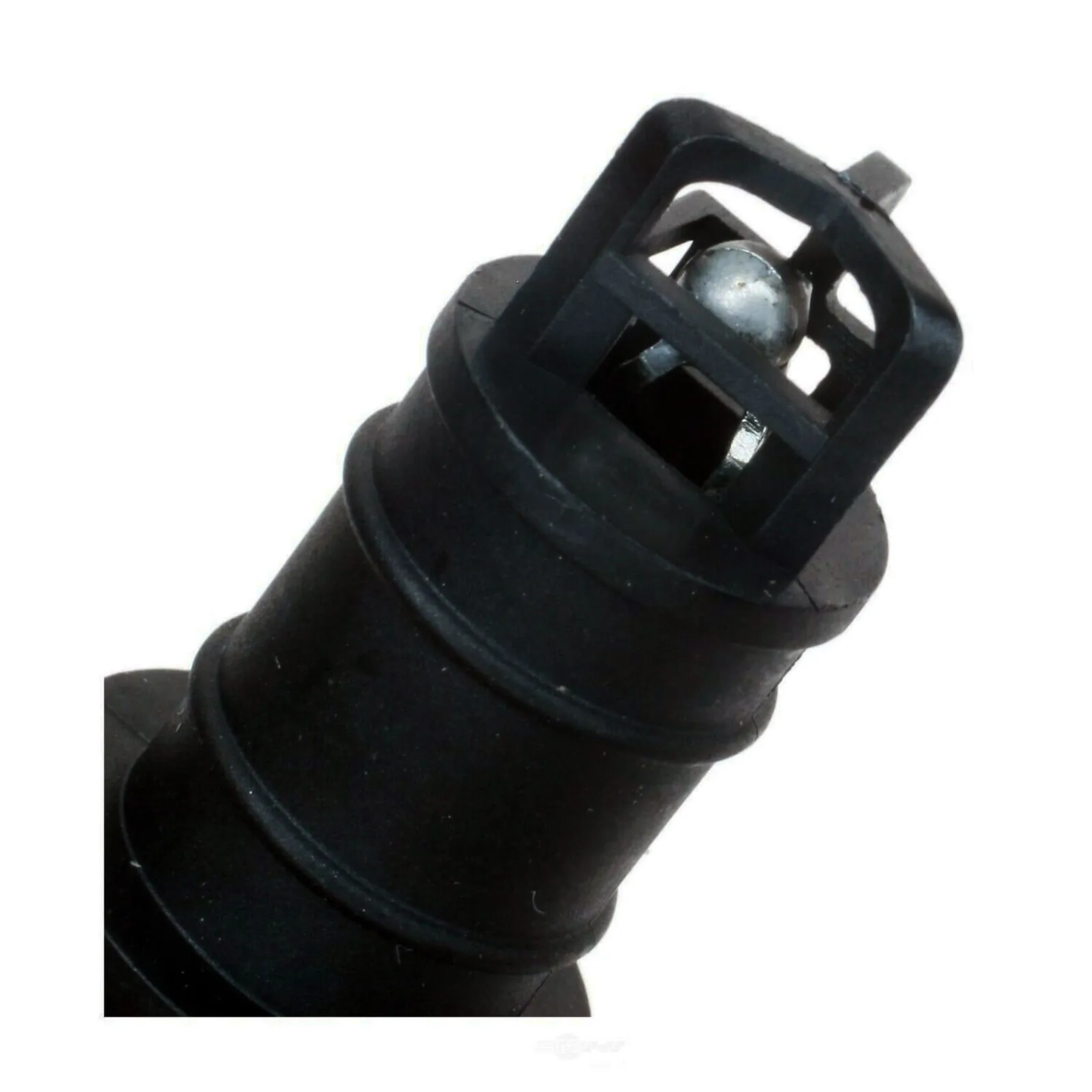

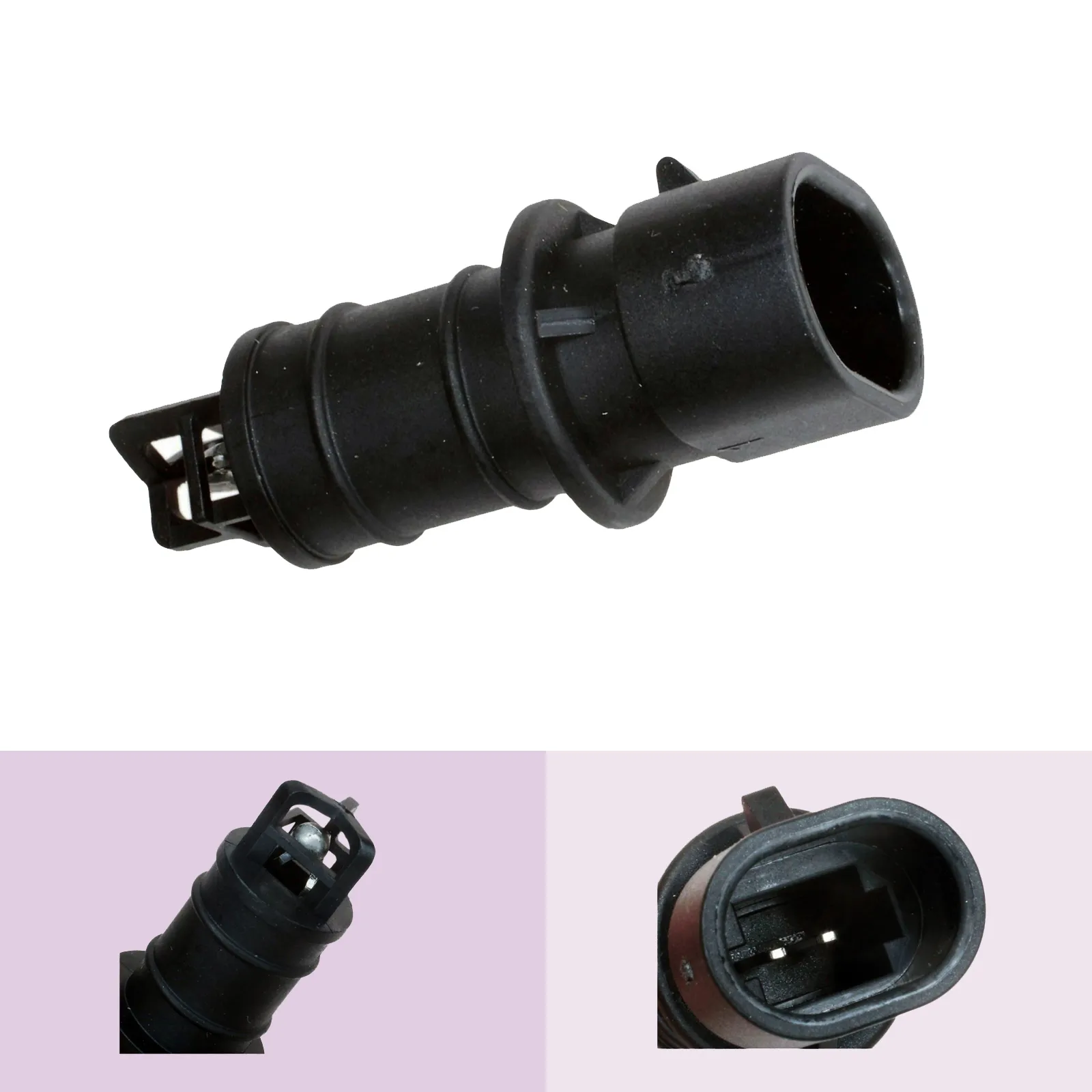

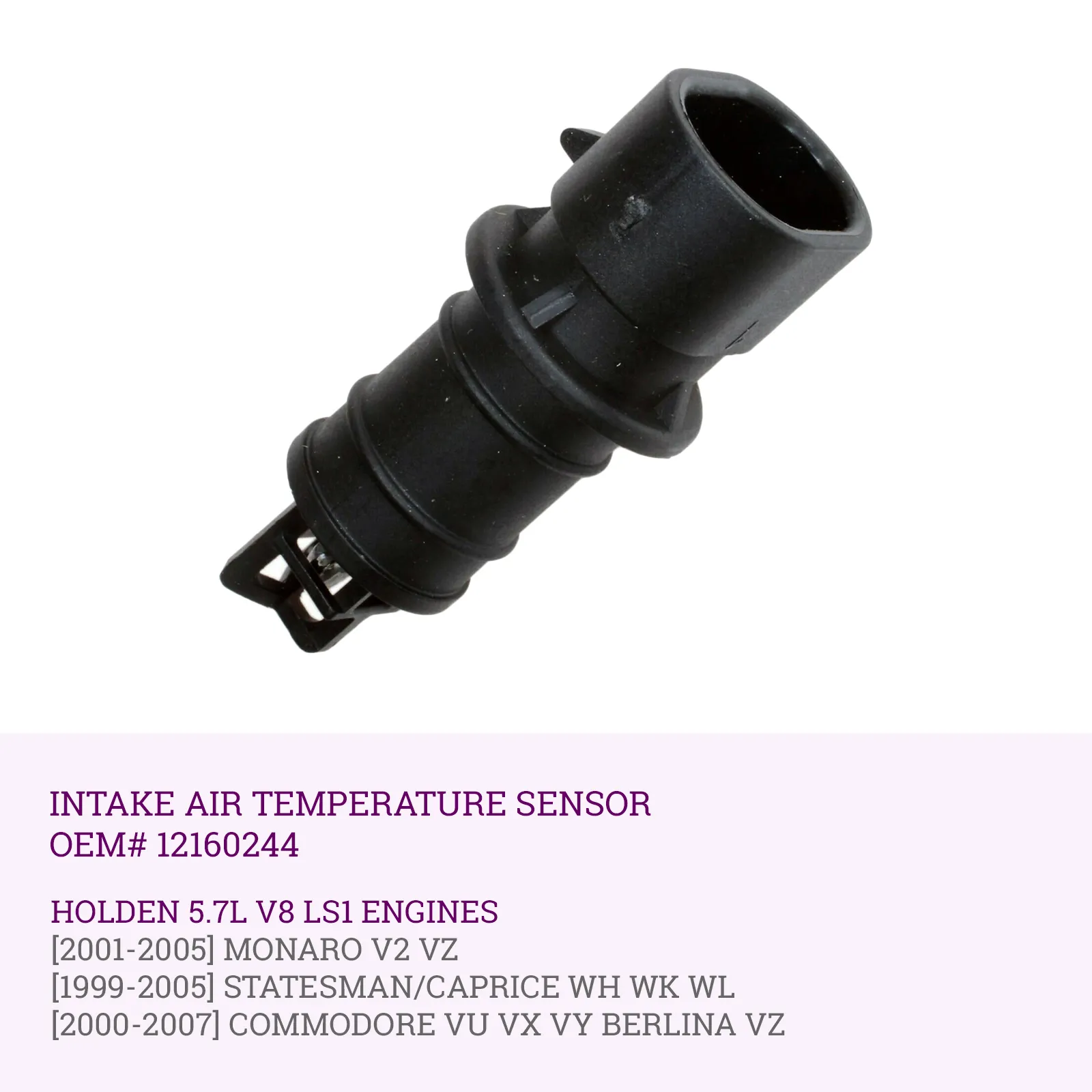

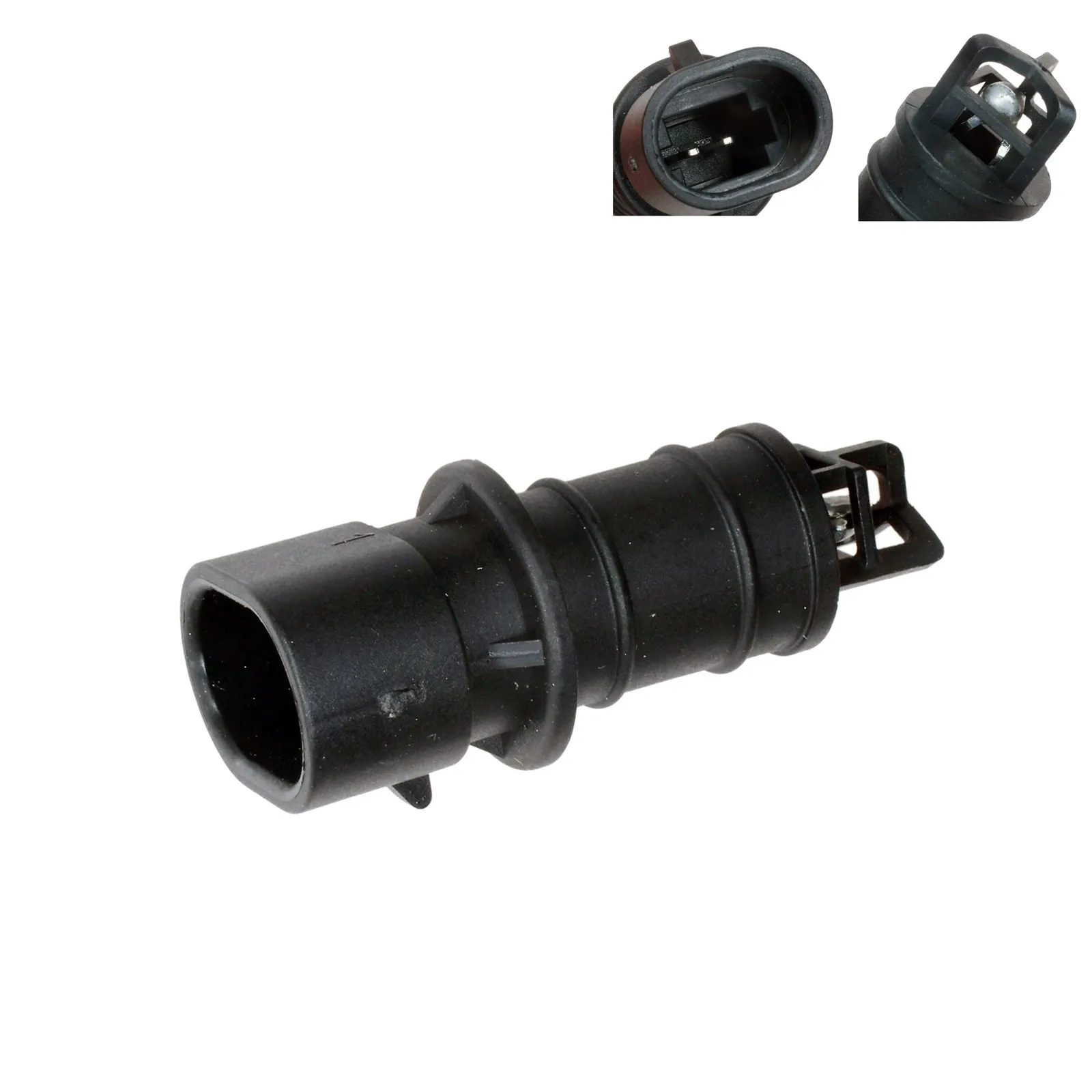

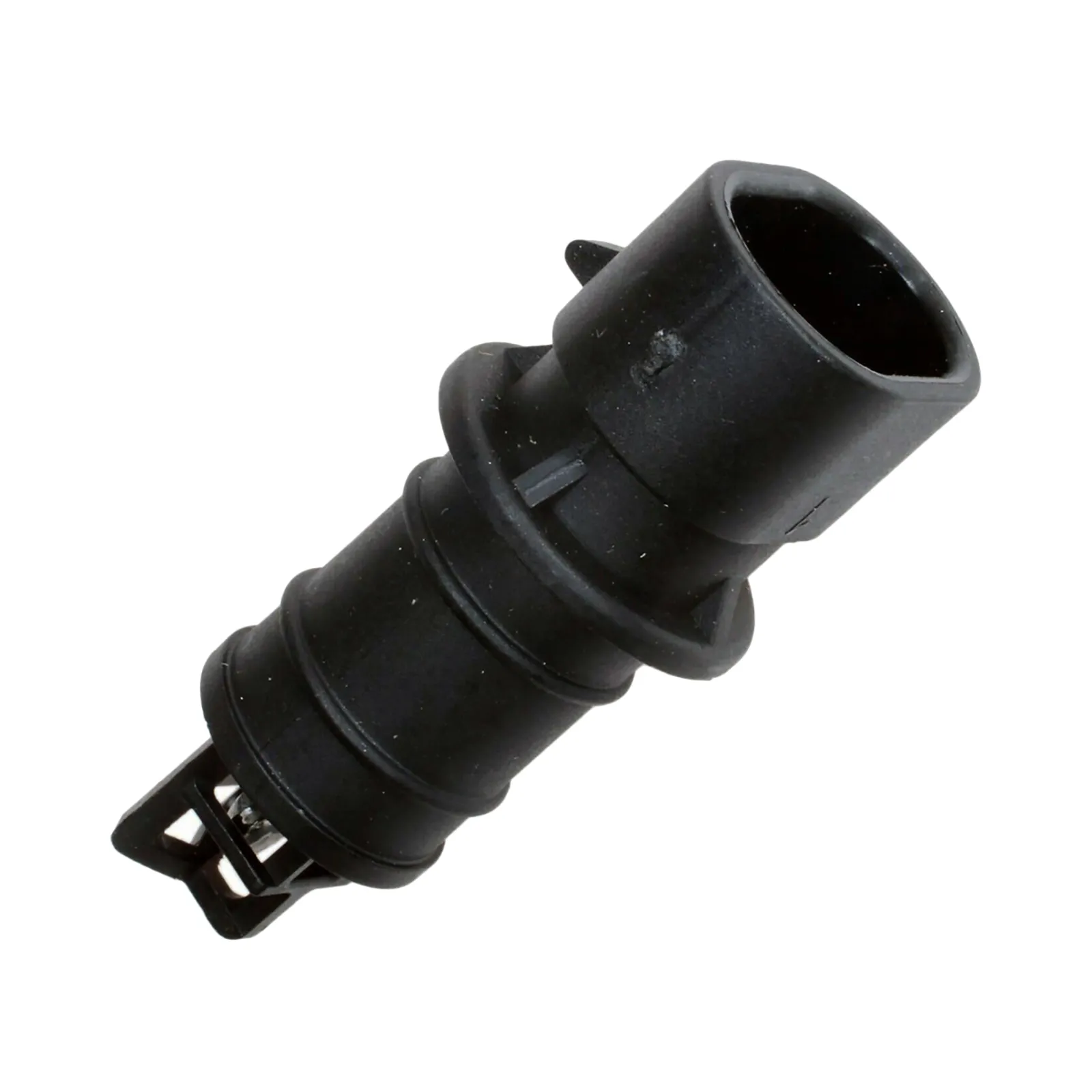

Intake Air Temperature Sensor Fits Holden Monaro V2 VZ 5.7L V8 Ls1 2001-05

BRAND NEW *OEM QUALITY* INTAKE AIR TEMPERATURE SENSOR TO SUIT GM HOLDEN 5.7L V8 LS1 Engine

TO SUIT:

HOLDEN 5.7L V8 LS1 ENGINES

[2000-2007] COMMODORE/CALAIS VU VX VY BERLINA VZ
[2001-2005] MONARO V2 VZ
[1999-2005] STATESMAN/CAPRICE WH WK WL

Also fits

HSV CLUBSPORT COUPE GTS GRANGE MALOO SENATOR WITH LS1 ENGINE

OEM#

12110319, 25037352, 12160244, 8121103190, 8121602440, 6238086, 8-12160-244-0

PACKAGE INCLUDES:

1 X *OEM QUALITY* INTAKE AIR TEMPERATURE SENSOR (2 PIN PLUG).

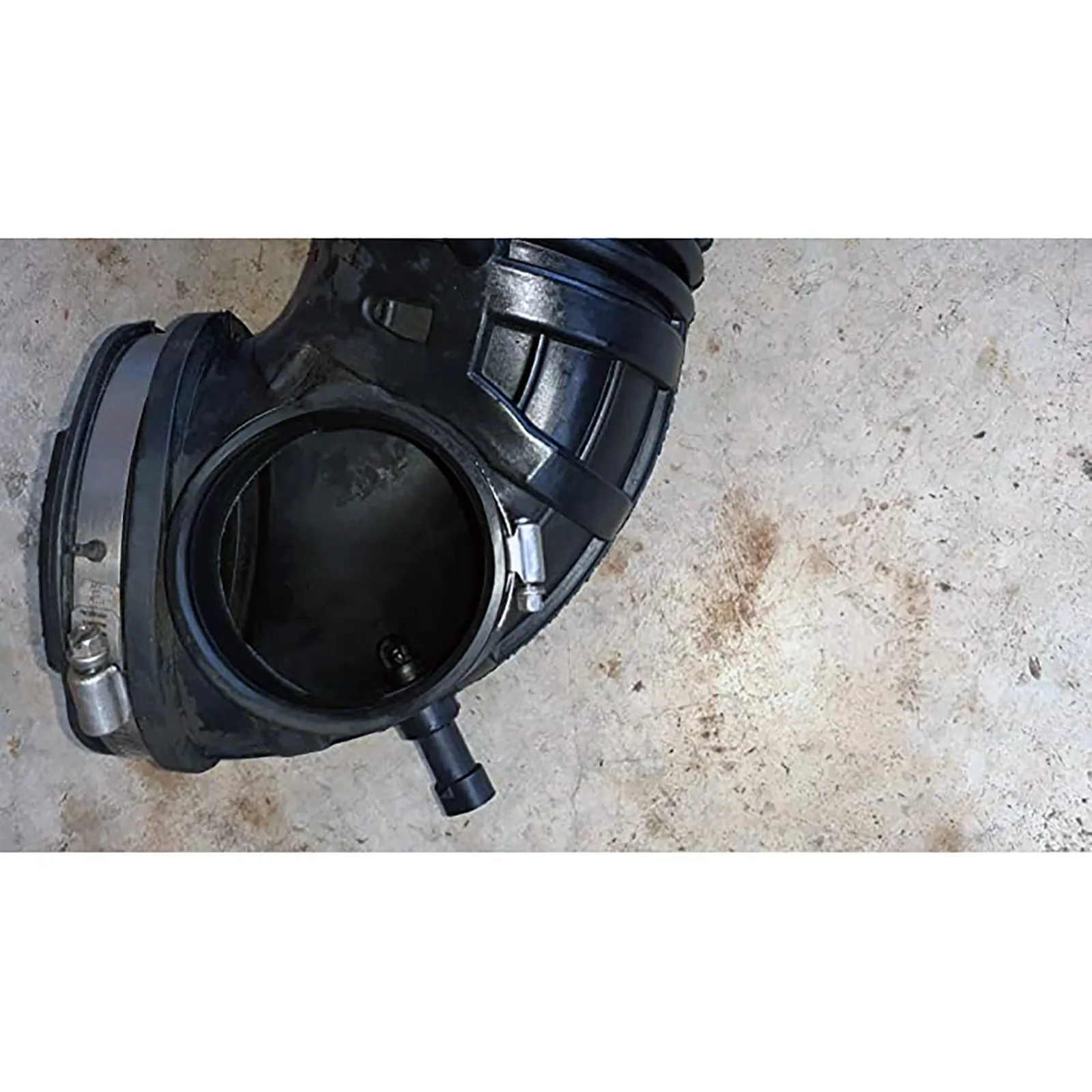

The sensor is Located In the Air Intake Hose.

The Intake Air Temperature Sensor measures the temperature of the air entering the engine and sends this information to the engine control unit (ECU). This data helps the ECU adjust the air-fuel mixture to ensure optimal combustion. The sensor is usually located near the intake manifold or air intake duct.

If the intake air temperature sensor fails or malfunctions, it can lead to poor fuel efficiency, rough idling, or even engine performance problems.

[12/01 - 01/03] HOLDEN MONARO V2 i V8 5.7L V8 LS1 225kW
[01/03 - 08/03] HOLDEN MONARO V2 i V8 5.7L V8 LS1 235kW
[08/03 - 09/04] HOLDEN MONARO V2 i V8 5.7L V8 LS1 245kW
[09/04 - 07/06] HOLDEN MONARO VZ i V8 5.7L V8 LS1 260kW

Identification
SKU	CAT006-2
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CAT006
Reference OEM Number	12160244
Other OEM Numbers	12110319, 12160244, 8121103190, 8121602440
Related Part Numbers	AT330, CAT006, ATS1030, ATS-012
Trade Part Numbers	DELPHI: TS10072-15B1, VEMO: V40-72-0650, WALKER: 210-1020
Product Specifics
Sensor Type	Intake Air Temperature Sensor
Placement On Vehicle	Located In Air Intake Hose
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year

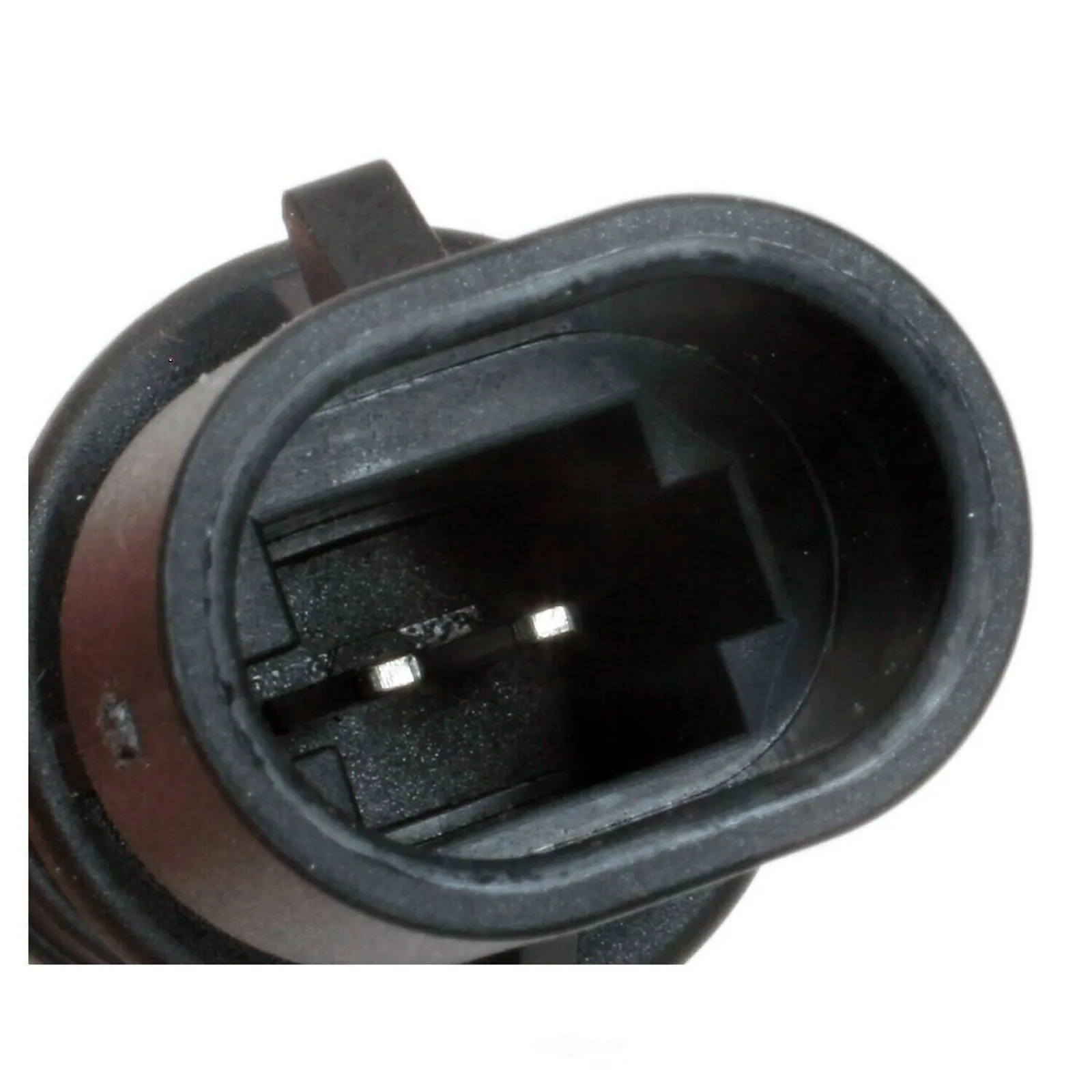

Number of pins	2 -pin connector
Connector Shape	oval
Housing Colour	Black
Mounting Type	Pressed
Housing Diameter	19 mm
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.160 m
Shipping Height	0.030 m
Shipping Length	0.230 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
Unit Of Measure	ea
