Air Temperature Sensor for Holden HSV GTS Avalanche Clubsport Grange Maloo Senator

BRAND NEW *OEM QUALITY* INTAKE AIR TEMPERATURE SENSOR TO SUIT HOLDEN HSV GTS Avalanche Clubsport Grange Maloo Senator LS1 Engines

TO SUIT:

OEM#

12110319, 25037352, 12160244, 8121103190, 8121602440, 6238086, 8-12160-244-0

PACKAGE INCLUDES:

1 X *OEM QUALITY* INTAKE AIR TEMPERATURE SENSOR (2 PIN PLUG).

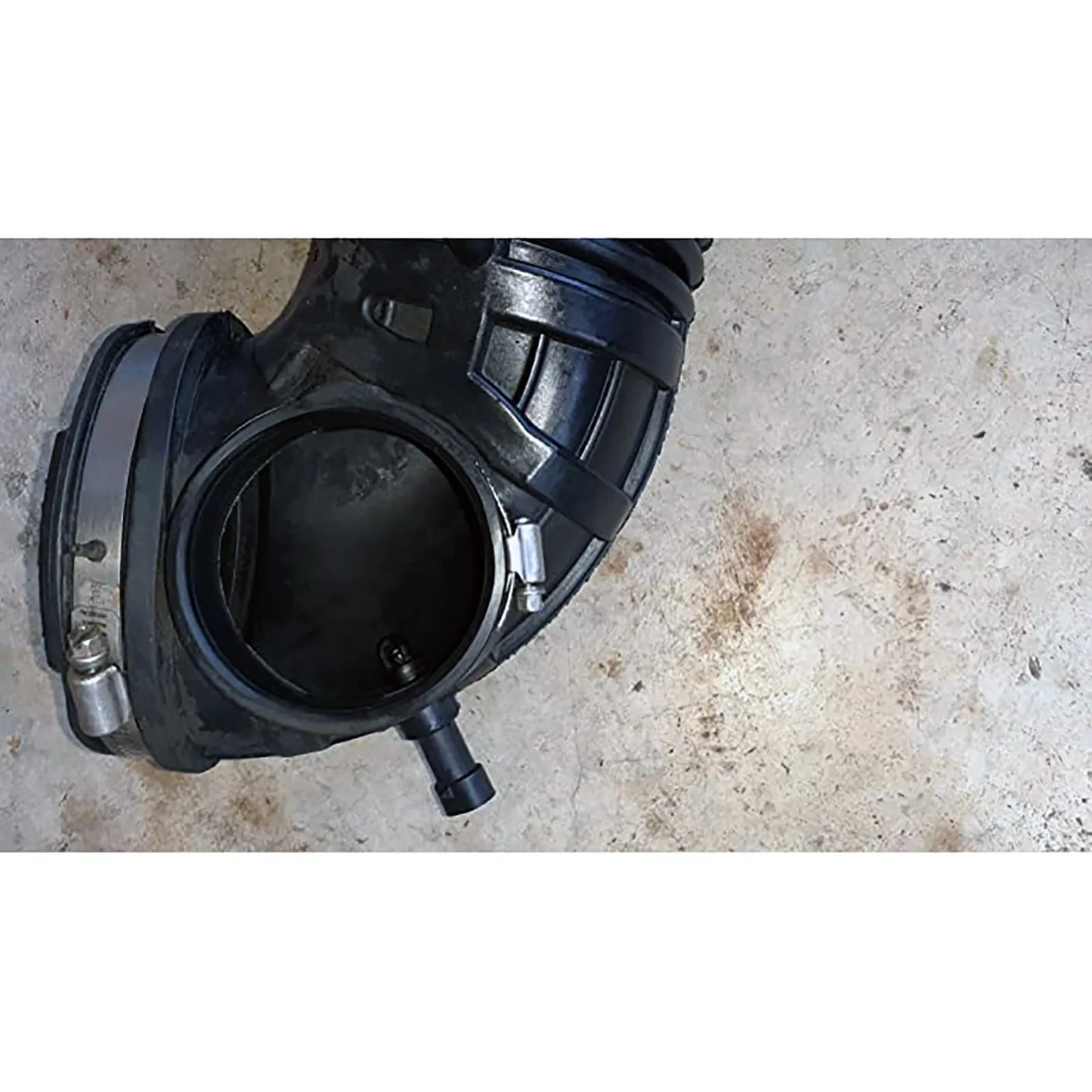

The sensor is Located In the Air Intake Hose.

The Intake Air Temperature Sensor measures the temperature of the air entering the engine and sends this information to the engine control unit (ECU). This data helps the ECU adjust the air-fuel mixture to ensure optimal combustion. The sensor is usually located near the intake manifold or air intake duct.

If the intake air temperature sensor fails or malfunctions, it can lead to poor fuel efficiency, rough idling, or even engine performance problems.

[10/03 - 04/06] HSV AVALANCHE VY i V8 5.7L V8 LS1 260kW
[01/04 - 01/06] HSV AVALANCHE VZ 5.7L V8 LS1 270kW
[07/99 - 10/00] HSV CLUBSPORT VT i V8 5.7L V8 LS1 250kW
[09/00 - 09/02] HSV CLUBSPORT VX i V8 5.7L V8 LS1 255kW
[09/03 - 08/03] HSV CLUBSPORT VY i V8 5.7L V8 LS1 260kW
[09/03 - 09/04] HSV CLUBSPORT VY i V8 5.7L V8 LS1 285kW
[07/04 - 04/06] HSV COUPE 4 VZ i V8 5.7L V8 LS1 270kW
[07/99 - 11/00] HSV GRANGE WH i V8 5.7L V8 LS1 250kW
[10/00 - 09/03] HSV GRANGE WH i V8 5.7L V8 LS1 255kW
[10/03 - 09/04] HSV GRANGE WK i V8 5.7L V8 LS1 285kW
[03/01 - 08/03] HSV GTO V2 i V8 5.7L V8 LS1 255kW
[09/03 - 09/04] HSV GTO VX,VZ i V8 5.7L V8 LS1 285kW
[03/01 - 09/04] HSV GTS V2 i V8 5.7L V8 LS1 300kW
[09/97 - 06/99] HSV GTS VT i V8 5.7L V8 HSVV8 220kW
[09/00 - 08/01] HSV GTS VX i V8 5.7L V8 LS1 300kW
[10/02 - 09/04] HSV GTS VY i V8 5.7L V8 LS1 300kW
[03/01 - 09/02] HSV MALOO VU i V8 5.7L V8 LS1 255kW
[10/02 - 09/03] HSV MALOO VY i V8 5.7L V8 LS1 260kW
[10/03 - 09/04] HSV MALOO VY i V8 5.7L V8 LS1 285kW
[07/99 - 06/99] HSV SENATOR VT i V8 5.7L V8 HSVV8 220kW
[07/99 - 06/99] HSV SENATOR VT i V8 5.7L V8 HSVV8 230kW
[07/99 - 08/00] HSV SENATOR VT i V8 5.7L V8 LS1 250kW
[09/00 - 09/02] HSV SENATOR VX i V8 5.7L V8 LS1 255kW
[09/00 - 09/02] HSV SENATOR VX i V8 5.7L V8 LS1 300kW
[10/02 - 08/03] HSV SENATOR VY i V8 5.7L V8 LS1 260kW
[09/03 - 09/04] HSV SENATOR VY i V8 5.7L V8 LS1 285kW
[09/01 - 12/01] HSV SV300 VX i V8 5.7L V8 LS1 300kW

Identification
SKU	CAT006-HSV
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CAT006
Reference OEM Number	12160244
Other OEM Numbers	12110319, 12160244, 8121103190, 8121602440
Related Part Numbers	AT330, CAT006, ATS1030, ATS-012
Trade Part Numbers	DELPHI: TS10072-15B1, VEMO: V40-72-0650, WALKER: 210-1020
Product Specifics
Sensor Type	Intake Air Temperature Sensor
Placement On Vehicle	Located In Air Intake Hose
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year

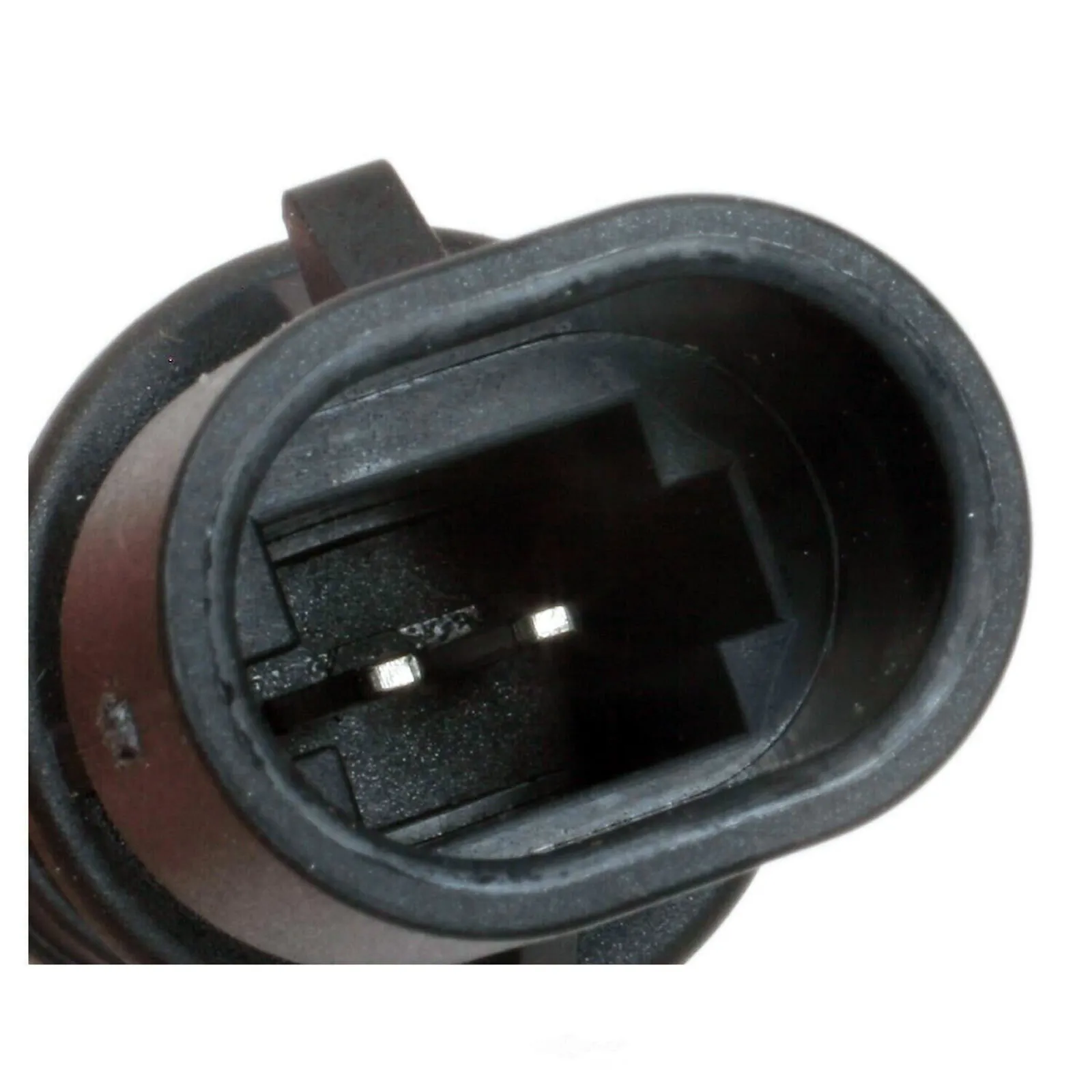

Number of pins	2 -pin connector
Connector Shape	oval
Housing Colour	Black
Mounting Type	Pressed
Housing Diameter	19 mm
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.160 m
Shipping Height	0.030 m
Shipping Length	0.230 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
Unit Of Measure	ea
