A/C Pressure Switch for Hyundai I30 FD GD PD Crd Gdi 1.6L 1.8L 2.0L

BRAND NEW *OEM QUALITY* AIR CONDITIONING PRESSURE SENSOR / AIRCON PRESSURE SWITCH TO SUIT Hyundai I30 FD GD PD Crd Gdi 1.6L 1.8L 2.0L

TO SUIT:

OEM#

977211G000, 97721-1G000, 977213K000, 97721-3K000

PACKAGE INCLUDES:

1 X *OEM QUALITY* AIR CONDITIONING PRESSURE SENSOR (3- PIN PLUG)

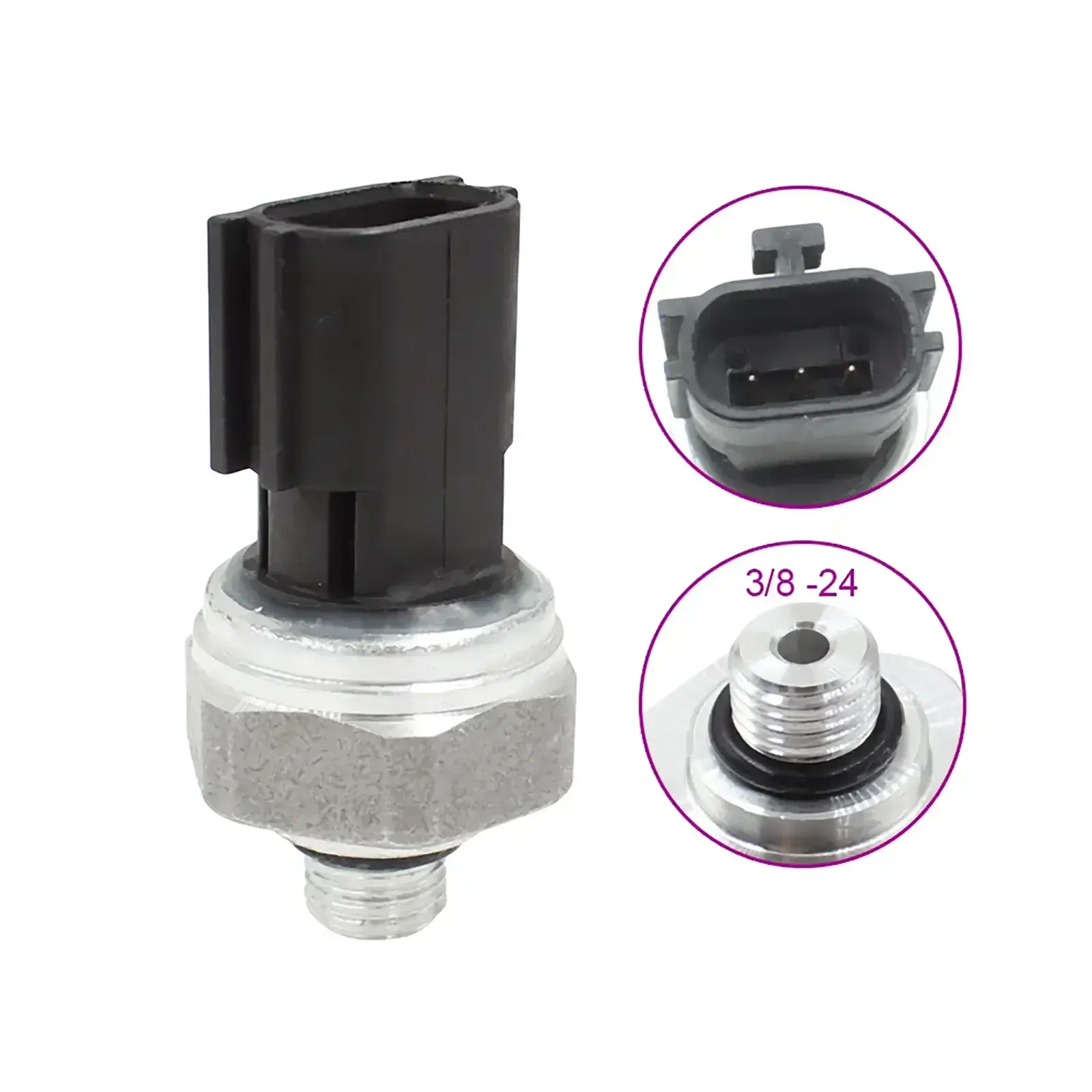

Thread: 3/8-24UNF, 3 Pin, Includes O Ring

The Air Conditioning (A/C) pressure switch’s main function is to monitor refrigerant pressures on both the high and low sides of your vehicle's A/C system. it provides a safety cut-off when pressures are outside their limits.
The most common symptom of a faulty A/C pressure switch is intermittent or no function of the A/C system.

[10/07 - 11/11] HYUNDAI i30 FD CRDi 1.6L 4cyl D4FB Euro 4 85kW
[02/08 - 06/12] HYUNDAI i30 FD CRDi 1.6L 4cyl D4FB Euro 4 85kW
[12/14 - 12/16] HYUNDAI i30 GD CRDi 1.6L 4cyl D4FB Euro 4 100kW
[06/12 - 01/16] HYUNDAI i30 GD CRDi 1.6L 4cyl D4FB Euro 4 100kW
[12/11 - 12/15] HYUNDAI i30 GD CRDi 1.6L 4cyl D4FB Euro 4 94kW
[06/12 - 12/15] HYUNDAI i30 GD CRDi 1.6L 4cyl D4FB Euro 4 94kW
[02/08 - 06/12] HYUNDAI i30 FD 1.6L 4cyl G4FC Euro 4 85kW
[10/07 - 05/12] HYUNDAI i30 FD 1.6L 4cyl G4FC Euro 4 90kW
[12/11 - 12/16] HYUNDAI i30 GD GDI 1.6L 4cyl G4FD Euro 4 99kW
[06/12 - 01/16] HYUNDAI i30 GD GDI 1.6L 4cyl G4FD Euro 4 99kW
[05/13 - 12/15] HYUNDAI i30 GDI 1.6L 4cyl G4FD Euro 4 99kW
[11/16 ON] HYUNDAI i30 PD/ PDE/ PDEN T-GDi 1.6L 4cyl G4FJ 150kW
[08/20 ON] HYUNDAI i30 CN7 VII T-GDi 1.6L 4cyl G4FP Euro 5 150kW
[10/07 - 05/12] HYUNDAI i30 FD 2.0L 4cyl G4GC Euro 4 105kW
[02/08 - 06/12] HYUNDAI i30 FD 2.0L 4cyl G4GC Euro 4 105kW
[08/13 - 01/17] HYUNDAI i30 GD 1.8L 4cyl G4NB 107kW
[01/12 - 01/17] HYUNDAI i30 GD 1.8L 4cyl G4NB 110kW
[12/14 - 02/17] HYUNDAI i30 GD 2.0L 4cyl G4NC 124kW
[09/13 - 11/14] HYUNDAI i30 GD 2.0L 4cyl G4NC 129kW

Identification
SKU	AC124-i30
Brand	OEM
Part Numbers
Part Number	977213K000
Reference OEM Number	97721-3K000
Other OEM Numbers	977211G000, 97721-1G000, 977213K000, 97721-3K000
Related Part Numbers	AC124
Trade Part Numbers	DENSO: DPS41001, NTY: EAC-HY-000, VEMO: V52-73-0034
Product Specifics
Product Type	sensor
Sensor Type	AIR CONDITIONING PRESSURE SENSOR / SWITCH
Thread Size	3/8-24 UNF
Spanner Size	24
Number of pins	3 -pin connector
Connector Shape	oval
Rated Voltage	12 V
Plug Type	Male
Thread Type	UNF Thread
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.230 m
Shipping Height	0.050 m
Shipping Length	0.160 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
